DB3J201K
Silicon epitaxial planar type
For high frequency rectification
DB3X201K in SMini3 type package
Features
Low forward voltage V
F
Small reverse current I
R
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

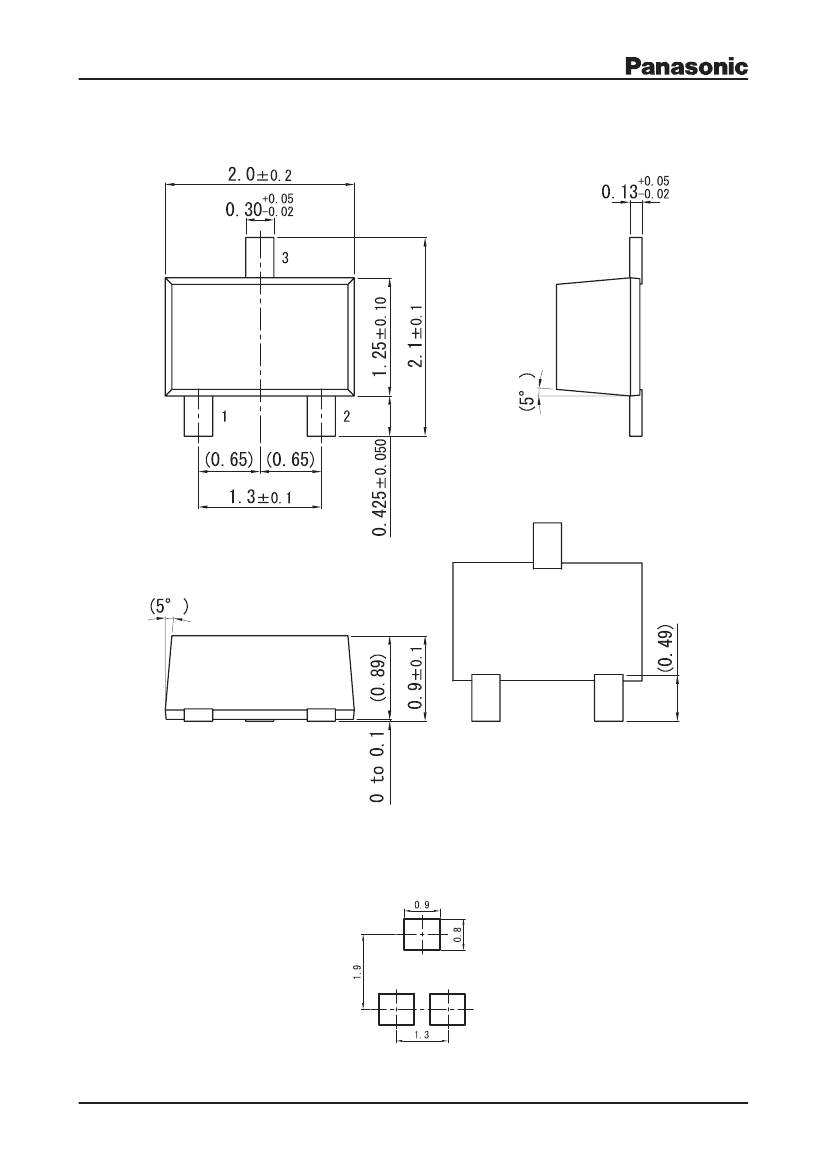

Unit: mm
Marking Symbol: 3B
Packaging
DB3J201K0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
1: Anode
2: N.C.
3: Cathode
Panasonic
JEITA
Code
3
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Reverse voltage
Repetitive peak reverse voltage
Forward current (Average)
Non-repetitive peak forward surge current
*1
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
R
V
RRM
I
F(AV)
I
FSM
T
j
T
opr
T
stg
Rating
20
20
500
3
125
–40 to +85
–55 to +125
Unit
V
V
mA
A
°C
°C
°C
SMini3-F2-B
SC-85
Note) *1: 50 Hz sine wave 1 cycle (Non-repetitive peak current)
1
2
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Forward voltage
Reverse current
Terminal capacitance
Reverse recovery time
*1
Symbol
V
F1
V
F2
I
R1
I
R2
C
t
t
rr
I
F
= 10 mA
I
F
= 500 mA
V
R
= 5 V
V
R
= 10 V
V
R
= 10 V, f = 1 MHz
I
F
= I
R
= 100 mA, I
rr
= 0.1
×
I
R
, R
L
= 100
Ω
12
4.3
Conditions
Min
Typ
Max
0.4
0.55
1
10
Unit
V
mA
pF
ns
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.
2. This product is sensitive to electric shock (static electricity, etc.). Due attention must be paid on the charge of a human body and the leakage
of current from the operating equipment.
3. Absolute frequency of input and output is 400 MHz
*1: t
rr
measurement circuit
Bias Application Unit (N-50BU)
t
r
10%
Input Pulse
t
p
Output Pulse
t
I
F
t
rr
t
A
V
R
Wave Form Analyzer
(SAS-8130)
R
i
= 50
Ω
Ver. CED
90%
t
p
= 2
µs
t
r
= 0.35 ns
δ
= 0.05
Pulse Generator
(PG-10N)
R
s
= 50
Ω
Publication date: May 2013
I
rr
=
0.1
×
I
R
I
F
= 100 mA
I
R
= 100 mA
R
L
= 100
Ω
1
