Pluggable Terminal Blocks MCD 1,5/6-G1-3,81 OG
CategoryThe connector
File Size81KB,3 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1702367 Online Shopping

Suppliers Part Number Price MOQ In stock
1702367 - - View Buy Now

1702367 Overview

Pluggable Terminal Blocks MCD 1,5/6-G1-3,81 OG

1702367 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPHOENIX CONTACT
Reach Compliance Codecompliant
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
https://www.phoenixcontact.com/pi/products/1702367

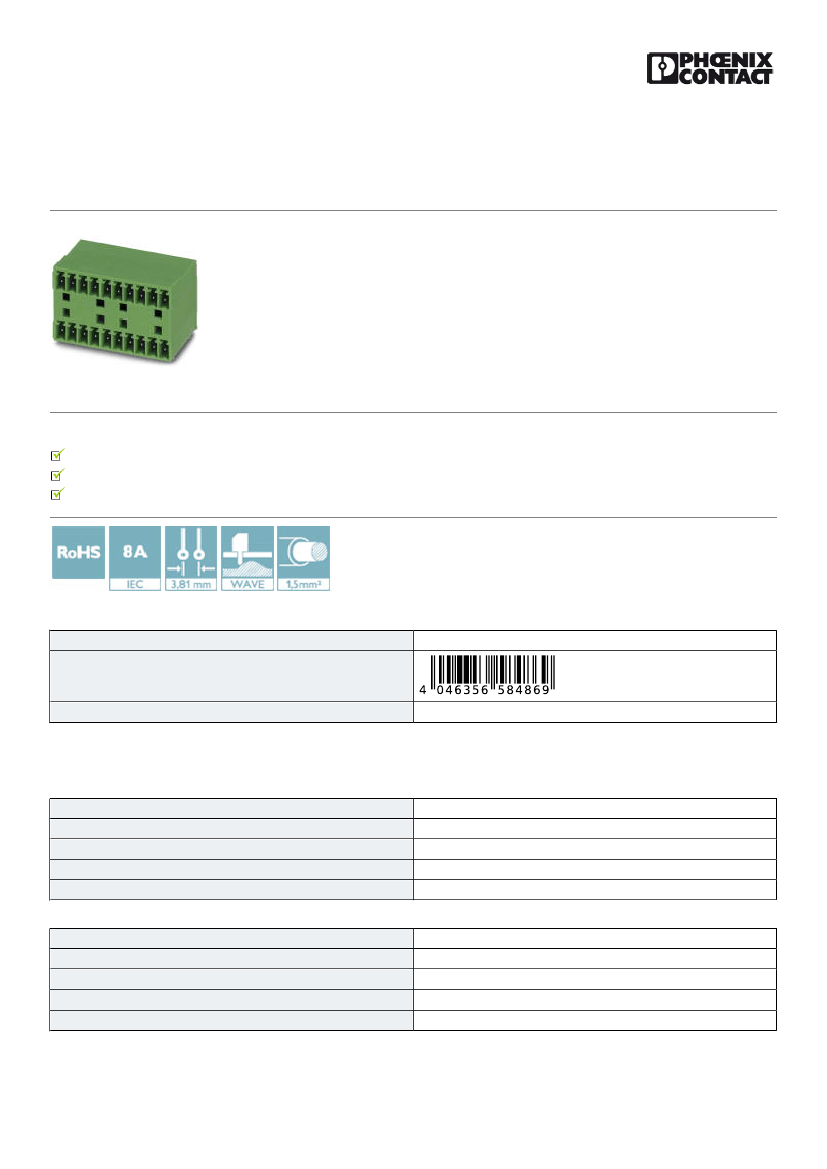

Printed-circuit board connector - MCD 1,5/ 6-G1-3,81 OG - 1702367
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 8 A, number of positions: 6, pitch: 3.81 mm, color: orange, contact surface:
Tin, mounting: Wave soldering
The figure shows a 10-pos. version
with 20 contacts
Your advantages
 Well-known mounting principle allows worldwide use
 Conductor connection on several levels enables higher contact density
 Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Key Commercial Data
Packing unit
GTIN
GTIN
4046356584869
50 pc
Technical data
Dimensions
Pitch
Dimension a
Height
Length of the solder pin
Pin dimensions
3.81 mm
19.05 mm
23 mm
3.5 mm
0.8 x 0.8 mm
General
Range of articles
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Color
MCD 1,5/..-G1
160 V
EN-VDE
8A
orange
11/02/2018   Page 1 / 3
