354180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 354180

354180: DescriptionBoard to Board & Mezzanine Connectors 50P 10MM SMT VERT FEMALE B-B HS; CategoryThe connector; File Size94KB，2 Pages; ManufacturerERNI Electronics; Environmental Compliance

Download Datasheet Parametric View All

354180 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354180	-	-	View	Buy Now

354180 Overview

Board to Board & Mezzanine Connectors 50P 10MM SMT VERT FEMALE B-B HS

354180 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ERNI Electronics
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Connectors
Number of Positions	50 Position
Pitch	1 mm, 1.5 mm
Number of Rows	2 Row
Termination Style	SMD
Mounting Angle	Vertical
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Contact Plating	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Stack Height	10 mm
Factory Pack Quantity	260

Preview

Download Datasheet

View All

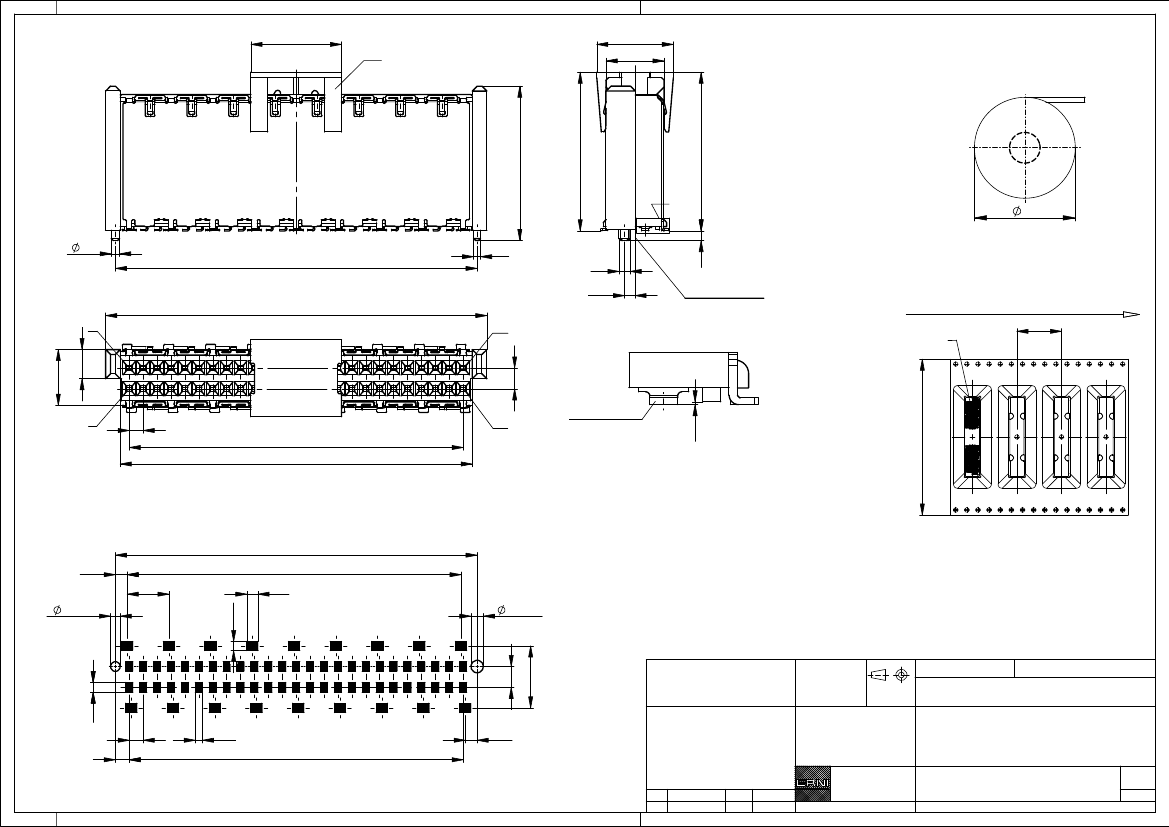

6,5

Montagehaube

5,5

hood

4,15

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 260 Stück

Packaging unit: 260 pcs

11,4

11,1

11,4

330

0,8

0,75

Mitte Steckgesicht

center matingface

Einzelheit X

M 20:1

0,7

0,6

0,5

27,4

b25

Abspulrichtung -

Reel off Direction

2,1

1,5

0,05

24 x 1 = 24

25,3

a25

signaling contact

Leiterplatten-Layout Vorschlag /

PCB-layout proposal

±0,03

0,85

0,65

0,7

±0,03

8 x 3 = 24

0,8

0,9

±0,03

Anforderungsstufe 1

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

4,45

Information:

Tolerances

All Dimensions

in mm

Proprietary notice pursuant to ISO 16016 to be observed.

0,7

1,5

Scale

5:1

0,5

24 x 1 = 24

0,85

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

25.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

F10 MSpeed BlindMate 50 SMD

1) Durchmesser des Bohrers /

Drill tool

www.ERNI.com

Class

354180

MSPEED
