Part Number

Search

34695-9100

Description
Automotive Connectors POWERSTAC VHDR 10 CKT BLK POL A TUBE
CategoryThe connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

34695-9100 Online Shopping

Suppliers Part Number Price MOQ In stock
34695-9100 - - View Buy Now

34695-9100 Overview

Automotive Connectors POWERSTAC VHDR 10 CKT BLK POL A TUBE

34695-9100 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryAutomotive Connectors
RoHSDetails
ProductHeaders
Number of Positions10 Position
Mounting StylePCB Mount
Termination StyleThrough Hole
Contact PlatingTin
ColorBlack
Current Rating30 A
Housing MaterialThermoplastic
Mounting AngleVertical
Mounting MethodWire to Board
Number of Rows2 Row
TypePolarization Option A
Voltage Rating500 V
Contact MaterialHigh Copper
Pitch3.5 mm, 5.25 mm
Maximum Operating Temperature+ 100 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity896
Unit Weight0.310058 oz

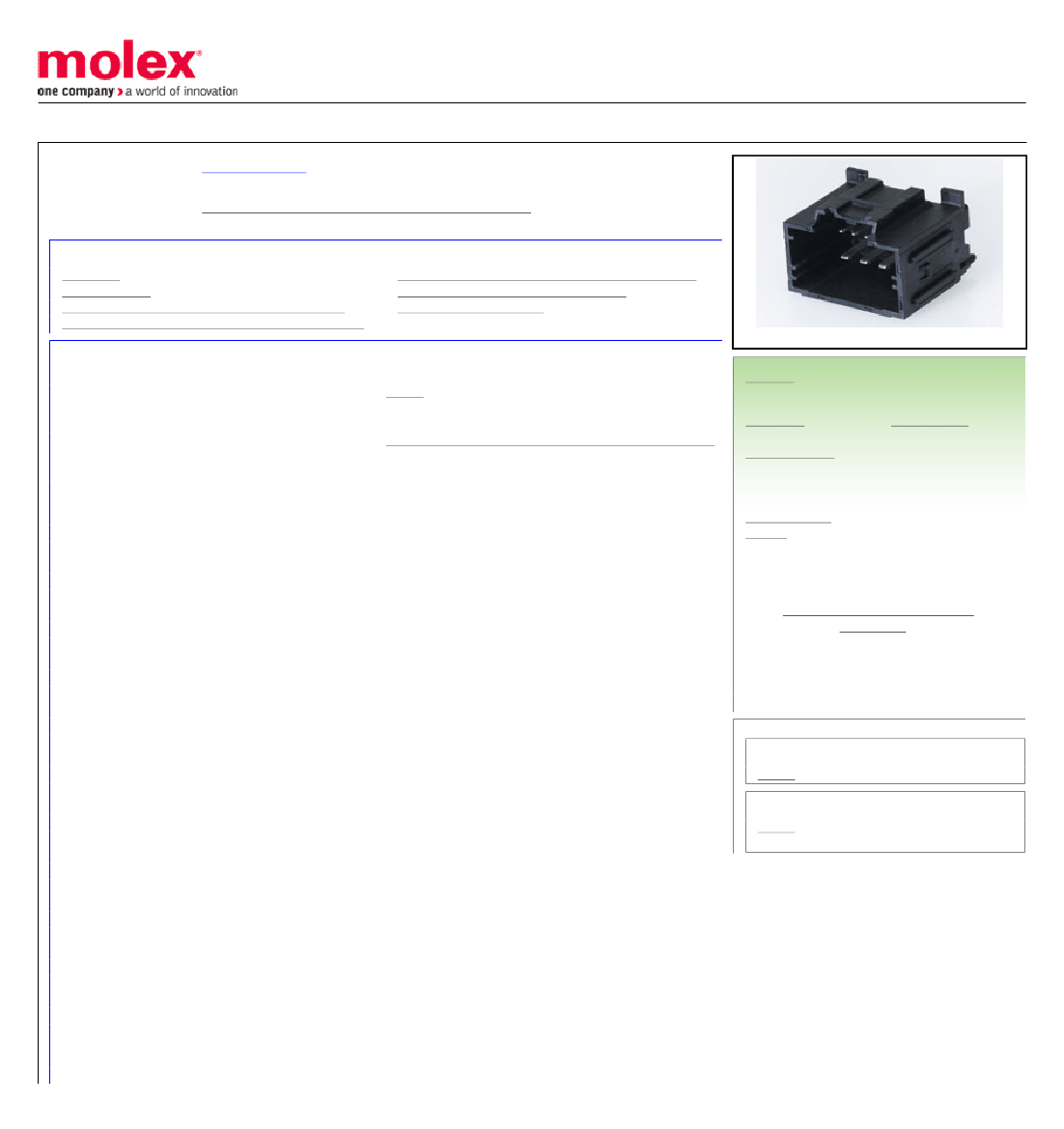

This document was generated on 03/02/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0346959100
Active
Stac64 Single, Multi-Pocket and Hybrid Header System
Stac64 Single Bay Vertical Power Header, 10 Circuits, Polarization A, Black, Tube
Documents:
3D Model
Drawing (PDF)
Product Specification PS-31372-100-001 (PDF)
Application Specification AS-34729-020-001 (PDF)
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Packaging Specification PK-31301-063-001 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series image - Reference only
PCB Headers
34695
Power, Wire-to-Board
Polarization A
Stac64 Single, Multi-Pocket and Hybrid Header System
987650-4561
Stac64
883906211721
No
10
10
Black
10
No
No
No
None
Yes
High Copper
Tin
Tin
High Temperature Thermoplastic
8.790/g
2
Vertical
3.36mm
Yes
None
1.57mm
Tube
3.50mm, 5.25mm
3.50mm, 5.25mm
Yes
Yes
Yes
No
N/A
-40°C to +100°C
Through Hole
18.0A, 30.0A
500V
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Search Parts in this Series
34695 Series
Mates With
31372 5.25mm (.206") Pitch Hybrid
Receptacle Assembly
