Part Number

Search

39543-1221

Description
Fixed Terminal Blocks 5.0MM EUROBLOCK PC 4 PC 45 BLK 10A 21CKT
CategoryThe connector
File Size37KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39543-1221 Online Shopping

Suppliers Part Number Price MOQ In stock
39543-1221 - - View Buy Now

39543-1221 Overview

Fixed Terminal Blocks 5.0MM EUROBLOCK PC 4 PC 45 BLK 10A 21CKT

39543-1221 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryFixed Terminal Blocks
RoHSDetails
Number of Positions21 Position
Pitch5 mm
Current Rating10 A
Voltage Rating300 V
Wire Gauge Range24 AWG to 14 AWG
Mounting Angle45 deg
ProductFixed Terminal Blocks
Factory Pack Quantity120
Wire Gauge Max14 AWG
Wire Gauge Min24 AWG
This document was generated on 10/11/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0395431221
Active
Eurostyle™ Terminal Blocks
5.00mm Pitch Eurostyle 45° Wire Entry Fixed Mount PCB Terminal Block, with Screw
Pressure Clamp, with Standard Imprinting, 21 Circuits
Documents:
3D Model
Drawing (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Comments
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Material Info
Reference - Drawing Numbers
Sales Drawing
RoHS Certificate of Compliance (PDF)

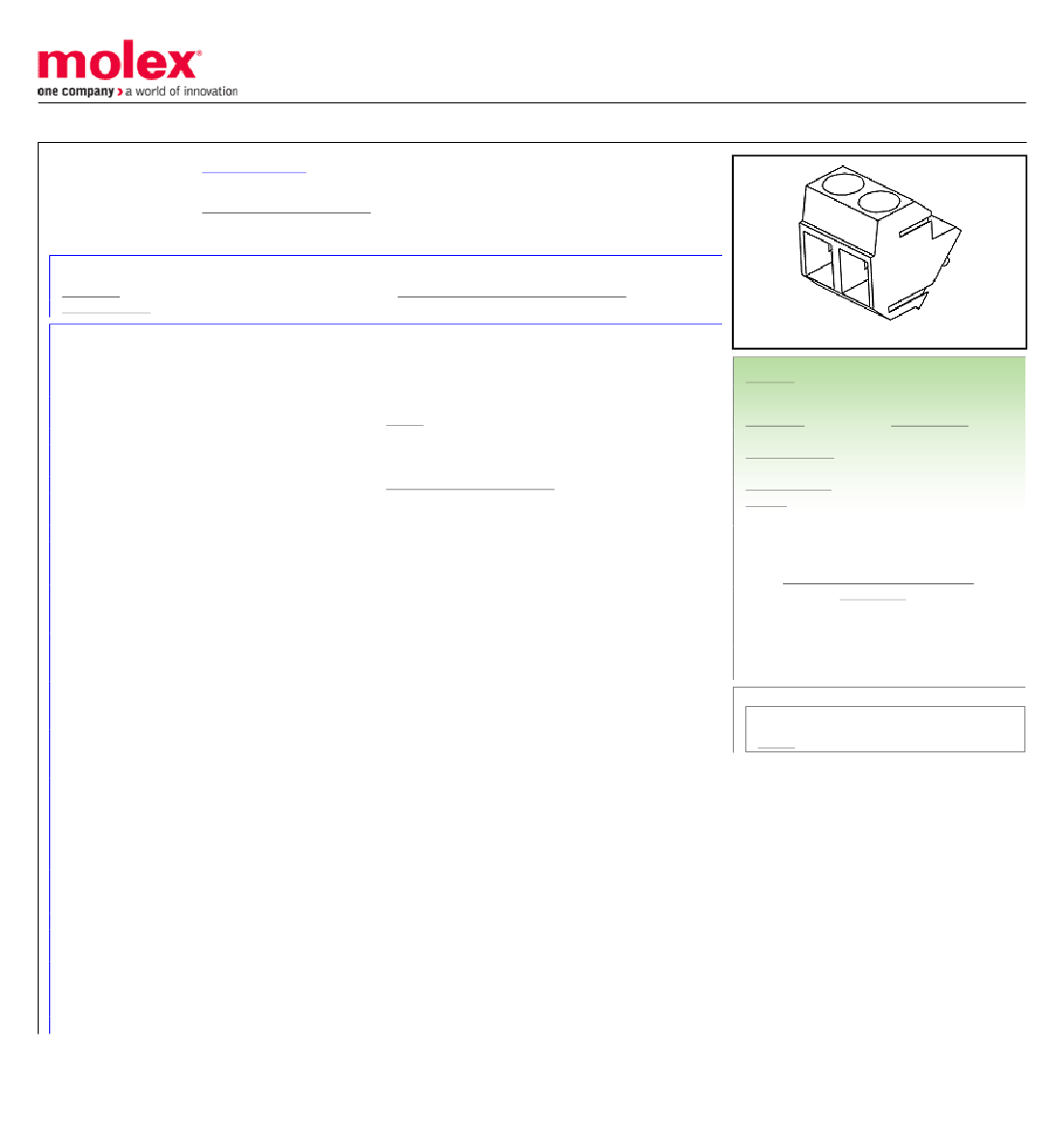

Series image - Reference only
E48521
Terminal Blocks
39543
N/A
with Standard Imprinting
One Piece
Eurostyle™ Terminal Blocks
ESE, Eurostyle Fixed Mount
Euro Block
822350539821
21
45° Angle
None
1
45° Angle
3.00mm
2.00mm
No
5.00mm
5.00mm
N/A
No
-40°C to +105°C
14, 16, 18, 20, 22, 24
0.20-2.08
10.0A
300V
005
WAVE
135
260
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Reviewed
Not Relevant
Not Reviewed
Search Parts in this Series
39543 Series
SD-39543-001
This document was generated on 10/11/2017
