502598-2993

Description
FFC & FPC Connectors 0.3 FPC Bck Flip Hsg Assy29CktEmbsTpPkg
CategoryThe connector    The connector
File Size26KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

502598-2993 Online Shopping

Suppliers Part Number Price MOQ In stock
502598-2993 - - View Buy Now

502598-2993 Overview

FFC & FPC Connectors 0.3 FPC Bck Flip Hsg Assy29CktEmbsTpPkg

502598-2993 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Factory Lead Time9 weeks
body width0.045 inch
subject depth0.15 inch
body length0.425 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedTIN
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance60 mΩ
Contact styleSQ PIN-SKT
Insulation resistance50000000 Ω
Insulator colorNATURAL
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee3
Plug contact pitch0.012 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
Plating thickness3.93u inch
Rated current (signal)0.2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.6096 mm
Termination typeSURFACE MOUNT
Total number of contacts29
Base Number Matches1

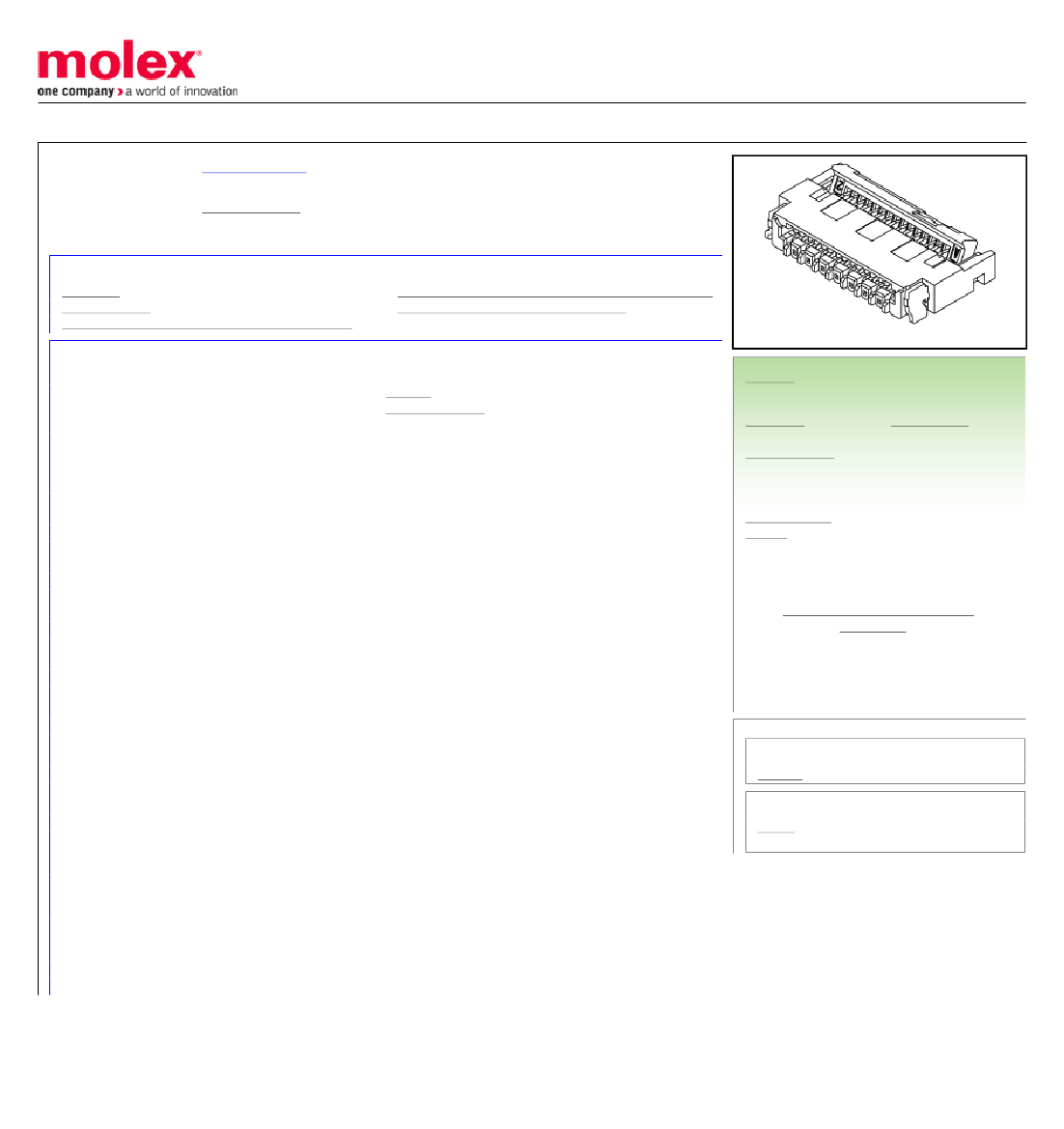

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5025982993
Active
FFC-FPC (SMT)
0.30mm Pitch Easy-On Back Flip FPC Connector, Right Angle, Surface Mount, Dual
Contact Style, 1.15mm Mated Height, 29 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-502598-002-001 (PDF)
General
Product Family
Series
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification SPK-502598-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
FFC/FPC Connectors
502598
FFC-FPC (SMT)
Easy-On
Back Flip
887191146430
29
Black, White
Dual
10
90° Angle
1.15mm
Copper Alloy, Phosphor Bronze
Gold
Gold, Tin
74.403/mg
1
Right Angle
No
Yes
Embossed Tape on Reel
0.30mm
Yes
No
-40°C to +105°C
Surface Mount
FPC only
0.2A
50V AC (RMS)/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
502598 Series
Mates With
15015 0.30mm Pitch Premo-Flex Etched
Polyimide Jumper
SPK-502598-001-001
PS-502598-002-001
SD-502598-003, SD-502598-004
This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
