5008.2114 Overview

AC Power Entry Modules 4A M5 INLET FILTER

5008.2114 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSCHURTER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Other featuresSTANDARDS: IEC/EN 60320-1/C8; UL 94V-0; UL 498; CSA C22.2; VDE, QUICK CONNECT
Connector typeMAINS POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
IEC complianceYES
MIL complianceNO
Power Connector Ratings4A, 250VAC
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation typePANEL
OptionsGENERAL PURPOSE
Shell materialPOLYETHYLENE
Termination typeSOLDER
Total number of contacts2
Base Number Matches1

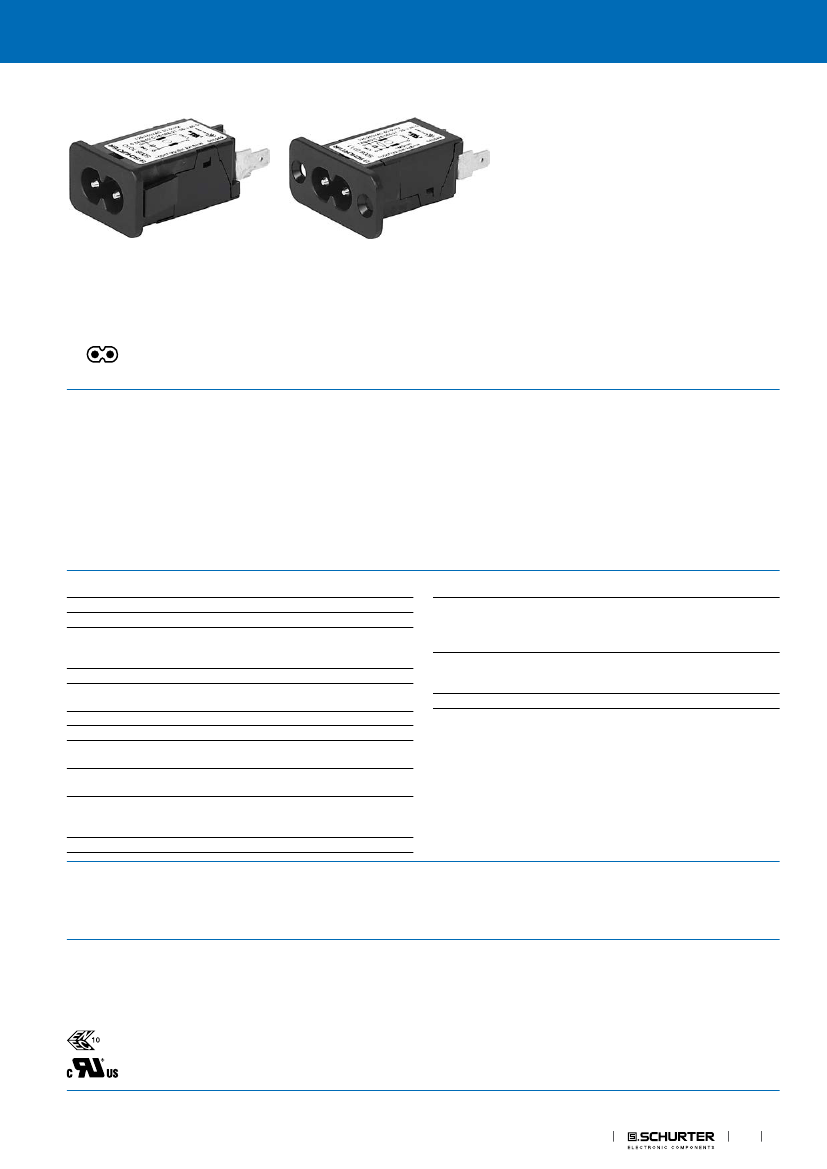

Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5008
IEC Appliance Inlet C8 with Filter, Front Side Mounting

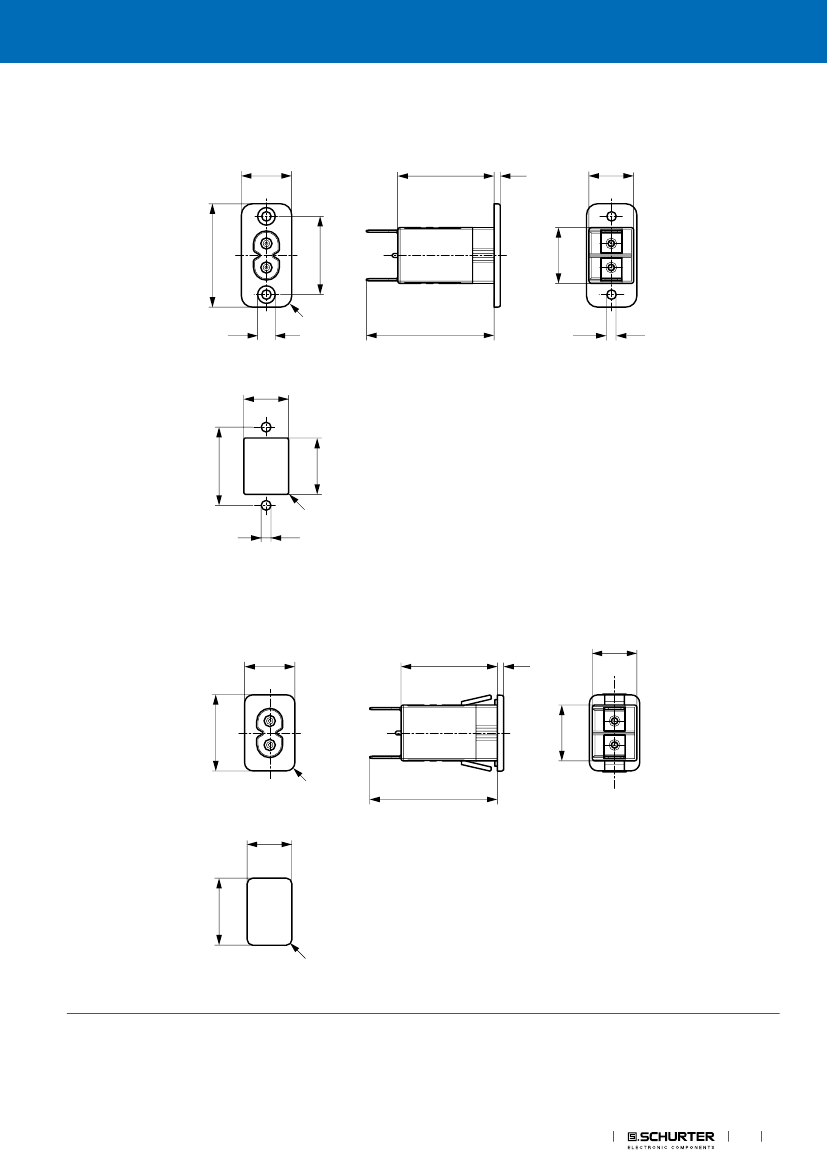

Snap-in mounting from front side
Screw-on mounting from front side
C8
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on or snap-in mounting from front side
- 2 Functions :
Appliance Inlet Protection class II , Line filter in standard and medical
version
- Solder terminals or quick connect terminals
Characteristics
- Compact high performance filter
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
References
Weblinks
- Standard version without X-capacitor
- Polarized C8 connector
Alternative: version without line filter
2576; 2578
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
0.5 - 2.5 A @ Ta 40 °C / 250 VAC; 50 Hz
0.5 - 6 A @ Ta 40 °C / 250 VAC; 60 Hz
> 1.7 kVDC between L-N
> 4 kVDC between L/N-PE
Test voltage (2 sec)
> 2.5 kV between L-N
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class II acc. to IEC 61140
solder pin or quick connect terminals
6.3 x 0.8 or 4.8 x 0.8 mm
Screw
Mounting screw torque max 0.5 Nm
Snap-in 1 mm to 3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C8 acc. to IEC 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class II
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 6'700'000 h acc. to MIL-HB-217 F

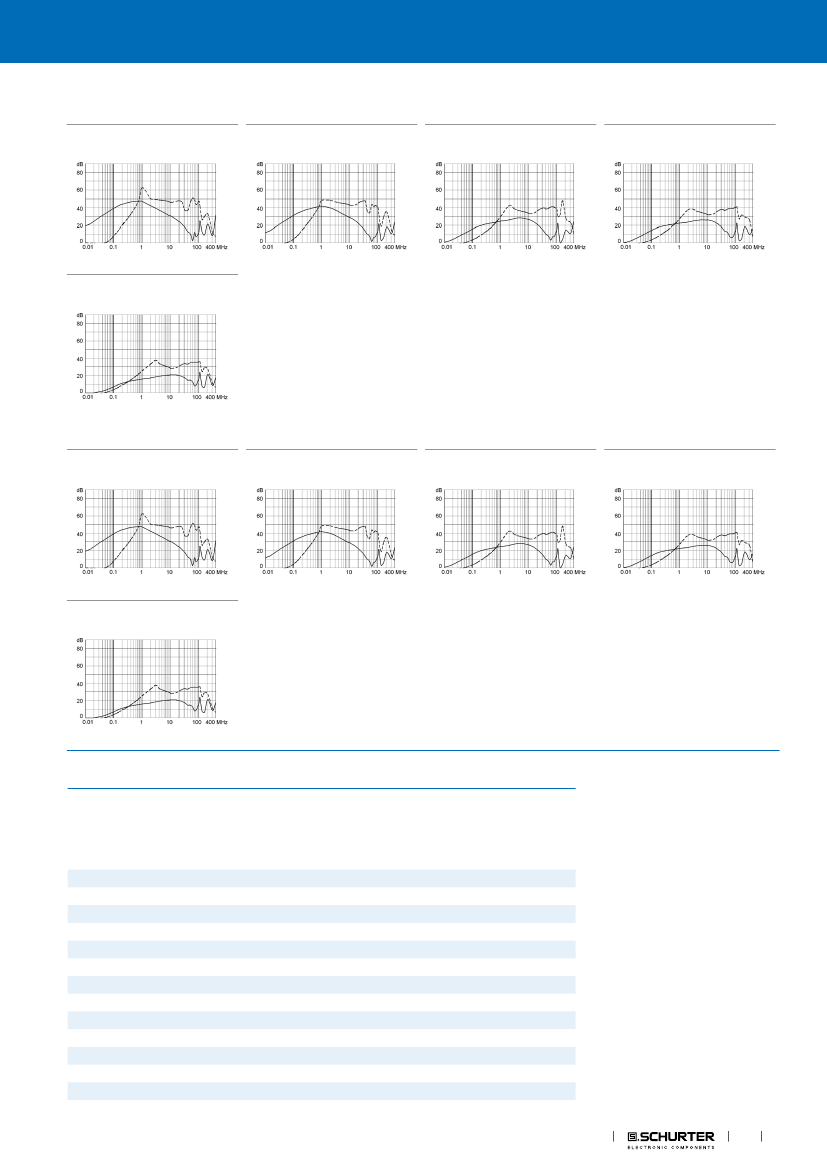

Line Filter
Impulse Withstand Voltage
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
MTBF
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5008
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40029278
UL File Number: E72928
EMC Products
