REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
JULY-04-2014
BY
BEN
APPR
TOMMY
15/16-20 UNEF THREAD
MASTER KEYWAY
.2
4-ø3
TITLE:
Ø25.3
31.0
24.6

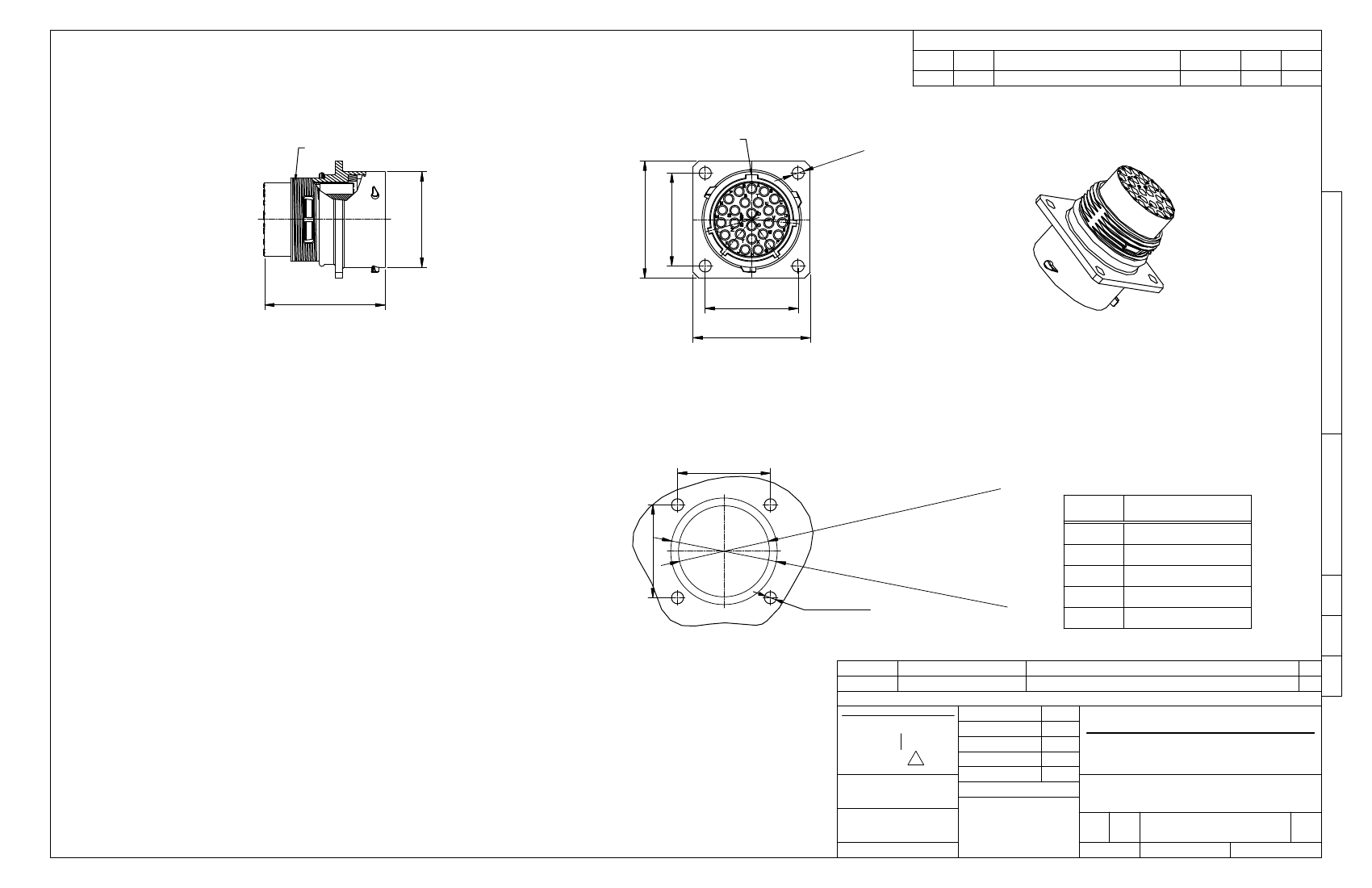

ECO-MATE, RECEPTACLE,SIZE 16,26POS,PIN.
31.9 Ref
24.6
31.0
DWG NO:
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
SEAL GASKET：NBR.
O-RING : NBR.
2. SPECIFICATIONS：
2.1 RATED CURRENT：
2.1.1 STAMPED CONTACT 5A (MAX).
2.1.2 MACHINED CONTACT 7.5A(MAX).
2.2 RATED VOLTAGE：150V（AC/DC）.
2.3 OPERATING TEMPERATURE：-40°C ½+105°C.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@1500 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES(MIN).
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
24.6
ont P
.2
(For Fr
+0
1
0
an
ntin
l M ou
e
g)
RT0W01626P*H
ø24.
KEY POS
N
W
X
Y
Z
PART NUMBER
RT0W01626PNH
RT0W01626PWH
RT0W01626PXH
RT0W01626PYH
RT0W01626PZH
24.6
ø28.2
+0.2
0
(For
Rear P
a
4-Ø
3.20
+0.2
0
PANEL CUT OUT
REFERENCE
QUANTITY
nel Mo
unting
)
REV:
B1
SH:
1
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
BEN
JULY-04-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE, RECEPTACLE,
SIZE 16,26POS,PIN.
TYPE
DWG NO:
REVISION
B
C-
RT0W01626P*H
SHEET
B1
OF
NONE
1
1
