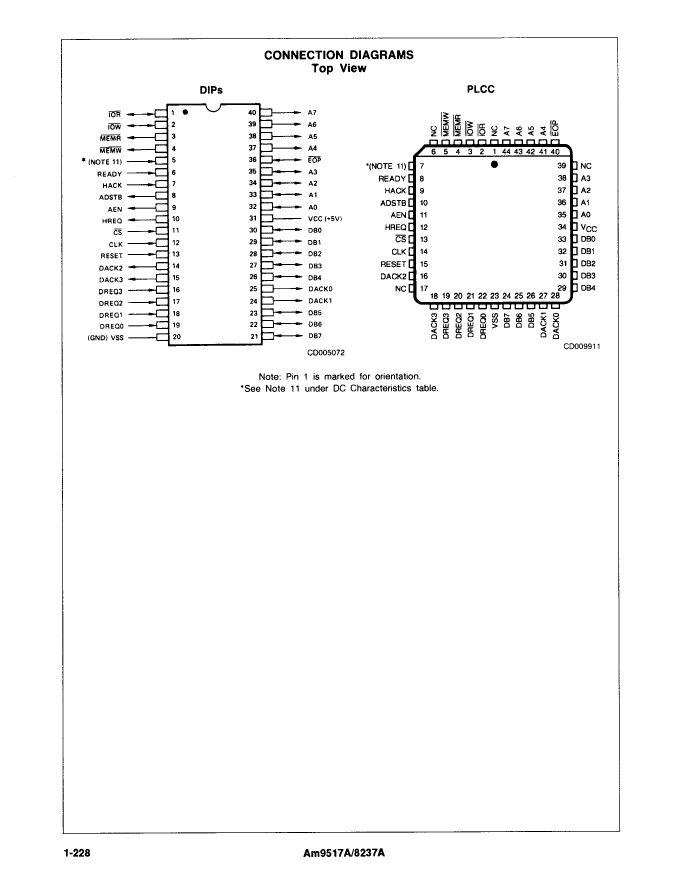

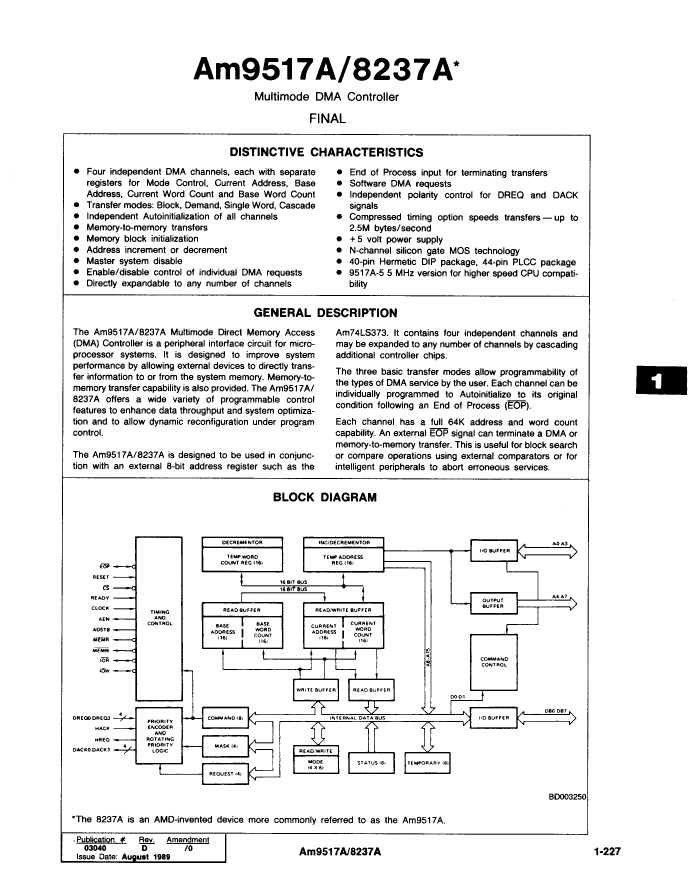

DMA Controller, 4 Channel(s), 5MHz, NMOS, PDIP40, PLASTIC, DIP-40

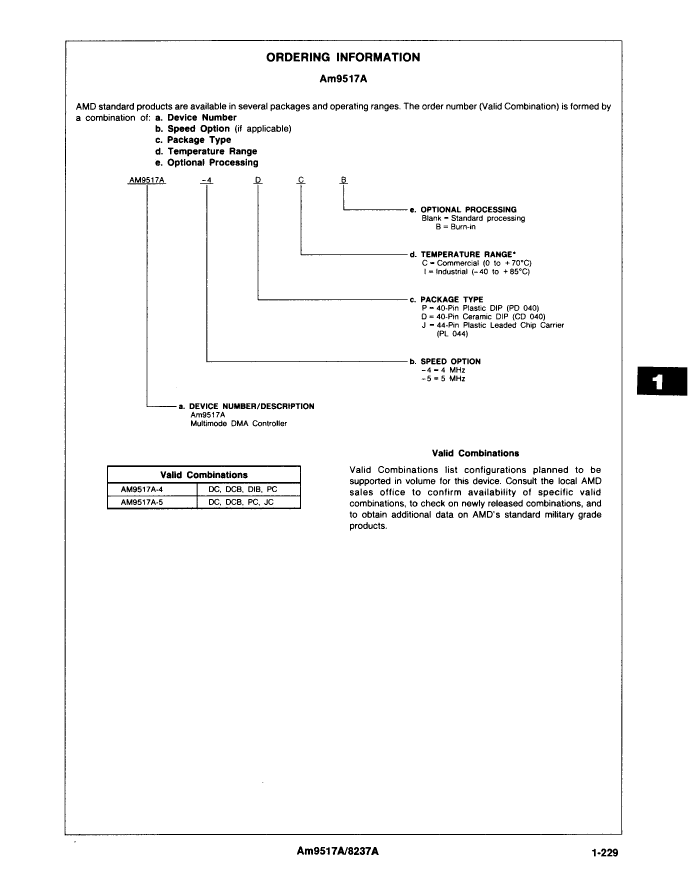

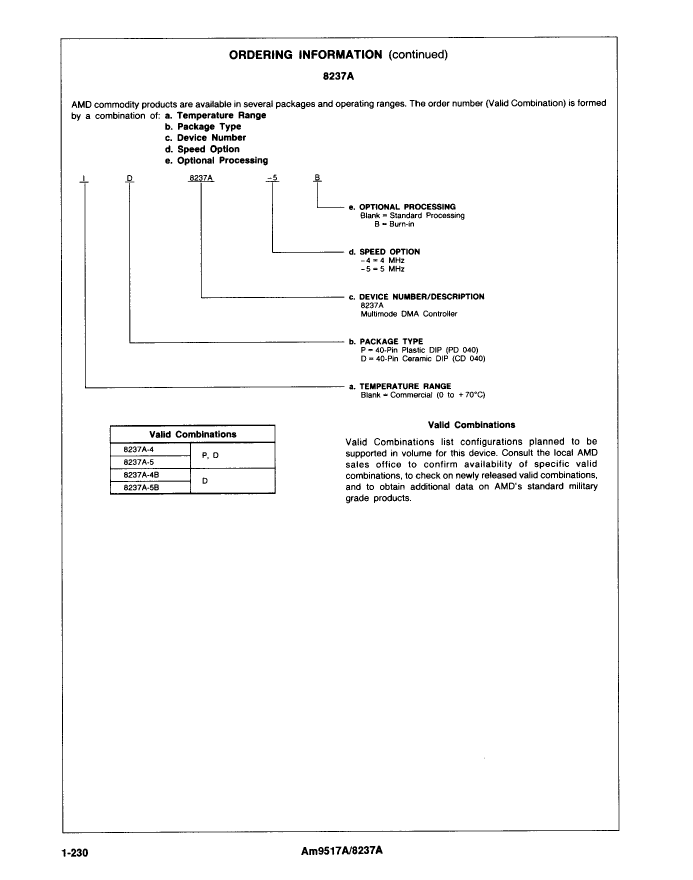

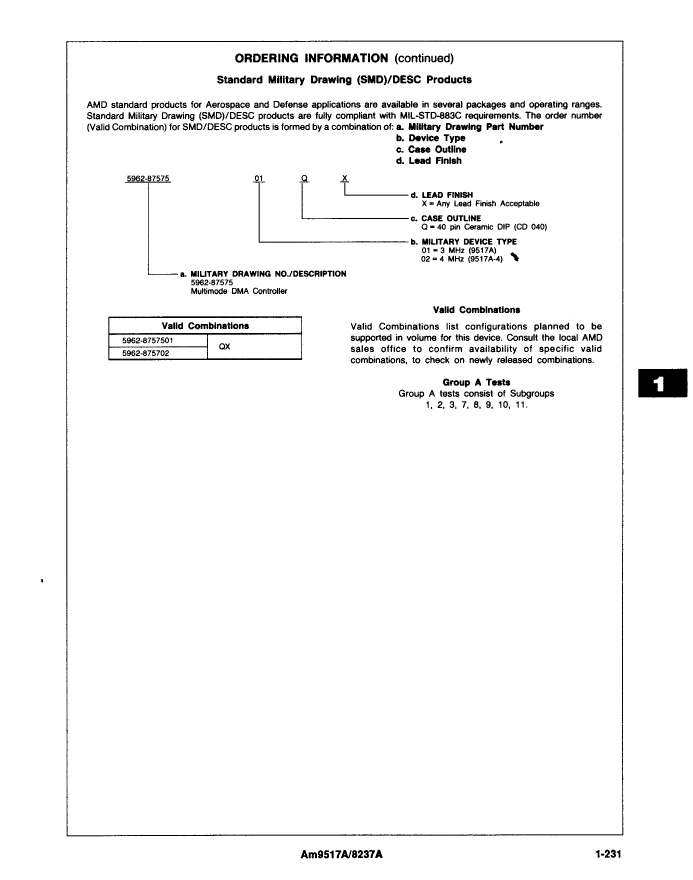

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, DIP40,.6 |
| Contacts | 40 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Address bus width | 8 |
| Bus compatibility | 8080A; 9080A |
| maximum clock frequency | 5 MHz |
| External data bus width | 8 |
| JESD-30 code | R-PDIP-T40 |
| JESD-609 code | e0 |
| length | 52.324 mm |
| Number of DMA channels | 4 |
| Number of terminals | 40 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP40,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.715 mm |
| Maximum slew rate | 150 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | NMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | DMA CONTROLLER |
| Base Number Matches | 1 |
| P8237A-5 | D8237A-4 | D8237A-4B | P8237A-4 | D8237A-5 | AM9517A-4DC | D8237A-5B | AM9517A-4DIB | |
|---|---|---|---|---|---|---|---|---|
| Description | DMA Controller, 4 Channel(s), 5MHz, NMOS, PDIP40, PLASTIC, DIP-40 | DMA Controller, 4 Channel(s), 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 | DMA Controller, 4 Channel(s), 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 | DMA Controller, 4 Channel(s), 4MHz, NMOS, PDIP40, PLASTIC, DIP-40 | DMA Controller, 4 Channel(s), 5MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 | DMA Controller, 4 Channel(s), 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 | DMA Controller, 4 Channel(s), 5MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 | DMA Controller, 4 Channel(s), 4MHz, NMOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | AMD | AMD | AMD | AMD | AMD | AMD | AMD | AMD |
| Parts packaging code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 | DIP, DIP40,.6 |
| Contacts | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | unknown | unknown | compliant | compliant |
| Address bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Bus compatibility | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A | 8080A; 9080A |
| maximum clock frequency | 5 MHz | 4 MHz | 4 MHz | 4 MHz | 5 MHz | 4 MHz | 5 MHz | 4 MHz |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | R-PDIP-T40 | R-CDIP-T40 | R-CDIP-T40 | R-PDIP-T40 | R-CDIP-T40 | R-CDIP-T40 | R-CDIP-T40 | R-CDIP-T40 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 52.324 mm | 52.2605 mm | 52.2605 mm | 52.324 mm | 52.2605 mm | 52.2605 mm | 52.2605 mm | 52.2605 mm |
| Number of DMA channels | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 85 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 | DIP40,.6 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.715 mm | 5.588 mm | 5.588 mm | 5.715 mm | 5.588 mm | 5.588 mm | 5.588 mm | 5.588 mm |
| Maximum slew rate | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA | 150 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.5 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| technology | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER | DMA CONTROLLER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
