71661-7030: DescriptionBoard to Board & Mezzanine Connectors 1.27MM PLG 30P VT .110 TAIL; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

71661-7030 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	71661-7030	-	-	View	Buy Now

71661-7030 Overview

Board to Board & Mezzanine Connectors 1.27MM PLG 30P VT .110 TAIL

71661-7030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks
Samacsys Description	Board to Board & Mezzanine Connectors 1.27MM PLG 30P VT .110 TAIL
Other features	STAGGERED CONFIGURATION
Board mount options	PEG
body width	0.275 inch
subject depth	0.362 inch
body length	1.199 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
polarization key	ENDS
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

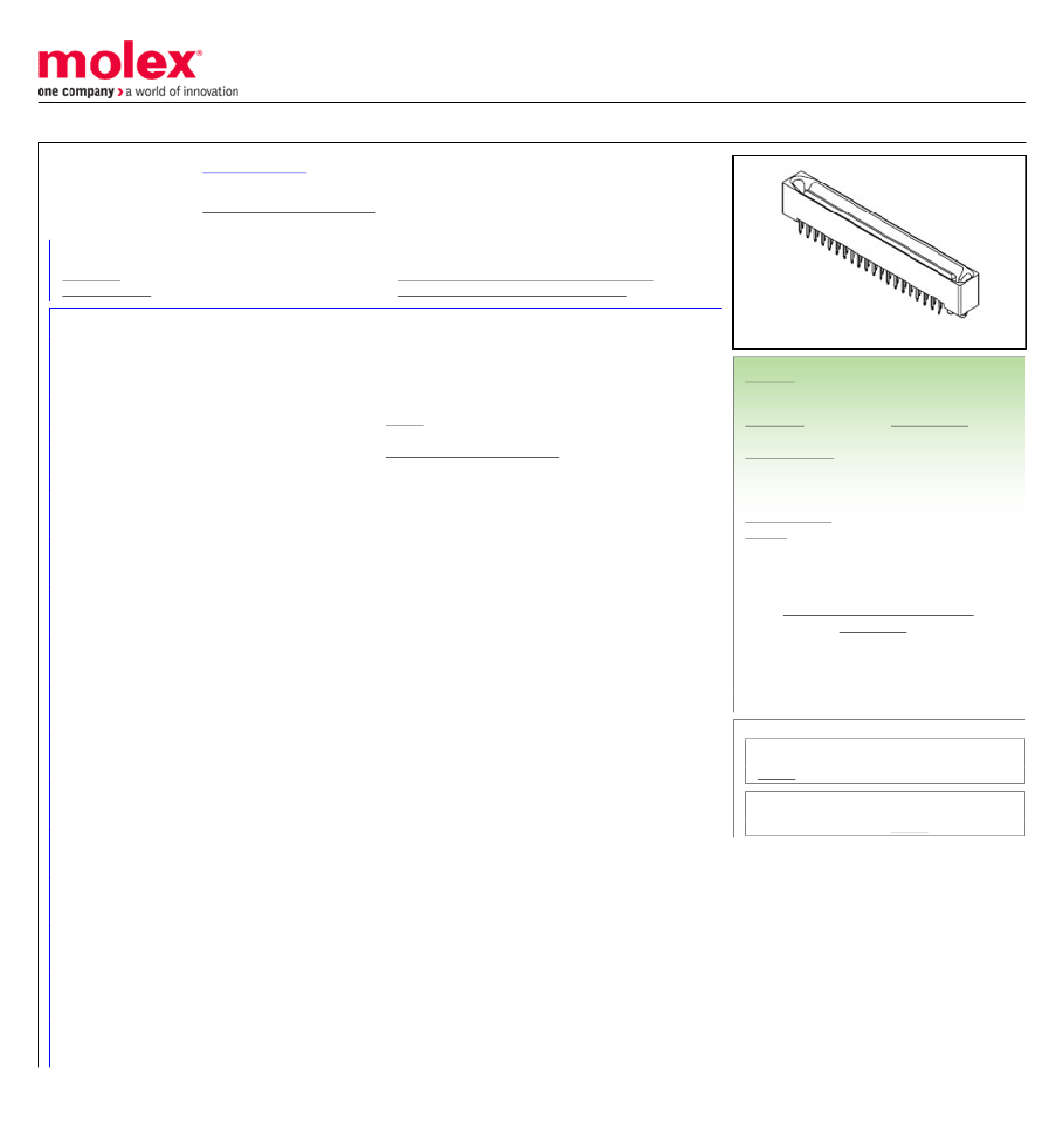

This document was generated on 02/20/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

0716617030

Active

EBBI 50D Connector System

1.27mm Pitch EBBI 50D Plug, Vertical, Blind Mate, 30 Circuits, 2.79mm PC Tail Length

Product Specification PS-71660-001 (PDF)

RoHS Certificate of Compliance (PDF)

LR19980

E29179

PCB Headers

71661

Board-to-Board, Signal, Wire-to-Board

EBBI 50D Connector System

EBBI

800755009446

No

30

Black

2000

No

94V-0

No

Yes

None

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

1.968/g

2

Vertical

2.79mm

Yes

1.60mm

Tray

1.27mm

0.762µm

1.905µm

Yes

Fully

No

-40°C to +105°C

Through Hole

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

71661 Series

Mates With

EBBI 50D Receptacle 71660
