8114-0-15-01-16-27-04-0

Description
IC & Component Sockets STANDARD I.C. RECEPTACLE
CategoryThe connector    terminals
File Size788KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

8114-0-15-01-16-27-04-0 Online Shopping

Suppliers Part Number Price MOQ In stock
8114-0-15-01-16-27-04-0 - - View Buy Now

8114-0-15-01-16-27-04-0 Overview

IC & Component Sockets STANDARD I.C. RECEPTACLE

8114-0-15-01-16-27-04-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
ECCN codeEAR99
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL
Base Number Matches1

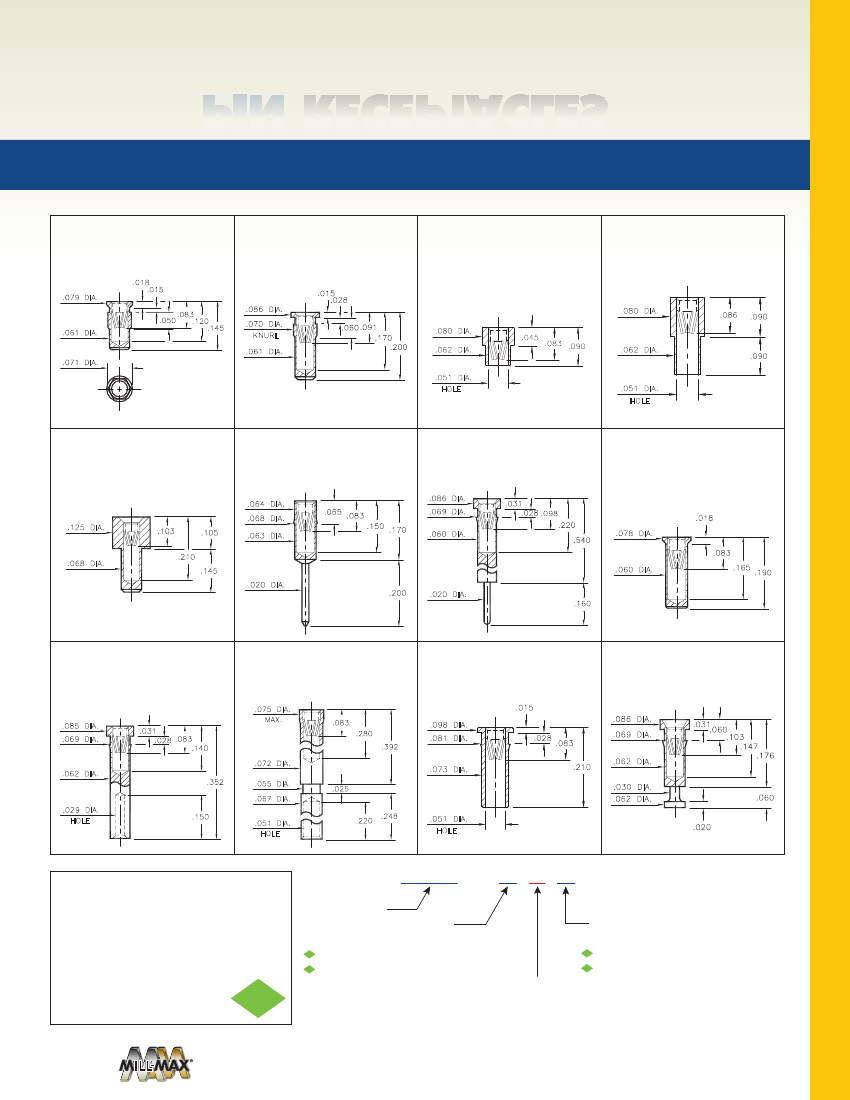

PIN
RECEPTACLES
FOR .022” - .034” DIAMETER PINS AND .025” SQUARE PINS
0291
.079 DIA.
0291-0-15-XX-16-XX-10-0
Hex press-fit in .067 plated through-hole
.018
.015
.083
.120
.145
0293
0293-0-15-XX-16-XX-10-0
Press-fit in .067 mounting hole
.015
.028
.086 DIA.
.070 DIA.
KNURL
.061 DIA.
.060 .091
.170
.200
0287
0287-0-15-XX-16-XX-10-0
0285
Solder mount in .065 min. mounting hole
Also available on 8mm wide carrier tape:
3,250 parts per 13” reel
See page 194.8 for Tape & Reel details
0285-0-15-XX-16-XX-10-0
Solder mount in .065 min. mounting hole
.080 DIA.
.080 DIA.
.062 DIA.
.050
.061 DIA.
.086
.090
.045
.083 .090
.062 DIA.
.071 DIA.
.090
.051 DIA.
HOLE
.051 DIA.
HOLE
0284
0284-0-15-XX-16-XX-10-0
Solder mount in .070 min. mounting hole
8114
.064 DIA.
.068 DIA.
8114-0-15-XX-16-XX-04-0
0407
.086 DIA.
.069 DIA.
Press-fit from underside of pc board
into .065 mounting hole
.065
0407-0-15-XX-16-XX-04-0
Press-fit in .066 mounting hole
.031
.028 .098
.220
.060 DIA.
.540
0415
0415-0-15-XX-16-XX-10-0
Solder mount in .063 min. mounting hole
Also available on 24mm wide carrier tape:
1,500 parts per 13” reel
See page 194.8 for Tape & Reel details
.018
.078 DIA.
.083
.083
.150
.170
.125 DIA.
.103
.210
.105
.063 DIA.
.068 DIA.
.145
.060 DIA.
.020 DIA.
.200
.020 DIA.
.160
.165
.190
0303
.085 DIA.
.069 DIA.
0303-0-19-XX-16-XX-10-0
0306
.075 DIA.
MAX.
Press-fit in .067 mounting hole
Wire Crimp Termination. Accepts wire
sizes 26 AWG Max. / 30 AWG Min.
.031
.028 .083
.140
0306-0-19-XX-16-XX-10-0
0273
.098 DIA.
Wire Crimp Termination. Accepts wire
sizes 20 AWG Max. / 24 AWG Min.
.083
.280
.392
.072 DIA.
0273-0-15-XX-16-XX-10-0
Press-fit in .078 mounting hole
.015
7520
.086 DIA.
7520-0-15-XX-16-XX-10-0
Press-fit in .066 mounting hole
.081 DIA.
.028
.083
.210
.069 DIA.
.062 DIA.
.030 DIA.
.062 DIA.
.031
.060
.103
.147
.176
.062 DIA.
.073 DIA.
.025
.352
.055 DIA.
.067 DIA.
.060
.029 DIA.
HOLE
.150
.051 DIA.
HOLE
.220
.248
.051 DIA.
HOLE
.020
SPECIFICATIONS:
Shell Material:
Brass Alloy 360, 1/2 Hard
Contact Material:
Beryllium Copper Alloy 172, HT
Dimensions: Inches
Tolerances On:
Lengths: ± .005
Diameters: ± .002
Angles:
±2°
ORDER CODE: XXXX - X - XX - XX -
16
- XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
15
10
μ”
GOLD OVER NICKEL (RoHS)
SPECIFY CONTACT FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
27
30
μ”
GOLD OVER NICKEL (RoHS)
2011/65/EU
RoHS - 2
SELECT CONTACT:
#16
CONTACT (DATA ON PAGE 256)
(For alternate contact choices, see group D on page 248)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 175 | PIN RECEPTACLES
