74AC299LC datasheet, PDF - EEWORLD Datasheet

74AC299LC: DescriptionParallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic Shift register; File Size179KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

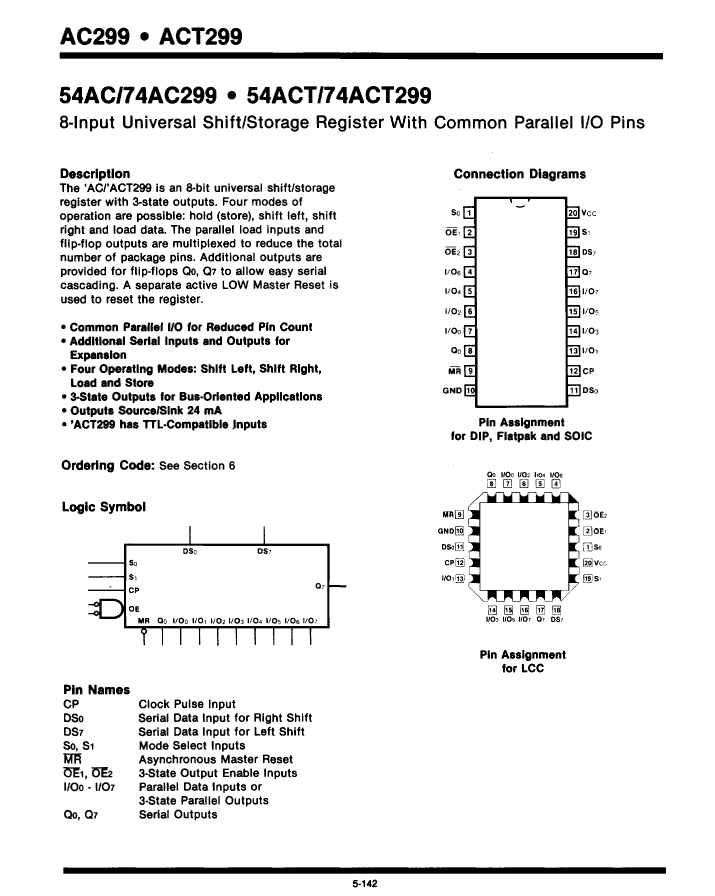

74AC299LC Overview

Parallel In Parallel Out, AC Series, 8-Bit, Bidirectional, True Output, CMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Is Samacsys	N

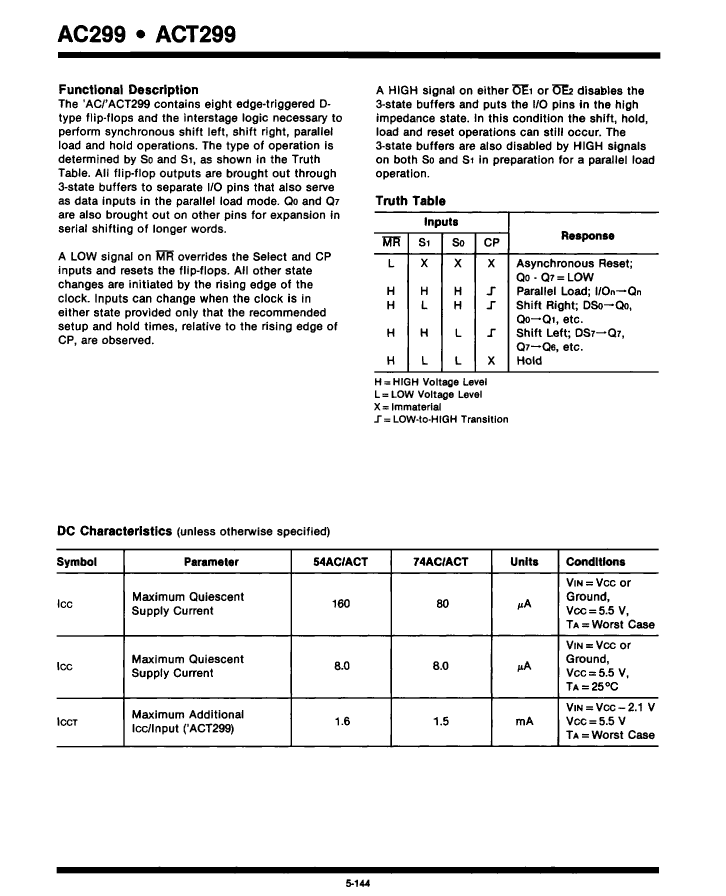

Other features	HOLD MODE; COMMON I/O PINS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL
series	AC
JESD-30 code	S-CQCC-N20
length	8.89 mm

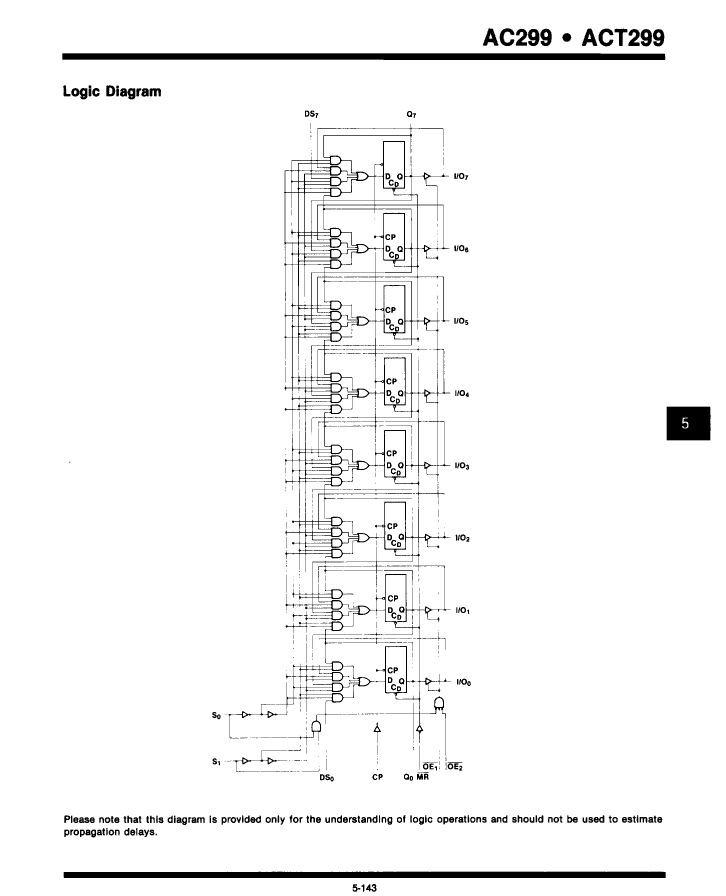

Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

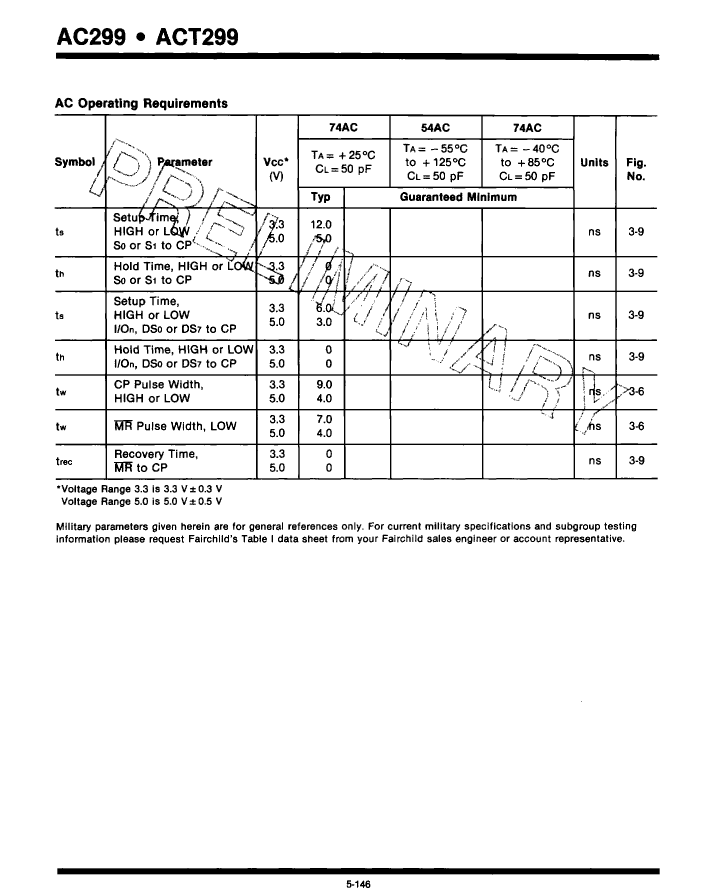

Trigger type	POSITIVE EDGE
width	8.89 mm

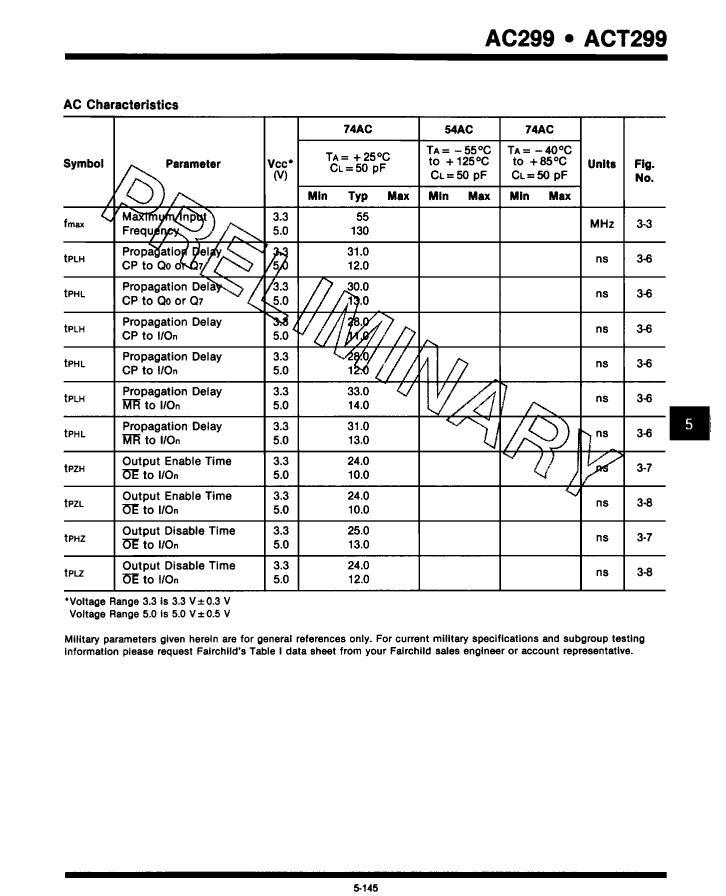

minfmax	130 MHz
Base Number Matches	1
