3M
™

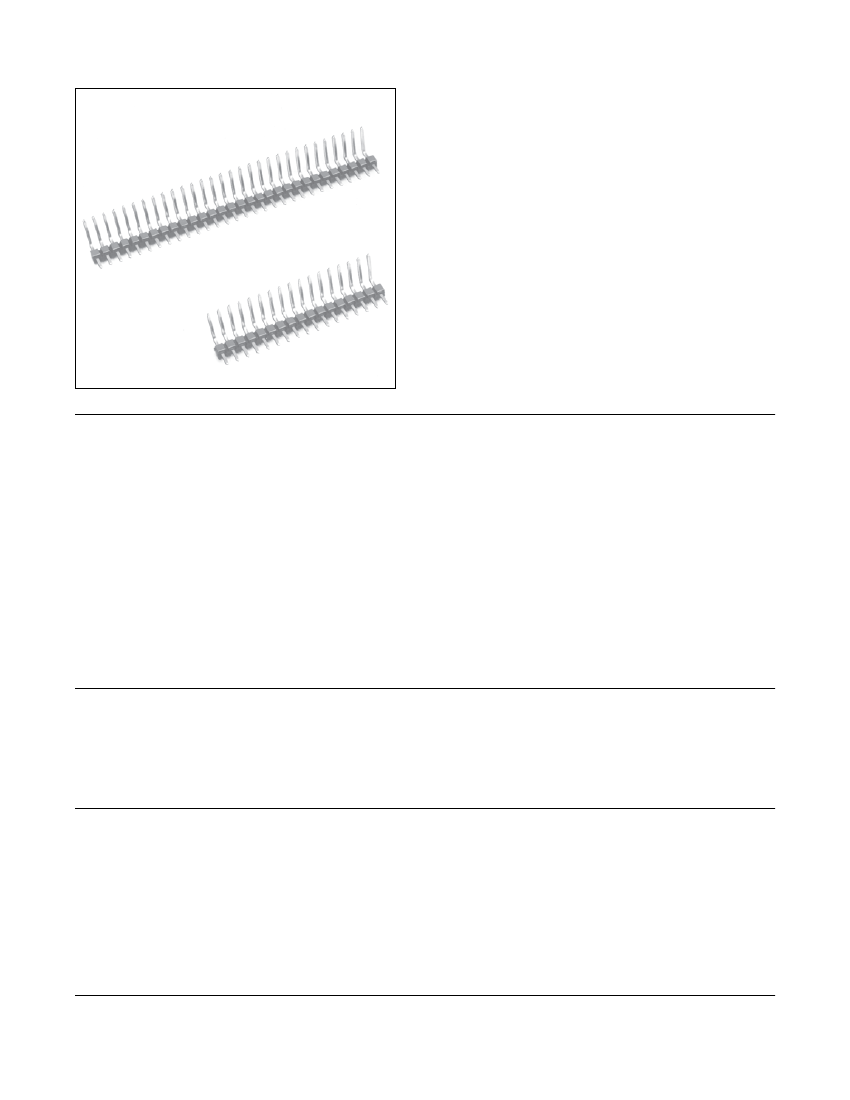

Pin Strip Header
.100”, .295” Mating Length, Straight & Right Angle, Solder Tails
•
•
•
•
•
929 Series
Stackable
Tin Lead or gold plating available
Solder stand-offs facilitate production wave soldering
Board pin retention feature available
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: August 18, 2008
TS-0768-B
Sheet 1 of 3
Physical
Insulation:
Material: Glass Filled Polyester (PBT) or High Temperature PCT
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: 50 μ” [1.27 μm] Nickel
Wiping Area and Solder Tails: See ordering information
Marking: None
Electrical
Current Rating:
2.5 A
Insulation Resistance:
> 5 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1500 V
RMS
at Sea Level
Environmental
Temperature Rating:
-40°C to +105°C
Process Rating:
260°C (per J-STD-020C) for PCT insulator parts only
Moisture Sensitivity Level:
1 (per J-STD-020C) PCT insulator version only
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
(PBT insulator version), maximum insulator temperature 191°C,
(Wave Solder Process Only)
3M
™
Pin Strip Header
.100”, .295” Mating Length, Straight & Right Angle, Solder Tails
Straight
A
See Note
929 Series
2X .05 Max
[1.27]
.096 [2.44]
.110 [2.79]
.295
[ 7.49 ]
.048 [1.22]
.015 [0.38]
.130
[ 3.30 ]
.015
.100 Typ [2.54]
C
.025 .001 Sq Typ
[0.64]
Tolerance Unless Noted
.0
.00
inch
±.1
±.01
Inch
[mm]
.040 .003 After Plating
[1.02]
.000
±.005
[ ] Dimensions for
Reference only
.100 .003
[2.54]
Recommended Hole Pattern
Note:
A = .10” [2.5] × pin quantity per row. Dimension A is a maximum when the pin strip is cut to length, not when the strip is broken to length.
Ordering Information
Tin
9X9400-01-XX-XX
Pin Quantity
(01-36)
Gold
9X9450-01-XX-XX
Board Retention Feature
2 = None
R = Kinked Tails
Gold Plating Suffix
I = 10 μ” [0.25 μm] all over, PBT insulator
(RIA E1 & C1 apply)
EU = 10 μ” [0.25 μm] all over, PCT insulator
(RIA E1 & C1 apply)
Board Retention Feature
2 = None
R = Kinked Tails
Plating Suffix:
blank = 100 μ” [2.54 μm] tin-lead, PBT insulator
(RIA E3 & C2 apply)
RK = 200 μ” [5 μm] matte tin, PCT insulator
(RIA E1 & C1 apply)
Pin Quantity
(01-36)
TS-0768-B
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100”, .295” Mating Length, Straight & Right Angle, Solder Tails
Right Angle
A
See Note
929 Series
.295
[ 7.49 ]
..096 [2.44]
2X .05 Max
[1.27]
.110 [2.79]
.048 [1.22]
.235 .015
[5.97]
.015 [0.38]
.100 Typ [2.54]
.025 .001 Sq Typ
[0.64]
.130 .015
[ 3.30 ]
.040 .003 After Plating
[1.02]
C
.100 .003
[2.54]
Recommended Hole Pattern
Tolerance Unless Noted
.0
.00
inch
±.1
±.01
Inch
[mm]
.000
±.005
Note:
A = .10” [2.5] × pin quantity per row. Dimension A is a maximum when the pin strip is cut to length, not when the strip is broken to length.
[ ] Dimensions for
Reference only
Ordering Information
Tin
9X9500-01-XX-XX
Pin Quantity
(01-36)
Gold
9X9550-01-XX-XX
Board Retention Feature
2 = None
R = Kinked Tails
Plating Suffix
I = 10 μ” [0.25 μ”] all over, PBT insulator
(RIA E1 & C1 apply)
EU = 10 μ” [0.25 μm] all over, PCT insulator
(RIA E1 & C1 apply)
Board Retention Feature
2 = None
R = Kinked Tails
Plating Suffix:
blank = 100 μ” [2.5 μm] tin-lead, PBT insulator
(RIA E3 & C2 apply)
RK = 200 μ” [5 μm] matte tin, PCT insulator
(RIA E1 & C1 apply)
Pin Quantity
(01-36)
TS-0768-B
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by
EU Court of Justice Decision 2008/C 116/04
This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished
products subject to EU RoHS that are placed on the EU market after June 30, 2008.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.
RIA-2217A-E
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the
product or part
does not
contain any of the following substances in excess of the following maximum concentration values in any
homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated
diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for Certain
Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or
polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
RIA-2217A-E
