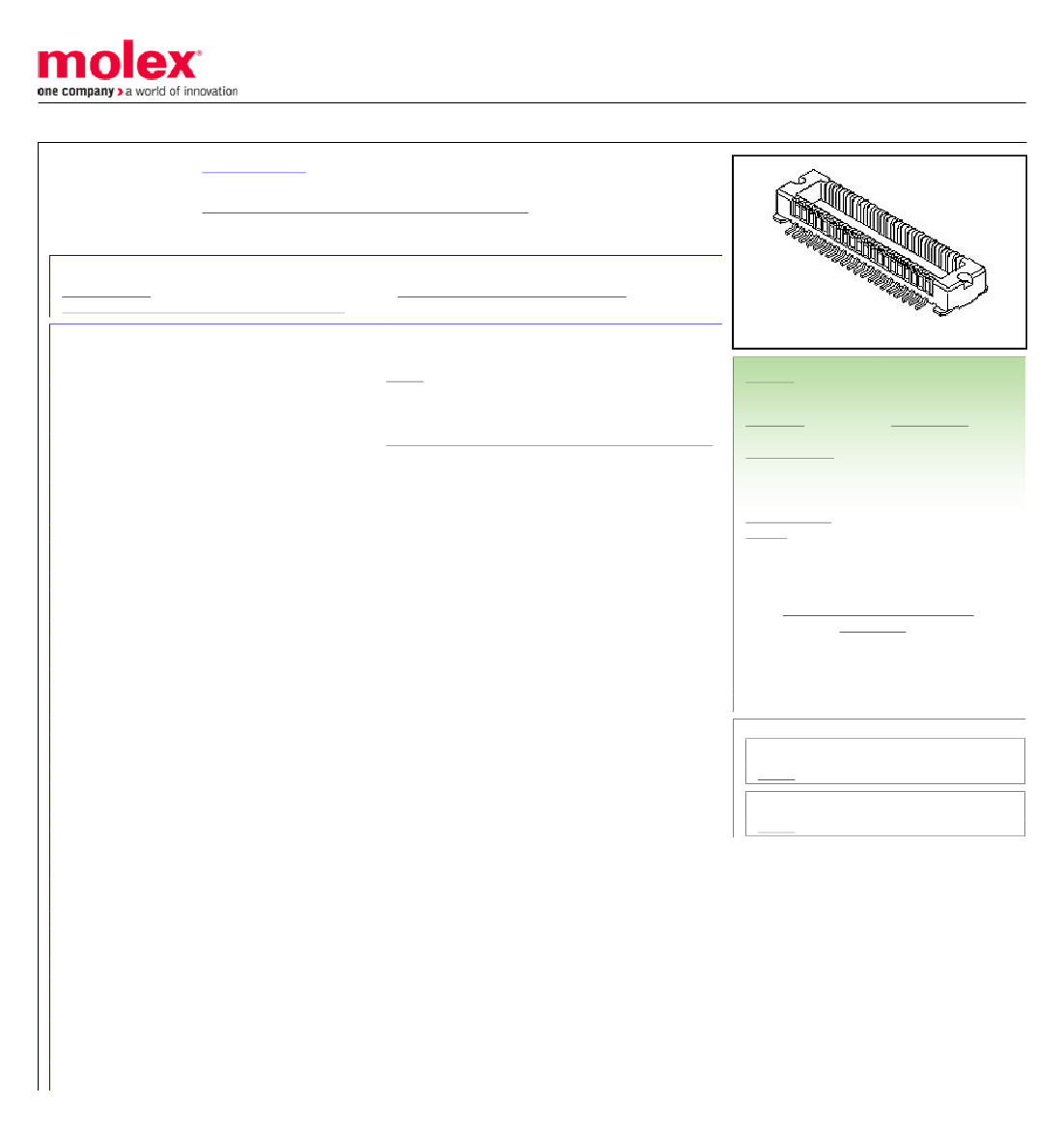

Board to Board & Mezzanine Connectors 0.5mm BTB SMT REC 120P 2MM HEIGHT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Samacsys Description | Board to Board & Mezzanine Connectors 0.5mm BTB SMT REC 120P 2MM HEIGHT |
| Other features | ROHS AND ELV COMPLIANT |
| Board mount options | FITTING NAIL |
| body width | 0.111 inch |
| subject depth | 0.063 inch |
| body length | 1.289 inch |
| Body/casing type | PLUG |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | Gold (Au) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 40 mΩ |
| Contact style | COMPRESSION |
| DIN compliance | NO |
| Dielectric withstand voltage | 125VAC V |
| Durability | 30 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Plug contact pitch | 0.02 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.9116 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
