144663

Description
Board to Board & Mezzanine Connectors 50P 4MM HS FML VERT SMT/THR B-B MEZ 2ROW
CategoryThe connector
File Size91KB,2 Pages
ManufacturerERNI Electronics
Environmental Compliance
Download Datasheet Parametric View All

144663 Online Shopping

Suppliers Part Number Price MOQ In stock
144663 - - View Buy Now

144663 Overview

Board to Board & Mezzanine Connectors 50P 4MM HS FML VERT SMT/THR B-B MEZ 2ROW

144663 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerERNI Electronics
Product CategoryBoard to Board & Mezzanine Connectors
RoHSDetails
ProductConnectors
Number of Positions50 Position
Pitch1 mm, 1.5 mm
Number of Rows2 Row
Termination StyleThrough Hole
Mounting AngleVertical
Current Rating1 A
PackagingCut Tape
PackagingMouseReel
PackagingReel
Contact PlatingGold
Housing MaterialLiquid Crystal Polymer (LCP)
Contact MaterialCopper Alloy
Insulation Resistance100000 MOhms
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Stack Height4 mm
Factory Pack Quantity400
26,55
6,5
Ansaughaube
5,5
4,15
Verpackt in Gurtverpackung
-
Tape on Reel Packaging
Verpackungseinheit: 400 Stück -
Packaging unit: 40 pcs
5,35
hood
4,5
0,6
26
b1
26,55
0,75
0,5
0,8
3,75
6,6
150
330
b25
44,5
3,85
1,5
Abspulrichtung -
Reel off Direction
a1
16
a1
1
24 x 1 = 24
25,3
a25
Leiterplatten-Layout Vorschlag /
PCB-Layout Proposal
26
1
1.)
0,7
±0,03
3
0,6
±0,05
8 x 3 = 24
1.)
0,9
±0,03
44
4,5
0,7
1
1
0,5
24 x 1 = 24
1,5
Performance Level 1
Kontaktbereich vergoldet
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Anforderungsstufe 1
Information:
Tolerances
All Dimensions
in mm
Scale
5:1
Mating Area gold plating
1.) Durchmesser des Bohrers /
Drill tool
Anschlussbereich verzinnt 4-6 µm
Terminal Area 4-6 µm tin plating
Koplanarität der Anschlüsse
0,1 mm
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
i
Index
21.09.2010
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

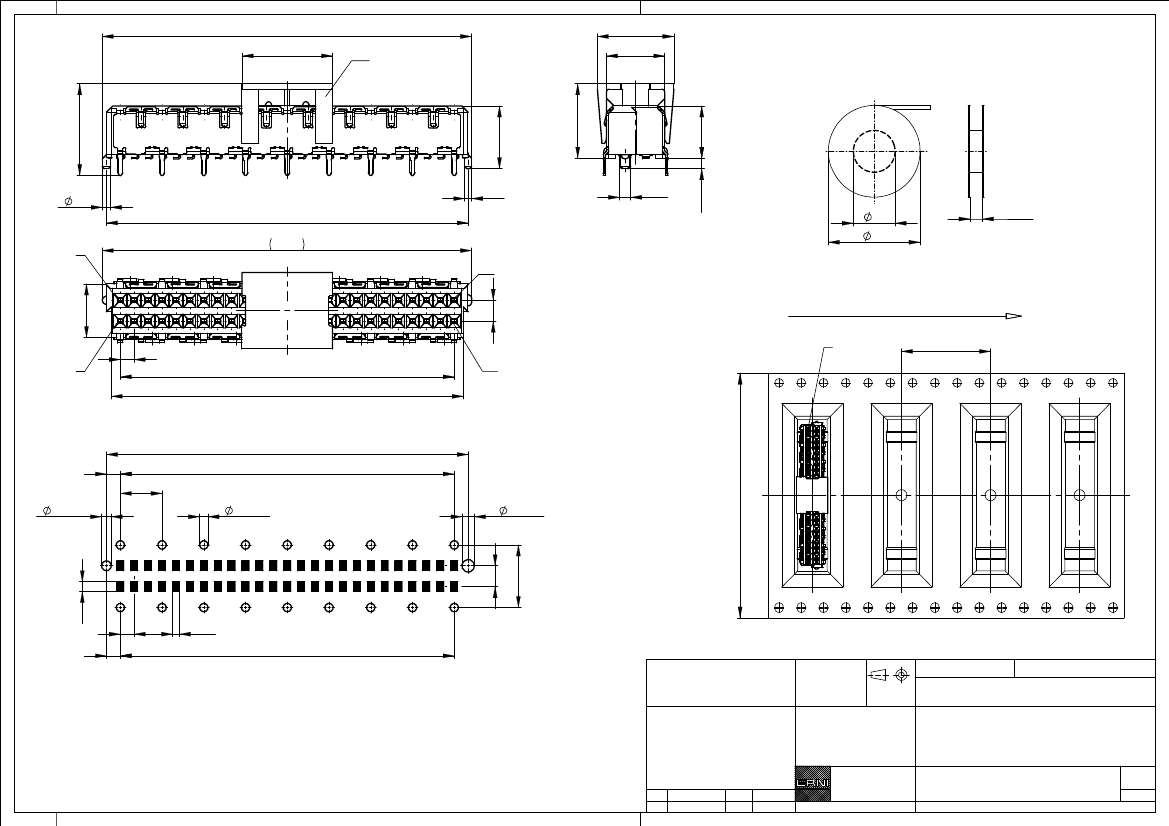

Federleiste 4mm THR, 50 polig
Female 4mm THR, 50 contacts
Coplanarity Area of Termination
0,1 mm
www.ERNI.com
Class
144663
MSPEED
I
A3
