Datasheet> All Categories > The connector> 55510-142TRLF
PDF
Preview

55510-142TRLF

Description
Headers & Wire Housings LPVCC 4.5 TE SMT ASY
CategoryThe connector
File Size154KB，10 Pages
ManufacturerFCI / Amphenol
Environmental Compliance
Download Datasheet Parametric Compare View All

55510-142TRLF Online Shopping

Suppliers Part Number Price MOQ In stock
55510-142TRLF - - View Buy Now

55510-142TRLF Overview

Headers & Wire Housings LPVCC 4.5 TE SMT ASY

55510-142TRLF Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerFCI / Amphenol
Product CategoryHeaders & Wire Housings
RoHSDetails
ProductHeaders
TypeSocket Assembly
Number of Positions42 Position
Pitch2 mm
Number of Rows2 Row
Mounting Style-
Termination StyleSMD/SMT
Mounting AngleVertical
Contact PlatingGold
PackagingReel
Current Rating1 A
Housing MaterialThermoplastic
Voltage Rating200 V
Contact MaterialPhosphor Bronze
Insulation Resistance1000 MOhms
Factory Pack Quantity750

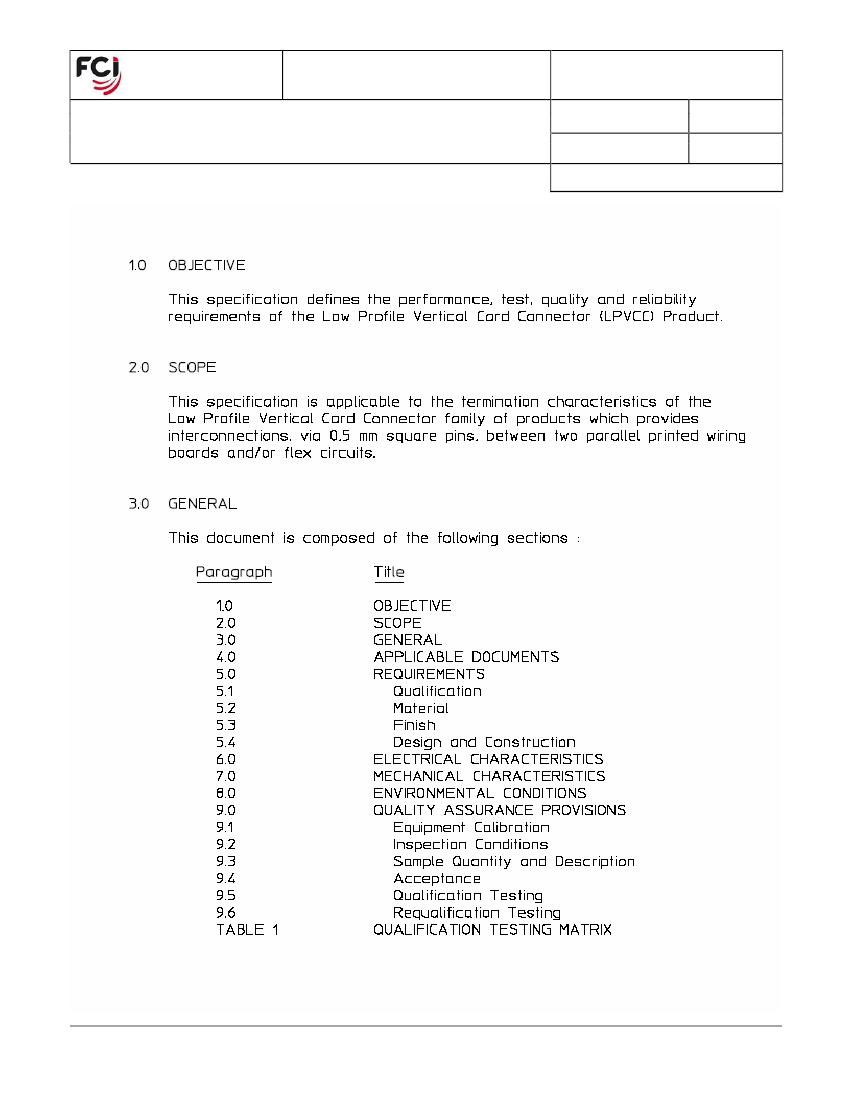

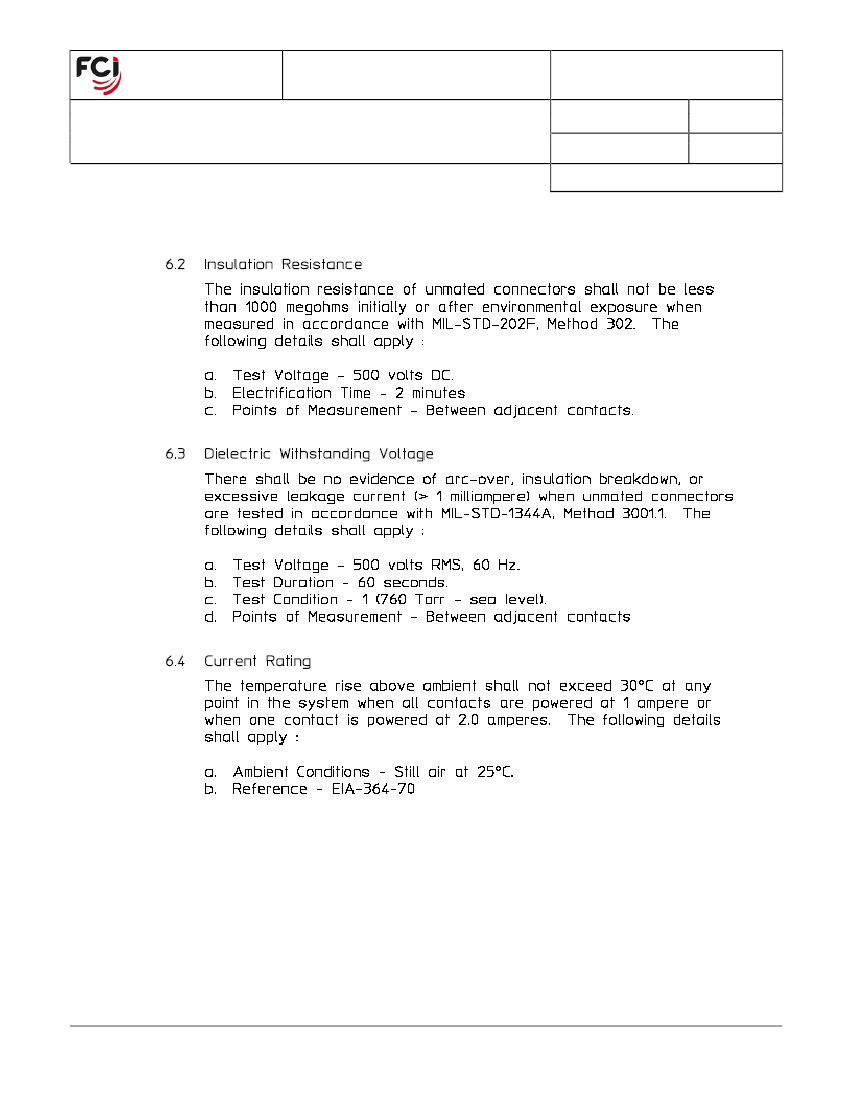

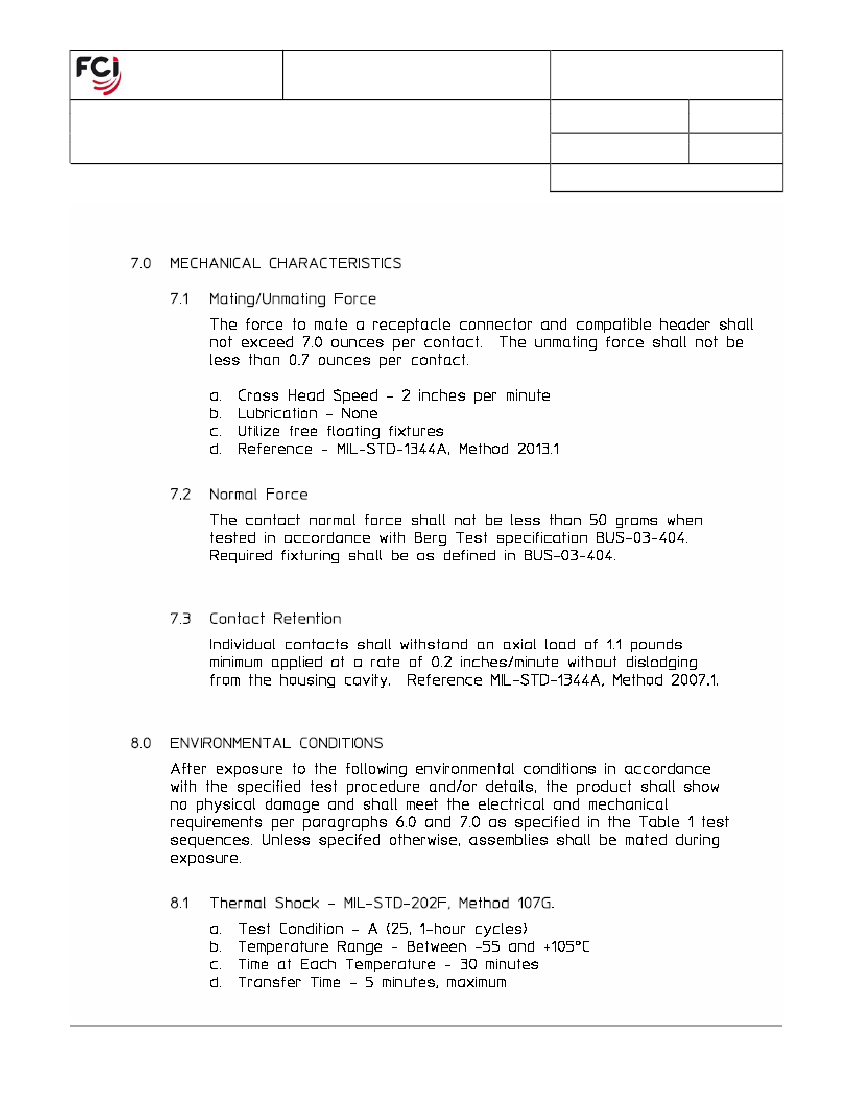

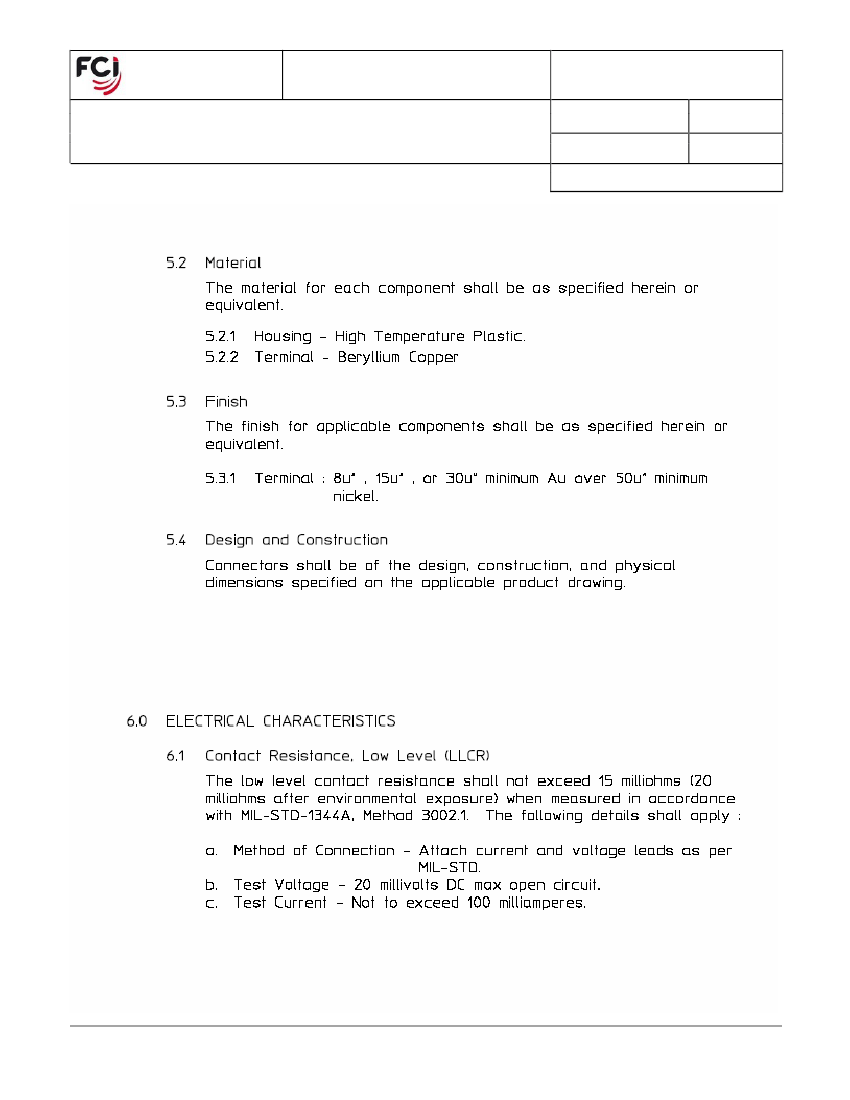

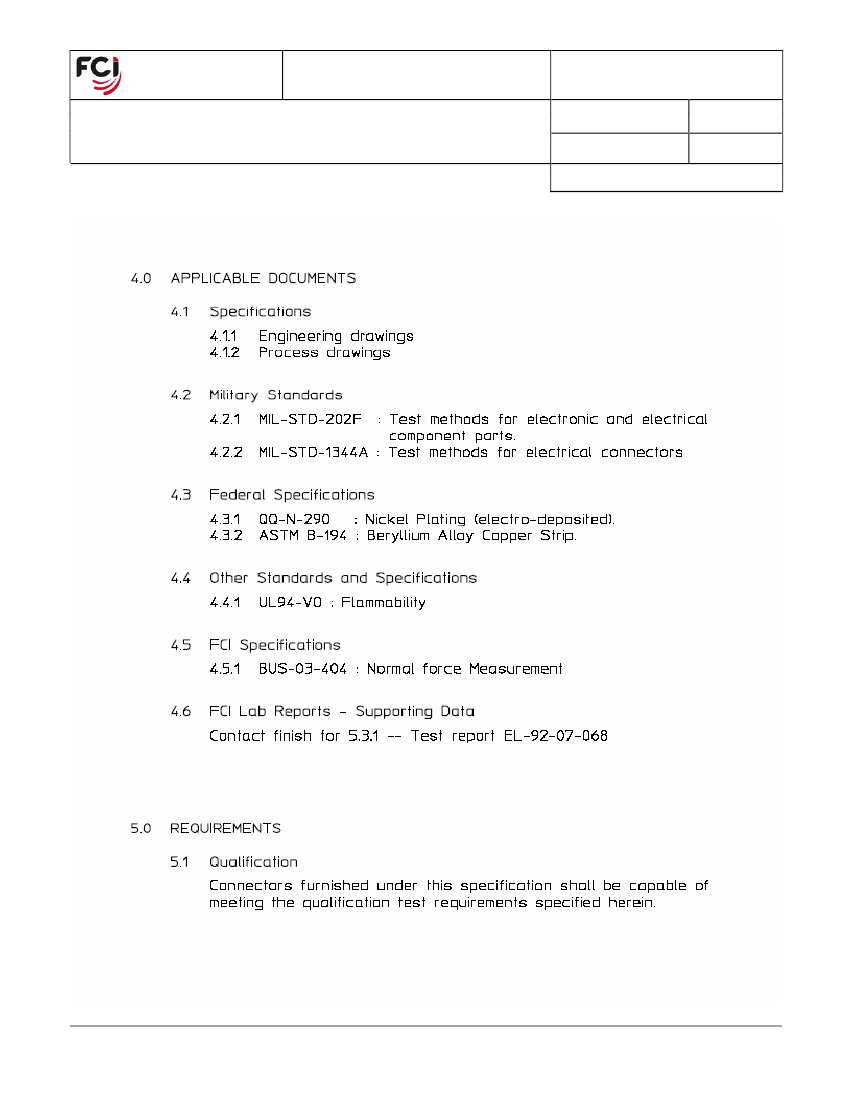

Preview

Download Datasheet
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-008
REVISION
1 of 10
LOW PROFILE VERTICAL CARD CONNECTOR (LPVCC)
AUTHORIZED BY
DATE
E
13 OCT 2006
KH LEE
CLASSIFICATION
UNRESTRICTED
Copyright FCI
Form E-3334
Rev E
GS-01-001
PDM: Rev:E
STATUS:
Released
Printed: Nov 28, 2010
.
