THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
* cULus LISTED WIRE CONNECTOR
d
NOTES:
1. Material: High conductivity seamless copper tube.
2. Plating: Parts are annealed and tin plated.
F
LCMB 185-10
185r/150f
3. Wire Type: Class 2r, 5f & 6f Stranded Copper per DIN VDE 0295, IEC 60228 and HD 383.
4. UL Listed Wire Connector: Yes, for applications up to 35kv.
Consult cable manufacturer for voltage stress relief instructions
with applications greater than 2000 volts.
5. UL Temperature Rating: 90 C
LISTED
Wire Connector
LISTED
CERTIFIED
Wire Connector
b
n
m (ref)
a
(internal)
No Inspection
Window
6. C.S.A. Certified Wire Connector: Yes
7. Parts are CE and tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 185mm² - 240mm².
TITLE

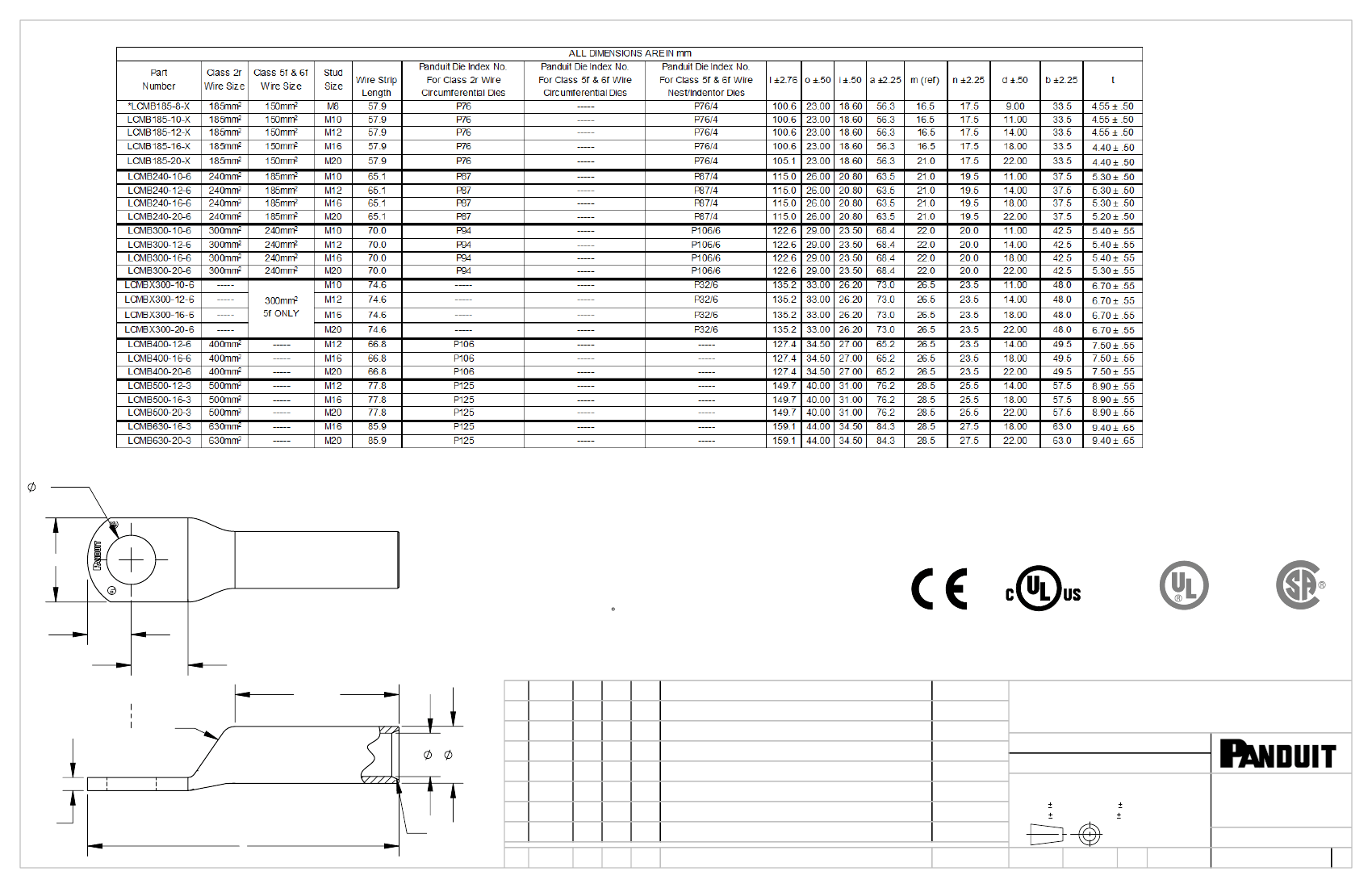

METRIC LUGS - LCMB ONE HOLE SERIES 185-630mm
LONG BARREL
CUSTOMER DRAWING
12J036BJ/02
12J036BJ-JC/02.SLDDRW
MATERIAL
ITEM REVISION NAME
i
o
02
7/15
7/14
7/13
JHNU TLCO RGB
JHNU TLCO RGB
JHNU TLCO RGB
ADDED LCMB185-8-X
ADDED 5f ONLY TO WIRE SIZE ON X300 PARTS
DRAWING RELEASED
12J036BJ-JC
12J036BJ-JC
12J036BJ-JC
DATASET FILE NAME
t
l
01
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XXX
.XX
ANGLES
THIRD ANGLE
PROJECTION
DRAWN BY
SEE NOTES
DRAWING NUMBER
Beveled wire
entry
00
12J036BJ-JC
SIZE
REV
DATE
BY
CHK APR
DESCRIPTION
ECN
JHNU
DATE
7/13 TLCO
CHK
SCALE
NONE
SHEET 1 0F 1
