LCMAX300-16H-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> LCMAX300-16H-5

LCMAX300-16H-5: DescriptionTerminals Copper Compression Metric Lug, 1 Hole, S; CategoryThe connector; File Size208KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com

Download Datasheet Parametric View All

LCMAX300-16H-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCMAX300-16H-5	-	-	View	Buy Now

LCMAX300-16H-5 Overview

Terminals Copper Compression Metric Lug, 1 Hole, S

LCMAX300-16H-5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panduit
Product Category	Terminals

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

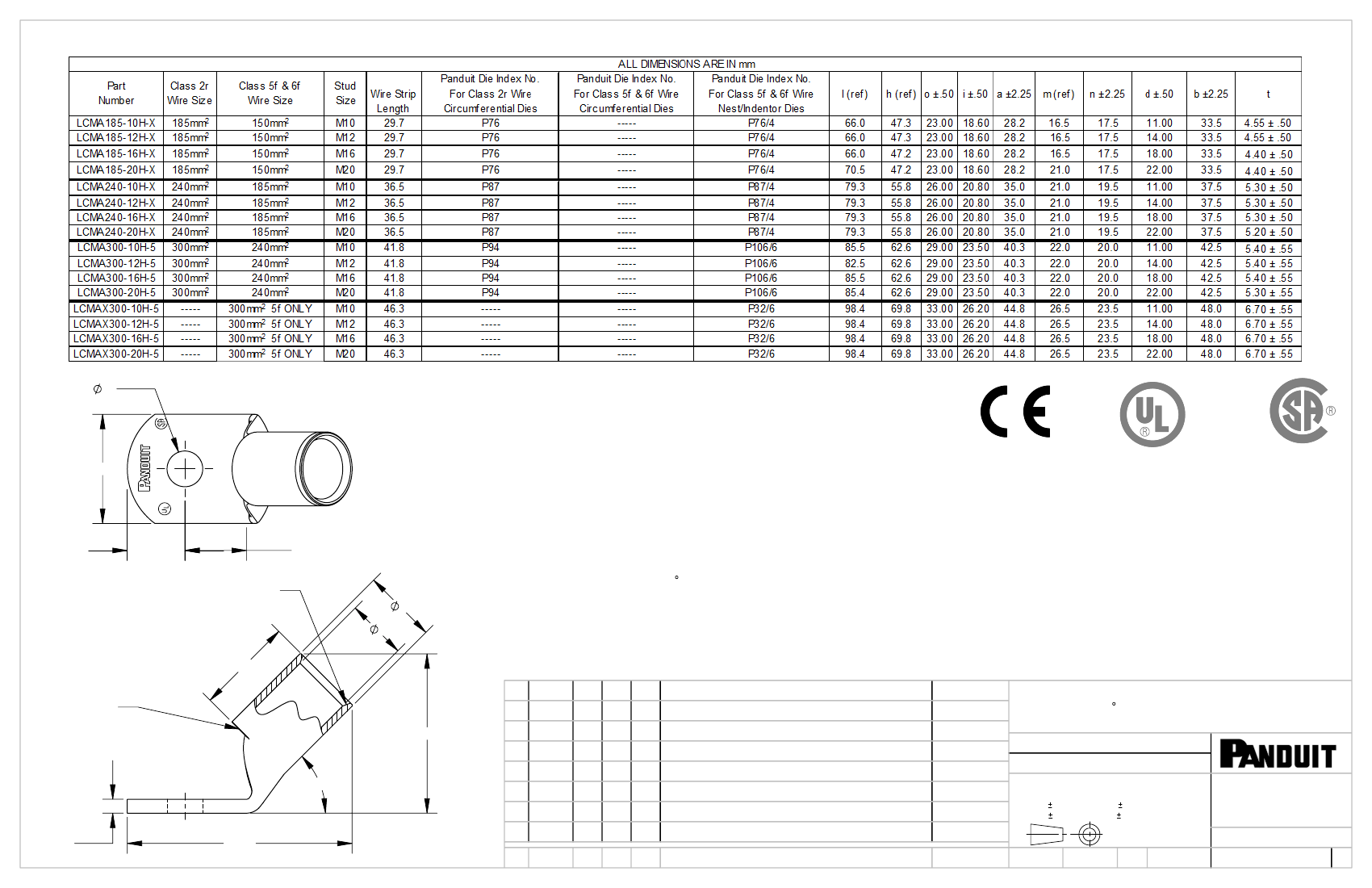

LCMA 185-10H

185r/150f

NOTES:

1. Material: High conductivity seamless copper tube.

2. Plating: Parts are annealed and tin plated.

3. Wire Type: Class 2r, 5f & 6f Stranded Copper per DIN VDE 0295, IEC 60228 and HD 383.

CERTIFIED

LISTED

Wire Connector

Beveled wire

entry

m (ref)

4. UL Listed Wire Connector: Yes, for applications up to 35kv.

Consult cable manufacturer for voltage stress relief instructions

with applications greater than 2000 volts.

5. UL Temperature Rating: 90 C

6. C.S.A. Certified Wire Connector: Yes

7. Parts are CE and tested per EN 61238-1:2003/IEC 61238-1:2003 Class B, with Class 2r wire 185mm² - 240mm².

TITLE

Wire inspection

window

h (ref)

METRIC LUGS - LCMA ONE HOLE SERIES 185-300mm

45 BENT STANDARD BARREL

CUSTOMER DRAWING

11J033BL/00

11J033BL-JC/00.SLDDRW

MATERIAL

ITEM REVISION NAME

DATASET FILE NAME

45°±5°

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

.XX

ANGLES

10/13

JHNU TLCO RGB

DRAWING RELEASED

THIRD ANGLE

PROJECTION

SEE NOTES

DRAWING NUMBER

l (ref)

11J033BL-JC

SIZE

REV

DATE

CHK APR

DESCRIPTION

ECN

DRAWN BY

JHNU

DATE

10/13 TLCO

CHK

SCALE

NONE

SHEET 1 0F 1
