BZT52C3V9S-7-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZT52C3V9S-7-F

BZT52C3V9S-7-F: DescriptionZener Diodes 200mW 10V Zener AEC-Q101 Qualified; CategoryDiscrete semiconductor diode; File Size280KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

BZT52C3V9S-7-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZT52C3V9S-7-F	-	-	View	Buy Now

BZT52C3V9S-7-F Overview

Zener Diodes 200mW 10V Zener AEC-Q101 Qualified

BZT52C3V9S-7-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	90 Ω
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Nominal reference voltage	3.9 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	5.13%
Working test current	5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZT52C2V0S - BZT52C39S

SURFACE MOUNT ZENER DIODE

Features



Planar Die Construction

Small Surface Mount Package

Ideally Suited for Automated Assembly Processes

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Notes 3 & 4)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOD323

Case Material: Molded Plastic.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe

(Lead Free Plating).

Solderable per MIL-STD-202, Method 208



Polarity: Cathode Band

Weight: 0.0049 grams (Approximate)

SOD323

Top View

Ordering Information

(Note 5)

Part Number

(Type Number)-7-F*

(Type Number)Q-7-F*

Notes:

Qualification

Commercial

Automotive

Case

SOD323

Packaging

3,000/Tape & Reel

*Add “-7-F” to the appropriate type number in Electrical Characteristics Table, example: 6.2V Zener – BZT52C6V2S-7-F.

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Products manufactured prior to Date

Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

Fire Retardants.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

XX = Product Type Marking Code for

SAT (Shanghai Assembly / Test site)

(See Electrical Characteristics Table)

XX = Product Type Marking Code for

CAT (Chengdu Assembly / Test site)

(See Electrical Characteristics Table)

BZT52C2V0S - BZT52C39S

Document number: DS30093 Rev. 20 - 2

1 of 5

www.diodes.com

February 2017

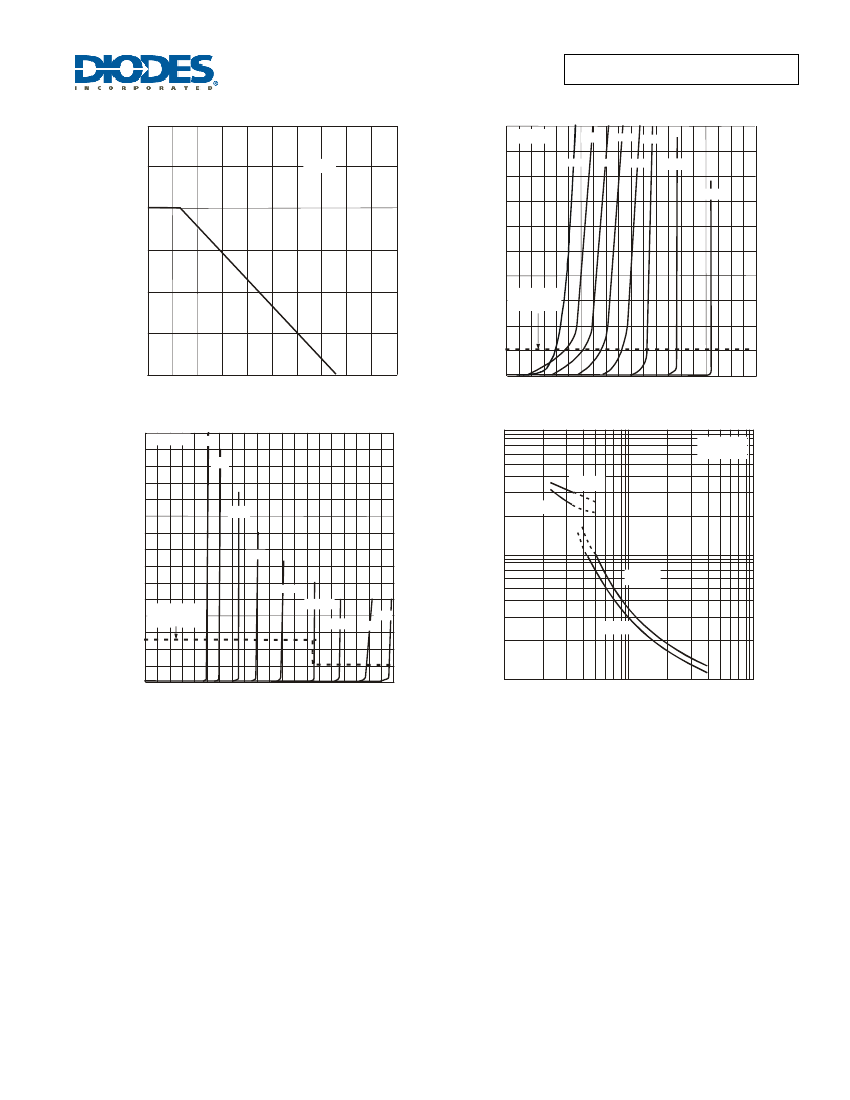

BZT52C2V0S - BZT52C39S

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

BZT52C2V0S - BZT52C39S

Document number: DS30093 Rev. 20 - 2

5 of 5

www.diodes.com

February 2017
