B350-13-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B350-13-F

B350-13-F: DescriptionSchottky Diodes & Rectifiers 3.0A 50V; CategoryDiscrete semiconductor diode; File Size327KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

B350-13-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B350-13-F	-	-	View	Buy Now

B350-13-F Overview

Schottky Diodes & Rectifiers 3.0A 50V

B350-13-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	R-PDSO-C2
Contacts	2
Manufacturer packaging code	SMC
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

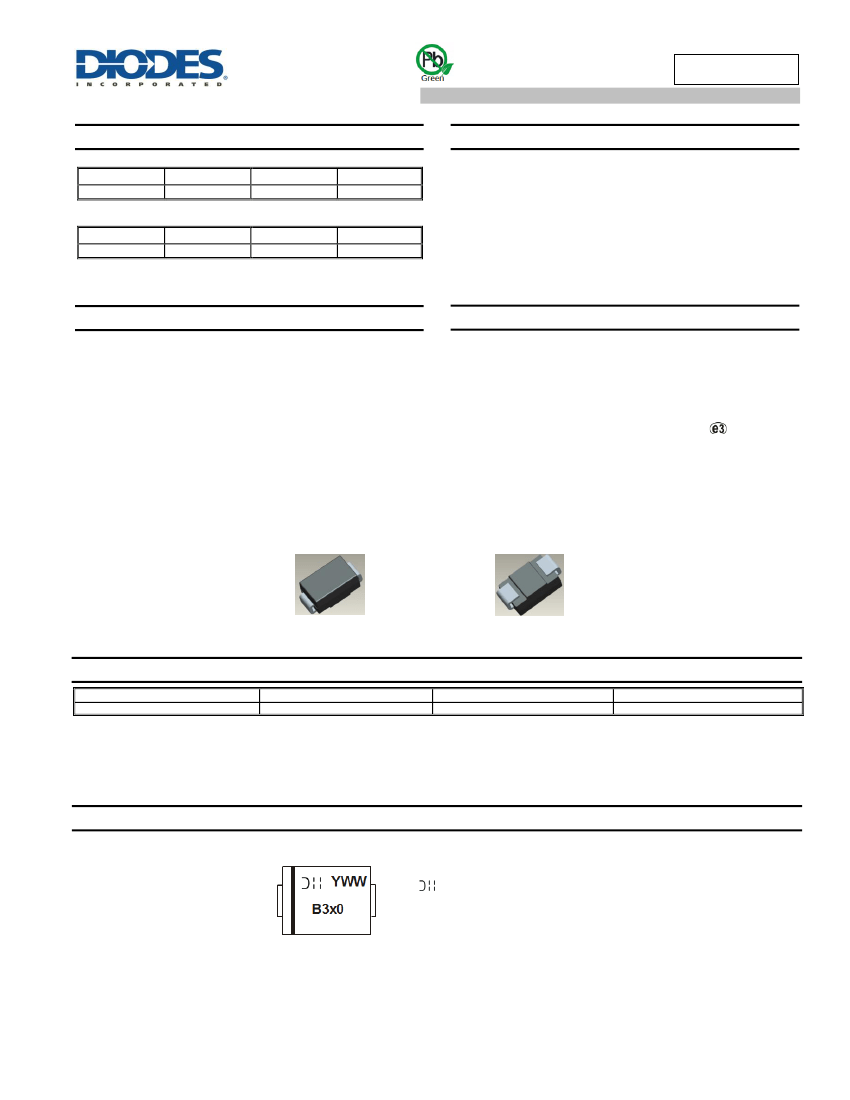

B320 - B360

3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Summary

B320/B330/B340

RRM

(V)

20/30/40

B350/B360

RRM

(V)

50/60

(A)

3.0

F max

(V)

0.5

R max

(mA)

0.1

Features and Benefits



Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 125A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

(A)

3.0

F max

(V)

0.7

R max

(mA)

0.1

Description and Applications

This Schottky Barrier Rectifier has been designed to meet the

general requirements of commercial applications. It is ideally suited

for use as:



Polarity Protection Diode

Re-Circulating Diode

Switching Diode

Mechanical Data



Case: SMC

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.21 grams (Approximate)

SMC

Top View

Bottom View

Ordering Information

(Notes 4 & 5)

Part Number

B3x0-13-F

Notes:

Compliance

Commercial

Case

SMC

Packaging

3,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

(Note 5)

B3x0 = Product Type Marking Code, ex: B320

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 15 for 2015)

WW = Week Code (01 to 53)

Note:

5. Device has a cathode band (as shown above) and may also have a cathode notch.

B320 - B360

Document number: DS30923 Rev. 12 - 2

1 of 5

www.diodes.com

February 2016

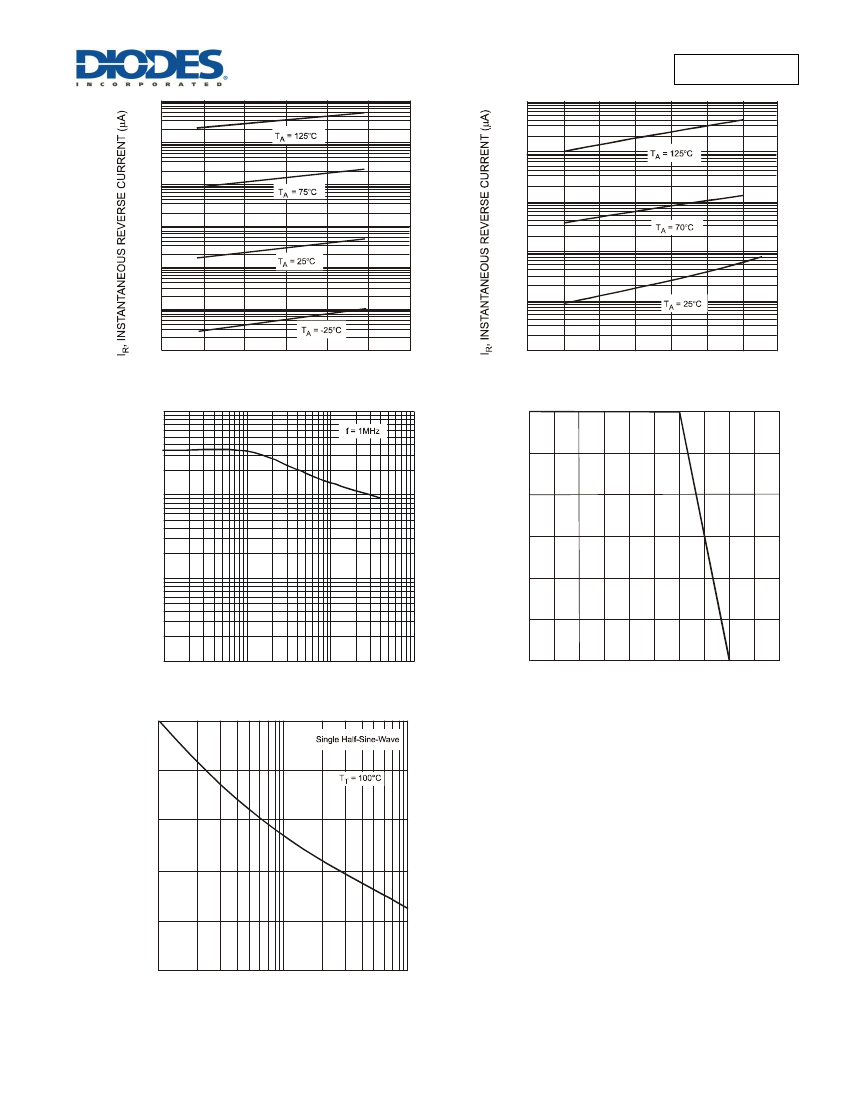

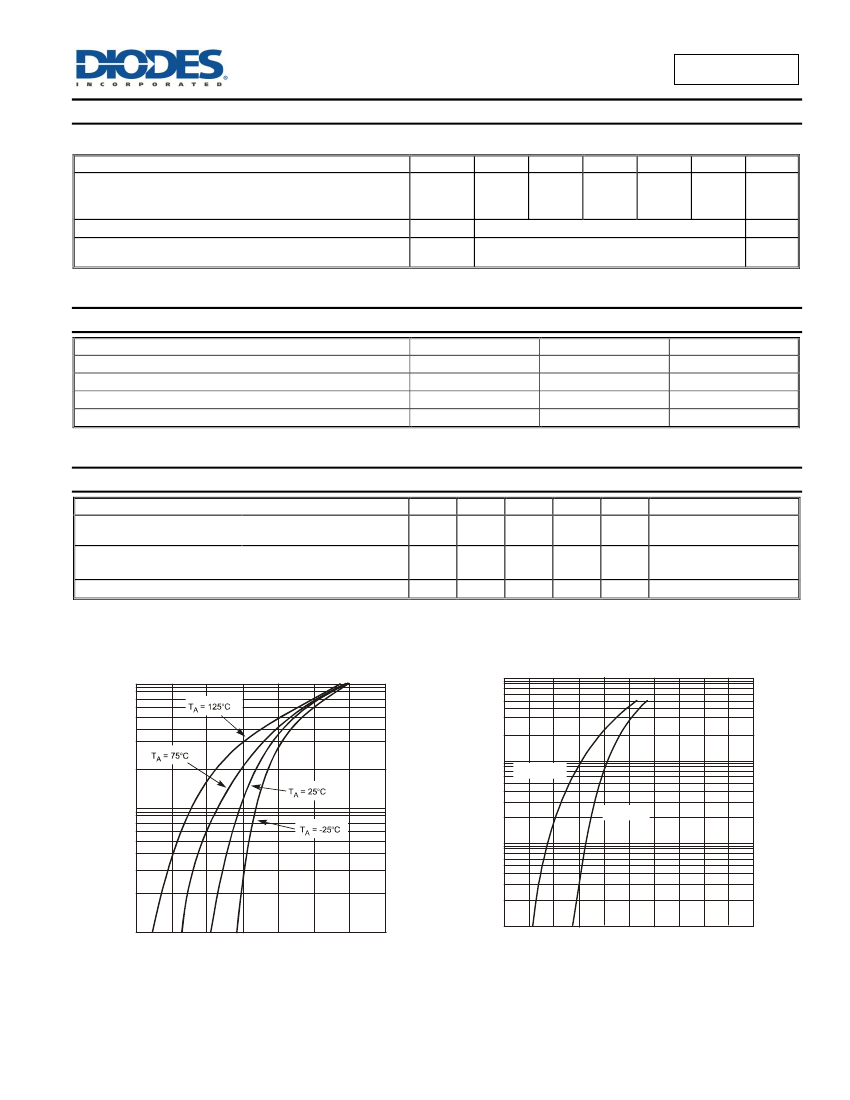

B320 - B360

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

B320 - B360

Document number: DS30923 Rev. 12 - 2

5 of 5

www.diodes.com

February 2016

B350-13-F Related Products

	B350-13-F	B320-13-F
Description	Schottky Diodes & Rectifiers 3.0A 50V	Schottky Diodes & Rectifiers 20V 3A
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to
Maker	Diodes Incorporated	Diodes Incorporated
package instruction	R-PDSO-C2	GREEN, PLASTIC, SMC, 2 PIN
Contacts	2	2
Manufacturer packaging code	SMC	SMC
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Factory Lead Time	10 weeks	10 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V	0.5 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	100 A	100 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	20 V
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
Base Number Matches	1	1
