DF2005ST-G Overview

Bridge Rectifiers VR=50V IAV=2.0A

DF2005ST-G Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Comchip Technology
Product Category	Bridge Rectifiers
RoHS	In Transition
Type	Single Phase Bridge
Mounting Style	SMD/SMT
Termination Style	SMD/SMT
Package / Case	DFS-4
If - Forward Current	2 A
Peak Reverse Voltage	50 V
Vf - Forward Voltage	1.1 V
Max Surge Current	60 A
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Length	8.2 mm
Width	6.5 mm
Height	2.6 mm

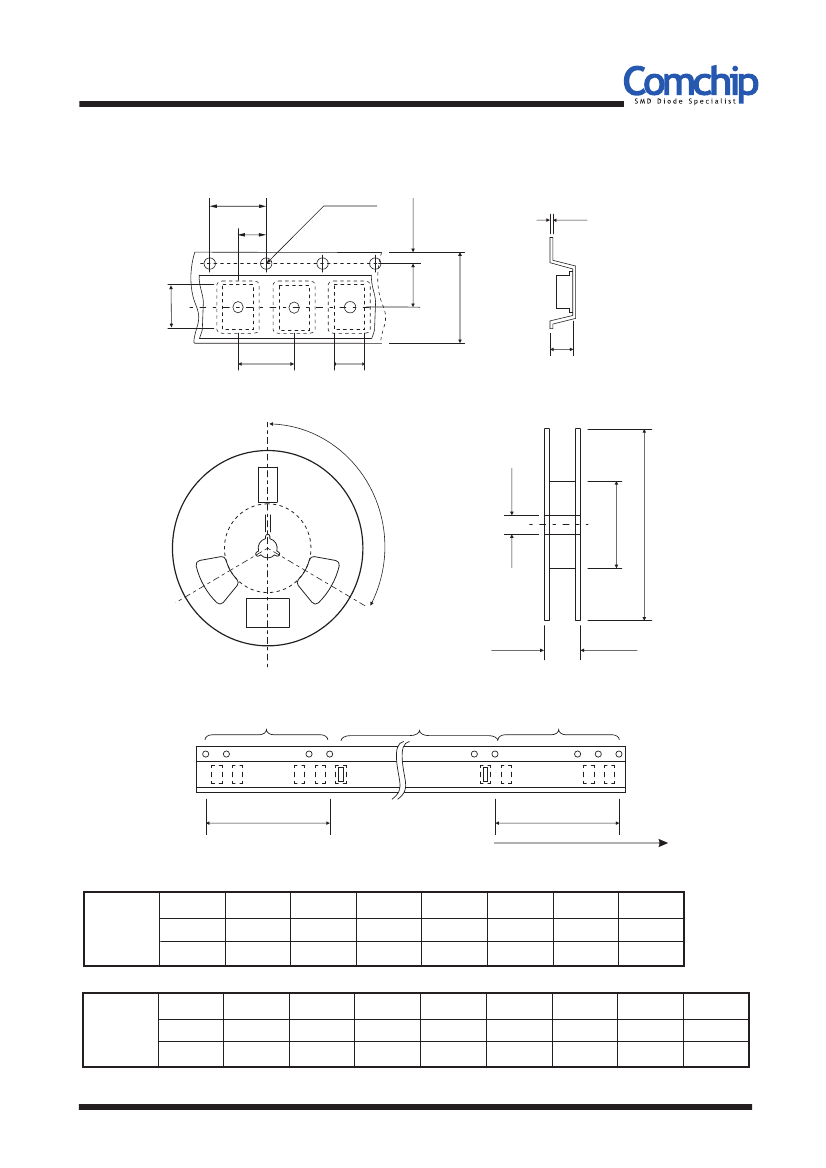

Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Bridge Rectifiers
Technology	Si
Ir - Reverse Current	10 uA
Factory Pack Quantity	1000
Vr - Reverse Voltage	50 V
Unit Weight	1.340411 oz

Preview

Download Datasheet

View All

SMD Glass Passivated Bridge Rectifiers

DF2005S-G Thru. DF210S-G

Reverse Voltage: 50 to 1000V

Forward Current: 2.0A

RoHS Device

Features

-Rating to 1000V PRV

-Ideal for printed circuit board.

-Low forward voltage drop.

-High current capability.

-The plastic material has UL flammability

classification 94V-0

-UL recognized file # E217139

DFS

0.205(5.20)

0.197(5.00)

0.335(8.50)

0.307(7.80)

0.031(0.80)

0.023(0.60)

0.256(6.50)

0.244(6.20)

0.047(1.20)

0.037(0.95)

0.406(10.30)

0.394(10.00)

0.014(0.35)

0.008(0.20)

Mechanical Data

-Polarit: As marked on Body

-Weight: 0.02 ounces, 0.38 grams

-Mounting position: Any

0.102(2.6)

Max.

0.323(8.2)

0.315(8.0)

0.102(2.6)

0.087(2.2)

0.063(1.6)

0.055(1.4)

Dimensions in inches and (millimeter)

Maximum ratings and electrical characteristics

Rating at 25°C ambient temperature unless otherwise specified.

Single phase, half wave ,60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectified Current @T

=40°C

Peak Forward Surage Current, 8.3ms Single

Half Sine-Wave Super Imposed On Rated

Load

(JEDEC

Method)

Maximum Forward Voltage at 2.0A DC

Maximum DC Reverse Current

At Rate DC Blocking Voltage

I T Rating for Fusing (t<8.3ms)

Typical Junction Capacitandce Per Element

(Note 1)

Typical Thermal Resistance (Note 2)

Operating Temperature Range

Storage Temperature Range

Symbol

2005S-G

201S-G

100

202S-G

200

140

200

204S-G

400

280

400

2.0

206S-G

600

420

600

208S-G

800

560

800

210S-G

1000

700

1000

Unit

RRM

RMS

(AV)

FSM

θJA

STG

1.1

500

10.4

-55 to +150

μA

°C/W

°C

=25°C

=125°C

Notes:

1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

2. Thermal resistance from junction to ambient mounted on P.C.B with 0.5*0.5"(13*13mm) copper pads.

Company reserves the right to improve product design , functions and reliability without notice.

QW-BBR47

REV: F

Page 1

Comchip Technology CO., LTD.
