DSC7Q01
Silicon NPN epitaxial planar type darlington
For low frequency amplification
Darlington connection
Features
High forward current transfer ratio h
FE
with excellent linearity
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)
Unit: mm
Marking Symbol: 5K
Packaging
DSC7Q01×0L Embossed type (Thermo-compression sealing): 1 000 pcs / reel (standard)
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector current
Peak collector current
Collector power dissipation
*1
Junction temperature
Operating ambient temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
j
T
opr
T
stg
Rating
100
80
5
1
1.5
1
150
–40 to +85
–55 to +150
Unit
V
V
V
A
A
W
°C
°C
°C
≈
200
Ω
1: Base
2: Collector
3: Emitter
Panasonic
JEITA
Code

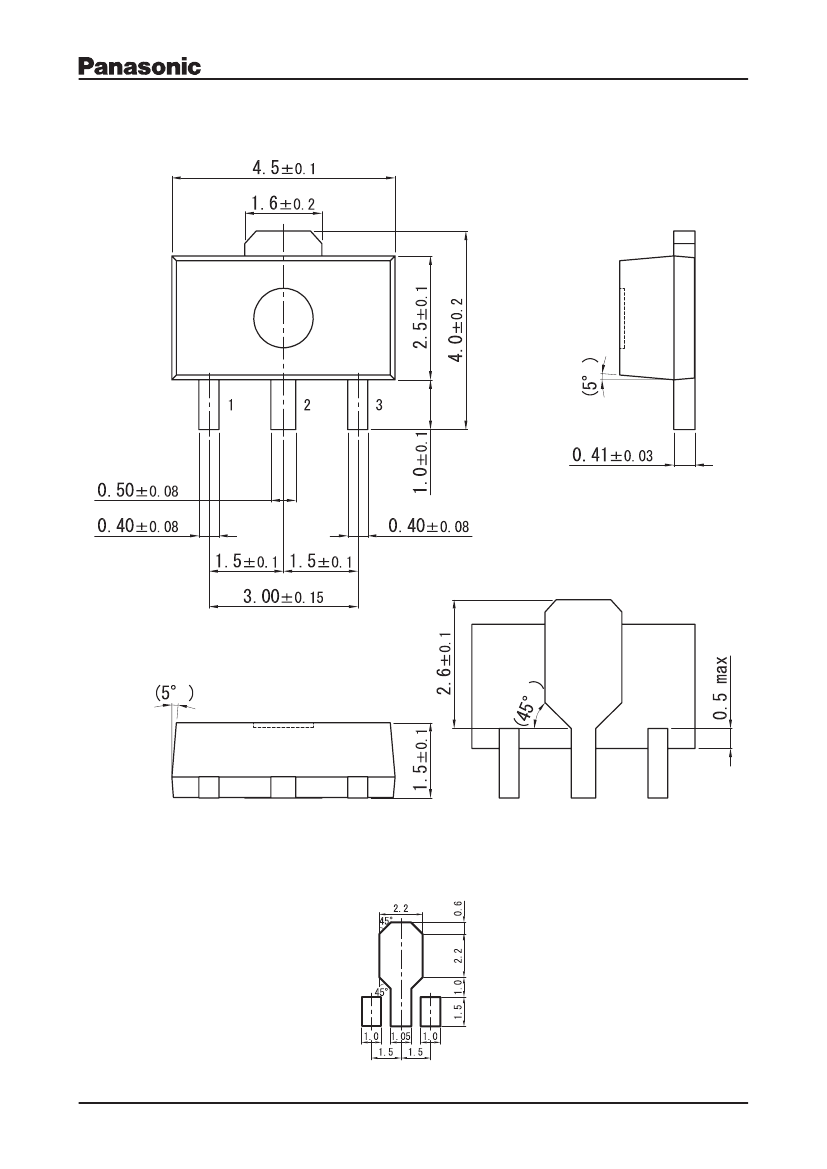

MiniP3-F2-B
SC-62
TO-243
C
B
Note) *1: Printed circuit board: Copper foil area of 1 cm
2
or more, and the board thickness
of 1.7 mm for the collector portion
Absolute maximum rating without heat sink for P
C
is 0.5 W
E
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Emitter-base voltage (Collector open)
Collector-base cutoff current (Emitter open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
*1, 2
Collector-emitter saturation voltage
*1
Base-emitter saturation voltage
*1
Symbol
V
CBO
V
CEO
V
EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE(sat)
Conditions
I
C
= 100
mA,
I
E
= 0
I
C
= 1 mA, I
B
= 0
I
E
= 100
mA,
I
C
= 0
V
CB
= 25 V, I
E
= 0
V
EB
= 4 V, I
C
= 0
V
CE
= 10 V, I
C
= 1 A
I
C
= 1 A, I
B
= 1 mA
I
C
= 1 A, I
B
= 1 mA
4 000
Min
100
80
5
0.1
0.1
40 000
1.8
2.2
Typ
Max
Unit
V
V
V
mA
mA
V
V
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
2. *1: Pulse measurement
*2: Rank classification
Code
Rank
h
FE
Marking Symbol
Q
Q
4 000 to 10 000
5KQ
R
R
8 000 to 20 000
5KR
S
S
16 000 to 40 000
5KS
0
No-rank
4 000 to 40 000
5K
Product of no-rank is not classified and have no marking symbol for rank.
Publication date: February 2014
Ver. DED
1
