MAX733CPA+ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MAX733CPA+

Preview

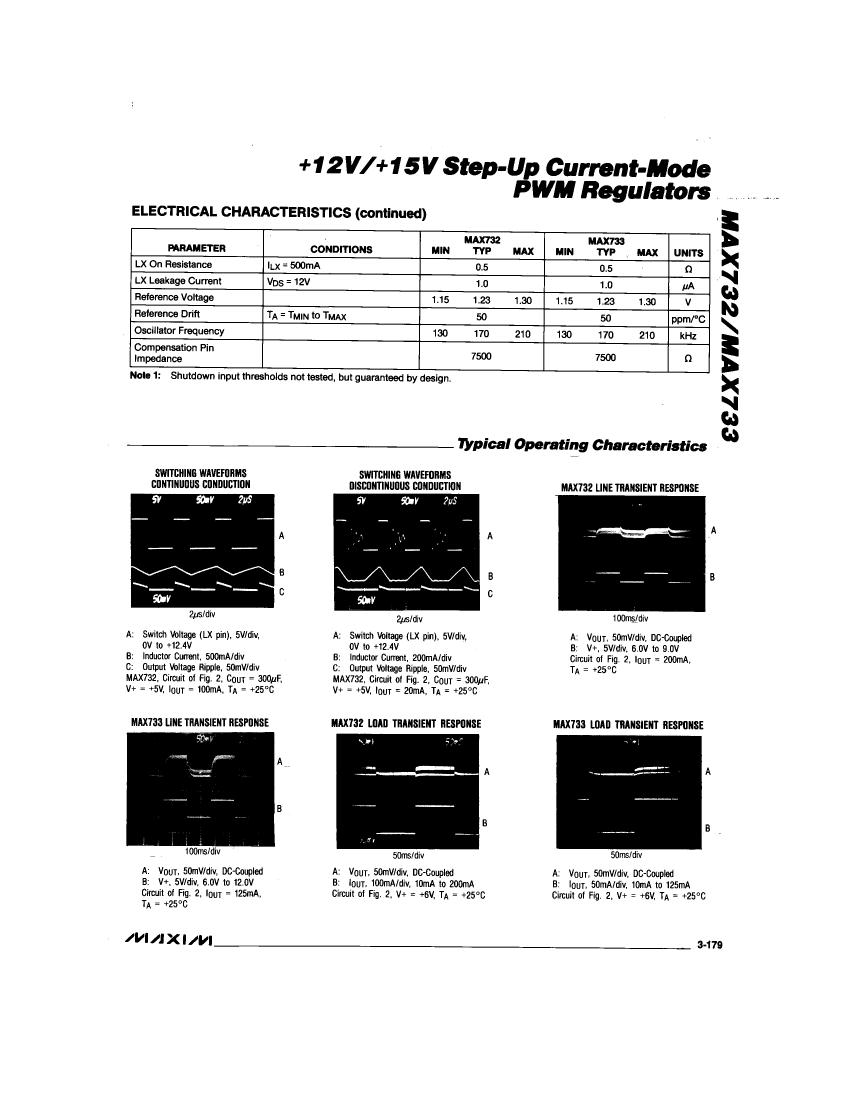

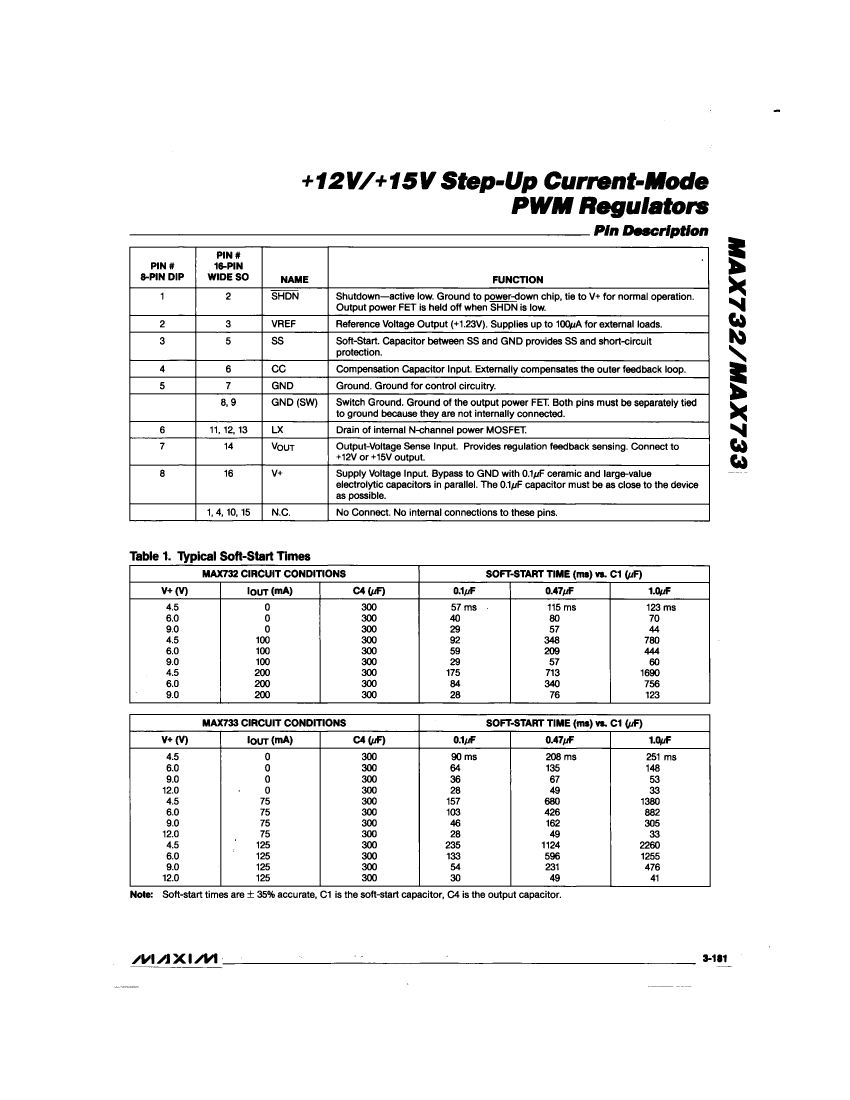

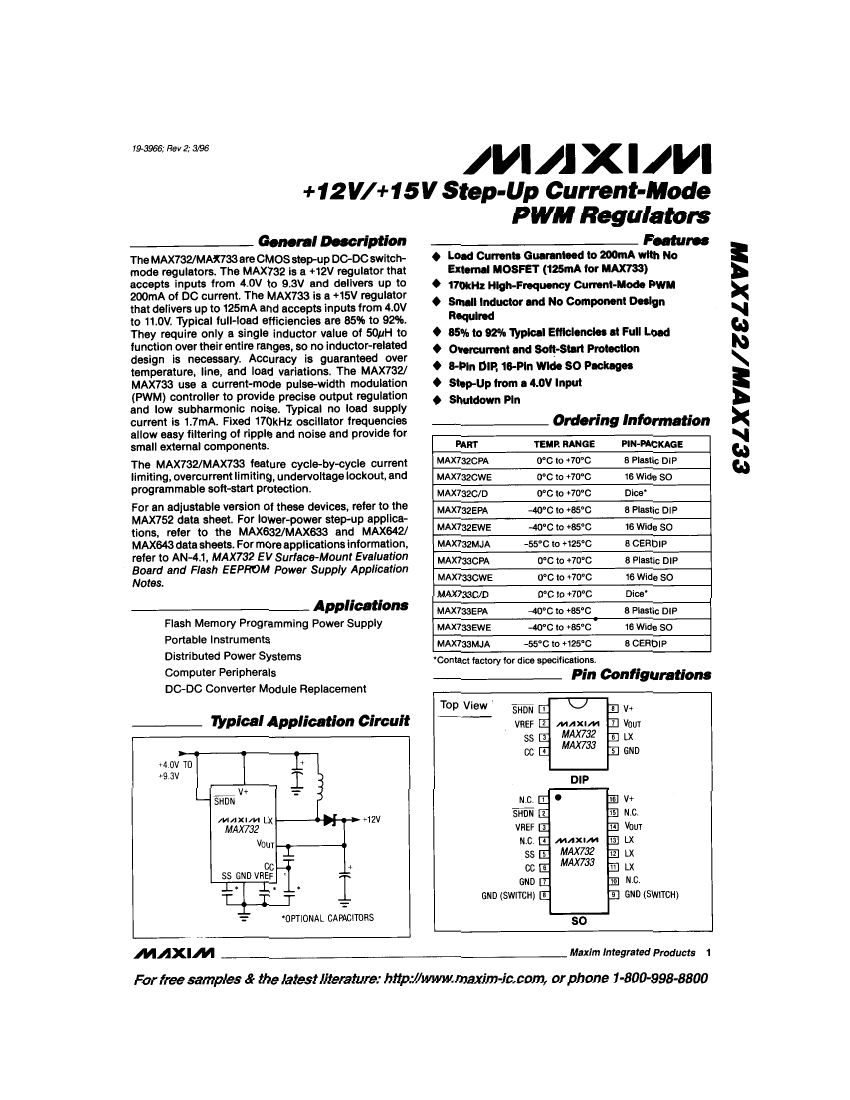

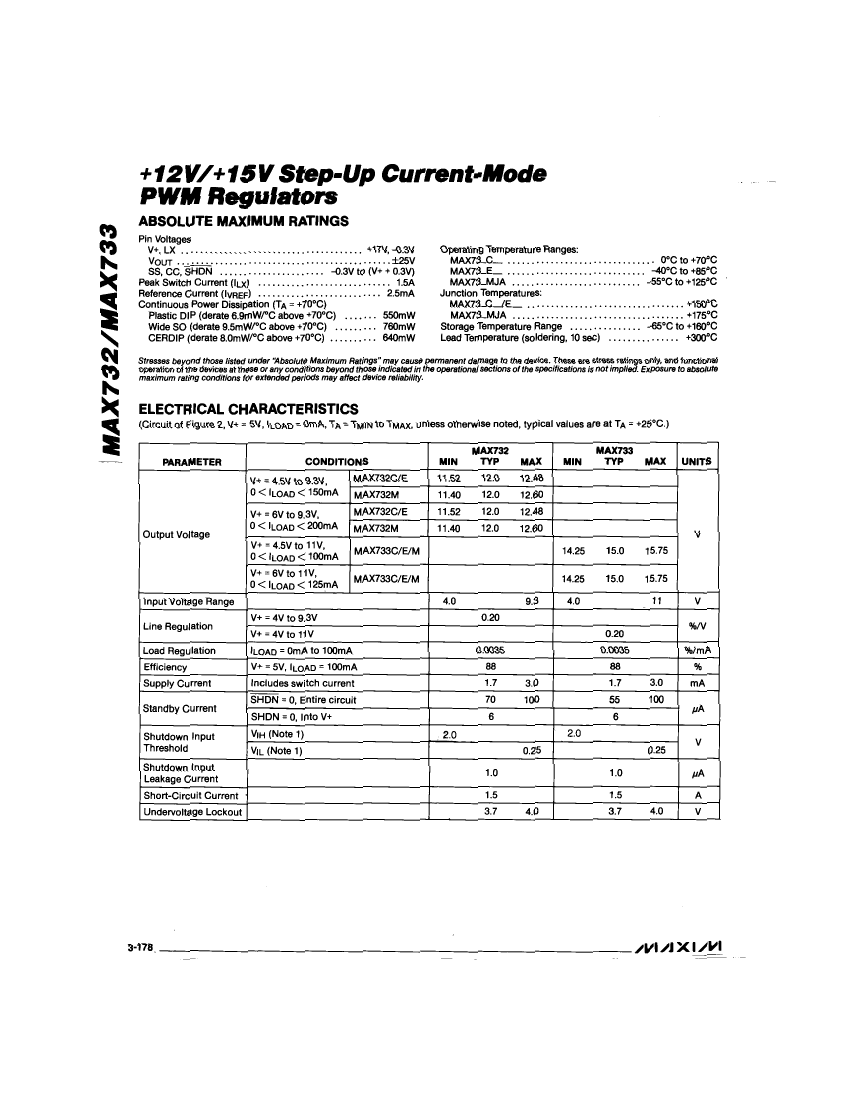

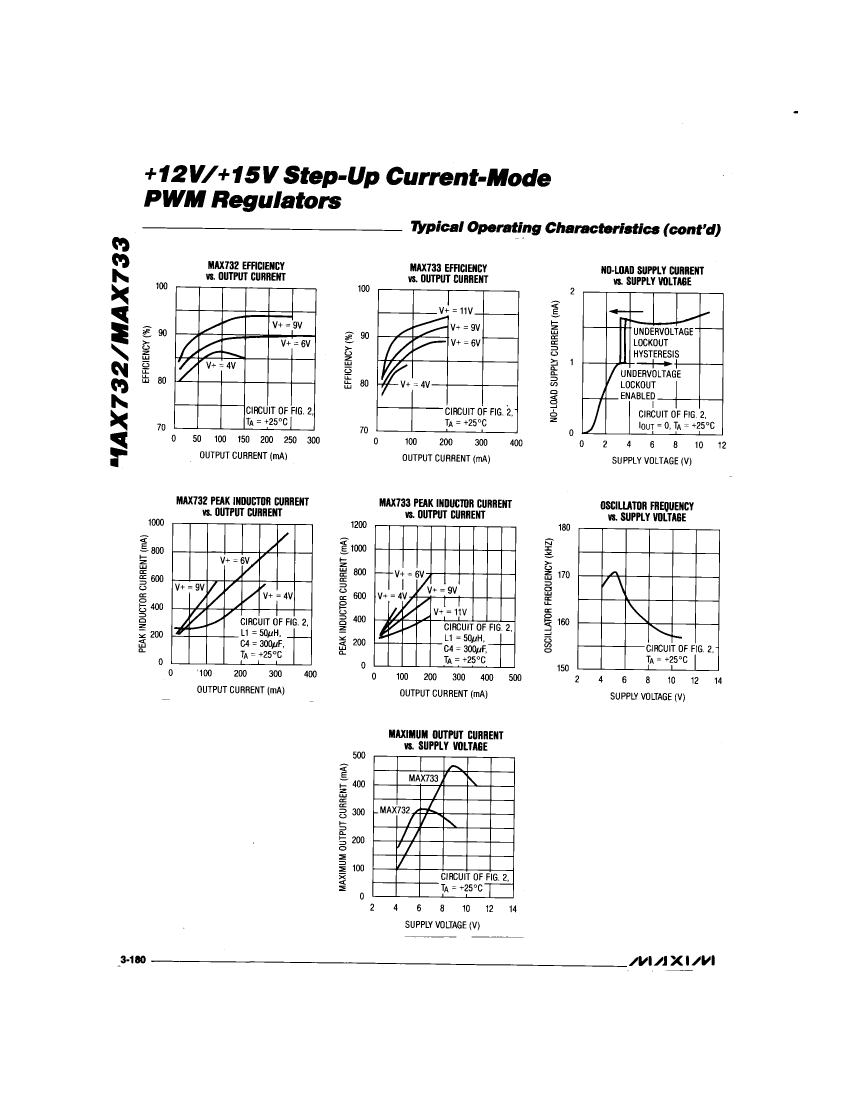

MAX733CPA+: DescriptionSwitching Voltage Regulators; CategoryPower/power management The power supply circuit; File Size451KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX733CPA+ Overview

Switching Voltage Regulators

MAX733CPA+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	11 V
Minimum input voltage	4 V
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.375 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1.5 A
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply current (Isup)	3 mA
surface mount	NO
Switch configuration	BOOST
Maximum switching frequency	170 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

MAX733CPA+ Related Products

	MAX733CPA+	MAX733EPA+	MAX733CWE-T	MAX733CWE+
Description	Switching Voltage Regulators	Switching Voltage Regulators	Switching Voltage Regulators	Switching Voltage Regulators
Is it Rohs certified?	conform to	conform to	incompatible	conform to
Maker	Maxim	Maxim	Maxim	Maxim
package instruction	DIP, DIP8,.3	DIP,	SOP, SOP16,.4	SOP, SOP16,.4
Reach Compliance Code	compliant	compliant	not_compliant	unknown
Parts packaging code	DIP	DIP	SOIC	-
Contacts	8	8	16	-
ECCN code	EAR99	EAR99	EAR99	-
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	-
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	-
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-
Maximum input voltage	11 V	11 V	11 V	-
Minimum input voltage	4 V	4 V	4 V	-
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDSO-G16	-
JESD-609 code	e3	e3	e0	-
length	9.375 mm	9.375 mm	10.3 mm	-
Number of functions	1	1	1	-
Number of terminals	8	8	16	-
Maximum operating temperature	70 °C	85 °C	70 °C	-
Maximum output current	1.5 A	1.5 A	1.5 A	-
Nominal output voltage	15 V	15 V	15 V	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	SOP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	260	260	245	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	4.572 mm	4.572 mm	2.65 mm	-
Maximum supply current (Isup)	3 mA	3 mA	3 mA	-
surface mount	NO	NO	YES	-
Switch configuration	BOOST	BOOST	BOOST	-
Maximum switching frequency	170 kHz	170 kHz	170 kHz	-
technology	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	-
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	7.62 mm	7.62 mm	7.5 mm	-
