Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

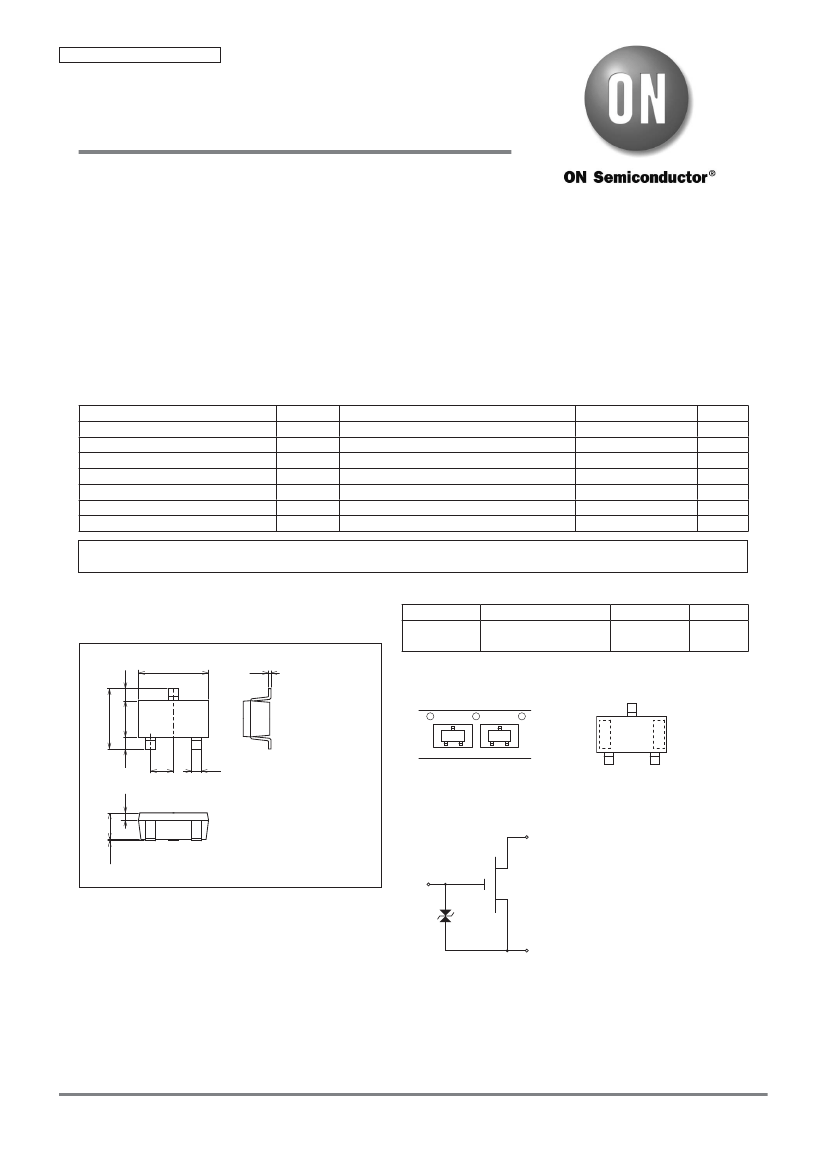

Package Dimensions
unit : mm (typ)
7013A-010
2.9
3
0.1
Ordering & Package Information
Device
2SK536-TB-E
Package
CP
SC-59, TO-236, SOT-23, TO-236AB
Shipping
3,000pcs./reel
memo
Pb-Free
2.5
1.5
0.5
2SK536-TB-E
Packing Type: TB
Marking
LOT No.
LOT No.
BJ
0.5
1
0.95
2
0.4
TB
1 : Gate
2 : Drain
3 : Source
CP
Electrical Connection
2
0.05
1.1
0.3
1
3
Semiconductor Components Industries, LLC, 2013
July, 2013
71713 TKIM/52899TH (KT)/4237TA, TS No.2550-1/4
2SK536

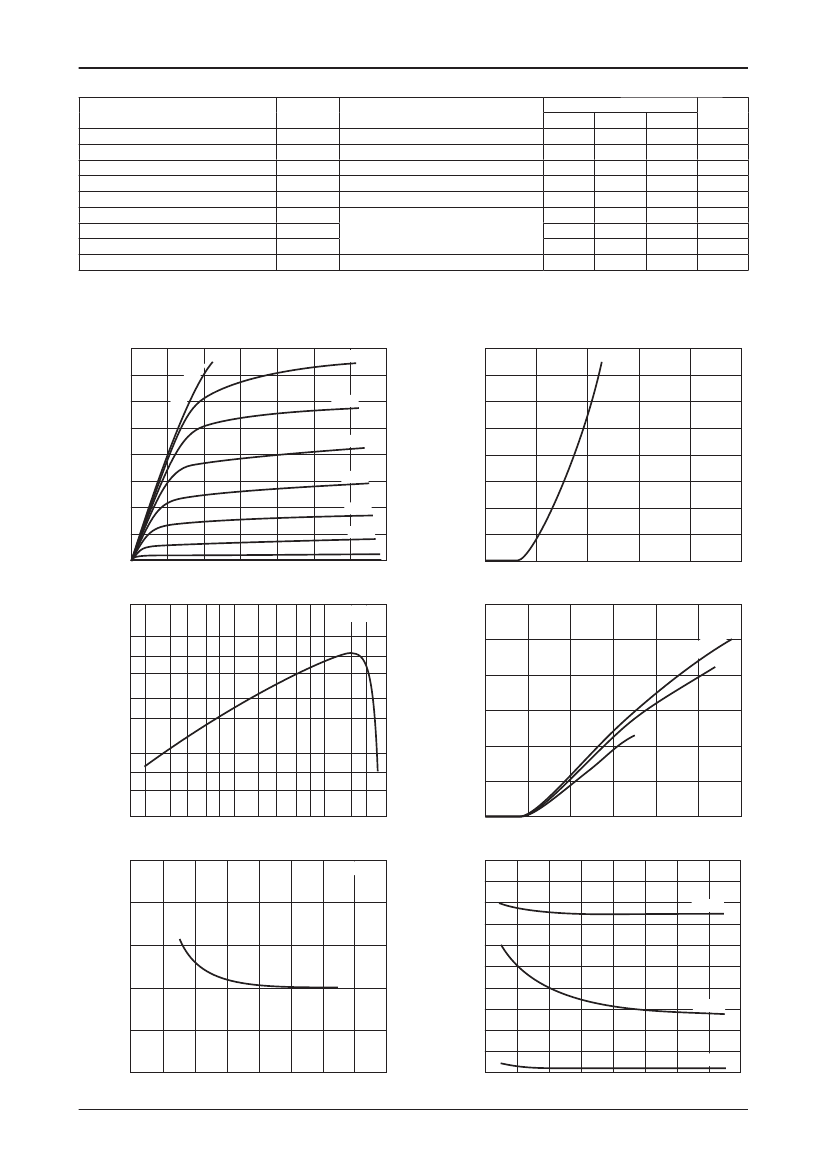

Electrical Characteristics
at Ta=25°C
Parameter
Drain to Source Breakdown Voltage
Gate to Source Leakage Current
Zero-Gate Voltage Drain Current
Cutoff Voltage
Forward Transfer Admittance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Drain to Source ON Resistance
Symbol
V(BR)DS
IGSS
IDSS
IGS(off)
|
yfs
|
Ciss
Coss
Crss
RDS(on)
VGS=10V, ID=10mA
VDS=10V, VGS=0V, f=1MHz
Conditions
ID=10μA, VGS=0V
VGS=10V, VDS=0V
VDS=20V, VGS=0V
VDS=10V, ID=100μA
VDS=10V, ID=50mA, f=1kHz
Ratings
min
50
0.01
0.3
25
0.9
40
15
6
0.5
20
10
1
1.5
typ
max
Unit
V
nA
μA
V
mS
pF
pF
pF
Ω
160
140
ID -- VDS
5.0
V
4.5V
160
140
ID -- VGS
VDS=10V
Drain Current, ID -- mA
100
Drain Current, ID -- mA
14
120
V
GS =
4.0V
120
100
80
60
40
20
0
3.5V
80
60
40
20
0
0
3.0V
2.5V
2.0V
1.5V
2
4
6
8
10
12
0
2
4
6
8
10
ITR00796
Drain to Source Voltage, VDS -- V
2
⏐
y
fs⏐ -- ID
ITR00795
60
Gate to Source Voltage, VGS -- V
⏐
y
fs⏐ -- VGS
Forward Transfer Admittance,
⏐
y
fs⏐ -- mS
Forward Transfer Admittance,
⏐
y
fs⏐ -- mS
VDS=10V
100
7
5
3
2
50
V
40
=1
S
D
0V
3V
30
1V
20
10
7
5
3
10
7 1.0
2
3
5 7 10
2
3
5
7 100
2
3
5
0
0.6
1.0
1.4
1.8
2.2
2.6
3.0
ITR00798
Drain Current, ID -- mA
50
ITR00797
20
RDS(on) -- VGS
Ciss, Coss, Crss -- VDS
Gate to Source Voltage, VGS -- V
Input Capacitance, Ciss -- pF
Output Capacitance, Coss -- pF
Reverse Transfer Capacitance, Crss -- pF
ID=10mA
40
18
16
14
12
10
8
6
4
2
Ciss
On Resistance, RDS(on) --
Ω
30
20
Coss
10
Crss
0
0
2
4
6
8
10
12
14
16
0
0
2
4
6
8
10
12
14
16
Gate to Source Voltage, VGS -- V
ITR00799
Drain to Source Voltage, VDS -- V
ITR00800
No.2550-2/4
2SK536
Outline Drawing
2SK536-TB-E
Mass (g) Unit
0.013 mm
* For reference
Land Pattern Example
Unit: mm
0.8
1.0
2.4
0.95
0.95
No.2550-3/4
2SK536
Note on usage : Since the 2SK536 is a MOSFET product, please avoid using this device in the vicinity of
highly charged objects.
