8831-0-00-00-00-00-03-0 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 8831-0-00-00-00-00-03-0

Preview

8831-0-00-00-00-00-03-0: DescriptionCircuit Board Hardware - PCB PRESS FIT SOLDER TERMINALS; CategoryTopical application Mechanical and electrical/engineering/automation; File Size692KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8831-0-00-00-00-00-03-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8831-0-00-00-00-00-03-0	-	-	View	Buy Now

8831-0-00-00-00-00-03-0 Overview

Circuit Board Hardware - PCB PRESS FIT SOLDER TERMINALS

8831-0-00-00-00-00-03-0 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mill-Max
Product Category	Circuit Board Hardware - PCB
RoHS	Details
Product	Pins
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

MALE PCB

PINS

SOLDER TERMINALS VARIOUS TYPES

2709

.081 DIA.

HOLE

.111 DIA.

.156 DIA.

2709-X-07-XX-00-00-07-0

Swage mount in .116 hole

8602

Basic

Part

Number

Board

Thick-

ness

Length

8602-1-00-XX-00-00-07-0

Square press-fit in .032 plated through-hole

.050 DIA.

.035 DIA.

.080

.260

2115

2115-2-00-XX-00-00-07-0

Swage mount in .043 hole

For a .062 thick board

.022 DIA.

HOLE

.039 DIA.

.062 DIA.

.039 DIA.

.080

.020

.080

.068

.088 DIA.

.020 .230

.118 DIA.

.064 DIA.

HOLE

.030

2709-2

2709-3

.062

.094

.109

.141

.281

.250

.040 DIA.

.140

.028

SQUARE

.025 DIA.

.050

.100

HOLE TAPERING DOWN TO .050 DIA.

2326

.033 DIA.

HOLE

.050 DIA.

.078 DIA.

.050 DIA.

2326-2-00-XX-00-00-07-0

Swage mount in .055 hole

For a .062 thick board

8831

.072 DIA.

.060 DIA.

8831-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

8835

.072 DIA.

8835-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

8836

.093 DIA.

8836-0-00-XX-00-00-03-0

Press-fit in .075 mounting hole

.030

.028

.050

.242

.060 DIA.

.053 DIA.

.040 DIA.

.030

.028

.054

.078 DIA.

.030

.028

.020

.090

.053 DIA.

.242

.025 DIA.

.072 DIA.

.312

.090

0912/7912

.072 DIA.

.060 DIA.

0912-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

.031

.032

3080

Basic Part

Number

Length

.039 DIA.

HOLE

3080-0-01-XX-00-00-03-0

Press-fit in .057 mounting hole

For wire sizes up to 22 AWG

3050

.024 DIA.

3050-0-01-XX-00-00-03-0

Press-fit in .032 mounting hole

For wire sizes up to 26 AWG

.055

.072 DIA.

.100

.053 DIA.

0912-0

7912-0

.313

.510

.126 .138

.040 DIA.

.100

.180

.035 DIA.

.022

.035

.081

.303

.060 DIA.

.053 DIA.

.020 DIA.

.020

.032 DIA.

.016 DIA.

.125

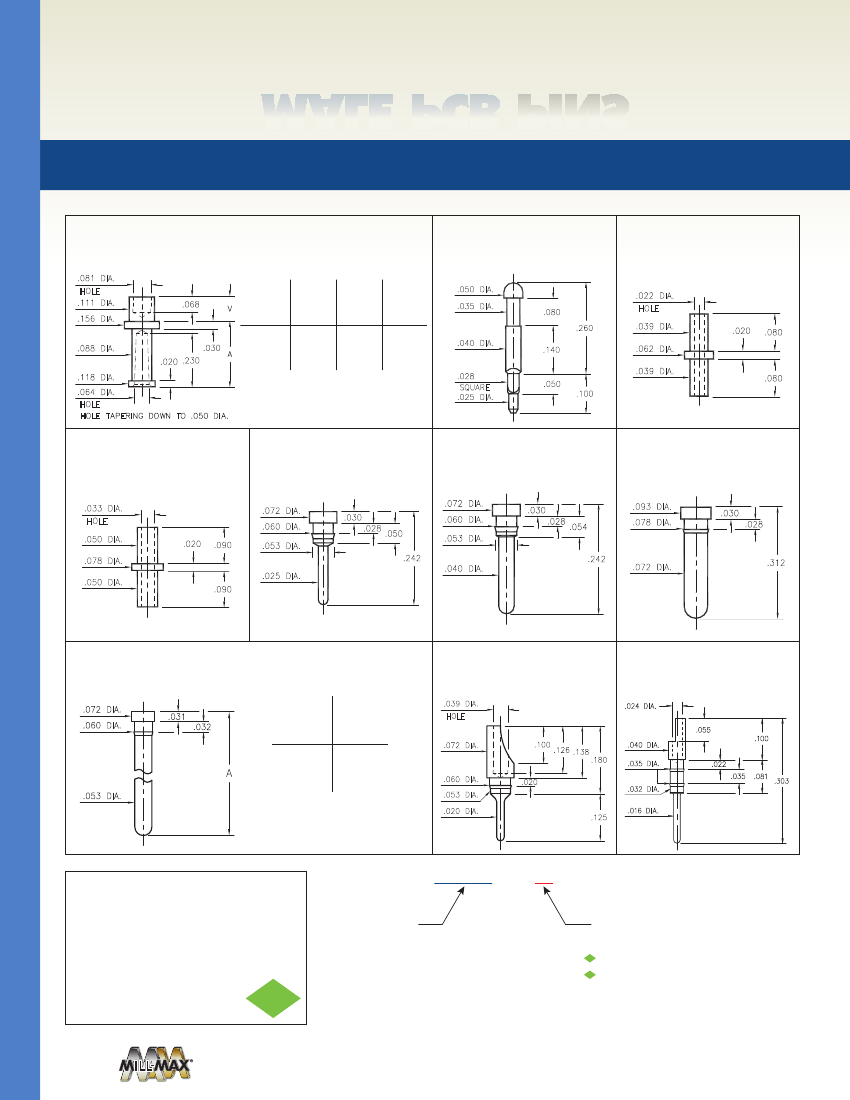

PAGE 244 | MALE PCB PINS

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Swage pins are annealed )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - XX -

- 00 - 00 - XX - 0

BASIC PART #

SPECIFY PIN FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

300

μ”

SILVER OVER COPPER (RoHS)

300

μ”

ELECTRO-SOLDER

(60/40 SnPb)

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
