Product data sheet
Characteristics

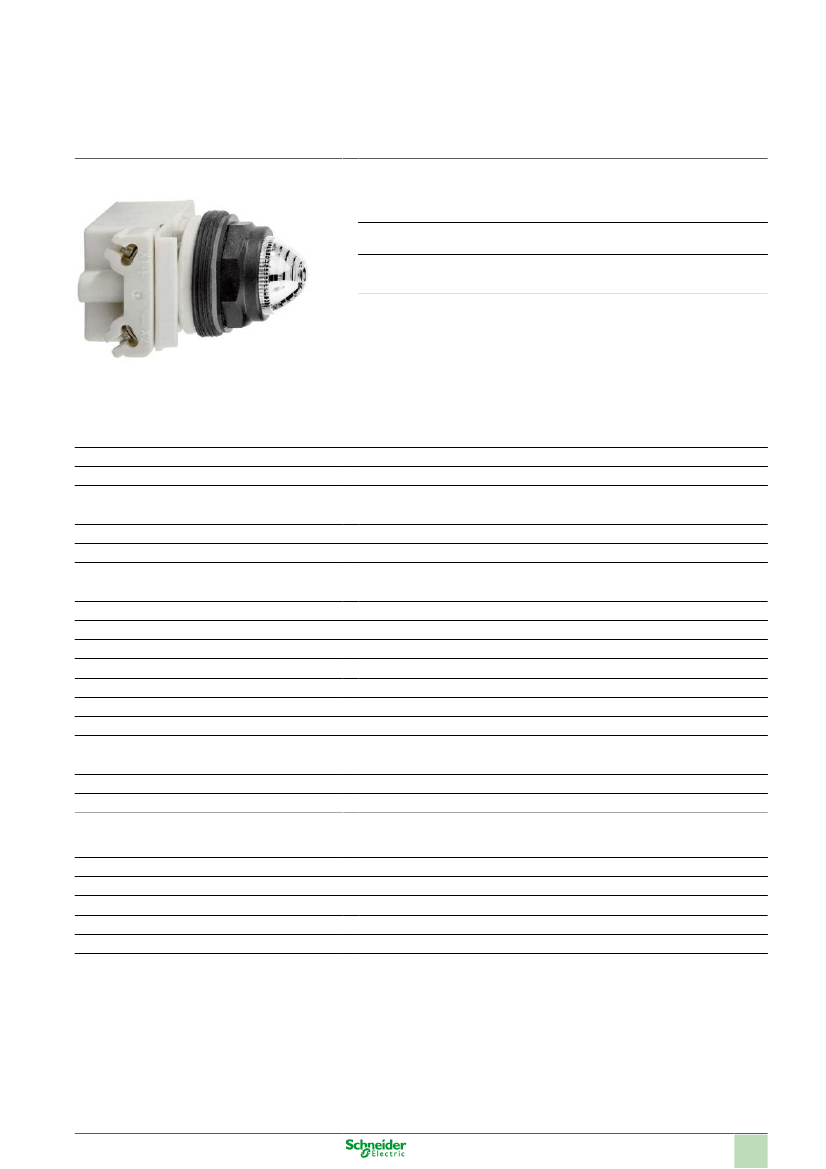

9001SKP38LWW9
octagonal pilot light Ø 30 - white - high
luminosity LED BA 9s - 120 V AC - IP66
Main
Range of product
Product or component
type
Device short name
Light block supply
Harmony 9001SK
Complete pilot light
9001SK
Direct
Complementary
Bezel material
Mounting diameter
CAD overall width
CAD overall height
CAD overall depth
Product weight
Operating position
Shape of signaling unit head
Cap/Operator or lens colour
Connections - terminals
Tightening torque
Shape of screw head
Short circuit protection
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Light source
Bulb base
[Us] rated supply voltage
Plastic
30 mm
54 mm
70 mm
42 mm
0.082 kg
Any position
Octagonal
White
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to EN/IEC 60947-1
0.8 N.m conforming to EN/IEC 60947-1
Cross slotted head
10 A cartridge fuse conforming to EN/IEC 60947-5-1
10 A
250 V (degree of pollution: 2) conforming to EN/IEC 60947-1
2.5 kV conforming to EN/IEC 60947-1
High luminosity LED
BA 9s
120 V AC/DC
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP66 conforming to IEC 60529
NEMA 4X
NEMA 4
NEMA 3R
NEMA 3
NEMA 2
NEMA 13
NEMA 12
NEMA 1
Mar 31, 2017
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Standards
CSA C22-2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
JIS C 852
UL 508
NEMA
UL 508
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn conforming to IEC 60068-2-27
Product certifications
Vibration resistance
Shock resistance
Offer Sustainability
Sustainable offer status
RoHS
Not Green Premium product
Compliant - since 0921 - Schneider Electric declaration of conformity
declaration of conformity
download
2
