5000 series
Miniature toggle switches •
threaded bushing Ø 6.35 mm or plain bushing

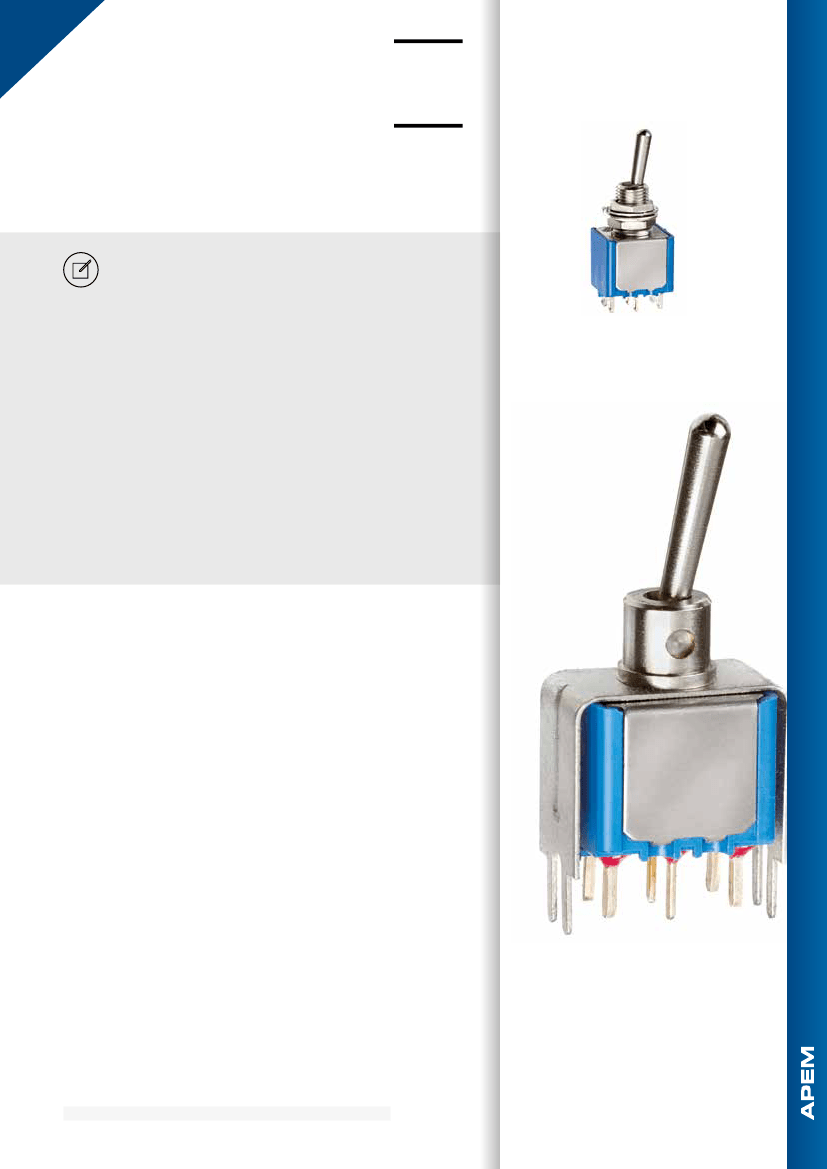

DISTINCTIVE FEATURES
17 actuators including toggles, paddle levers and locking levers
in different lengths.
Various contact materials for low and high currents.
8 functions including maintained and momentary versions.
1 to 4 pole configurations.
12 terminal types including 9 for PC board mounting.
Other types include quick-connect and wire-wrap.
Several bushing styles.
3 types of finish including military black.
3 approvals (UL - CSA - CECC).
4 types of sealing for terminal or front panel requirements.
Numerous accessories available.
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
17
0-
11
PANEL SWITCHES
5000 series
Miniature toggle switches •
threaded bushing Ø 6.35 mm or plain bushing
ELECTRICAL SPECIFICATIONS
• Current/voltage rating with resistive load :
Contact
Silver (A)
Silver, gold
plated (AD)
Brass, gold
plated (CD)
Maximum
4 A 30 VDC
4 A 30 VDC
Gold plating withstands up to 100 mA 30 VDC
0.4 VA at 20 VAC or DC
Minimum
50 mA 10 VDC
10 mA 50 mV
10 µA 5 V
10 mA 50 mV
10 µA 5 V
Level*
III and IV
I to IV
I and II
MATERIALS
• Case : diallylphthalate (DAP) or high
temperature plastic material
(UL94-V0)
• Actuator : brass, nickel plated
• Paddles : UL94HB polyamide
• Lever caps : vinyl
• Bushing : brass, nickel plated
• Housing : stainless steel or steel tin
plated
• Contacts
A
: silver
AD
: silver, gold plated
CD
: brass, gold plated
X814
: for peak currrents,
see "Special options".
• Terminal seal : epoxy
*For details, see Technical Information on website.
• For inductive, lamp or capacitive load, consult factory.
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength :
1,000 Vrms 50 Hz min. between terminals
1,500 Vrms 50 Hz min. between poles
1,500 Vrms 50 Hz min. between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life at full load :
50,000 cycles for single and double pole
40,000 cycles for 3 pole
30,000 cycles for 4 pole
• Low level or mechanical life : 100,000 cycles
GENERAL SPECIFICATIONS
• Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut
• Panel thickness : 2.5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut
• Operating temperature : -40 °C to +85 °C (-40 °F to +185 °F)
AGENCY APPROVALS
CECC 96201-007
3 A 250 VAC, 6 A 125 VAC
For
VDE,
refer to 55000 series.
NATO
Availability :
consult factory for details of approved models.
Marking :
to order switches marked UL, CSA or CECC, complete
appropriate box of ordering format. The preferential list does not
appear on the switches.
2
5000 series
Miniature toggle switches •
threaded bushing Ø 6.35 mm or plain bushing

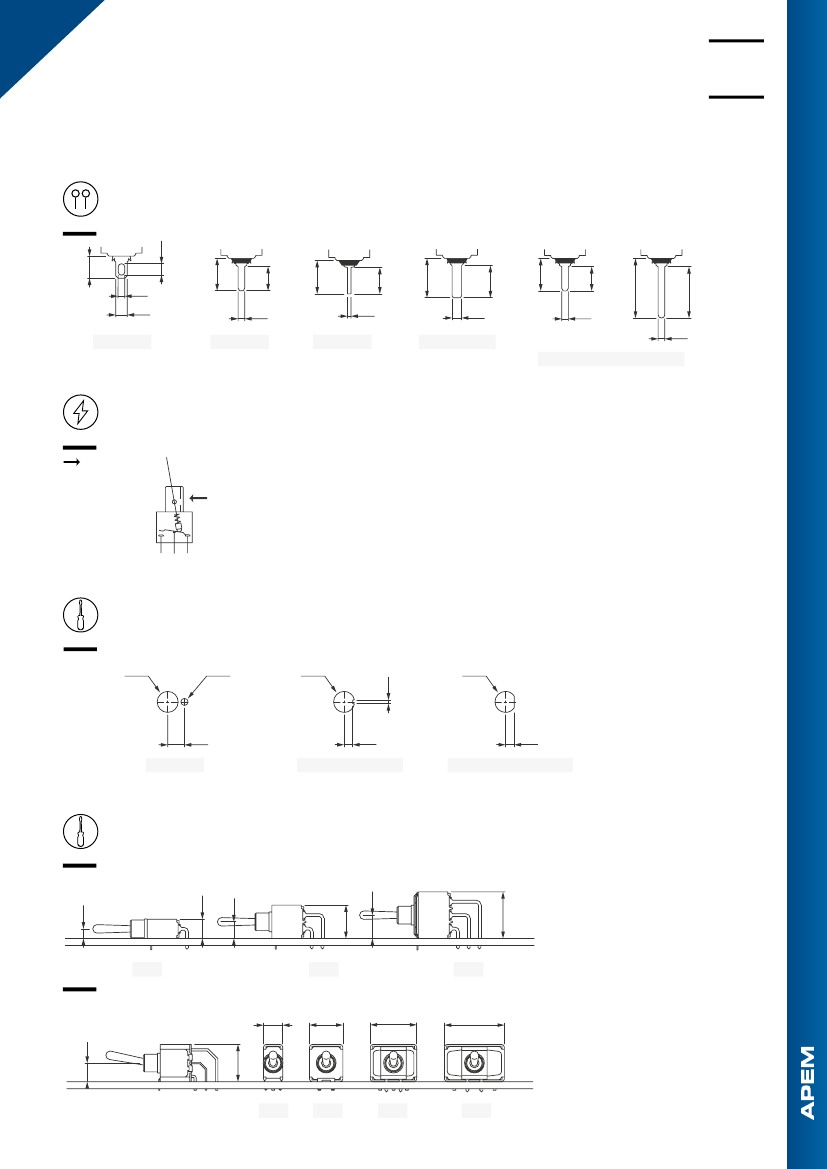

TERMINALS
1.90
(.074)
3.70
(.145)
5.30
(.208)
5.30
(.208)
5.50
(.216)
4.00
(.157)
6.50
(.255)
5.30
(.208)
4.00
(.157)
9.80
(0.385)
8.50
(.334)
9.80
(0.385)
8.50
(.334)
1.80
(.070)
1.10
(.043)
0.60
(.023)
1.57
(.061)
1.10 1.10
(.043)(.043)
Solder lugs
Straight PC
Straight PC
1.10
(.043)
Quick-connect
1.10 1.10
(.043)(.043)
Straight PC bracket mounting
ELECTRICAL FUNCTION
KEYWAY
1
2
3
PANEL CUT-OUT
Ø6.50
(.255 DIA)
Ø2.20
(.086 DIA)
Ø6.50
(.255 DIA)
1.10
(.043)
Ø6.50
(.255 DIA)
5.20
(.204)
2.70
(.106)
2.70
(.106)
Standard
With
K
sealing option
With
X408
sealing option
PCB MOUNTING FOR RIGHT ANGLE TERMINAL MODELS
HORIZONTAL W
7.00
(.275)
3.50
(.137)
6.00
(.236)
8.30
(.326)
16.60
(.653)
SP
VERTICAL WW
SP
DP
12.00
(.472)
DP
3P
3P
7.00
(.275)
12.00
(.472)
16.50
(.649)
21.20
(.834)
6.60
(.259)
13.20
(.519)
SP
SP
DP
DP
3P
3P
4P
4P
3
8.50
(.334)
1.10
(.043)
4.00
(.157)
9.80
(0.385)
4.35
(.171)
5.30
(.208)
PANEL SWITCHES
PANEL SWITCHES
5000 series
Miniature toggle switches •
threaded bushing Ø 6.35 mm or plain bushing
BUILD YOUR PART NUMBER
BASIC PART NUMBER
5
SERIES
NUMBER OF POLES
TERMINALS
MOMENTARY FOR FUNCTION 4
3
4
5
6
Single pole
Double pole
Three pole
Four pole
Blank
W
WW
Y•
Z
Solder lugs or straight
PC depending on
model
Right angle, horizontal
mounting (5200 - 5400
switches)
Right angle, vertical
mounting
(5200 - 5400 switches)
Bracket mounting
(5200 switches)
Quick-connect (5200 -
5900 switches)
1R
2R
ON ON MOM
MOM ON MOM
TERMINALS AND BUSHINGS
ELECTRICAL FUNCTIONS
CONNECTIONS FOR FUNCTION 4
0
Straight PC terminals,
5.08 (.200) terminal
spacing
Straight PC terminals,
4.70 (.185) terminal
spacing, right angle or
quick-connect
Straight PC terminals, 4
(.157) terminal spacing or
right angle terminals
Solder lug terminals
Solder lug terminals, with
flatted
bushing
Straight PC or quick-
connect terminals, with
flatted
bushing, 4.70
(.185) terminal spacing
6
9
7
8
2
4
ON
ON
MOM
ON
ON
ON
ON
MOM
-
OFF
OFF
OFF
-
ON
ON
ON
ON
ON
MOM
MOM
MOM
ON
MOM
MOM
TH
CT
Standard
Reversed
2
4
6
7
9
For functions 4, 4-1R, 4-2R
(leave blank for all other
functions).
Wiring diagrams, see
Technical information on
website.
Function 4
Must not have blank in
«connections» box.
Must not have blank in
«momentary» box.
Bushing Ø 6 (.236) x 0.75 IS
also available as standard.
4
5000 series
Miniature toggle switches •
threaded bushing Ø 6.35 mm or plain bushing
OPTIONS
FINISH
FLUORESCENT TIP
SPECIAL OPTIONS
CAPS
Caps
Length
11 (.433)
7.3 (.287)
Blank
G
Nickel plated
Black finish on
bushing,
actuator and
hardware.
Blank
-038
None
White fluorescent
tip to lever
X408
Front panel
sealing
by two O-rings
U270
U1710
Available with black
finish (G) only.
Other : see following pages.
CONTACT MATERIALS
A
AD
CD
Silver
Silver, gold plated
Brass, gold plated
PADDLES FOR 4N
(ORDER SEPARATELY)
U240N
U290N
U390N
SEALING
LEVERS
Length
with
threaded
bushing
10.5 (.413)
11.4 (.448)
5.5 (.216)
9 (.354)
plain
bushing
13.5 (.531)
-
8.5 (.334)
12 (.472)
AGENCY APPROVALS
12.6 (.496)
20.00 (.787)
21.4 (.842)
For peak currents, see X814,
under Special Options.
Blank
K
B
No sealing except
where standard
Front panel
sealing
by one O-ring and
sealing washer
Epoxy sealed
terminals
Blank
(std)
-9 (flat)
-16
-4N
Sealing by two O-rings, see
X408 under «Special
options».
4N for use with paddle actuators
only.
LOCKING LEVERS
UL,
CSA,
CECC
For VDE, refer to
55000 series.
-1V
-2V
-3V
1 locked position
2 locked positions
3 locked positions
Other levers and locking
levers, see following pages.
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart.
Notice :
please note that not all combinations of above numbers are available. Refer to the following pages for further information.
Sealing boots
are available. See "Sealing Boots" section of website.
Mounting accessories :
standard hardware supplied with all models with Ø 6.35 (1/4) or Ø 6 (.236) threaded bushing :
2 hex nuts 8 mm (.314) across flats, 1 locking ring and 1 lockwasher. Standard and special hardware is presented in the “Hardware“
section of website.
5
PANEL SWITCHES
