3 Series
Thumbwheel Switches
Features/Benefits
•
Most complete product offering in the industry
•
Spacers available to fit most panel cutouts
•
Front or rear mounting options
Typical Applications
•
Test & measurement equipment
•
Industrial equipment
•
Computer devices
Specifications
CONTACT RATING:
CARRY: 1 AMP continuous.
SWITCH: 100 mA max.
OPERATING VOLTAGE: 50 mV to 28 V DC or 120 V AC.
ELECTRICAL LIFE: 100,000 actuations.
CONTACT RESISTANCE: Below 100 m
Ω
typ. initial @
2-4 V DC, 100 mA.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 500 Vrms min. @ sea level
between common terminal and any output.
OPERATING TEMPERATURE: -40ºC to 65ºC.
Materials
HOUSING: ABS plastic.
THUMBWHEEL: ABS plastic.
ROTOR CONTACTS: Precious metal on copper alloy.
STATOR CONTACTS: Hard gold over nickel over copper
on epoxy fiberglass.
NOTE:
Specifications and materials listed above are for switches with standard options
For information on specific and custom switches, consult Customer Service Center.
* Note: All models listed are RoHS compliant. See Technical Data section of this catalog for
RoHS compliant and compatible definitions and specifications.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages M–4 thru M–10. For additional options not shown in catalog, consult Customer Service Center.
Consult factory for illumination availability.
Series
3
Thumbwheel switch
Thumbwheel
Number of Sections
0
Switch section
1
1 Switch section
2
2 Switch sections
3
3 Switch sections
4
4 Switch sections
5
5 Switch sections
6
6 Switch sections
7
7 Switch sections
8
8 Switch sections
9
More than 8
switch sections
Function Code
11
Decimal, SP, 10 position
14
Resistor decade
21
BCD, 10 position
23
Complement of BCD, 10 position
27
BCD, 10 position
31
BCD, 10 position
71
BCH, 16 position
Mounting Style
00
Snap-in, front mount
09
Snap-in, front mount*
10
Rear mount
Terminations
19
Rear mount*
0
Type 0
20
Rear mount
1
Type 1, extended type 0
29
Rear mount*
N
Solder pins with .100” spacing**
P
Solder pins with .156” spacing**
6
Type 6 No pins
9
Any combination
Color/Marking/Stops
0
Matte black body, gloss
black wheel,
white marking
*X9 mounting styles must be ordered with ‘0’ number of sections.
** Note: Termination option N (RoHS compliant) replaced termination option 3 (Non-RoHS compliant).
Termination option P (RoHS compliant) replaced termination option B (Non-RoHS compliant).
Seal
0
No seal
1
Sealed contacts
2
Dust lens
3
Sealed contacts & dust lens
M
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
M–3
www.ck-components.com
3 Series
Thumbwheel Switches
SERIES
3
THUMBWHEEL SWITCHES
NUMBER OF SECTIONS
0
1-8
9
Switch section only, no assembly. Blank bodies are considered sections; endplates are not sections.
Must be ordered with 09 or 19 mounting style options, see pages M–5 and M–6.
Number of switch sections in assembly, includes endplates.
More than 8 switch sections, specify on CONFIGURATION FORM, page M–10 and consult Customer Service Center.
NOTE:
Endplates and blank sections available separately, see pages M–13 and M–14.
FUNCTION CODE
Thumbwheel
11
DECIMAL–1 POLE; 10 POSITION
14
RESISTOR DECADE; 1-2-2-2-2 CODE
(RESISTORS NOT SUPPLIED)
21
BCD 1-2-4-8; 10 POSITION
M
Available Terminations: 0, 1, N
See fig. 1, page M-7.
Available Terminations: 1
See fig. 1, page M-7.
Available Terminations: 0, 1, N
See fig. 1, page M-7.
NOTE:
For terminal location diagram, see page M-7.
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
M–4
www.ck-components.com
3 Series
Thumbwheel Switches
FUNCTION CODE
23
COMPLEMENT OF BCD 1-2-4-8;
10 POSITION
27
BCD 1-2-4-8; 10 POSITION
31
BCD 1-2-4-8; 10 POSITION
71
BINARY CODED HEXADECIMAL,
16 POSITION
Available Terminations: 0, 1, N
See fig. 1, page M-7.
Available Terminations: P
See fig. 2, page M-7.
Available Terminations: 0, 1, N
See fig. 1, page M-7.
Available Terminations: 0, 1, N
See fig. 1, page M-7.
NOTE:
For terminal location diagram, see page M–7.

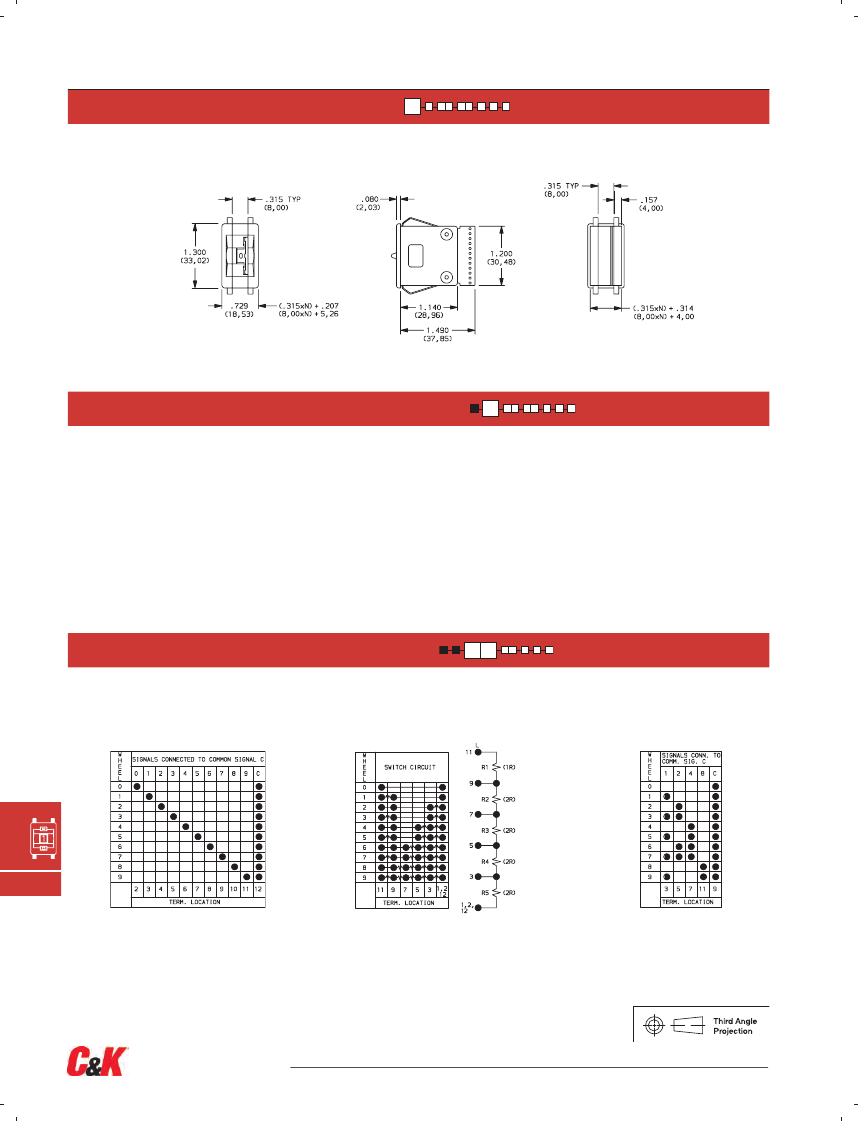

MOUNTING STYLE
Type 0 Snap-In Front Mount
PANEL MOUNTING
MOUNTING
STYLE
00
DIM. ‘A’
(.315 x N) + .326
(8,00 x N) + (8,28)
N = Number of sections.
Recommended panel thickness:
0.46-.125
(1,16-3,18)
Thumbwheel
00
SWITCH ASSEMBLY W/ ENDPLATES–.315 (8,00) SECTION PITCH
N = Number of sections.
09
SWITCH SECTION ONLY–UNASSEMBLED WITHOUT ENDPLATES OR SPACERS
(Must be ordered with number of sections option “0”, see Page M–4.)
M
NOTE:
Endplates, blank sections, spacers
and assembly hardware available separately, see pages M–8 and M–9.
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
M–5
www.ck-components.com
3 Series
Thumbwheel Switches

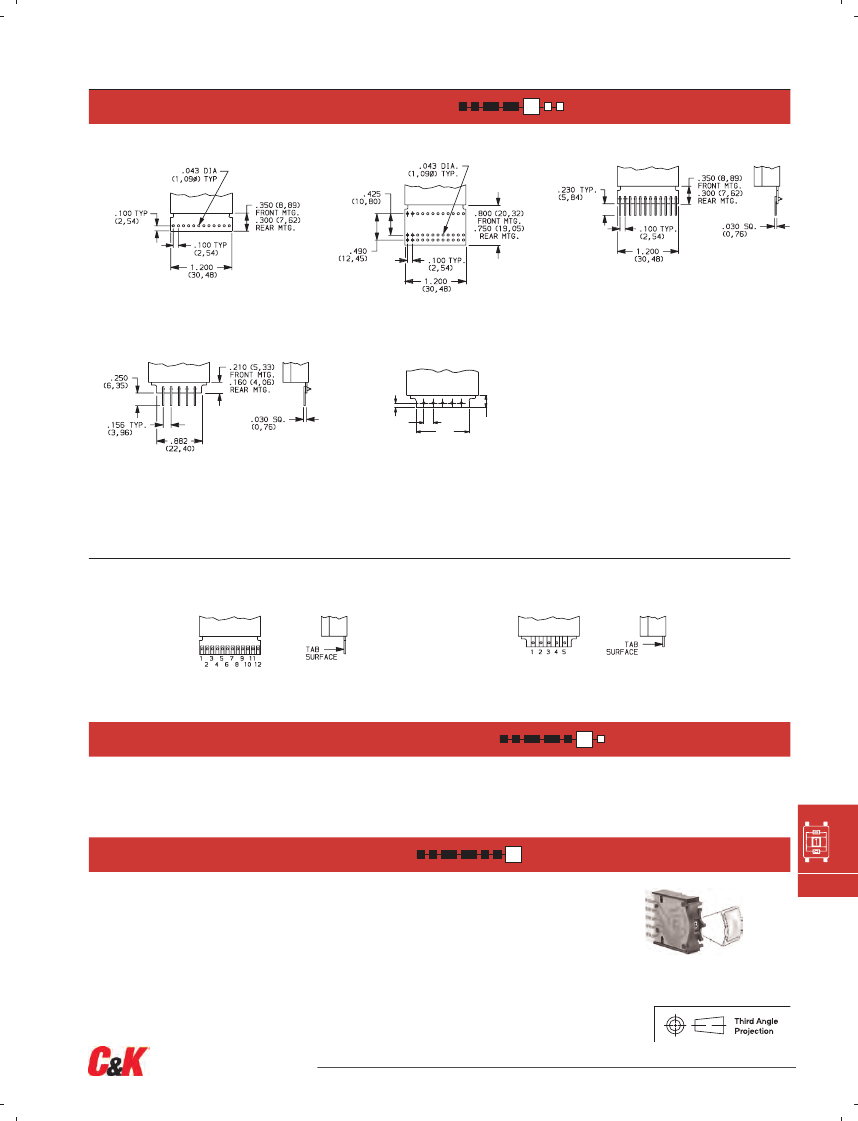

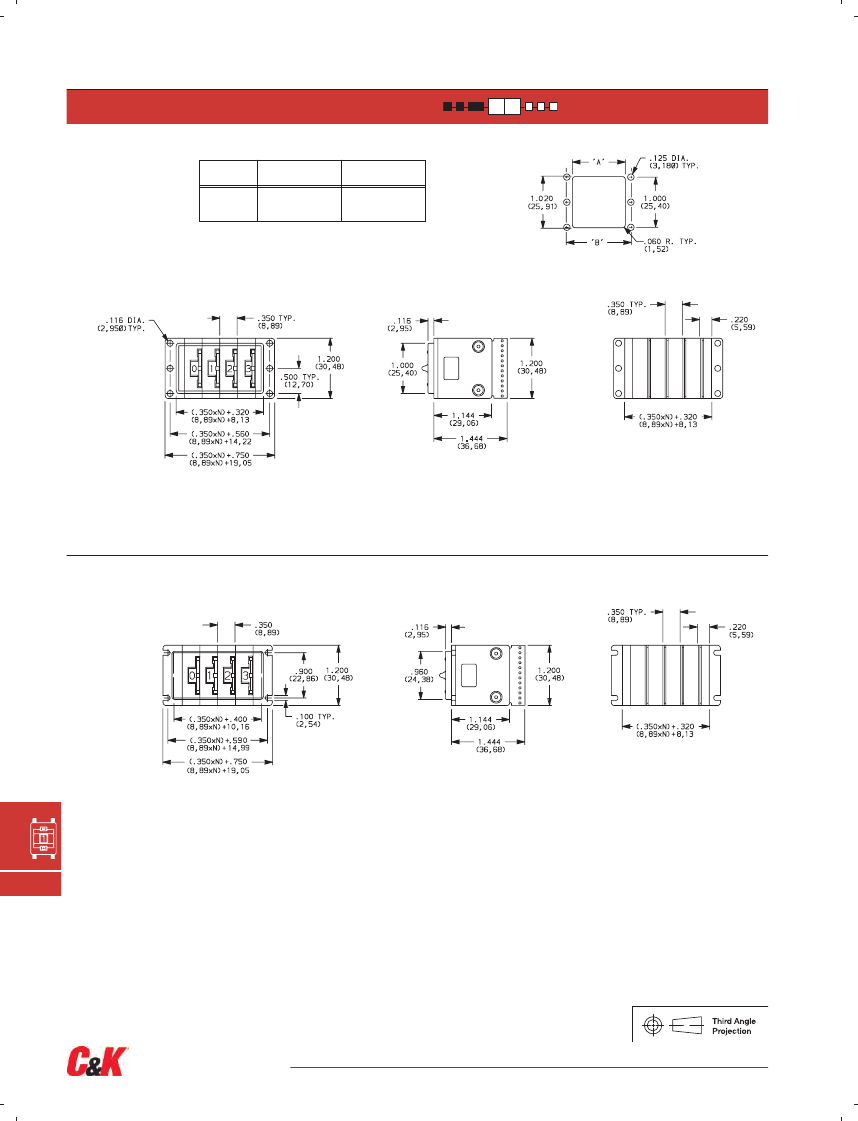

MOUNTING STYLE
Type 1 Rear Mount
MOUNTING
STYLE
10
DIM. ‘A’
(.350 x N) + .340
(8,89 x N) + (8,64)
DIM. ‘B’
Mtg. Holes
PANEL MOUNTING
(.350 x N) + .560
(8,89 x N) + (14,22)
N = Number of sections.
Recommended panel thickness:
0.46-.125
(1,16-3,18)
10
SWITCH ASSEMBLY W/ ENDPLATES–.350 (8,89) SECTION PITCH
N = Number of sections.
19
SWITCH SECTION ONLY–UNASSEMBLED WITHOUT ENDPLATES OR SPACERS
(Must be ordered with number of sections option “0”, see Page M–4.)
Type 2 Rear Mount
20
SWITCH ASSEMBLY W/ ENDPLATES–.350 (8,89) SECTION PITCH
Thumbwheel
N = Number of sections.
29
SWITCH SECTION ONLY–UNASSEMBLED WITHOUT ENDPLATES OR SPACERS
(Must be ordered with number of sections option “0”, see Page M–4.)
M
NOTE:
Endplates, blank sections, spacers and
assembly hardware available separately, see pages M–8 and M–9.
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
M–6
www.ck-components.com
3 Series
Thumbwheel Switches
TERMINATIONS
0
TYPE 0
1
TYPE 1, EXTENDED TYPE 0
N
SOLDER PINS WITH .100” SPACING
Signal traces cut except for common(s).
P
SOLDER PINS WITH .156” SPACING
6
TYPE 6, NO PINS
9
ANY COMBINATION OF TERMINATION
CONFIGURATIONS OR SPECIAL TERMINATIONS.
Specify on configuration form, page M–10
and consult Customer Service Center.
.080
[2,03]
.156
[3,96]
.882
[22,4]
.210
[5,33]
PC Board 1/32" (0,79) thick.
NOTE:
All terminal holes shown may not be present for all function codes, consult Customer Service Center.
Terminal connector available for termination options 0 & 1, see page M–9.
NOTE:
Termination option N (RoHS compliant) replaced termination option 3 (Non-RoHS compliant).
Termination option P (RoHS compliant) replaced termination option B (Non-RoHS compliant).

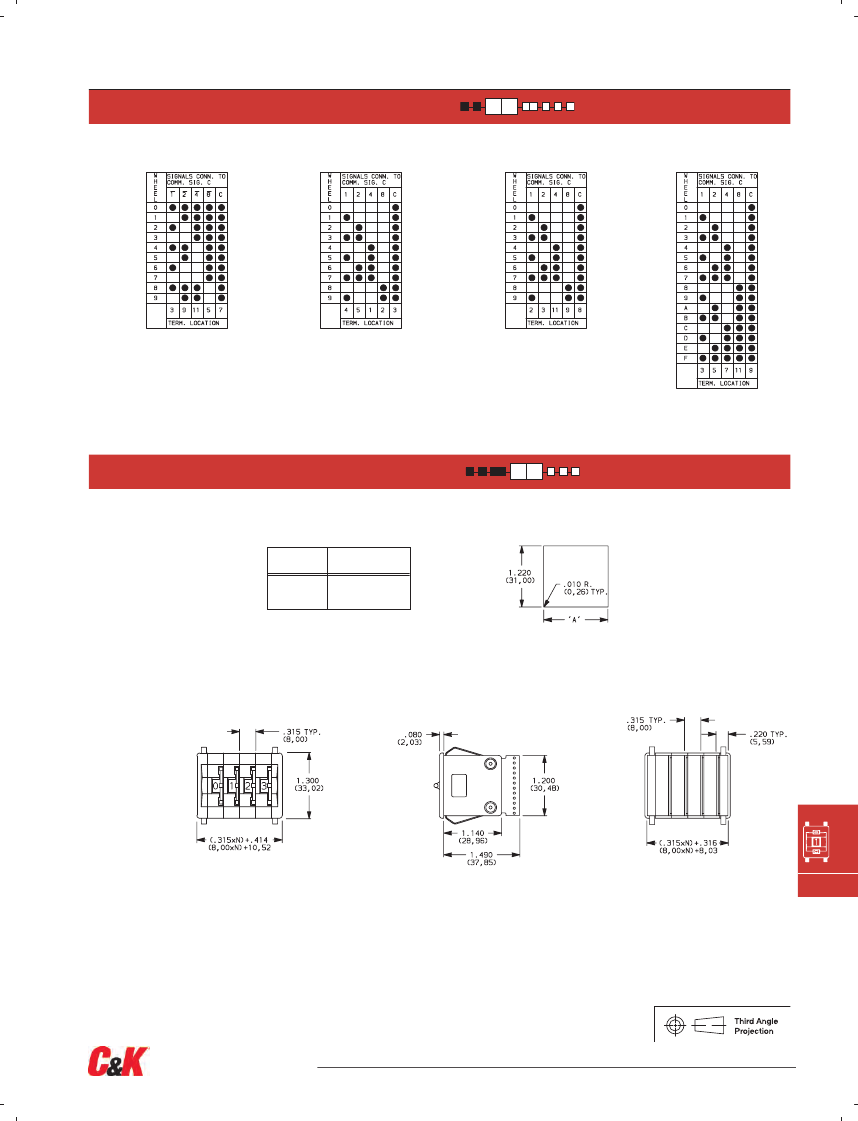

Terminal Location Numbers
Thumbwheel
FIG. 1
FIG. 2
NOTE:
See function codes, pages M–4 and M–5, for signal locations.
COLOR/MARKING/STOPS
0
MATTE BLACK HOUSING (Gloss black wheel with white characters; no stops.)
NOTE:
Stop pins are available separately, see page M–8.
SEAL
0
1
2
3
UNSEALED SWITCHING CONTACTS.
SEALED SWITCHING CONTACTS. (Sealing is by means of an o-ring rotary seal and a cured-in-place elastomer gasket.
Switching contact area is protected from moisture, oil, and airborne contaminants.)
DUST LENS. (Protects the character face of the wheel from abrasion and dirt).
SEALED SWITCHING CONTACTS AND DUST LENS
M
Dust Lens
Dimensions
are shown:
Inches
(mm)
Specifications and dimensions subject to
change
M–7
www.ck-components.com
