High Security Keylocks
Series CK
Toggles
Electrical Capacity (Resistive Load)
Power Level:
3A @ 250V AC
Pushbuttons
Other Ratings
Mechanical Life:
Electrical Life:
Static Capability:
Nominal Operating Torque:
Contact Timing:
Angle of Throw:
F
Materials & Finishes
Keys for CKM:
Keys for CKL:
Housing/Bushing:
Base:
Contact Terminals:
Common Terminals:
Movable Contactor:
Movable Contacts:
Brass with nickel plating with ABS handle
Brass with nickel plating for tubular key;
brass with chrome plating for flat key
Glass fiber reinforced PBT for CKM models;
zinc alloy with chrome plating for CKL
LCP (Liquid Crystal Polymer)
Copper with silver plating
Copper with silver plating
Copper
Silver
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Installation
www.nkkswitches.com
F3
Supplement
Accessories
Mounting Torque:
Soldering Time & Temperature:
1.5 Nm (13.28 lb
•
in) maximum
Manual Soldering: See Profile A in Supplement section.
Indicators
–25°C through +70°C (–13°F through +158°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F) for CKM;
90 ~ 95% humidity for 96 hours @ 40°C (104°F) for CKL
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm for CKM or 0.7mm for CKL traversing the
frequency range & returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration for CKM; 30G (294m/s
2
) acceleration for CKL; (CKM & CKL tested
in 6 right angled directions, with 5 shocks in each direction)
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
20 milliohms maximum
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
30,000 cycles minimum
10,000 cycles minimum
Withstands 15 kilovolts minimum ESD minimum (for CKM models only)
16mm Bushing (CKM models):
.04 mNm (5.67 oz
•
in) for Flat Key
.08 mNm (11.33 oz
•
in) for Tubular Key
19mm Bushing (CKL models):
.05 mNm (7.08 oz
•
in) for Flat Key
.07 mNm (9.91 oz
•
in) for Tubular Key
Break-before-make
90° for 2-position & 45° for 3-position
Rockers
General
Specifications
Series CK
Toggles
High Security Keylocks
Rockers
Distinctive
Characteristics
High insulating material for 16mm CKM models withstands
over 15 kilovolts of electrostatic discharge, thus providing
antistatic feature.
Rugged, die cast housing 19mm CKL models designed for
higher security requirements.
Vertically rotating switching mechanism combines with
self-cleaning sliding contacts for high reliability and
long operating life.
16mm and 19mm diameter bushings available.
CKL and CKM on-off-on models with tubular keys have
push-and-lock mechanism which allows contactor to drop
and slide over stationary contacts.
Available in both flat and tubular key styles; flat key is
reversible for easier setting.
Epoxy sealed terminals prevent entry of flux and other
contaminants.
Interior construction provides seal for contact area.
High dielectric strength of 1,500 volts between contacts
and case.

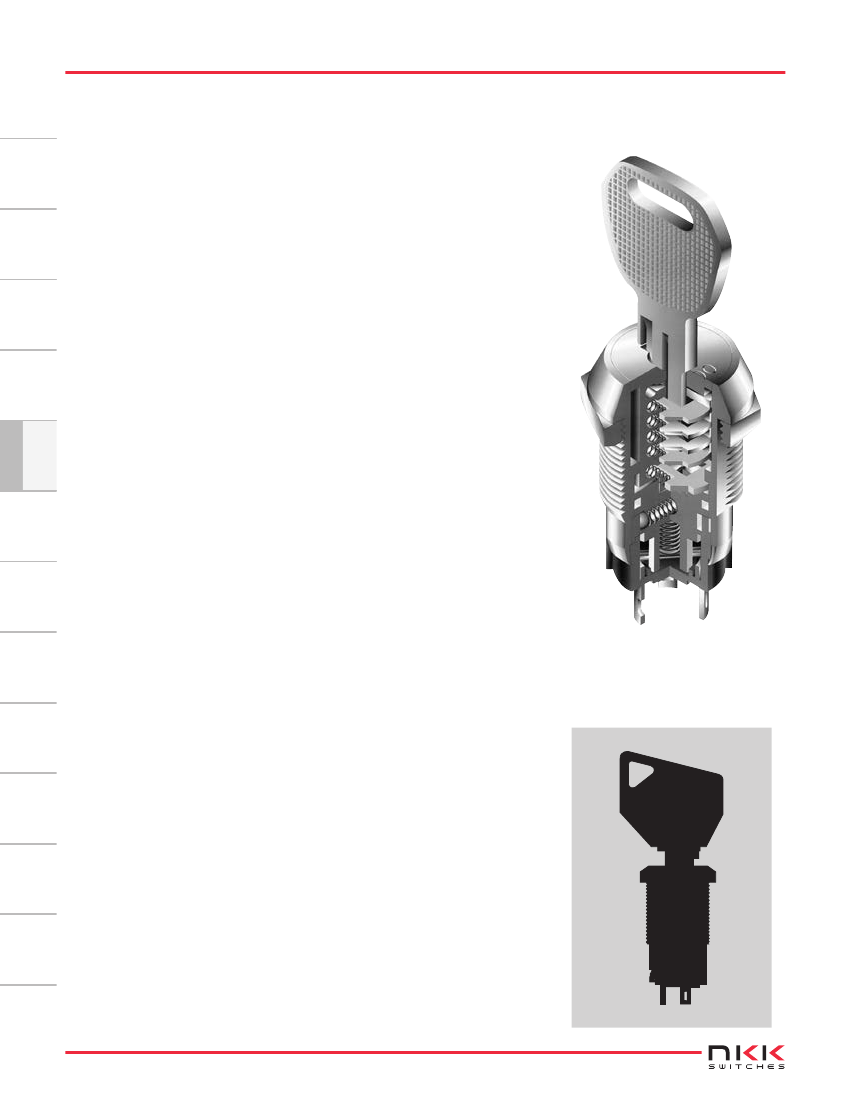

Actual Size CKM with Tubular Key
Keylocks
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Programmable Illuminated PB
Pushbuttons
F
F4
www.nkkswitches.com
High Security Keylocks
TYPICAL SWITCH ORDERING EXAMPLE
Series CK
Toggles
Bushings
M
L
16mm Diameter
19mm Diameter
1
Keys
Poles
SPDT
F
T
Flat
Tubular
01
Terminals
Solder Lug
Circuits & Key-Removable Positions
Code
2A
2B
3E
Pos. 1
ON
ON
ON
Pos. 2
NONE
NONE
OFF
Pos. 3
ON
ON
ON
Key Removes
Positions 1 and 3
Position 1
Position 2
W
Contact Material
Silver
Rated 3A @ 250V AC
F
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Tilt
CKM12AFW01
One key supplied
with each switch
Solder Lug Terminals
Silver Contacts
Rated 3A @ 250V AC
www.nkkswitches.com
F5
Supplement
Accessories
SPDT ON-NONE-ON Circuit
Key Removable in
Positions 1 and 3
16mm Diameter Bushing
Indicators
Touch
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
CK
M
1
2A
F
W
01
Rockers
Series CK
Toggles
High Security Keylocks
POLES, CIRCUITS & KEY-REMOVABLE POSITIONS
Rockers
Pole &
Throw
SPDT
SPDT
Key Positions
Model
CKM12A
CKL12A
CKM12B
CKL12B
CKM13E
CKL13E
Pos 1
ON
ON
Pos 2
NONE
NONE
Pos 3
ON
ON
Connected Terminals
(Terminal numbers are on switch)
Pos 1
COM-1
COM-1
Pos 2
____
____
Pos 3
COM-2
COM-2
Schematic
COM
= Key Removable
•
= Not Removable
= Maximum Arc
POS 1
3
POS 1
Pushbuttons
1
2
3
COM
2
Programmable Illuminated PB
SPDT
ON
OFF
ON
COM-1
OPEN
COM-2
1
POS 1
2
3
OP EN

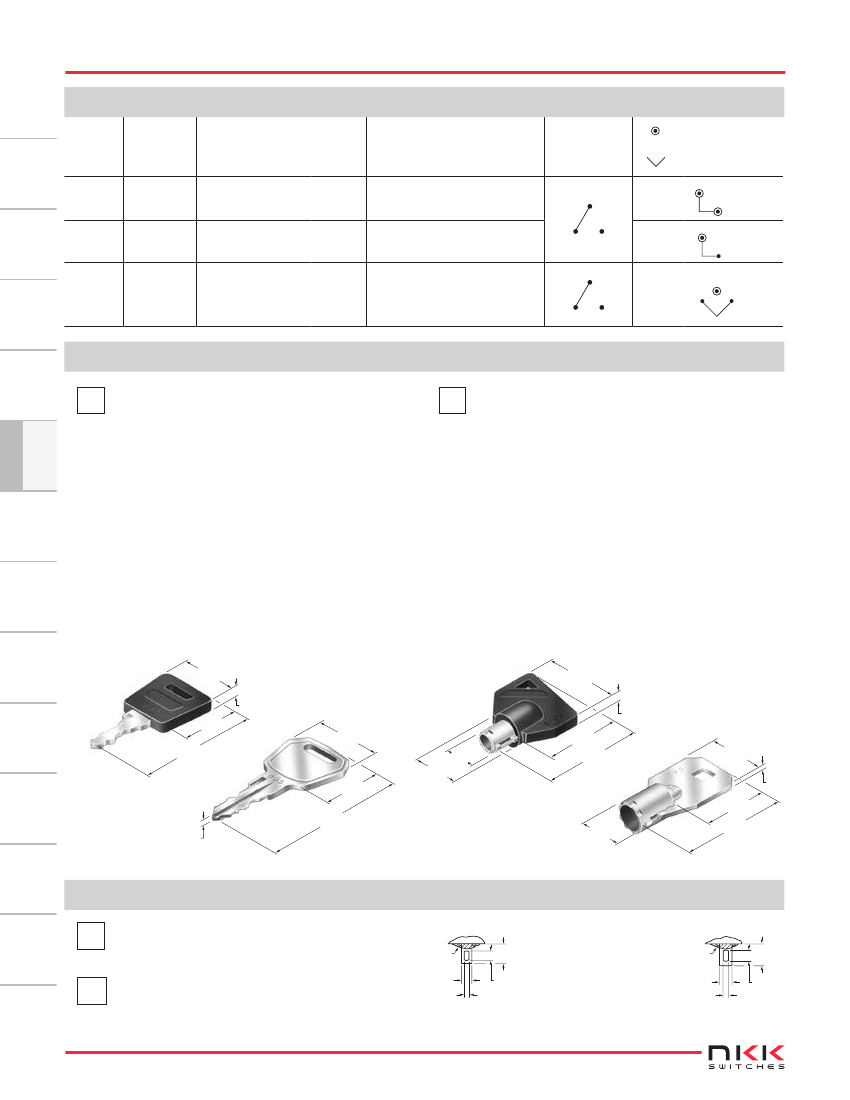

KEYS
F
Flat Key
T
Tubular Key
(must be pressed inward to actuate)
F
AT4147 for CKM 16mm
Brass with Nickel Plating key base & ABS key handle
AT4153 for CKL 19mm
Brass with Chrome Plating (crosshatch texture on handle)
One key provided with each switch (no master key available)
For ordering additional keys, indicate the same key
number that is engraved on the face of your switch.
Randomly assigned key number (001 through 010 for CKM
models & 001 through 025 for CKL models).
Typical Key Ordering Example: AT4153-001
AT4146 for CKM 16mm
Brass with Nickel Plating key base & ABS key handle
AT4152 for CKL 19mm
Brass with Nickel Plating (smooth)
One key provided with each switch (no master key available)
For ordering additional keys, indicate the same key
number that is engraved on the face of your switch.
Randomly assigned key number (001 through 025 for CKM
models & 001 through 050 for CKL models).
Typical Key Ordering Example: AT4146-001
Tactiles
Slides
Rotaries
Keylocks
AT4147
(20.0)
.787
(3.5)
.138
AT4146
AT4153
(22.3)
.878
(7.0) Dia
.276
(10.5) Dia
.413
(26.0)
1.024
(3.5)
.138
(25.0)
.984
(33.5)
1.319
AT4152
Tilt
(20.0)
.787
(40.8)
1.606
(19.0)
.748
(1.5)
.059
(22.5)
.886
(35.5)
1.398
Touch
(20.0)
.787
(49.3)
1.941
(1.8)
.071
(9.6) Dia
.378
Indicators
CONTACT MATERIALS, RATINGS & TERMINALS
W
01
Silver over Silver
Power Level 3A @ 250V AC
Solder Lug Terminal
for CKM
(5.0)
.197
(2.4)
.094
(5.5)
.217
(2.8)
.110
Accessories
Epoxy Seal
(2.7)
.106
Epoxy Seal
Supplement
Solder Lug Terminals
(1.2)
.047
Thk = (0.8)
.031
Solder Lug Terminal
for CKL
(3.1)
.122
(1.4)
.055
Thk = (0.8)
.031
F6
www.nkkswitches.com
High Security Keylocks

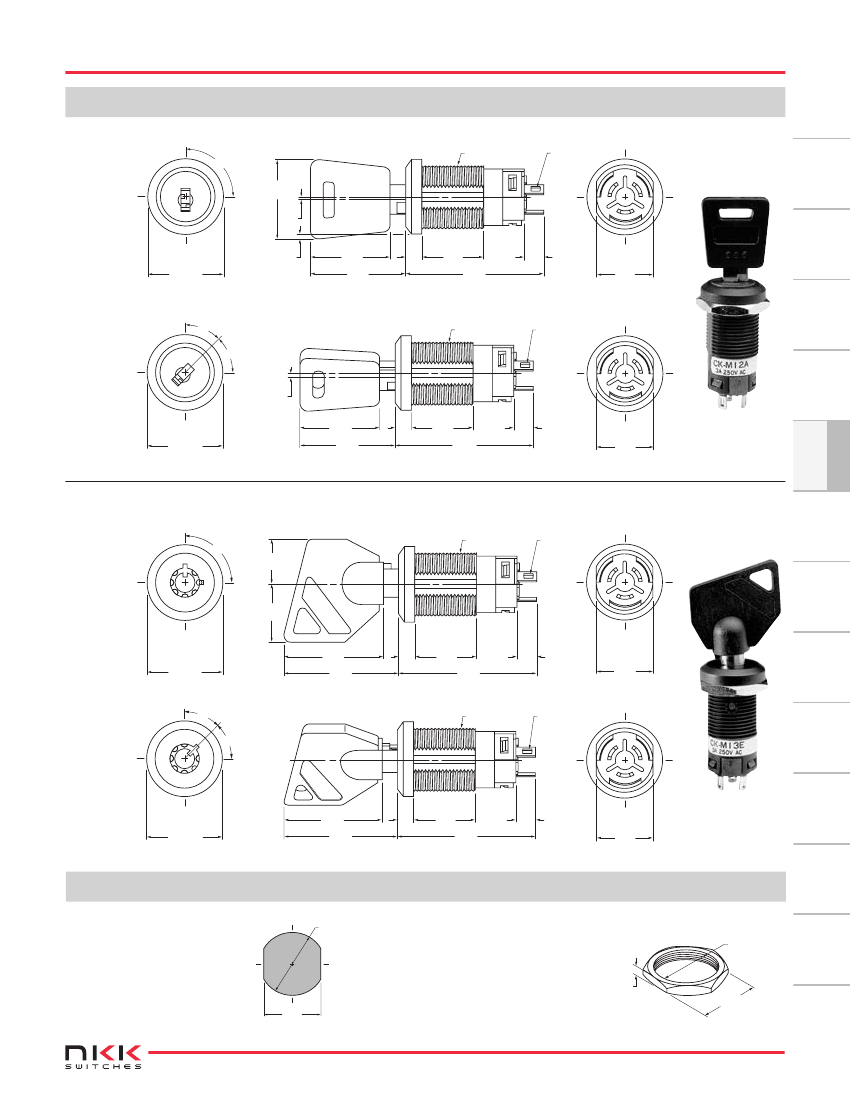

TYPICAL SWITCH DIMENSIONS
POS 1
M16 P1
(1.2) x (2.4)
.047 x.094
Series CK
16mm Bushing • Flat Key
Rockers
Toggles
2
90°
Angular
Throw
90°
006
006
POS 3
(20.0)
.787
(0.9)
.035
COM
1
(19.0) Dia
.748
(1.4)
.055
(20.0)
.787
(24.0)
.945
(4.0)
.157
(16.0)
.630
(35.2)
1.386
(5.0)
.197
(14.2)
.559
POS 1
45°
POS 2
45°
M16 P1
(1.2) x (2.4)
.047 x .094
(0.9)
.035
(20.0)
.787
(24.0)
.945
002
45°
Angular
Throw
POS 3
COM
(19.0) Dia
.748
(35.2)
1.386
(14.2)
.559
CKM12AFW01
F
POS 1
004
(15.0)
.591
(19.0) Dia
.748
POS 1
45°
POS 2
45°
POS 3
(35.2)
1.386
(14.2)
.559
M16 P1
0 17
(1.2) x (2.4)
.047 x .094
45°
Angular
Throw
COM
017
Touch
(14.2)
.559
(19.0) Dia
.748
(25.0)
.984
(29.0)
1.142
(4.0)
.157
(16.0)
.630
(35.2)
1.386
(5.0)
.197
1
CKM13ETW01
Indicators
M16 P1
PANEL CUTOUT & STANDARD HARDWARE FOR 16MM BUSHING
(16.0) Dia
.630
(14.6)
.575
www.nkkswitches.com
F7
Supplement
Maximum Effective
Panel Thickness:
.469” (11.9mm)
1 included with each switch
Steel with nickel plating
(2.5)
.098
(19.0)
.748
Accessories
AT016
16mm Hex Mounting Nut
for CKM
Tilt
2
Tactiles
(25.0)
.984
(29.0)
1.142
(4.0)
.157
(16.0)
.630
(5.0)
.197
Slides
90°
Angular
Throw
90°
(11.0)
.433
POS 3
004
M16 P1
(1.2) x (2.4)
.047 x .094
COM
1
Rotaries
16mm Bushing • Tubular Key
Keylocks
(4.0)
.157
(16.0)
.630
(5.0)
.197
Programmable Illuminated PB
1
Pushbuttons
0
0
2
2
2
