108-1MS2T2B4M7QE-EVX Overview

Toggle Switches SWITCH TOGGLE SPDT

108-1MS2T2B4M7QE-EVX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mountain Switch
Product Category	Toggle Switches
RoHS	Details
Contact Form	SPDT
Switch Function	ON - (ON)
Mounting Style	Panel
Termination Style	Solder Lug
Voltage Rating AC	125 VAC
Actuator	Paddle
Terminal Seal	Sealed
Contact Plating	Silver
Packaging	Tray
Housing Material	Stainless Steel
Mounting Type	Bushing
Operating Temperature Range	- 30 C to + 85 C
Type	Toggle Switch
Contact Material	Nickel
Factory Pack Quantity	72

Preview

Download Datasheet

View All

Last Update:

6-12-12

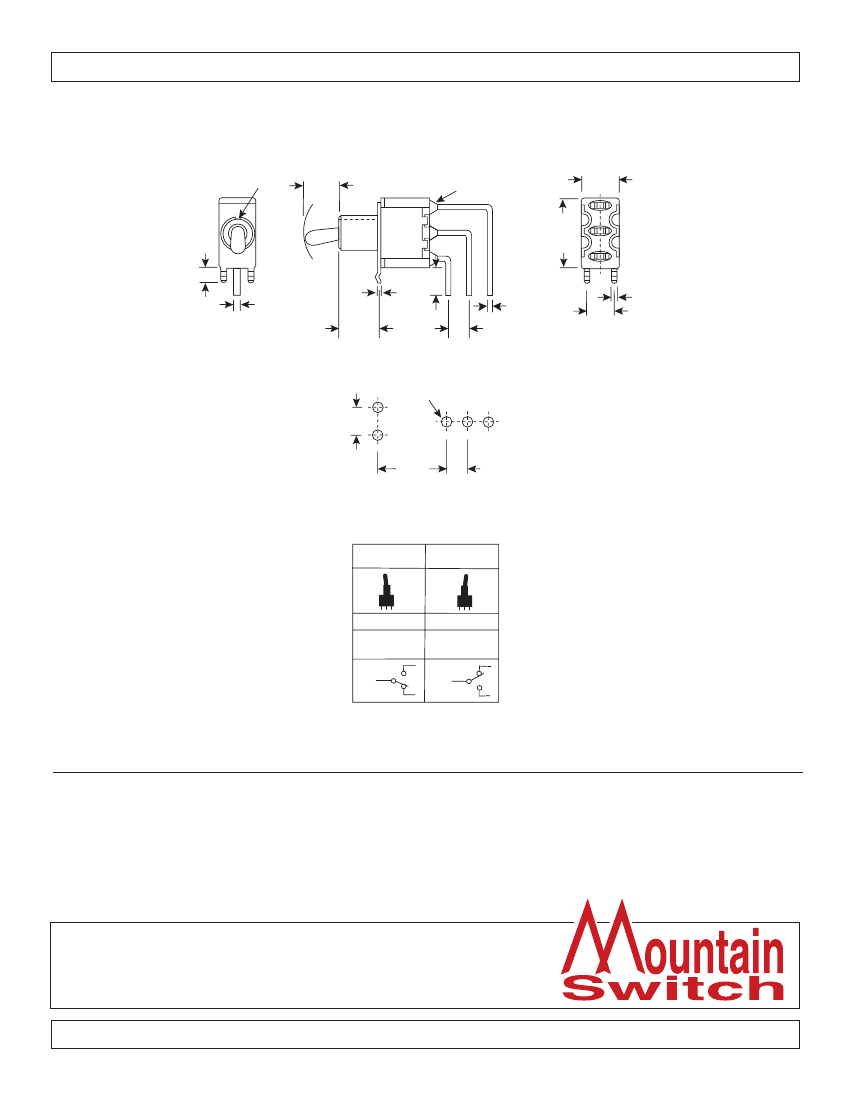

DIMENSIONS: mm (in.)

Ref. #:

MS-100766

Keyway

6.4

(.252)

Epoxy Seal

12.7

(.50)

3.18

(.125) 1

12.7

(.50)

6.86

(.27)

3

2.69

(.106)

2

1

.50

(.02)

1.27 (.05)

7.4

(.29)

2

3

.76

(.03)

5.08

(.20)

1.22

(.048)

3.81

(.15)

ø1.85

(ø.073)

5.08

(.20)

12.7

(.50)

PC MOUNTING

3.81

(.15)

POS.1

POS.2

ON

2-3

1

2 Comm.

3

(ON)

2-1

1

2 Comm.

3

SWITCH FUNCTION

Mechanical Specifications:

•

Operating Temperature: -30°C to +85°C

Note:

•

RoHS Compliant by exemption

Electrical Specifications:

•

Contact Resistance: 10mΩ max. initial @ 2-4VDC 100mA

•

Insulation Resistance: 1,000MΩ min.

•

Rating: 2A/ 250VAC, 5A/ 120VAC or 28VDC

•

Dielectric Strength: 1,000 V RMS@ sea level

Materials:

•

Case: Diallyl phthalate (DAP)

•

Acutuator: Brass, chrome plated

•

Bushing: Brass, nickel plated

•

Housing: Stainless steel

•

Terminal/Contact: Silver plated

Toggle Switch

108-1MS2T2B4M7QE-EVX

Available from Mouser Electronics

www.mouser.com

1-800-346-6873

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
