3-100-987 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 3-100-987

3-100-987: DescriptionIlluminated Pushbutton Switches 16A, 250VAC 19mm 1 POLE NON-ILUMNATED; CategoryTopical application Mechanical and electrical/engineering/automation; File Size964KB，7 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3-100-987 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-100-987	-	-	View	Buy Now

3-100-987 Overview

Illuminated Pushbutton Switches 16A, 250VAC 19mm 1 POLE NON-ILUMNATED

3-100-987 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	SCHURTER
Product Category	Illuminated Pushbutton Switches
RoHS	Details
Contact Form	SPST
Switch Function	ON - OFF
Current Rating	16 A
Voltage Rating AC	250 VAC
Voltage Rating DC	24 VDC
Mounting Style	Panel
Termination Style	Quick Connect Terminal
Actuator	Round
IP Rating	IP64
Contact Plating	-
Height	45.7 mm
Housing Material	Stainless Steel
Length	22 mm
Width	16.6 mm
Flammability Rating	UL 94 V-0
Life	100000 Cycles
Factory Pack Quantity	10

Preview

Download Datasheet

View All

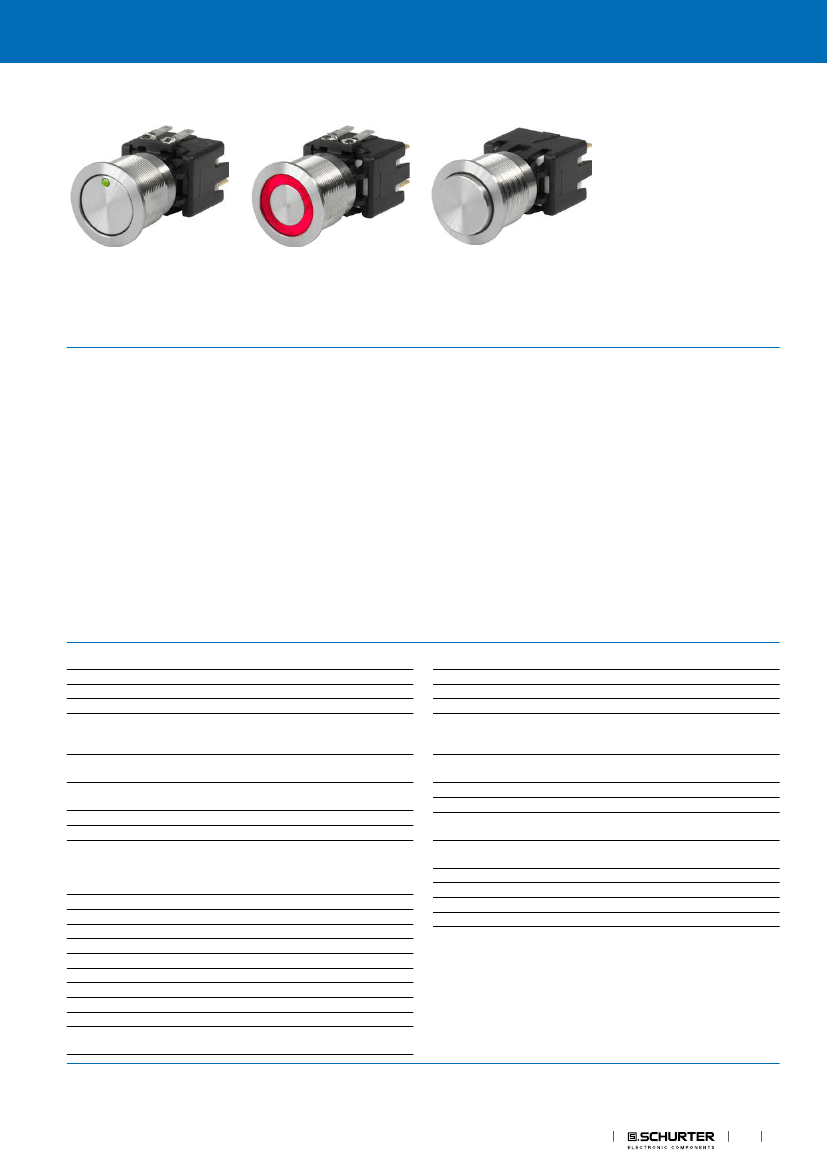

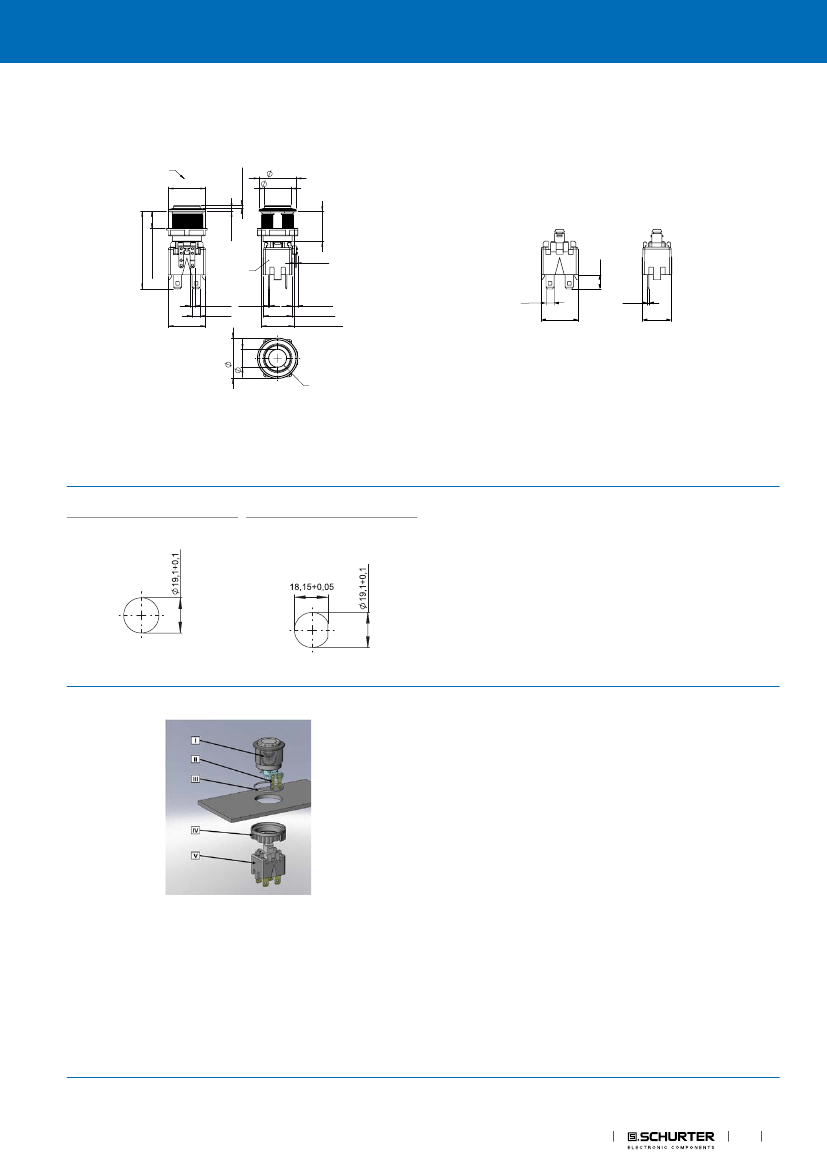

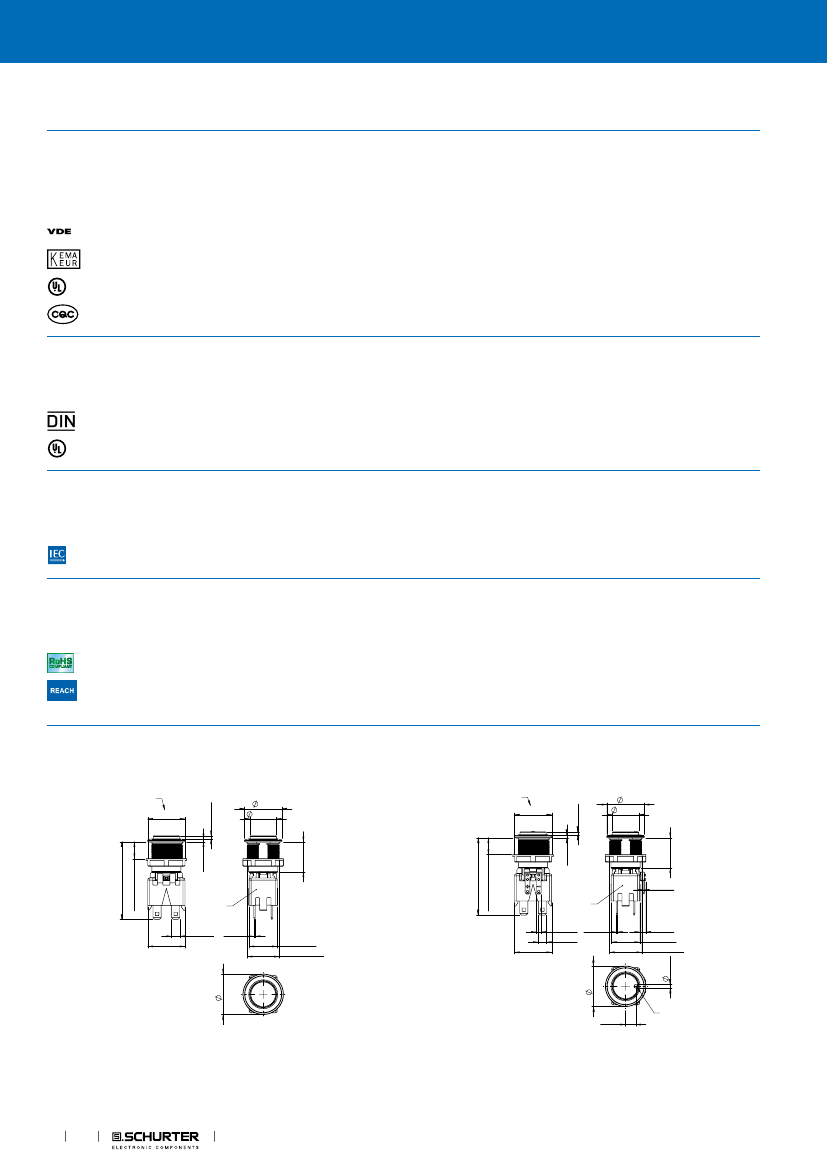

Metal Line Switches

https://www.schurter.com /PG70

MSM LA 19

Metal Switch, Latching Action, Switching Voltage up to 125 VDC / 250 VAC

See below:

Approvals and Compliances

Description

- Switch available in version: Standard (ST), with Lettering (LE), with

Point Illumination (PI), with Ring Illumination (RI)

- Available with 12 A and 16 A switching current Assembly by mounting

with nut and subsequent clipping of the switching element

- Equipped with flat-pin plugs to permit fast connection

Characteristics

- Housing and actuator material: high-quality stainless steel

- Variety of design options regarding size, colour, illumination, connec-

tion or lettering

- Switching voltage up to 125 VDC respectively 250 VAC, switching cur-

rent up to 16 A

- optional with point or ring illumination

- available with single-pole and double-pole switching system, switching

status is easy to discern by looking at or feeling the resting position of

the actuator

- for use in harsh environments (see technical data)

References

Alternative: Standard version

MSM LA 22; MSM 16

Alternative: double-pole switch:

MSM DP 19; MSM DP 22; MSM DP

Alternative: switch with backlighted illumination:

MSM CS 19; MSM

CS 22; MSM LA CS 19; MSM LA CS 22

Alternative: Other diameter

Weblinks

html-datasheet, General Product Information, CAD-Drawings, Product

News, Detailed request for product

Technical Data

Electrical Data

Switching Function

Number of Poles

Supply Voltage

N.O.

1-pole and 2-pole

24 VDC Ring Illumination , Point Illumi-

nation without series resistor , LED ope-

rating data are listed in a separate table

4 kV MSM ST / MSM LE

max. 250 VAC 30 VDC (125 VDC at

0.5 A),

12 A AC / 16 A AC

3000 W

0.05 million actuations (250 VAC / 8

A), 0.1 million actuations (125 VDC / 0,5

A), 0.02 million actuations (250 VAC /

16 A)

< 100 mΩ (12 VDC / 1 A)

> 100 MΩ 500 VDC

10 N

5.2 mm,

0.1 million actuations

3 mm

IK 07

4.5 Nm for thread M19, 3.5 Nm for M22

12 Nm for thread M19, 16 Nm for M22

Climatical Data

Operating Temperature

Storage Temperature

IP-Protection

-20 to +85 °C

IP 64 Front Side Contact Area, IP

40 Front Side mechanical, IP 00 Rear

Side

24 h / 48 h / 96 h Residence Time

Impulse Withstand Voltage

(ESD)

Switching Voltage

Switching Current

Rated Switching Capacity

Lifetime

Contact Resistance

Insulation Resistance

Mechanical Data

Actuating Force

Actuating Travel

Lifetime

Contact Gap

Shock Protection

Tightening Torque Plastic Nut

Tightening Torque Stainless

Steel Nut

Salt Spray Test (acc. to DIN

50021-SS)

Material

Housings

Actuator (disc, outside hou-

sing)

Illuminated Ring (die-casting,

inside housing)

Seal Ring

Switcher Collet

Intermediate Connector

Contact Pin Adapter

Stainless Steel

NBR70

PA66 (UL94-V0 related to d

≥

1.6 mm)

PA66 (UL94-V0 related to d

≥

1.6 mm)

PA66 (UL94-V0 related to d

≥

1.6 mm)

Approvals and Compliances

Switches

3-100-987 Related Products

	3-100-987	VI-RC3222-MWYVH1-CC	1241.6833.1112000	3-101-001	1241.6834.1121000	3-101-003	1241.6823.1114000	1241.6823.1112000	1241.6824.1121000
Description	Illuminated Pushbutton Switches 16A, 250VAC 19mm 1 POLE NON-ILUMNATED	DC-DC Regulated Power Supply Module, 3 Output, Hybrid, PACKAGE-20	Pushbutton Switches MSM22 LA PI SF 12A @250VAC 1P GN	Illuminated Pushbutton Switches 16A, 250VAC 22mm 1 POLE NON-ILUMNATED	Pushbutton Switches Latch 12A 250VAC 22MM RI SF RT	Illuminated Pushbutton Switches 16A, 250VAC 19mm 2 POLE RED	Illuminated Pushbutton Switches MSM19 LA PI SF 12 A @250VAC 1P BL	Illuminated Pushbutton Switches MSM19 LA PI SF 12 A @250VAC 1P GN	Illuminated Pushbutton Switches Latch 12A 250VAC 19MM RI SF RT
Is it Rohs certified?	-	incompatible	conform to	-	conform to	-	conform to	conform to	conform to
package instruction	-	,	ROHS COMPLIANT	-	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	-	not_compliant	compliant	-	compliant	-	compliant	compliant	compliant
ECCN code	-	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	EAR99
surface mount	-	NO	NO	-	NO	-	NO	NO	NO
Factory Lead Time	-	-	10 weeks	-	10 weeks	-	10 weeks	10 weeks	10 weeks
body width	-	-	16.6 mm	-	16.6 mm	-	16.6 mm	16.6 mm	16.6 mm
body height	-	-	27.9 mm	-	27.9 mm	-	27.9 mm	27.9 mm	27.9 mm
Body length or diameter	-	-	22 mm	-	22 mm	-	22 mm	22 mm	22 mm
Contact (AC) maximum rated R load	-	-	12A@250VAC	-	12A@250VAC	-	12A@250VAC	12A@250VAC	12A@250VAC
Maximum contact current (AC)	-	-	12 A	-	12 A	-	12 A	12 A	12 A
Maximum contact current (DC)	-	-	0.5 A	-	0.5 A	-	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	-	-	.5A@30VDC	-	.5A@30VDC	-	.5A@30VDC	.5A@30VDC	.5A@30VDC
Maximum contact voltage (AC)	-	-	250 V	-	250 V	-	250 V	250 V	250 V
Maximum contact voltage (DC)	-	-	30 V	-	30 V	-	30 V	30 V	30 V
Electrical life	-	-	50000 Cycle(s)	-	50000 Cycle(s)	-	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
illumination	-	-	GREEN LED	-	RED LED	-	BLUE LED	GREEN LED	RED LED
Installation features	-	-	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	-	-	10 N	-	10 N	-	10 N	10 N	10 N
Maximum operating temperature	-	-	85 °C	-	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-	-20 °C	-	-20 °C	-	-20 °C	-20 °C	-20 °C
method of packing	-	-	BULK	-	BULK	-	BULK	BULK	BULK
seal	-	-	IK07; IP00; IP64	-	IK07; IP00; IP64	-	IK07; IP00; IP64	IK07; IP00; IP64	IK07; IP00; IP64
Switch action	-	-	LATCHED	-	LATCHED	-	LATCHED	LATCHED	LATCHED
switch function	-	-	SPST	-	DPST	-	SPST	SPST	DPST
Switch type	-	-	PUSHBUTTON SWITCH	-	PUSHBUTTON SWITCH	-	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	-	-	QUICK CONNECT	-	QUICK CONNECT	-	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Base Number Matches	-	-	1	-	1	-	1	1	1
