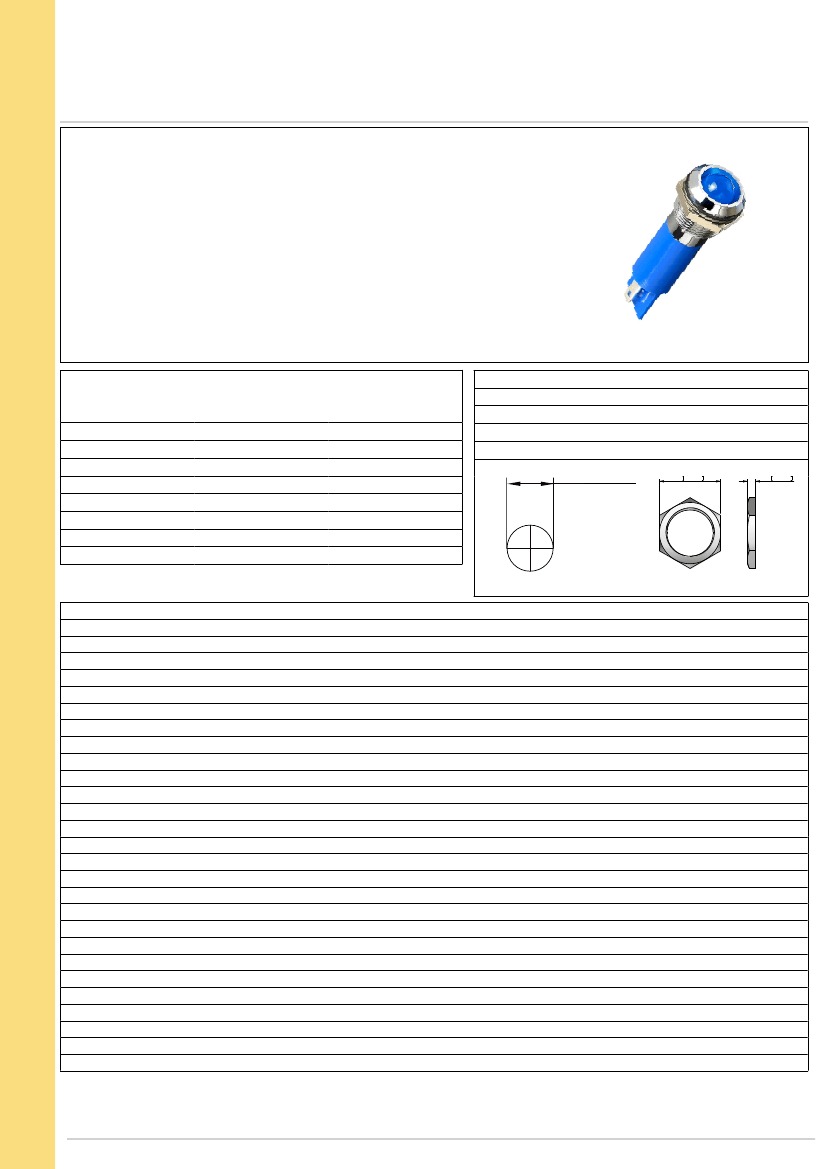

Q SERIES Ø12mm (.472") Panel Mount LED Indicators
Distinctive features and specification
Q12_VOY1704R3US
Features
• 12mm panel mounting LED indicator
• 8mm colored diffused epoxy lens or 8mm water clear super bright LEDs
• Plated brass bezel finished in bright chrome,
black chrome or satin grey and moulded polycarbonate rear body
•
•
•
•
•
Prominent recessed and flush bezel style
2VDC – 220VAC
(2.8 x 0.8) solder lug/faston terminals, pins or (200mm long) wire terminations
IP67 sealing option (EN60529)
Supplied with fixing nut and spring washer
NB: UL Recognized Component
TECHNICAL SPECIFICATIONS
Voltage
02 (No Resistor)
6VDC
12VDC
24VDC
28VDC
110VAC
220VAC
Operating Voltage
(Min to Max)
1.8 to 3.3VDC
5.4 to 6.6VDC
10.8 to 13.2VDC
21.6 to 26.4VDC
25.2 to 30.8VDC
99 to 121VAC
207 to 253VAC
Operating Current
(Typical All Types)
20mA max*
20mA
20mA
20mA
20mA
6mA
3mA
Max Reverse Voltage:
5V
Viewing Angle:
30–100°
(dependant on model)
Life Expectancy:
100,000 hours
Temperature Range:
–40 to +85°C
(operating & storage)
Torque:
75cNm
Ø 12.00 +0.15/-0.0
15,00 0,591
AF
2,00 0,079
PANEL CUTOUT
M12 x 0,75 THREAD
Flush
Standard LED Intensity
Prominent and Recessed
Forward Voltage
N/A
HE Red
350mcd
2.0V
N/A
Green
60mcd
2.2V
N/A
Yellow
50mcd
2.1V
N/A
Blue
800mcd
3.3V
330mcd
N/A
Blue
3.1V
White
1,200mcd
3.3V
N/A
2,180mcd
White
3.1V
N/A
N/A
Orange
100mcd
2.0V
N/A
Bi-color (Typical) (Red/Green)
20/10mcd
2.0V/2.2V
N/A
Tri-color (Typical) (Red/Green/Yellow)
80/15/13mcd
2.0V/2.2V/2.1V
Bi-color - The color is changed by reversing the polarity of the supply voltage.
Tri-color - The indicator has red and green LEDs, when both connected yellow is produced.
Super Bright LED
HE Red
Green
Yellow
Blue
White
Orange
Hyper Bright LED
HE Red
Green
Yellow
Orange
Prominent and Recessed
3,000mcd
8,000mcd
1,100mcd
1,500mcd
1,200mcd
2,000mcd
Flush
N/A
N/A
N/A
N/A
N/A
N/A
Forward Voltage
2.2V
3.3V
2.3V
3.3V
3.3V
2.2V
Forward Voltage
2.0V
3.3V
2.0V
2.2V
Flush
Prominent and Recessed
N/A
1,120mcd
N/A
1,560mcd
1,120mcd
N/A
1,120mcd
N/A
Luminous intensity will be reduced with lower operating current.
Note: The operating voltage must not be exceeded by more that 10% as this will result in reduced life expectancy.
The company reserves the right to change specifications without notice.
* Customer to supply resistor for desired operating current.
Luminous intensity is measured at 20mA on a discrete LED unless otherwise stated.
Luminous intensities and color shades of white LEDs may vary within a batch.
LED characteristics are dependent upon environmental conditions. Therefore published data should be considered nominal.
APEM
www.apem.com
1
Q SERIES Ø12mm (.472") Panel Mount LED Indicators

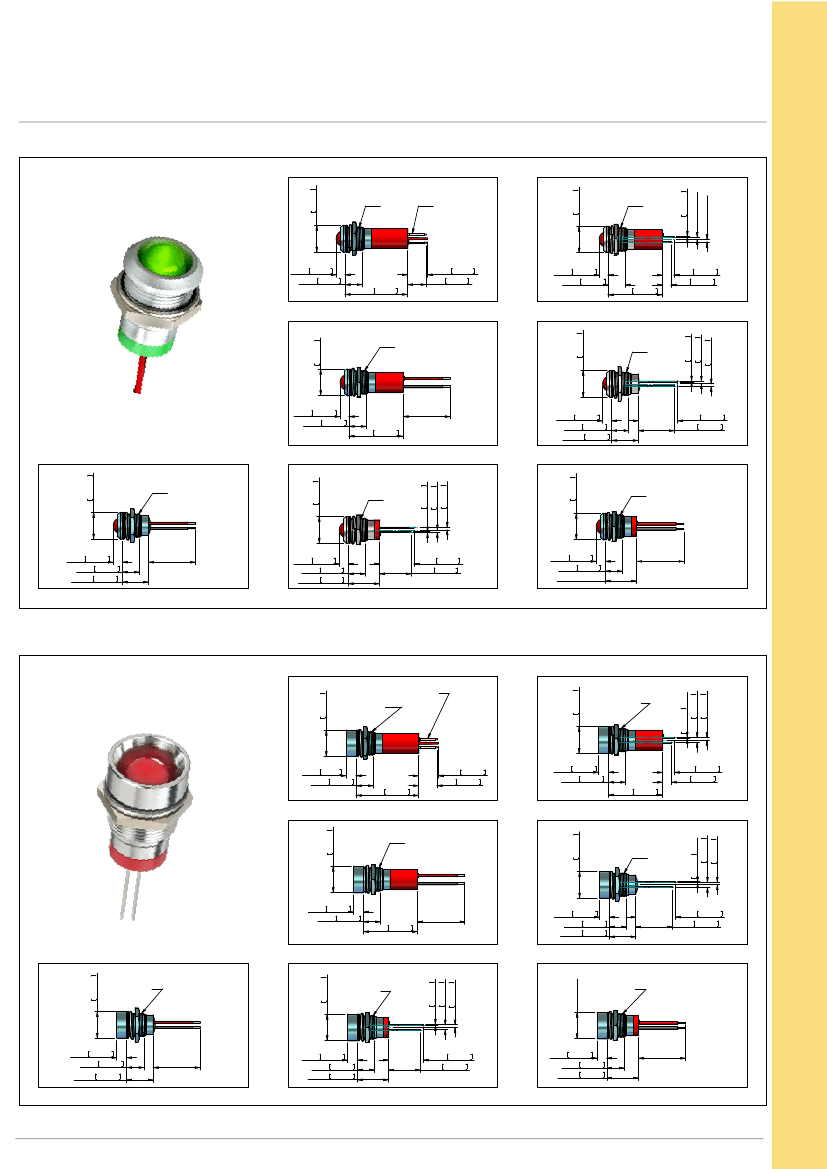

Technical Drawings
13,50
0,531
13,50
0,531
M12x0,75
2,8x0,8[0.11x0,031]
M12x0,75
4,50 0,177
8,75 0,344
31,75 1,250
10,00 0,394
9,35 0,368
4,50 0,177
8,75 0,344
27,50 1,083
6,00 0,236
4,50 0,177
WIRES
13,50
0,531
13,50
0,531
M12x0,75
REAR EPOXY PINS
M12x0,75
0,50 0,020
1,25 0,049
1,25 0,049
4,50 0,177
8,75 0,344
200,0+/-10
[7,874+/-0,393]
27,50 1,083
4,50 0,177
8,75 0,344
13,50 0,531
20,00 0,787
18,50 0,728
13,50
0,531
REAR EPOXY WIRES
13,50
0,531
M12x0,75
M12x0,75
SHORT BODY PINS
0,50 0,020
1,25 0,001
1,25 0,049
13,50
0,531
SHORT BODY WIRES
M12x0,75
4,50 0,177
8,75 0,344
13,50 0,531
200,0+/-10
[7,874+/-0,393]
4,50 0,177
8,75 0,344
16,00 0,630
17,50 0,689
16,00 0,630
4,50 0,177
8,75 0,344
16,00 [0,629]
200,0+/-10
[7,874+/-0,393]
13,50
0,531
RECESSED BEZEL
13,50
0,531
M12x0,75
M12x0,75
Drawing
31,75 1,250
10,00 0,394
9,35 0,368
5,00 0,197
8,75 0,344
27,50 1,083
5,00 ,197
8,75 0,344
13,50
0,531
WIRES
13,50
0,531
M12x0,75
REAR EPOXY PINS
M12x0,75
0,50
0,020 SQ
2,50 0,098
1,25 0,049
5,00 0,197
8,75 0,344
27,50 1,083
200,00+/-10
[7.874x0.393]
5,00 0,197
8,75 0,344
13,50 0,531
REAR EPOXY WIRES
13,50
0,531
13,50
0,531
M12x0,75
M12x0,75
SHORT BODY PINS
0,531
13,50
0,50 0,020
2,50 0,098
1,25 0,049
M12x0,75
SHORT BODY WIRES
5,00 0,197
8,75 0,344
13,50 0,531
200,00+/-10
[7,874+/-0,393]
5,00 0,197
8,75 0,344
16,00 0,630
17,50 0,689
16,00 0,630
5,00 0,197
8,75 0,344
16,00 0,630
200,00+/-10
[7,874+/-0,393]
2
www.apem.com
0,50
0,020 SQ
2,50 0,098
1,25 0,049
6,00 0,236
4,50 0,177
20,00 0,787
18,50 0,728
2,8x0,8[0,11x0,031]
SOLDER LUG/FASTONS
0,50 0,020
2,00 [0,078]
2,00 [0,078]
PROMINENT BEZEL
SOLDER LUG/FASTONS
PINS
PINS
APEM
Q SERIES Ø12mm (.472") Panel Mount LED Indicators

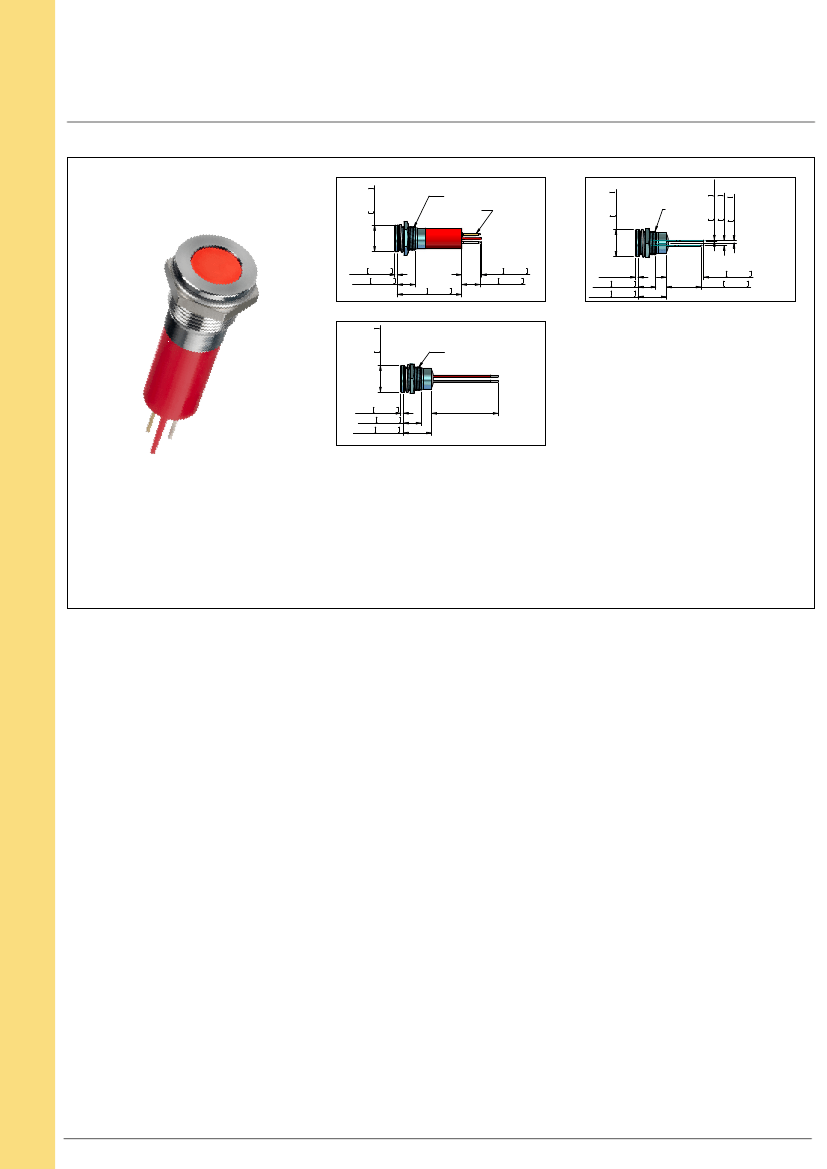

Flush Bezel Overview
STANDARD OPTIONS
The Q12 Series is available with a range of standard options, to specify your LED, simply choose one option from each
column. An example is shown below.
Q
SERIES
Q
12
MOUNTING
HOLE
12 = Ø12mm
F
BEZEL
STYLE
F = Flush
5
TERMINALS
1 = Solder Lug/
Fastons
(2.8 x 0.8)
4 = Rear epoxy
Pins
5 = Rear epoxy
Wires
B
BEZEL FINISH
C = Bright Chrome
B = Black Chrome
G = Satin Grey
XX
TYPE OF
ILLUMINATION
XX = Fixed Light
G
LED COLOR
HR = Hyper Bright Red
HG = Hyper Bright Green
HY = Hyper Bright Yellow
B = Blue
W = White
HO =
Hyper Bright Orange
12
VOLTAGE
02 = no resistor
*
06 = 6VDC
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
28 = 28VDC
28A = 28VAC/DC
110 = 110VAC
220 = 220VAC
E
SEALING
(Blank) = Unsealed
E = IP67
Example Q12F5GXXR12E
Ø12mm, flush bezel, epoxy wires,
bright chrome finish, fixed light,
red, 12VDC LED, IP67 panel sealed
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 24AWG UL1061, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• For LEDs with alternative voltage consult APEM
• Take care when soldering to the Faston terminals (recommended solder temperature 300°C - 3 sec)
• Max voltage for pins and wires is 28V
• Maximum panel thickness 7mm
• 110VAC and 220VAC only available with solder lug/Faston terminals
* = For resistorless versions (02) please refer to the forward voltage on page 1
4
www.apem.com
APEM
Q SERIES Ø12mm (.472") Panel Mount LED Indicators
Technical Drawings
13,50
0,531
FLUSH BEZEL
13,50
0,531
1,25 0,049
9,00 0,354
32,65 1,285
10,00 0,394
9,35 0,368
2,8x0,8 TAB
[0.110x0.031]
M12x0,75
1,25 0,049
9,00 0,354
14,40 0,567
19,00 0,748
17,50 0,689
13,50
0,531
REAR EPOXY WIRES
M12x0,75
1,25 0,049
9,00 0,354
14,40 0,567
200,00+/-10
[7.874+/-0.393]
APEM
www.apem.com
0,50 0,020
2,54 0,100
1,27 0,050
M12x0,75
SOLDER LUG/FASTONS
REAR EPOXY PINS
SQ
3
Q SERIES Ø12mm (.472") Panel Mount LED Indicators
Prominent & Recessed Bezel Overview
STANDARD OPTIONS
The Q12 Series is available with a range of standard options, to specify your LED, simply choose one option from each
column. An example is shown below.
Q
SERIES
Q
12
MOUNTING
HOLE
12 = Ø12mm
P
BEZEL
STYLE
P = Prominent
R = Recessed
1
TERMINALS
1 = Solder Lug/
Fastons
(2.8 x 0.8)
2 = Pins
3 = Wires
4 = Rear epoxy
Pins
5 = Rear epoxy
Wires
6 = Short body
Pins
7 = Short body
Wires
B
BEZEL FINISH
C = Bright Chrome
B = Black Chrome
G = Satin Grey
XX
TYPE OF
ILLUMINATION
XX = Fixed Light
KK = Flashing Light
(12 - 28VDC)
YY = Bi-color
ZZ = Tri-color
G
LED COLOR
R = Red
G = Green
Y = Yellow
B = Blue
W = White
O = Orange
12
VOLTAGE
02 = no resistor
*
06 = 6VDC
12 = 12VDC
12A = 12VAC/DC
24 = 24VDC
24A = 24VAC/DC
28 = 28VDC
E
SEALING
(Blank) = Unsealed
E = IP67
HR = Hyper Bright Red
HG = Hyper Bright Green
HY = Hyper Bright Yellow
HO = Hyper Bright Orange
28A = 28VAC/DC
110 = 110VAC
220 = 220VAC
SR = Super Bright Red
SG = Super Bright Green
SY = Super Bright Yellow
SB = Super Bright Blue
Example Q12P7GXXG12E
Ø12mm, prominent bezel, short body wires,
satin chrome finish, fixed light,
green, 12VDC LED, IP67 panel sealed
SW = Super Bright White
SO = Super Bright Orange
RG = Red/Green
RY = Red/Yellow
GY = Green/Yellow
RYG = Red/Yellow/Green
• Gold Faston terminal denotes Anode (+), silver terminal denotes Cathode (-)
• Standard wire length is 200mm, 24AWG UL1061, red wire denotes Anode (+), black wire denotes Cathode (-)
for other wire lengths consult APEM
• Bi-color LEDs, by connecting the gold Faston (+) one color is produced,
by reversing the supply voltage another color is produced – Bi-colors are available up to 28VDC
• Take care when soldering to the Faston terminals (recommended solder temperature 300°C - 3 sec)
• Max voltage for pins and wires is 28V
• Maximum panel thickness 7mm
• Tri-color are not available with terminal option 1
• Tri-colors are only available behind panel epoxy sealed with wires (option 5) or pins (option 4)
• 110VAC and 220VAC, short body terminal options, 5, 6 and 7 please consult the factory
• We recommend using Hyperbright or Superbright LEDs for use at 110VAC and 220VAC
• The Tri-color LED has red and green LEDs when both are connected yellow is produced
• Standard Tri-color Faston terminals are two Anodes (+) and one Cathode (-)
• Tri-color wires are one red (+) and one green (+) Anode and one black (-) Cathode
• Tri-color pins are center (–) Cathode, shortest (+) Anode pin green, longest (+) Anode pin red
* = For resistorless versions (02) please refer to the forward voltage on page 1
