provides high dynamic range performance in a low-cost
lead-free/green/RoHS-compliant SOIC-8 package.
WJ’s
MH103A uses patented techniques to realize +34 dBm
Input IP3 at an LO drive level of +17 dBm.
This single monolithic integrated circuit does not require
any external baluns, bias, matching, or decoupling
elements. The on-chip diplexer affords good matching on
the RF and IF ports.
Typical applications include frequency up/down
conversion, modulation and demodulation for receivers and
transmitters used in 3G UMTS systems.
Functional Diagram
4
3
2
1
5
6
7
8
Applications
•
Mobile Infrastructure
Function
LO
IF
RF
GND
Pin No.
2
5
7
1, 3, 4, 6, 8
Specifications
(1)
Parameter
RF Frequency Range
LO Frequency Range
IF Frequency Range
SSB Conversion Loss
Noise Figure
Input IP3
Input P1dB
LO – RF Isolation
LO – IF Isolation
RF – IF Isolation
Return Loss: RF Port
Return Loss: IF Port
Return Loss: LO Port
LO Drive Level
Units
MHz
MHz
MHz
dB
dB
dBm
dBm
dB
dB
dB
dB
dB
dB
dBm
Min
Typ
1900 – 2200
1600 – 2150
50 – 300
8.2
8.7
+34
+16
28
37
18
15
20
12
+17
Max
Comments
9.0
+28
21
27
12
See note 1
See note 2
See note 1, 3
1. Test conditions unless otherwise noted: RF / IF = 1900 / 50, 1900 / 200, 2200 / 50, and 2200 / 300 MHz with a low-side LO at +17 dBm in a downconverting application at 25° C.
2. Assumes LO injection noise is filtered at the thermal noise floor, -174 dBm/Hz, at the RF, IF, and Image frequencies.
3. IIP3 is measured with
Δf
= 1 MHz with RF
in
= 0 dBm / tone.
Absolute Maximum Rating
Parameter
Operating Case Temperature
Storage Temperature
LO Power
Input IF / RF Power
-40 to +85
°C
-65 to +100 °C
+20 dBm
+20 dBm
Ordering Information
Part No.
MH103A*
MH103A-G
MH103A-PCB
Rating
Description
High Dynamic Range UMTS-band MMIC Mixer
(lead-tin SOIC-8 package)
High Dynamic Range UMTS-band MMIC Mixer
(lead-free/green/RoHS-compliant SOIC-8 package)
Fully-Assembled Mixer Application Board
Specifications and information are subject to change without notice
Operation of this device above any of these parameters may cause permanent damage.
* This package is being phased out in favor of the green package type which is backward compatible for
3. Blocking capacitors are required on the ports (pins 2, 5, 7) if any dc signal is present.

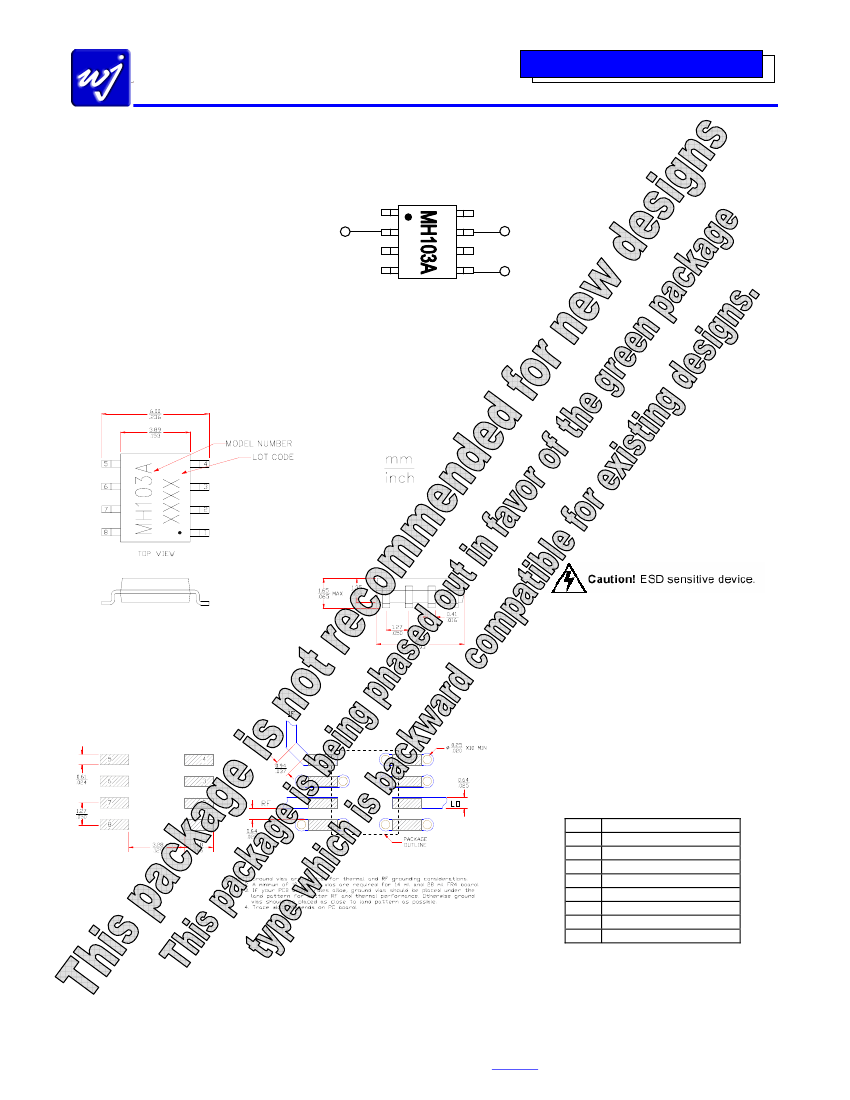

Outline Drawing
Product Marking
The component will be marked with an
“MH103A” designator followed by an
alphanumeric lot code on the top surface of the
package.
Tape and reel specifications for this part are
located on the website in the “Application Notes”
section.
ESD / MSL Information
ESD Classification:
Value:
Test:
Standard:
Class 1B
Passes 500V to <1000 V
Human Body Model (HBM)
JEDEC Standard JESD22-A114
Class III
Passes 500 V to <1000 V
Charged Device Model (CDM)
JEDEC Standard JESD22-C101
Level 3 at +235
°C
convection reflow
JEDEC Standard J-STD-020B
Mounting Configuration / Land Pattern
ESD Classification:
Value:
Test:
Standard:
MSL Rating:
Standard:
Functional Pin Layout
Pin
1
2
3
4
5
6
7
8
Function
Ground
LO Port
Ground
Ground
IF Port
Ground
RF Port
Ground
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com
Page 4 of 5 August 2005
MH103A
The Communications Edge
TM
Product Information
High Dynamic Range UMTS-Band MMIC Mixer

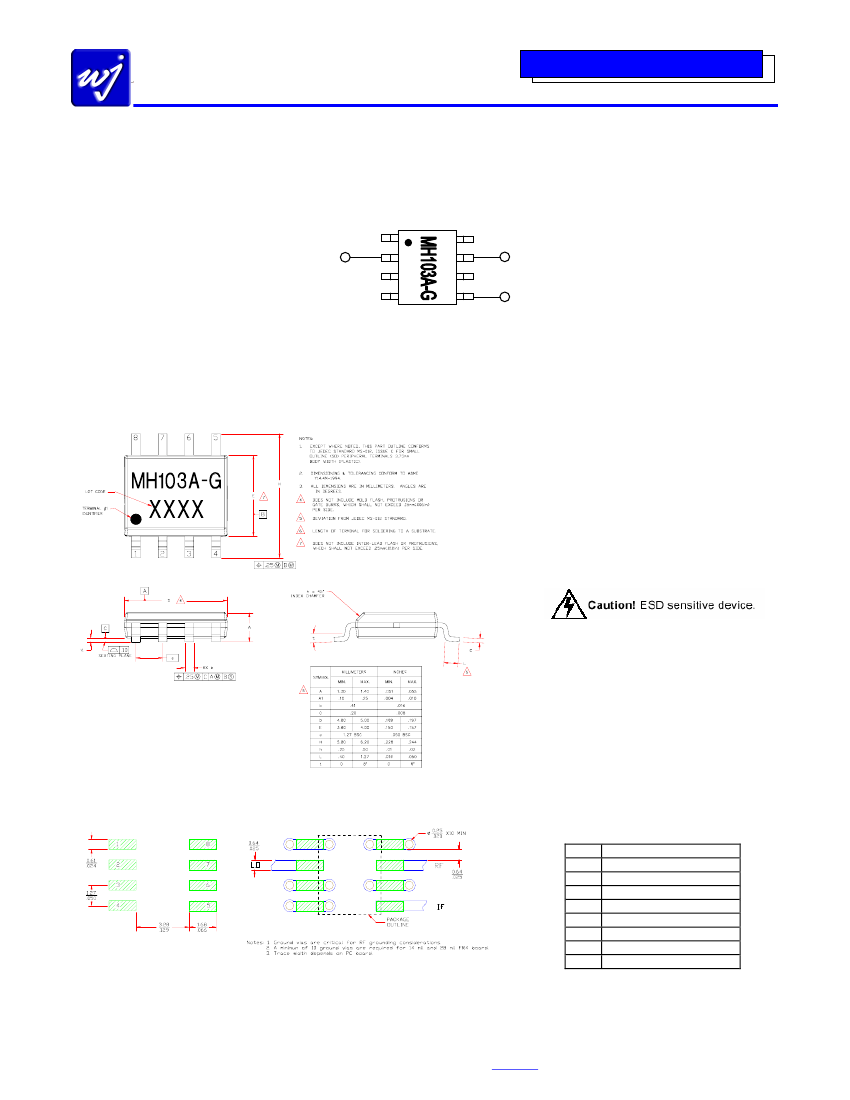

MH103A-G (Lead-Free Package) Mechanical Information
This package is lead-free/green/RoHS-compliant. The plating material on the leads is NiPdAu. It is compatible with both lead-free (maximum 260°C reflow
temperature) and lead (maximum 245°C reflow temperature) soldering processes.
