800SP9B9M1QEH

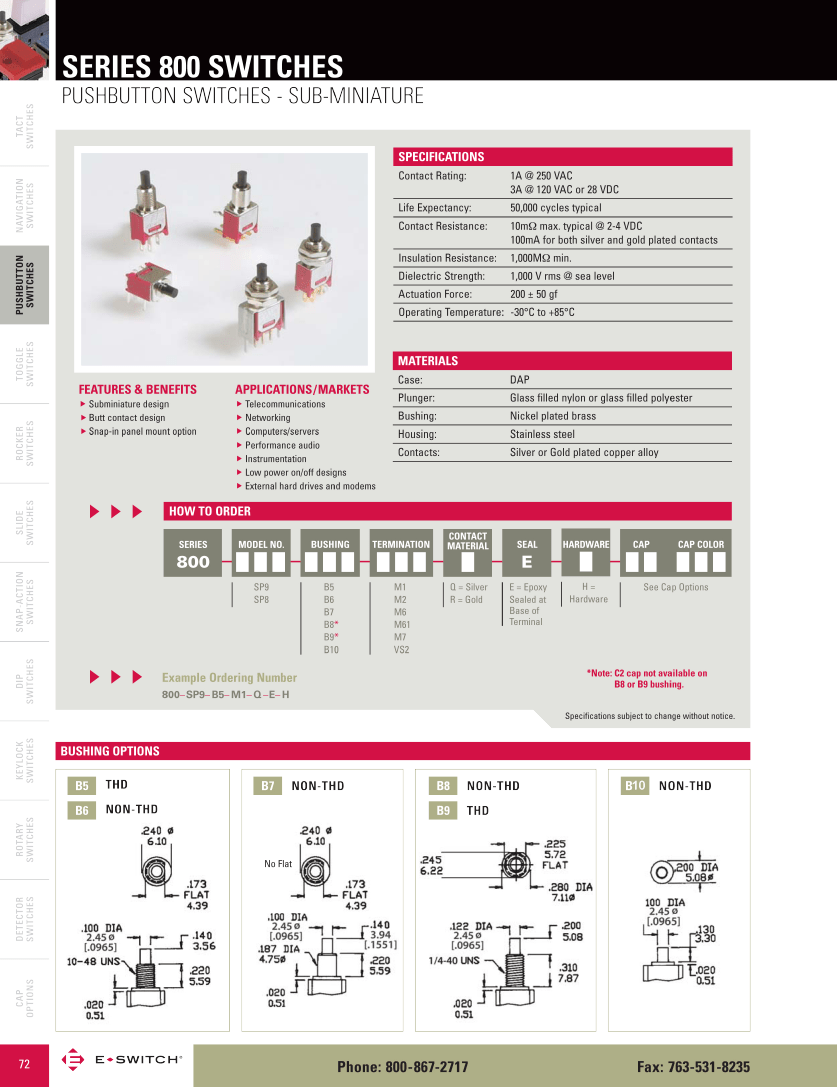

Description
Pushbutton Switch, SPST, Off-(on), Momentary, 3A, 28VDC, Solder Lug Terminal, Panel Mount
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size3MB,5 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Environmental Compliance
Download Datasheet Parametric View All

800SP9B9M1QEH Online Shopping

Suppliers Part Number Price MOQ In stock
800SP9B9M1QEH - - View Buy Now

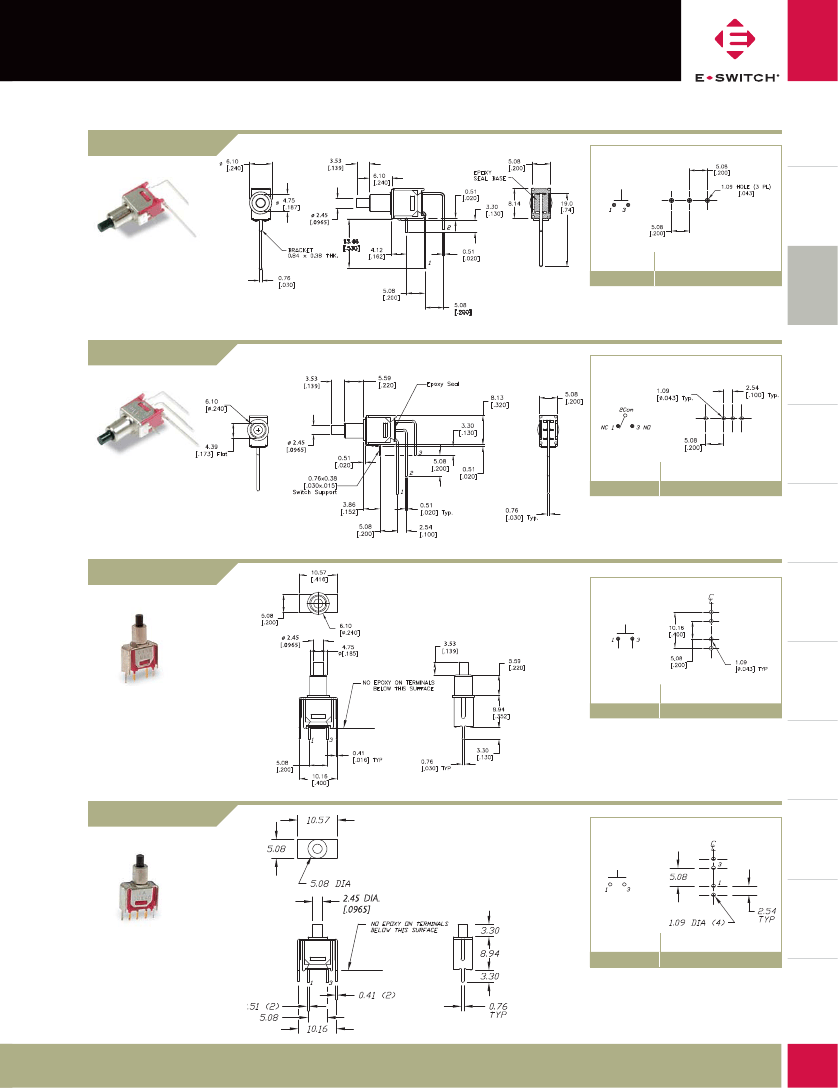

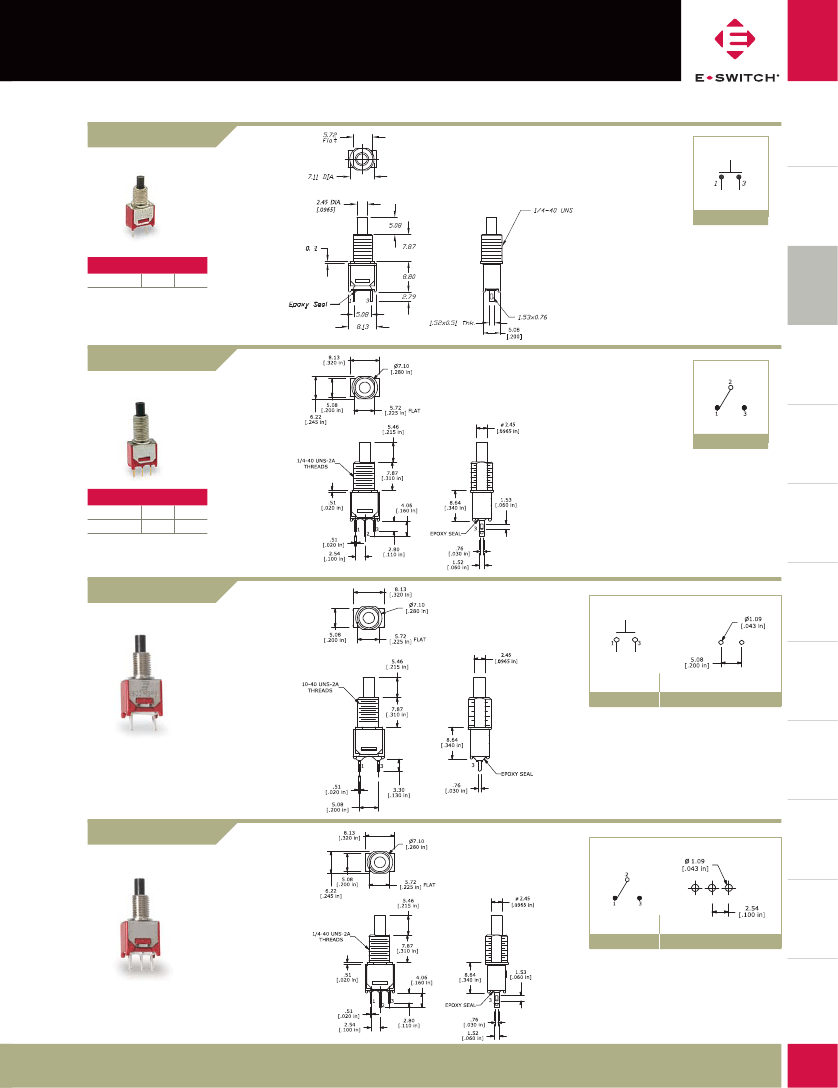

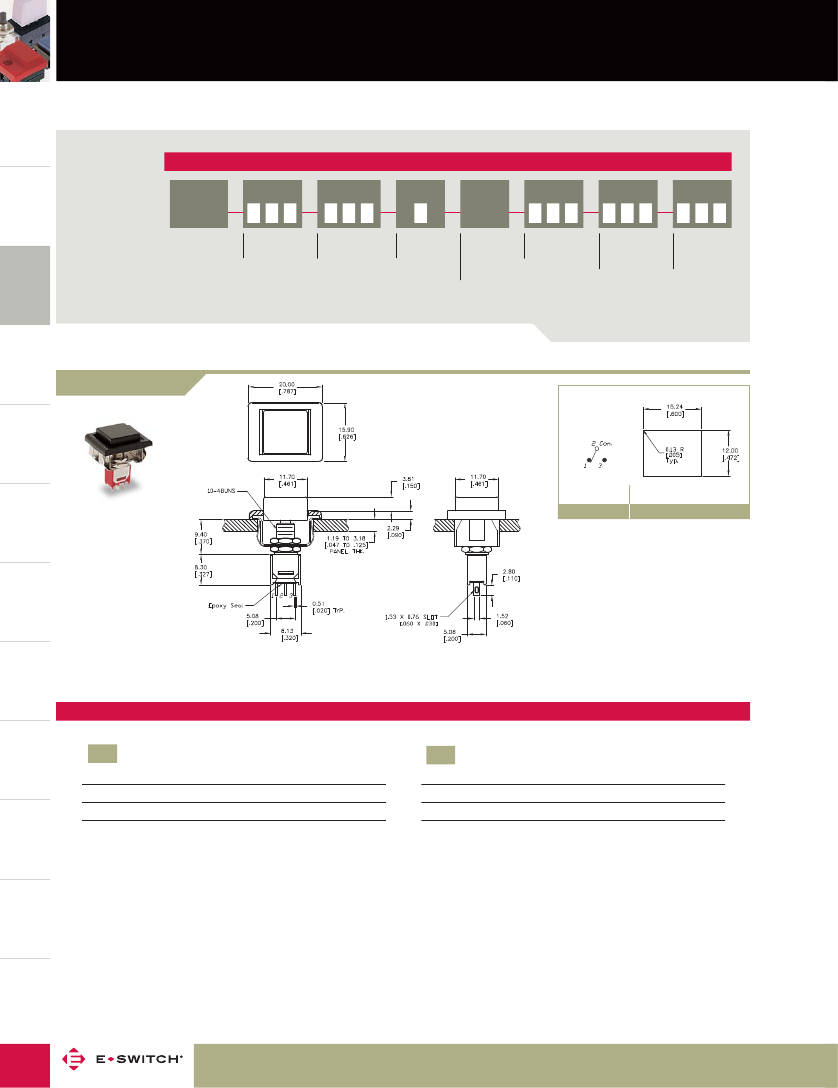

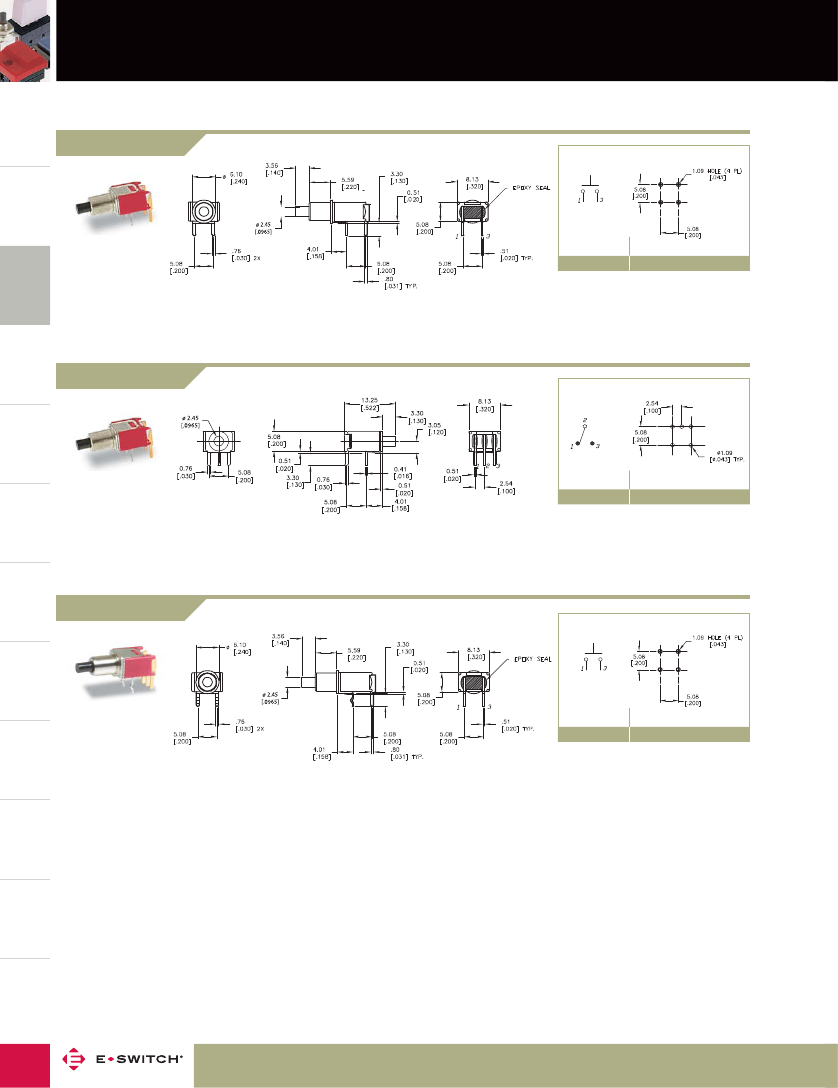

800SP9B9M1QEH Overview

Pushbutton Switch, SPST, Off-(on), Momentary, 3A, 28VDC, Solder Lug Terminal, Panel Mount

800SP9B9M1QEH Parametric

Parameter NameAttribute value
Objectid8087351238
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.3
Actuator length0.215 inch
Actuator typePUSHBUTTON
body width5.08 mm
body height8.636 mm
Body length or diameter8.128 mm
Casing diameter0.25 inch
Nozzle length0.31 inch
Casing type1/4-40
center contact materialCOPPER ALLOY
Center contact platingSILVER
Contact (AC) maximum rated R load1A@250VAC
Maximum contact current (AC)1 A
Maximum contact current (DC)3 A
Contact (DC) maximum rated R load3A@28VDC
Contact functionOFF-(ON)
Contact resistance0.02 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)28 V
Dielectric withstand voltage1000VRMS V
Electrical life50000 Cycle(s)
End contact materialCOPPER ALLOY
End contact platingSILVER
Shell materialSTAINLESS STEEL
Insulation resistance1000000000 Ω
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
sealEPOXY
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePUSHBUTTON SWITCH
Terminal length0.11 inch
Termination typeSOLDER LUG
