LS5022-221-RM: DescriptionSurface Mount Power Inductors; CategoryPassive components inductor; File Size622KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

LS5022-221-RM Overview

Surface Mount Power Inductors

LS5022-221-RM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.47 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½

½½½½½ ½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½

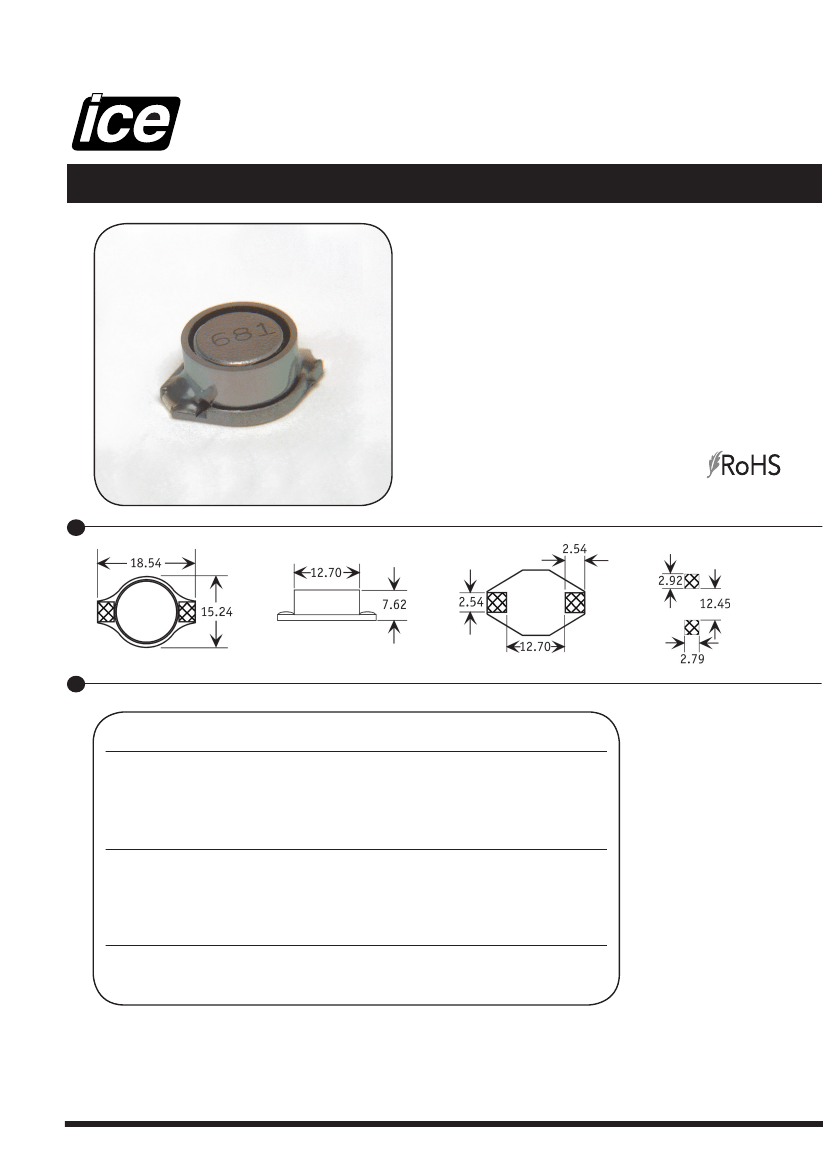

Surface Mount Power Inductors

FEATURES

LS5022 Series

-Will Handle up to 8.0A

-Suitable for Pick and Place

-Withstands Solder Reﬂow

-High Performance Shielded Design

APPLICATIONS

-DC/DC Converters

-Output Power Chokes

-High Current Applications

PACKAGING

-Reel Diameter: 13"

-Reel Width:

32mm

-Pieces Per Reel: 250

Mechanical

Electrical Speciﬁcations

Part

Number

Inductance

1

(uH +/- 20%)

DCR max

(Ω)

I

dc

max

2

(A)

LS5022-100-RM

LS5022-150-RM

LS5022-220-RM

LS5022-330-RM

LS5022-470-RM

LS5022-680-RM

LS5022-101-RM

LS5022-151-RM

LS5022-221-RM

LS5022-331-RM

LS5022-471-RM

LS5022-681-RM

LS5022-102-RM

10

15

22

33

47

68

100

150

220

330

470

680

1,000

0.040

0.048

0.059

0.075

0.097

0.138

0.207

0.293

0.47

0.78

1.08

1.40

2.01

8.0

7.0

6.0

5.0

4.0

3.0

2.4

2.1

1.9

1.1

0.96

0.80

1. Tested @ 100kHz, 0.1Vrms.

2. Inductance drop = 10% at rated

I

dc

max.

3. Operating temperature range:

-40ºC to +85˚C.

4. Electrical speciﬁcations at 25˚C.

5. Meets UL 94V-0.

Speciﬁcations subject to change without notice

(10/06) LS-3
