Datasheet> All Categories > Passive components> BLM18AG471BH1D

Preview

BLM18AG471BH1D: DescriptionFerrite Beads 470ohm .55A 0.35ohm AEC-Q200; CategoryPassive components; File Size216KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM18AG471BH1D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BLM18AG471BH1D	-	-	View	Buy Now

BLM18AG471BH1D Overview

Ferrite Beads 470ohm .55A 0.35ohm AEC-Q200

BLM18AG471BH1D Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Ferrite Beads
RoHS	Details
Product	Chip Beads
Termination Style	SMD/SMT
Package / Case	0603 (1608 metric)
Impedance	470 Ohms
Maximum DC Current	550 mA
Tolerance	25 %
Maximum DC Resistance	350 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Length	1.6 mm
Width	0.8 mm
Height	0.8 mm
Qualification	AEC-Q200
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Operating Temperature Range	- 55 C to + 150 C
Number of Channels	1 Channel
Number of Elements	2
Factory Pack Quantity	4000
Termination	-
Test Frequency	100 MHz
Unit Weight	0.000071 oz

Preview

Download Datasheet

View All

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of BLM18AG471BH1# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-us/products/productdetail?partno=BLM18AG471BH1%23

BLM18AG471BH1#

“#” indicates a package specification code.

< List of part numbers with package codes >

BLM18AG471BH1B BLM18AG471BH1D

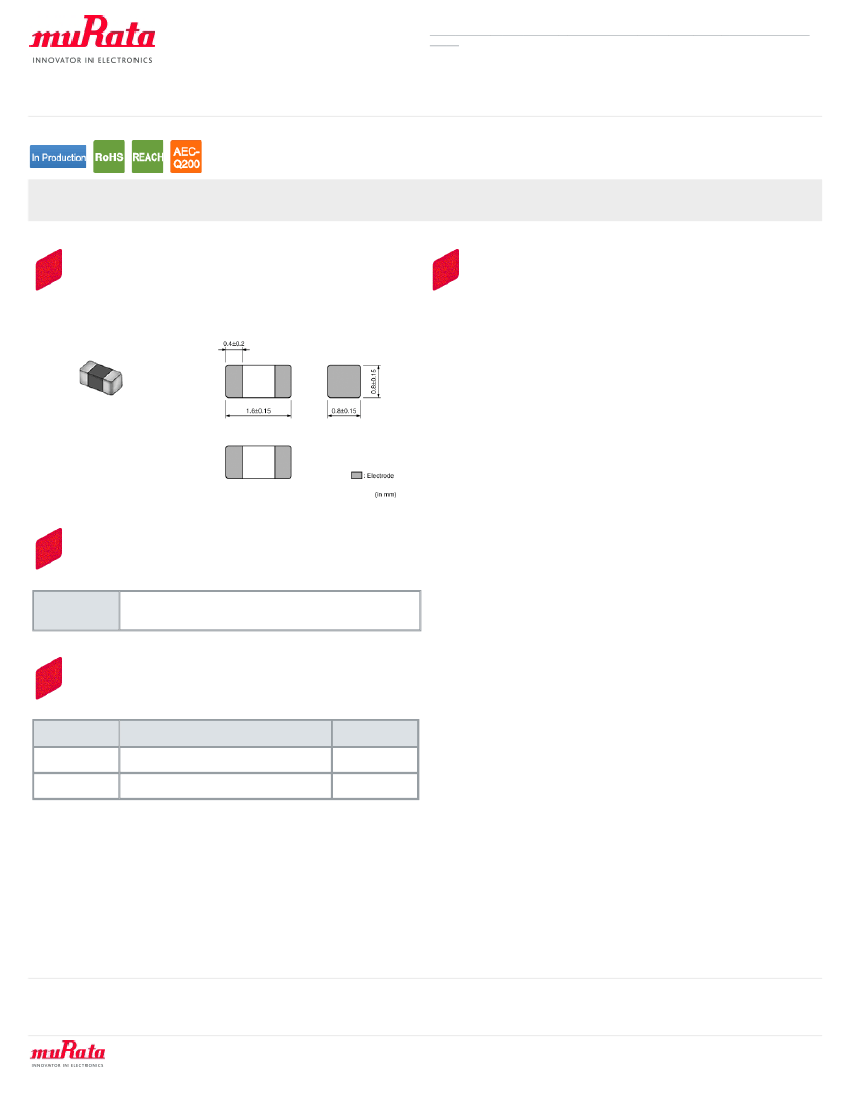

Appearance & Shape

Features

The chip ferrite beads BLM series is designed to

function nearly as a resistor at noise frequencies,

which greatly reduces the possibility of resonance and

leaves signal wave forms undistorted.

BLM series is effective in circuits without stable

ground lines because BLM series does not need a

connection to ground.

The nickel barrier structure of the external

electrodes provides excellent solder heat resistance.

Also it can be used up to 150

℃.

BLM_AG series generates an impedance from the

relatively low frequencies. Therefore BLM_AG series is

effective in noise suppression in a wide frequency

range (30MHz to several hundred MHz).

Applications

Automotive

Usage

Powertrain/Safety

Packaging Information

Packaging

B

D

Specifications

Bulk(Bag)

180mm Paper Tape

Minimum

Order Quantity

1000

4000

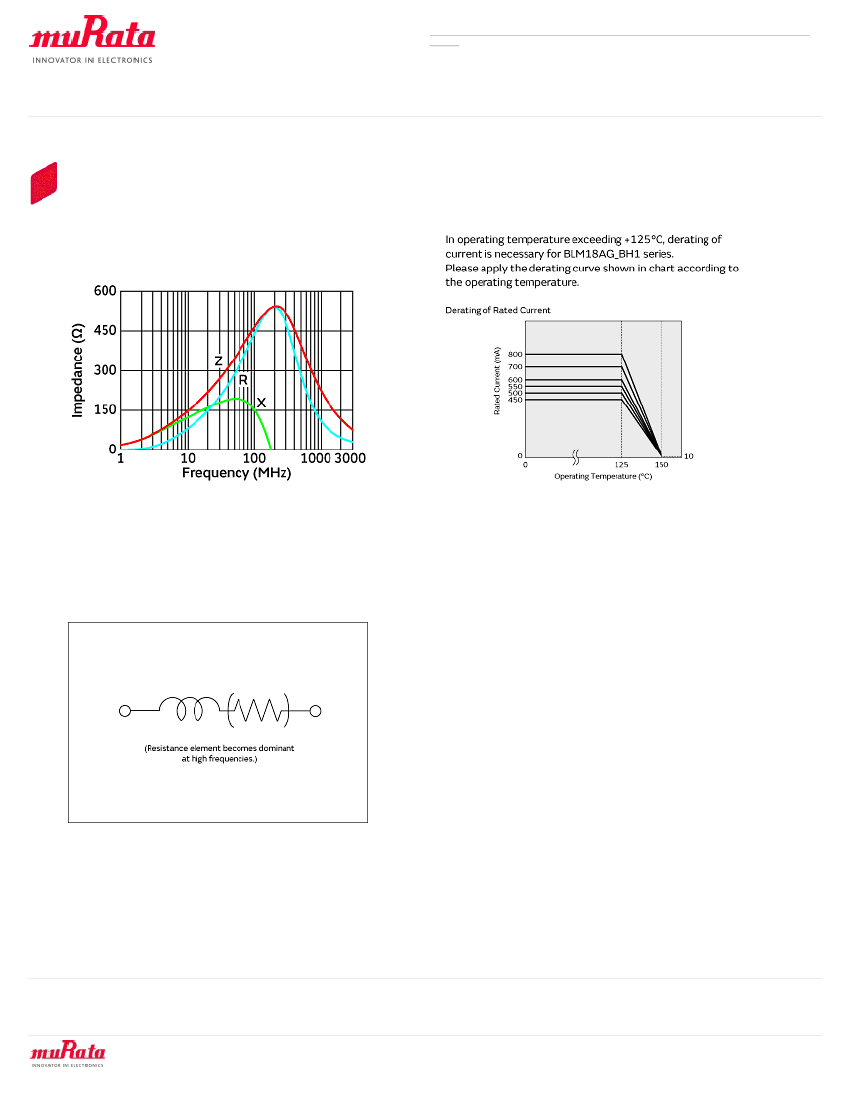

1 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/05/05
