74F676DCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> Shift register> 74F676DCQR

74F676DCQR: DescriptionParallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, CERAMIC, DIP-24; Categorylogic Shift register; File Size242KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

74F676DCQR Overview

Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, CERAMIC, DIP-24

74F676DCQR Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS
Counting direction	RIGHT
series	F/FAST
JESD-30 code	R-GDIP-T24
length	32.77 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	13.5 ns
Maximum seat height	5.72 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	15.24 mm
minfmax	110 MHz
Base Number Matches	1

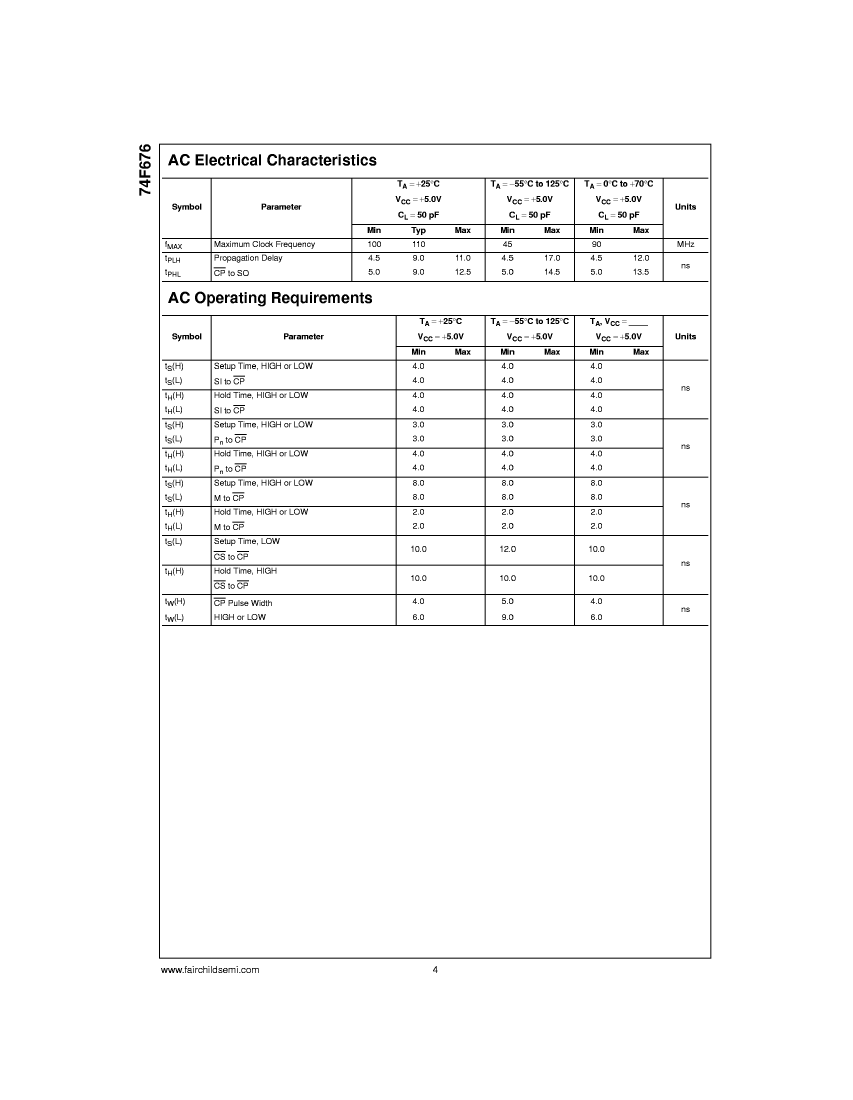

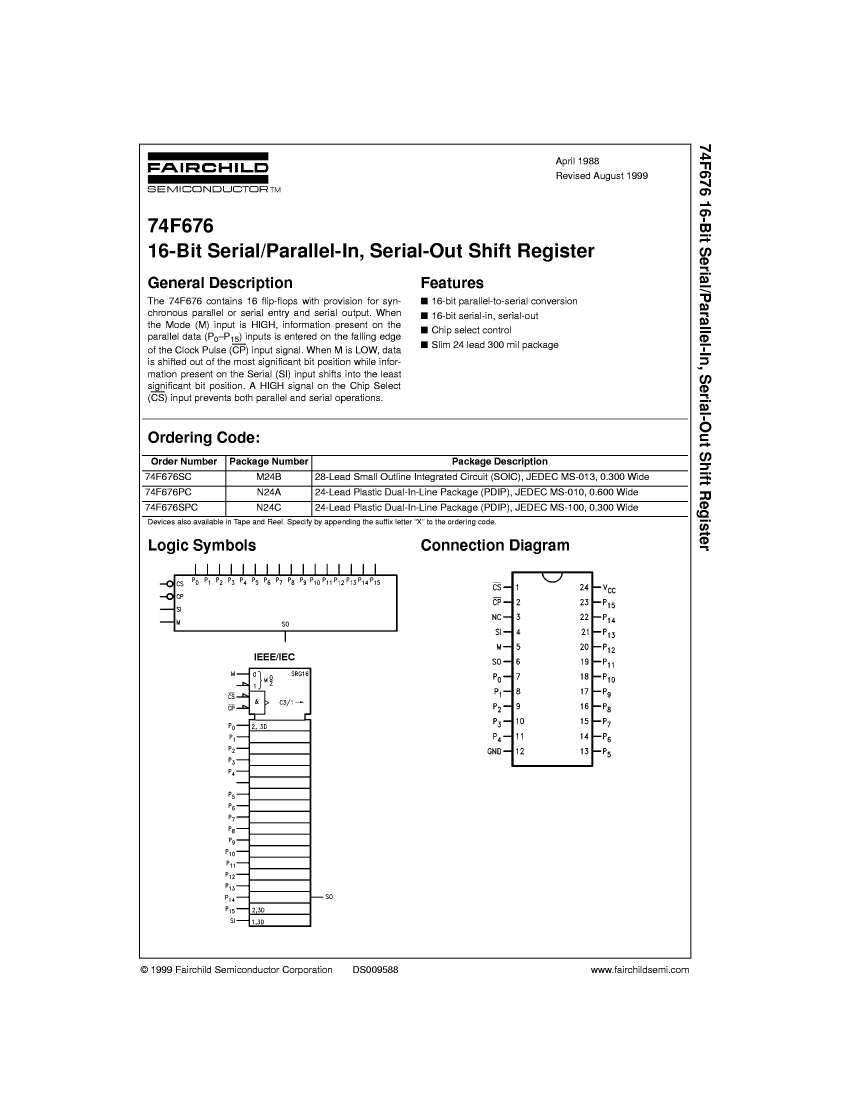

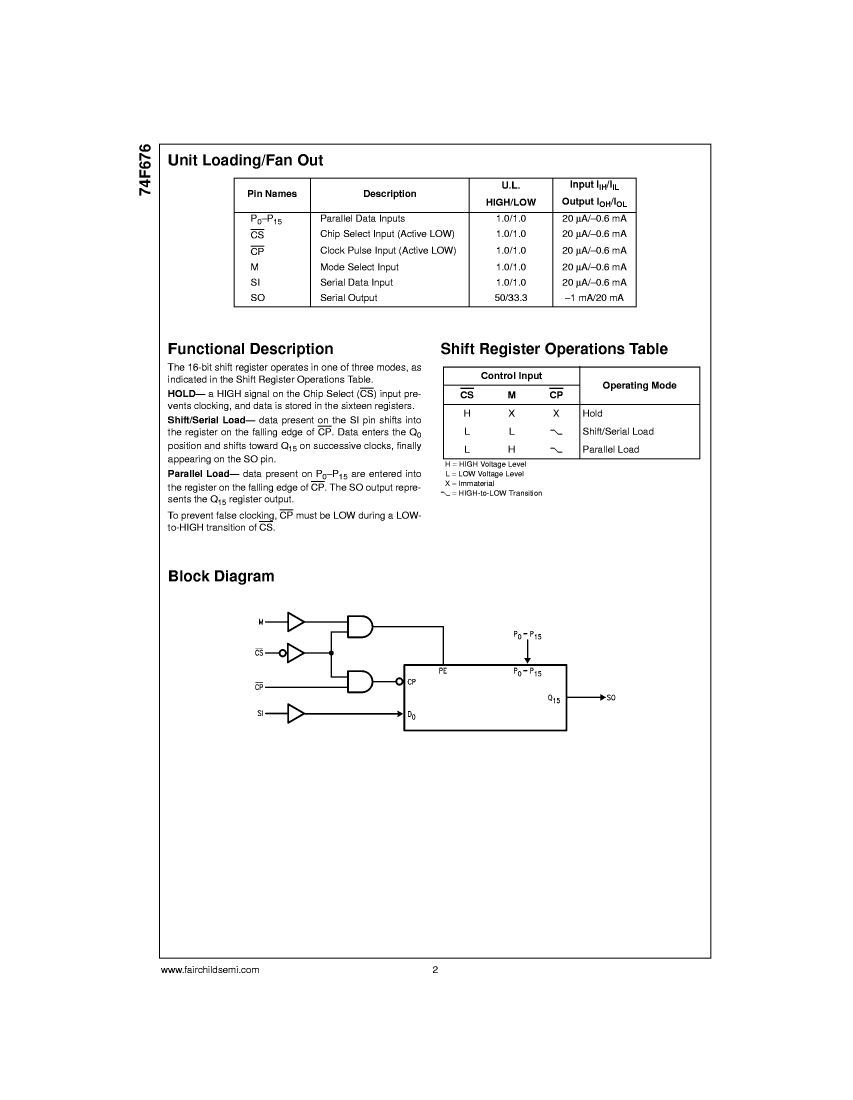

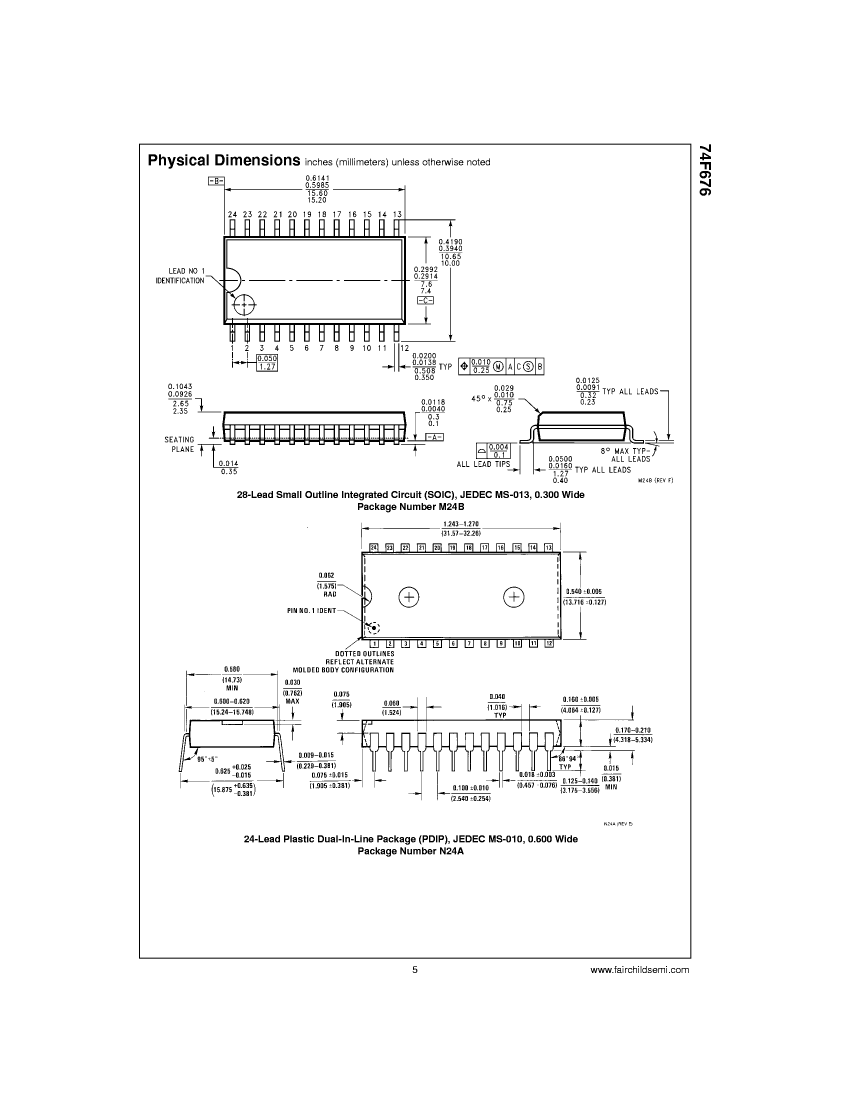

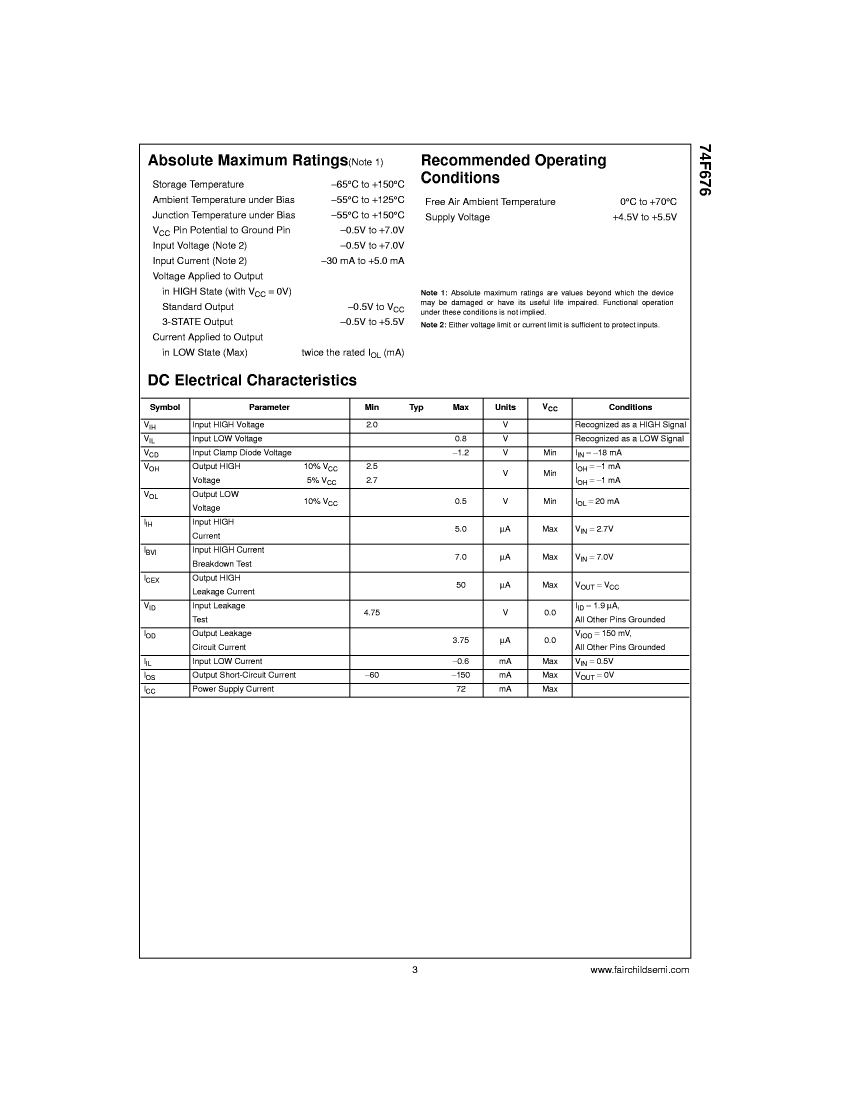

Preview

Download Datasheet

View All

74F676DCQR Related Products

	74F676DCQR	74F676DC	74F676PCQR
Description	Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, CERAMIC, DIP-24	Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, CERAMIC, DIP-24	Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, PDIP24, PLASTIC, DIP-24
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
Other features	HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS	HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS	HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS
Counting direction	RIGHT	RIGHT	RIGHT
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-GDIP-T24	R-GDIP-T24	R-PDIP-T24
length	32.77 mm	32.77 mm	31.75 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT
Number of digits	16	16	16
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
propagation delay (tpd)	13.5 ns	13.5 ns	13.5 ns
Maximum seat height	5.72 mm	5.72 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	15.24 mm	15.24 mm	15.24 mm
minfmax	110 MHz	110 MHz	110 MHz
Base Number Matches	1	1	1
Is Samacsys	N	N	-
