LS125-102-RM: Description1 ELEMENT, 330 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size517KB，1 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

LS125-102-RM Overview

1 ELEMENT, 330 uH, GENERAL PURPOSE INDUCTOR, SMD

LS125-102-RM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ICE Components
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	1.53 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½

½½½½½ ½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½

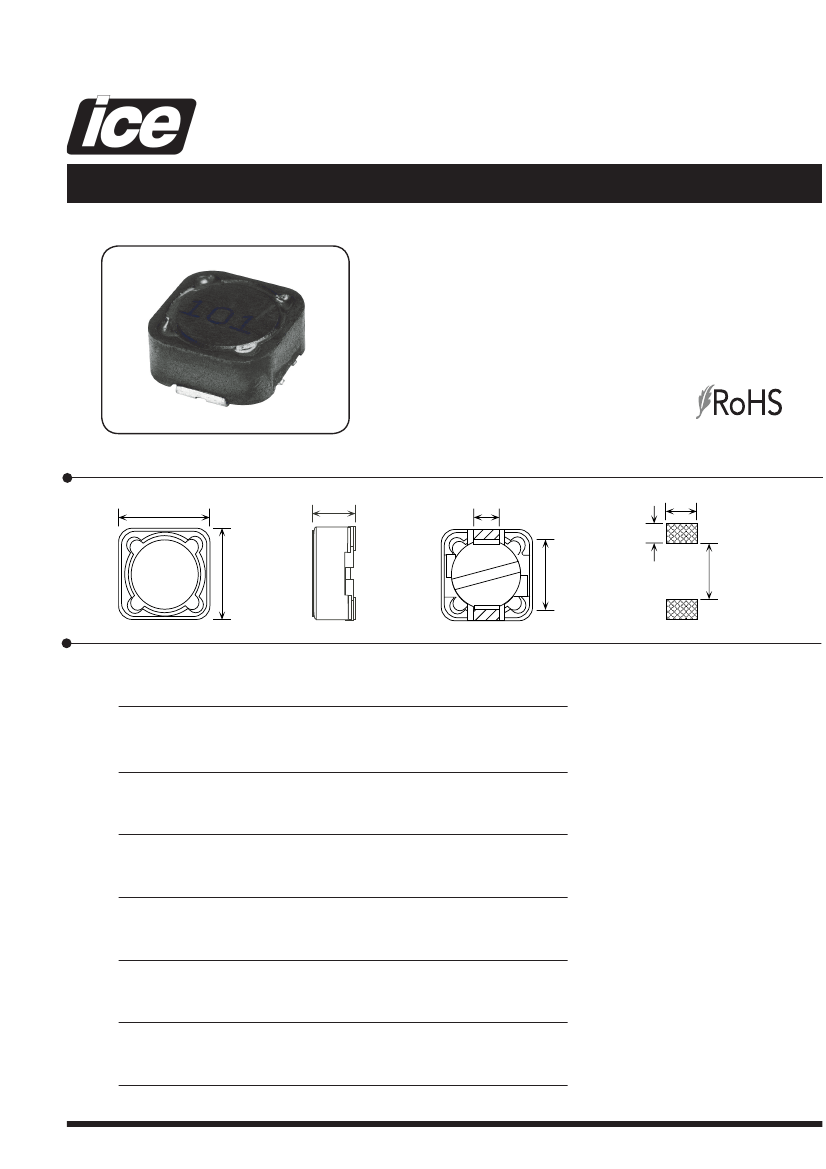

Surface Mount Power Inductors

FEATURES

LS125 Series

PACKAGING

-Will Handle Up To 8A

-Economical Design

-Suitable For Pick And Place

-Shielded Design

-Reel Diameter: 330mm

-Reel Width: 24.3mm

-Pieces Per Reel: 500

APPLICATIONS

-DC/DC Converters

-Output Power Chokes

-Handheld And PDA Applications

-Battery Powered Or Low Voltage Applications

Mechanical

12.3 max

½½½½½½½

5.0 +/- 0.2

2.8

5.4

7.6 +/- 0.2

12.3 max

XXX

7.0

Electrical Specifications

Part

Number

LS125-1R3-RM

LS125-2R1-RM

LS125-3R1-RM

LS125-4R4-RM

LS125-5R8-RM

LS125-7R5-RM

LS125-100-RM

LS125-120-RM

LS125-150-RM

LS125-180-RM

LS125-220-RM

LS125-270-RM

LS125-330-RM

LS125-390-RM

LS125-470-RM

LS125-560-RM

LS125-680-RM

LS125-820-RM

LS125-101-RM

LS125-121-RM

LS125-151-RM

LS125-181-RM

LS125-221-RM

LS125-271-RM

LS125-331-RM

LS125-391-RM

LS125-471-RM

LS125-561-RM

LS125-681-RM

LS125-821-RM

LS125-102-RM

Inductance

μH

+/- 20%

1.3

2.1

3.1

4.4

5.8

7.5

100

120

150

180

220

270

330

390

470

560

680

820

1000

Test Frequency

(Hz)

7.96M

DCR max

(Ω)

0.012

0.014

0.017

0.020

0.021

0.024

0.025

0.027

0.030

0.034

0.036

0.051

0.057

0.068

0.075

0.11

0.12

0.14

0.16

0.17

0.23

0.29

0.40

0.46

0.51

0.69

0.77

0.86

1.20

1.34

1.53

max

(A)

8.00

7.00

6.00

5.00

4.40

4.20

4.00

3.50

3.30

3.00

2.80

2.30

2.10

2.00

1.80

1.70

1.50

1.40

1.30

1.10

1.00

.90

.80

.75

.68

.65

.58

.54

.48

.43

.40

1. Test Voltage:

1R3-7R6: 7.96MHz/0.1V

100-102: 1KHz/0.25V

2. Inductance drop = 10% at rated I

max.

3. Electrical specifications at 25ºC.

4. Operating temperature range:

-40ºC to +85ºC.

5. Meets UL 94V-0.

6. Optional Tolerances: 10%(K), 15%(L),

and 30%(N).

Specifications subject to change without notice.

(10/06)

LS-6
