ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, ISL3158E
Large 3V Output Swing, 16.5kV ESD, Full Fail-Safe, 1/8 Unit Load,
RS-485/RS-422 Transceivers
The ISL315xE family of 5V powered RS-485/RS-422
transceivers features high output drive and high ESD
protection. The devices withstand ±16.5kV IEC61000-4-
2 ESD strikes without latch-up. The large output voltage
of 3.1V typical into a 54Ω load provides high noise
immunity, and enables the drive of up to 8000ft long bus
segments, or eight 120Ω terminations in a star topology.
These devices possess less than 125µA bus input
currents, thus constituting a true 1/8 unit load. The high
output drive combined with the low bus input currents
allows for connecting up to 512 transceivers on the same
bus.
The receiver inputs feature a full fail-safe design that
turns the receiver outputs high when the bus inputs are
open or shorted.
The ISL315xE family includes half and full-duplex
transceivers with active-high driver-enable pins and
active-low receiver enable pins. These transceivers
support data rates of 115kbps, 1Mbps, and 20Mbps.
Their performance is characterized from -40°C to +85°C.
FN6363
Rev.4.00
Apr 19, 2018
Features
• High V
OD
: 3.1V (Typ) into R
D
= 54Ω
• Low bus currents: 125µA constitutes a true 1/8 unit
load
• Allows for up to 512 transceivers on the bus
• ±16.5kV ESD protection on bus I/O pins
• High transient overvoltage tolerance of ±100V
• Full fail-safe outputs for open or shorted inputs
• Hot plug capability - driver and receiver outputs
remain high-impedance during power-up and
power-down
• Supported data rates: 115kbps, 1Mbps, 20Mbps
• Low supply current (driver disabled): 550µA
• Ultra-low shutdown current: 70nA
Applications
• Automated utility e-meter reading systems
• High node count systems
• PROFIBUS and Fieldbus systems in factory
automation
• Security camera networks
• Lighting, elevator, and HVAC control systems in
building automation
• Industrial process control networks
• Networks with star topology
• Long-haul networks in coal mines and oil rigs
Related Literature
For a full list of related documents, visit our website
•
ISL3150E, ISL3152E, ISL3153E, ISL3155E,
ISL3156E,
and
ISL3158E
product pages
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
0
3
Driver Output Curre nt (mA)
6 x 120Ω
Terms
8 x 120Ω
Terms
ISL3158E
2
Driver Output Volta ge (V)
1
0
-1
-2
Standard
Transceiver
2 x 120Ω
Terms
1 x 120Ω
Term
1
2
3
4
1.5
Diff ere ntial O utput Voltage (V)
5
20Mbps, 150' UTP, Double 120Ω Termination
-3
20ns/Div

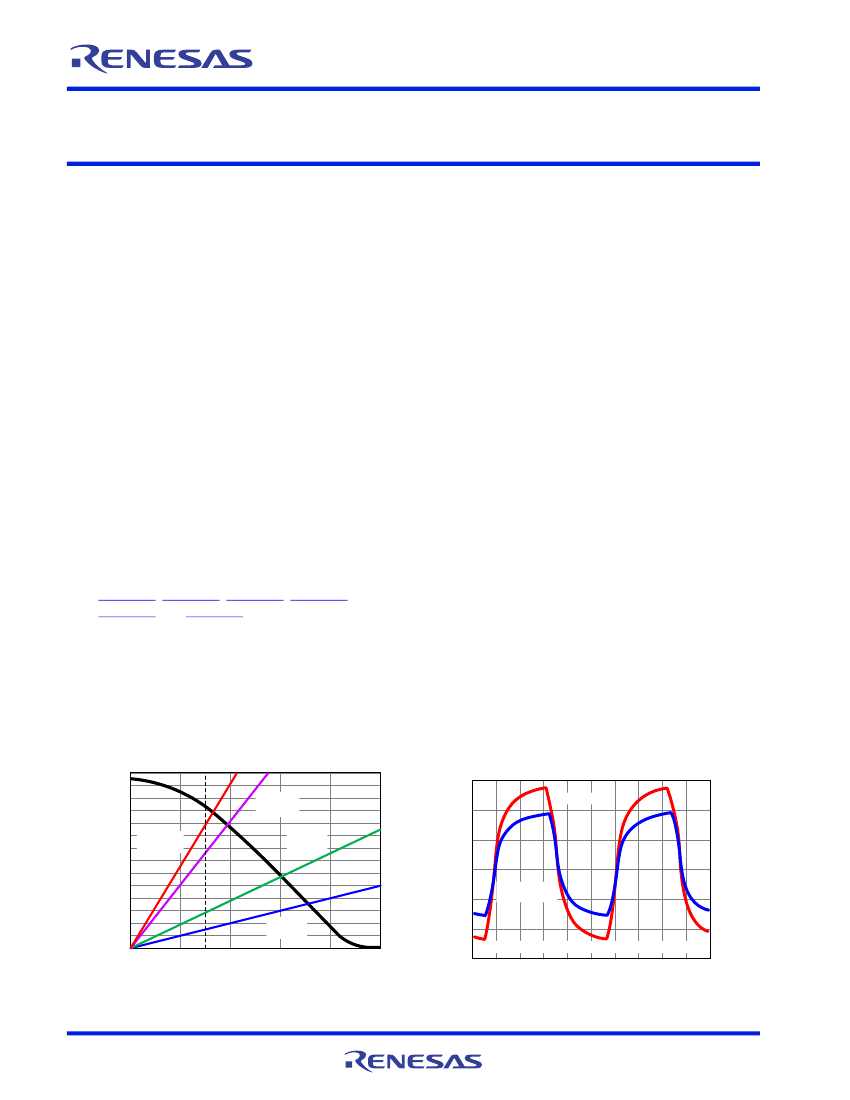

Figure 1. Typical Driver Output Performance of ISL315xE Transceivers
FN6363 Rev.4.00
Apr 19, 2018
Page 1 of 34
ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, ISL3158E
Contents
1.
1.1
1.2
1.3
1.4
2.
2.1
2.2
2.3
2.4
3.
4.
5.
5.1
5.2
5.3
5.4
6.
6.1
6.2
6.3
7.
8.
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Typical Operating Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
5
5
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
6
6
7
Test Circuits and Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Performance Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Device Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Device Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17
17
17
18
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Network Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Transient Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Revision History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Package Outline Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
FN6363 Rev.4.00
Apr 19, 2018
Page 2 of 34
ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, ISL3158E
1. Overview
1.
1.1
Overview
Typical Operating Circuit
5V
100n
8
10k
RO
RE
V
CC
R
A/Y
R
B
(optional)
RL78
MCU
10k
RO
RE
5V
100n
8
V
CC
R
A
B
R
B
(optional)
R
T
R
B
(optional)
RL78
MCU
DE
B/Z
DI
10k
10k
D
GND
5
R
T
DE
Y
DI
D
GND
5
Z
R
B
(optional)
10k
10k
Figure 2. Typical Operating Circuits of Half-Duplex and Full-Duplex Transceivers
1.2
Ordering Information
Part Marking
3150EIBZ
3150EIBZ
3150EIBZ
3150Z
3150Z
3150Z
3152EIBZ
3152EIBZ
3152EIBZ
3152EIBZ
ISL3152 EIPZ
3152Z
3152Z
3152Z
3153EIBZ
3153Z
3153Z
3153Z
3155EIBZ
3155EIBZ
3155EIBZ
3155Z
3155Z
3156EIBZ
Temp. Range (°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
Tape and Reel
(Units) (Note
1)
-
2.5k
250
-
2.5k
250
-
2.5k
1k
250
-
-
2.5k
250
2.5k
-
2.5k
250
-
2.5k
250
-
2.5k
-
Package
(RoHS Compliant)
14 Ld SOIC
14 Ld SOIC
14 Ld SOIC
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld PDIP
8 Ld MSOP
8 Ld MSOP
8 Ld MSOP
14 Ld SOIC
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld MSOP
8 Ld MSOP
14 Ld SOIC
Pkg. Dwg. #
M14.15
M14.15
M14.15
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.15
E8.3
M8.118
M8.118
M8.118
M14.15
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.118
M8.118
M14.15
Part Number (Notes
2, 3)
ISL3150EIBZ
ISL3150EIBZ-T
ISL3150EIBZ-T7A
ISL3150EIUZ
ISL3150EIUZ-T
ISL3150EIUZ-T7A
ISL3152EIBZ
ISL3152EIBZ-T
ISL3152EIBZ-T7
ISL3152EIBZ-T7A
ISL3152EIPZ
ISL3152EIUZ
ISL3152EIUZ-T
ISL3152EIUZ-T7A
ISL3153EIBZ-T
ISL3153EIUZ
ISL3153EIUZ-T
ISL3153EIUZ-T7A
ISL3155EIBZ
ISL3155EIBZ-T
ISL3155EIBZ-T7A
ISL3155EIUZ
ISL3155EIUZ-T
ISL3156EIBZ
FN6363 Rev.4.00
Apr 19, 2018
Page 3 of 34
ISL3150E, ISL3152E, ISL3153E, ISL3155E, ISL3156E, ISL3158E
Tape and Reel
(Units) (Note
1)
2.5k
250
-
2.5k
250
-
2.5k
250
-
2.5k
250
Package
(RoHS Compliant)
14 Ld SOIC
14 Ld SOIC
10 Ld MSOP
10 Ld MSOP
10 Ld MSOP
8 Ld SOIC
8 Ld SOIC
8 Ld SOIC
8 Ld MSOP
8 Ld MSOP
8 Ld MSOP
1. Overview
Part Number (Notes
2, 3)
ISL3156EIBZ-T
ISL3156EIBZ-T7A
ISL3156EIUZ
ISL3156EIUZ-T
ISL3156EIUZ-T7A
ISL3158EIBZ
ISL3158EIBZ-T
ISL3158EIBZ-T7A
ISL3158EIUZ
ISL3158EIUZ-T
ISL3158EIUZ-T7A
Part Marking
3156EIBZ
3156EIBZ
3156Z
3156Z
3156Z
3158EIBZ
3158EIBZ
3158EIBZ
3158Z
3158Z
3158Z
Temp. Range (°C)
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
Pkg. Dwg. #
M14.15
M14.15
M10.118
M10.118
M10.118
M8.15
M8.15
M8.15
M8.118
M8.118
M8.118
Notes:
1. Refer to
TB347
for details about reel specifications.
2. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and
100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free
soldering operations). Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free
requirements of IPC/JEDEC J STD-020.
3. For Moisture Sensitivity Level (MSL), see the product information pages for the
ISL3150E, ISL3152E, ISL3153E, ISL3155E,
ISL3156E,
and
ISL3158E.
For more information about MSL, see
TB363.
Table 1. Key Differences of Device Features
