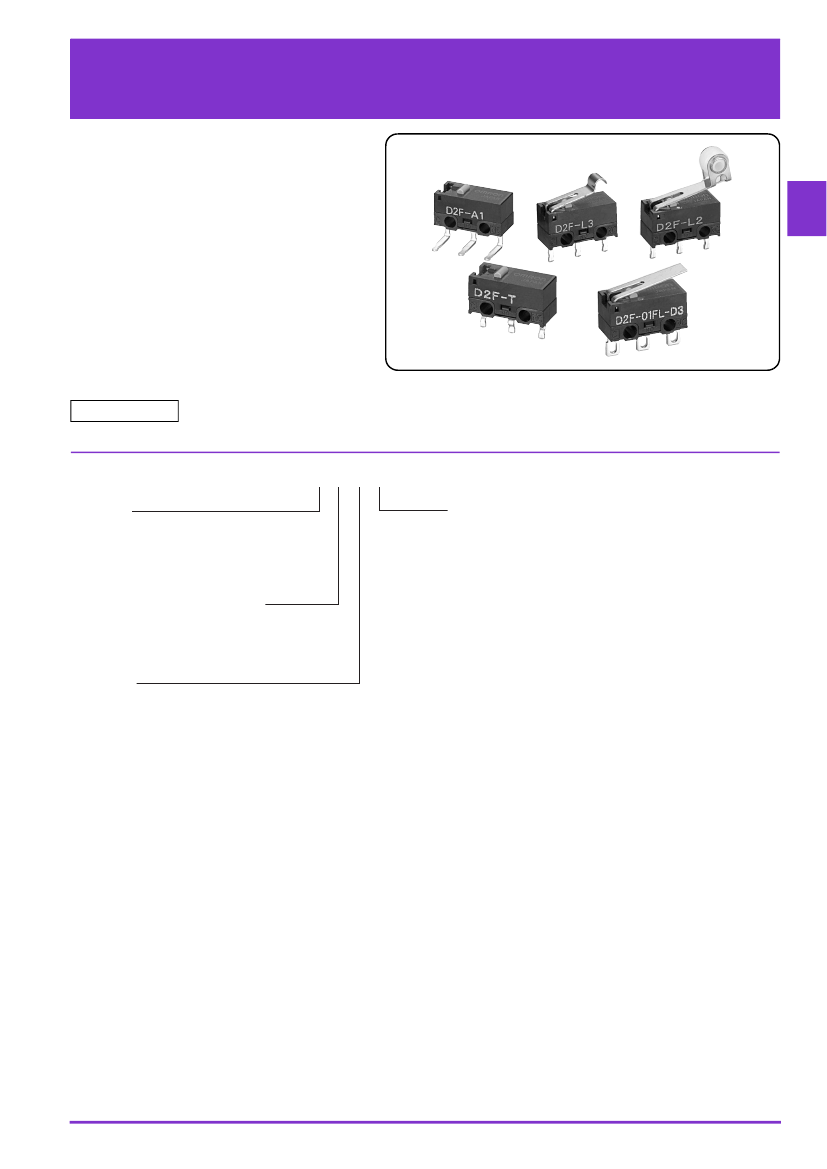

D2F
Ultra Subminiature Basic Switch
Ultra Subminiature Basic
Switch with plenty of
terminal variations
●
Incorporating a snapping mechanism made with
two highly precise split springs that ensures long
durability.
●
Using insertion molded terminals
that prevents flux penetration.
●
In addition to self-clinching PCB, left-angled,
right-angled terminals,
2 types of soldering terminals are available.
●
Lineup of 5A type for high load applications.
RoHS Compliant
D
2
F
Model Number Legend
1 2 3 4
D2F -
@ @ @ @
1. Ratings
None : 125 VAC 3A
125 VAC 1A (Low operating force)
01 : 30 VDC 0.1A
5 : 250 VAC 5A
2. Maximum Operating Force (OF)
None : 1.47 N {150 gf}
F
: 0.74 N {75 gf}
Note. The given values are for pin plunger models only.
4. Terminals
None : PCB terminals (Straight)
-T
-A
-A1
-D3
-D
: Self-clinching PCB terminals
: PCB terminals (Right-angled)
: PCB terminals (Left-angled)
: Solder terminals
: Compact solder terminals
3. Actuator
None : Pin plunger
L : Hinge lever
L2 : Hinge Roller Lever
L3 : Simulated roller lever (R1.3)
L30 : Simulated roller lever (R2.5)
1
D2F
List of Models
Ratings
Maximum Operating Force (OF) *
Actuator
Pin plunger
Terminals
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
3A
General Purpose
1.47
N {150
gf}
D2F
D2F-T
D2F-A
D2F-A1
D2F-D3
D2F-D
D2F-L
D2F-L-T
D2F-L-A
D2F-L-A1
D2F-L-D3
D2F-L-D
D2F-L2
D2F-L2-T
D2F-L2-A
D2F-L2-A1
D2F-L2-D3
D2F-L2-D
D2F-L3
D2F-L3-T
D2F-L3-A
D2F-L3-A1
D2F-L3-D3
D2F-L3-D
D2F-L30
D2F-L30-T
D2F-L30-A
D2F-L30-A1
D2F-L30-D3
D2F-L30-D
1A
Low Operating Force
0.74
N {75
gf}
D2F-F
D2F-F-T
D2F-F-A
D2F-F-A1
D2F-F-D3
D2F-F-D
D2F-FL
D2F-FL-T
D2F-FL-A
D2F-FL-A1
D2F-FL-D3
D2F-FL-D
D2F-FL2
D2F-FL2-T
D2F-FL2-A
D2F-FL2-A1
D2F-FL2-D3
D2F-FL2-D
D2F-FL3
D2F-FL3-T
D2F-FL3-A
D2F-FL3-A1
D2F-FL3-D3
D2F-FL3-D
D2F-FL30
D2F-FL30-T
D2F-FL30-A
D2F-FL30-A1
D2F-FL30-D3
D2F-FL30-D
Ultra Subminiature Basic Switch
0.1 A
General Purpose
1.47
N {150
gf}
D2F-01
D2F-01-T
D2F-01-A
D2F-01-A1
D2F-01-D3
D2F-01-D
D2F-01L
D2F-01L-T
D2F-01L-A
D2F-01L-A1
D2F-01L-D3
D2F-01L-D
D2F-01L2
D2F-01L2-T
D2F-01L2-A
D2F-01L2-A1
D2F-01L2-D3
D2F-01L2-D
D2F-01L3
D2F-01L3-T
D2F-01L3-A
D2F-01L3-A1
D2F-01L3-D3
D2F-01L3-D
D2F-01L30
D2F-01L30-T
D2F-01L30-A
D2F-01L30-A1
D2F-01L30-D3
D2F-01L30-D
Low Operating Force
0.74
N {75
gf}
D2F-01F
D2F-01F-T
D2F-01F-A
D2F-01F-A1
D2F-01F-D3
D2F-01F-D
D2F-01FL
D2F-01FL-T
D2F-01FL-A
D2F-01FL-A1
D2F-01FL-D3
D2F-01FL-D
D2F-01FL2
D2F-01FL2-T
D2F-01FL2-A
D2F-01FL2-A1
D2F-01FL2-D3
D2F-01FL2-D
D2F-01FL3
D2F-01FL3-T
D2F-01FL3-A
D2F-01FL3-A1
D2F-01FL3-D3
D2F-01FL3-D
D2F-01FL30
D2F-01FL30-T
D2F-01FL30-A
D2F-01FL30-A1
D2F-01FL30-D3
D2F-01FL30-D
5A
General Purpose
1.47
N {150
gf}
D2F-5
-
D
2
F
Hinge lever
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
D2F-5L
-
Hinge roller
lever
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
-
Simulated roller
lever (R1.3)
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
D2F-5L3
-
Simulated roller
lever (R2.5)
PCB terminals (Standard)
Self-clinching PCB terminals
PCB terminals (Right-angled)
PCB terminals (Left-angled)
Solder terminals
Compact solder terminals
-
*
OF are
value
for Pin plunger.
Contact Form
●SPDT
Contact Specifications
Item
Specifications
Contact
Material
Gap (standard
value)
Silver alloy
0.25 mm
100 mA at 5
VDC
1 mA at 5
VDC
Model
D2F models
D2F-5 models
D2F-01 models
Crossbar
Gold alloy
COM
NO NC
Minimum applicable load (see note) *
*
Please refer to "Using
Micro Loads"
in "Precautions" for more information
on the minimum applicable load.
Ratings
Model
D2F models
D2F-01 models
D2F-5 models
Maximum Operating 1.47N (General-purpose) 0.74N (Low Operating Force) 1.47N (General-purpose) 0.74N (Low Operating Force) 1.47N (General-purpose)
Force (OF)
Resistive load
Rated
voltage
125
VAC
30
VDC
250
VAC
3A
2A
-
1A
0.5 A
-
0.1 A
-
-
-
5A
Note.
The above rating
values
apply
under
the following test conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Approved Safety Standard
The items shown in the
"List
of Models" above are not standard approved models.
Consult your OMRON sales representative for specific models
with
standard approvals.
UL (UL1054) /CSA (CSA C22.2 No.55)
Rated
voltage
125
VAC
30
VDC
Model
D2F (General-purpose)
3A
2A
D2F (Low operating force)
1A
0.5 A
D2F-01
-
0.1 A
2
D2F
Characteristics
Model
Item
Permissible operating speed
Permissible operating
frequency
Insulation resistance
Contact resistance (initial
value)
Between terminals of the same
polarity
Dielectric strength
Between current-carrying metal
parts and ground
Between each terminal and
non-current-carrying metal parts
Vibration
resistance * 1
Shock resistance
Malfunction
Durability
Malfunction * 1
Mechanical
Durability * 2
Electrical
100,000 operations
min.
(30 operations/min)
100 mΩ max.
Mechanical
Electrical
D2F-01 models
Ultra Subminiature Basic Switch
D2F models
Pin plunger models: 1 mm to 500 mm/s,
Lever models: 5 mm to 500 mm/s
Pin plunger models: 200 operations/min,
Lever models: 100 operations/min
30 operations/min
100 MΩ min. (at 500
VDC with
insulation tester)
50 mΩ max.
600
VAC
50/60 Hz for 1min
1,500
VAC
50/60 Hz for 1min
1,500
VAC
50/60 Hz for 1min
10 to 55 Hz, 1.5-mm double amplitude
1,000 m/s
2
{approx.
100G} max.
300 m/s
2
{approx.
30G} max.
1,000,000 operations min. (60 operations/min)
30,000 operations min.
(30 operations/min)
IEC IP40
-40°C to +85°C (at ambient humidity 60% max.)
(with no icing or condensation)
85% max. (for +5°C to +35°C)
Approx. 0.5 g (pin plunger models)
D2F-5 models
0.74
N
(Low operating force) 1.47
N
(General-purpose) 1.47
N
(General-purpose)
30 mΩ max.
D
2
F
10,000 operations min.
(30 operations/min)
Degree of protection
Ambient operating temperature
Ambient operating humidity
Weight
Note.
The data given above are initial
values.
*1. The
values
are at Free Position and Total Travel Position
values
for pin plunger, and Total Travel Position
value
for lever.
Close or open circuit of the contact is 1ms max.
*2. For testing conditions, consult your OMRON sales representative.

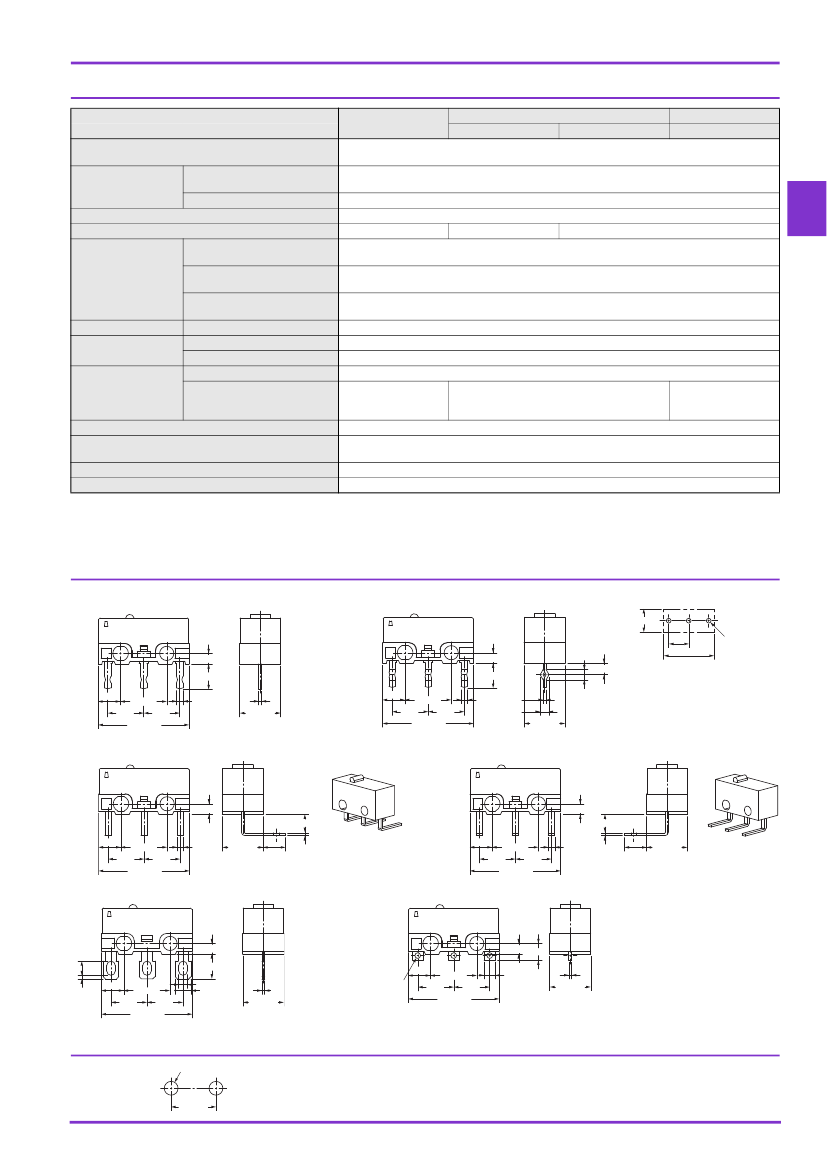

Terminals/Appearances
●PCB
terminals (Straight)
(Unit: mm)
●Self-clinching
PCB terminals
<PCB Mounting Dimensions (Reference)>
5.8
±0.15
3-1.2 dia. holes
1.5
3.5
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
0.9
0.4
5.8
±0.15
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
3.4
0.9 0.4
±0.05
1.25
±0.15
5.8
±0.15
1.5
1.6
±0.15
5.08
±0.1
12.8
±0.15
●PCB
terminals (Right-angled)
●PCB
terminals (Left-angled)
1.5
2.6
±0.2
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
0.9
5.8
±0.15
3.1
±0.2
0.4
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
2.6
±0.2
0.9
0.4
5.8
±0.15
3.1
±0.2
●Solder
terminals
●Compact
solder terminals
1.5
2
0.5
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
3.5
1.2
2.2
0.4
5.8
±0.15
3−0.8 dia. holes
3.15
6.5
±0.1
5.08
5.08
12.8
±0.15
1.5
1.6
2.4
0.4
5.8
±0.15
Mounting Holes
(Unit: mm)
2-2 dia. mounting holes
6.5
±0.15
3
D2F
Dimensions
(Unit: mm)
/Operating Characteristics
Ultra Subminiature Basic Switch
The following illustrations and drawings are for D2F models
with
PCB terminals (straight). Self-clinching, solder, compact solder, and right-angled, left angled terminals
are omitted from the following drawings. Refer to the
previous page
for these terminals.
When ordering, replace
@
with
the code for the terminal that you need. See the
"List of Models"
for available combinations of models.
D
2
F

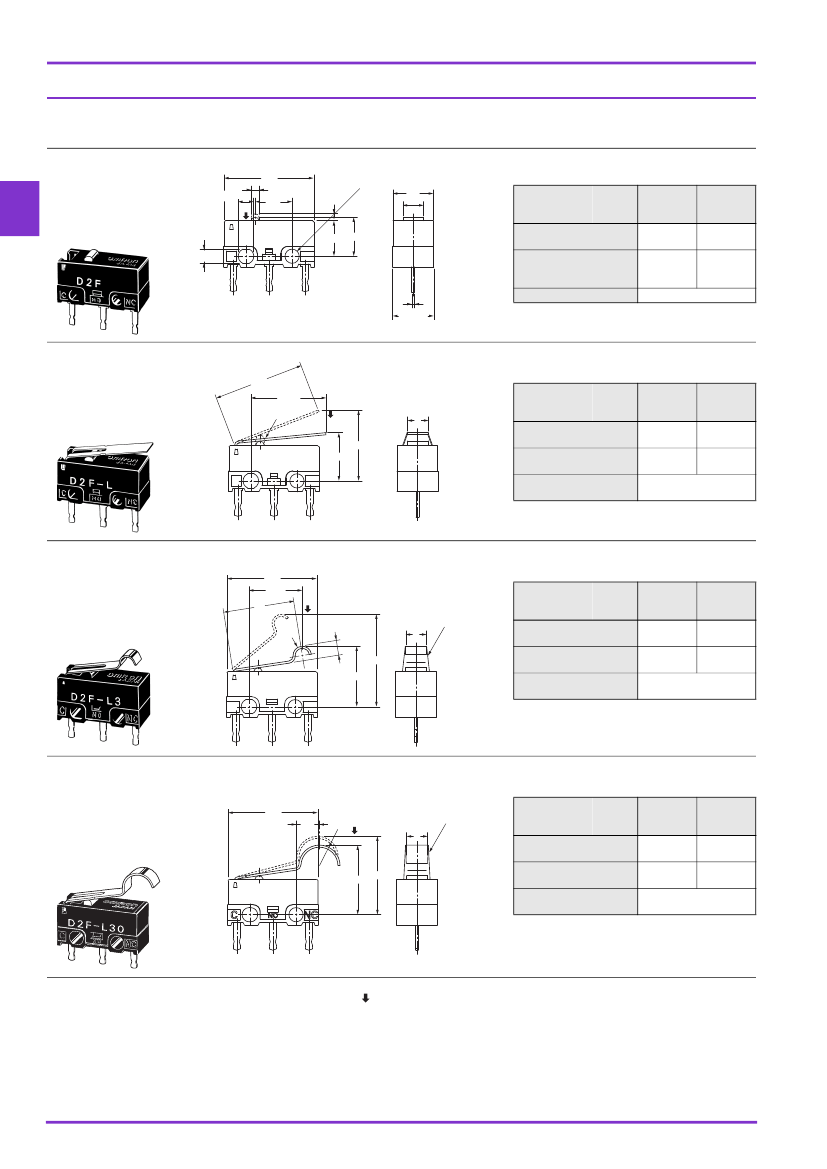

●Pin
Plunger Models
D2F-@
D2F-01@
D2F-F@
D2F-01F@
D2F-5
1.2
2.2
+0.12
0
dia.
A
12.7
5.2
2
+0.12
dia. holes
0
PT
5.7
2.9
Operating
Characteristics
Operating Force
Releasing Force
Model
D2F-@
D2F-01@
D2F-5
D2F-F@
D2F-01F@
5
2
+0.12
0
OP
OF Max. 1.47
N {150
gf} 0.74
N {75
gf}
RF Min. 0.20
N {20
gf} 0.05
N {5
gf}
0.5 mm
0.25 mm
0.12 mm
0.5 mm
0.25 mm
0.12 mm
Pretravel
PT Max.
Overtravel
OT Min.
Movement Differential MD Max.
0.4
5.8
±0.15
Operating Position
OP
5.5±0.3 mm
●Hinge
Lever Models
D2F-L@
D2F-01L@
D2F-FL@
D2F-01FL@
D2F-5L
12.8
(10.8)
A
t=0.3 *
3
FP
OP
Operating
Characteristics
Operating Force
Releasing Force
Model
OF Max.
RF Min.
D2F-L@
D2F-01L@
D2F-5L
0.78
N {80
gf}
0.05
N {5
gf}
0.55 mm
0.5 mm
D2F-FL@
D2F-01FL@
0.25
N {25
gf}
0.02
N {2
gf}
0.55 mm
0.5 mm
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
10 mm
6.8±1.5 mm
* Stainless-steel lever
●Simulated
Roller Lever Models (R1.3)
D2F-L3@
12.7
D2F-01L3@
(7.5)
D2F-FL3@
10
D2F-01FL3@
R1.3
D2F-5L3
A
2.1
t=0.3 *
3
FP
OP
Operating
Characteristics
Operating Force
Releasing Force
Model D2F-L3@
D2F-01L3@
D2F-5L3
OF Max.
RF Min.
0.78
N {80
gf}
0.05
N {5
gf}
0.5 mm
0.45 mm
D2F-FL3@
D2F-01FL3@
0.39
N {40
gf}
0.02
N {2
gf}
0.5 mm
0.45 mm
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
13 mm
8.5±1.2 mm
* Stainless-steel lever
●Simulated
Roller Lever Models (R2.5)
D2F-L30@
D2F-01L30@
12.7
D2F-FL30@
D2F-01FL30@
3.3
R2.5 A
3
t=0.3 *
Operating
Characteristics
Operating Force
Releasing Force
Model D2F-L30@
D2F-01L30@
OF Max.
RF Min.
0.54
N {55
gf}
0.04
N {4
gf}
0.5 mm
0.5 mm
D2F-FL30@
D2F-01FL30@
0.3
N {31
gf}
0.02
N {2
gf}
0.5 mm
0.5 mm
OP
FP
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
12.6 mm
9.5±1.0 mm
* Stainless-steel lever
Note
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Note
2. The operating characteristics are for operation in the A direction ( ).
4
D2F

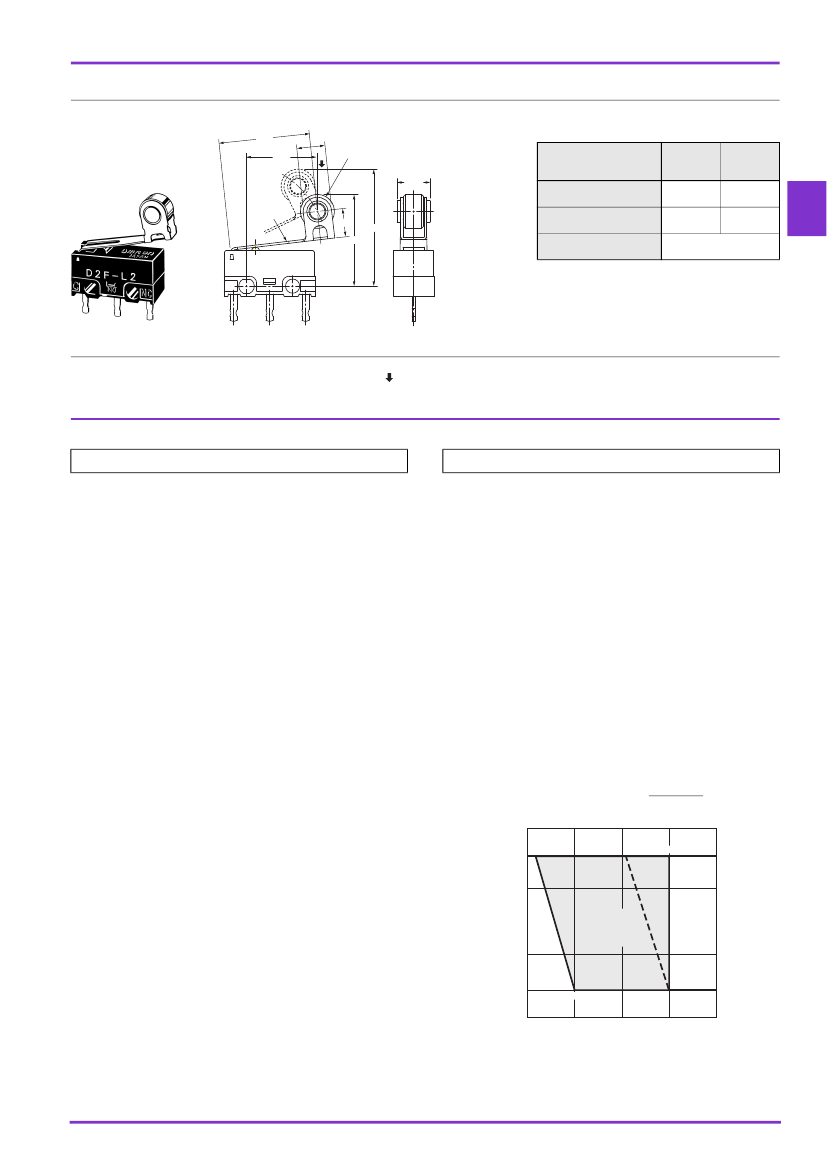

●Hinge
Roller Lever Models
D2F-L2@
D2F-01L2@
D2F-FL2@
D2F-01FL2@
Ultra Subminiature Basic Switch
12.8
4
(10)
A
4.8
dia.×2.8
*2
Operating
Characteristics
(4.6)
Model D2F-L2@
D2F-01L2@
OF Max.
RF Min.
0.78
N {80
gf}
0.05
N {5
gf}
0.55 mm
0.5 mm
D2F-FL2@
D2F-01FL2@
0.39
N {40
gf}
0.02
N {2
gf}
0.55 mm
0.5 mm
Operating Force
Releasing Force
t=0.3 *1
4
OP
FP
Overtravel
OT Min.
Movement Differential MD Max.
Free Position
Operating Position
FP Max.
OP
16.5 mm
13±2 mm
D
2
F
*1. Stainless-steel lever
*2. Polyacetal resin roller
Note
1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Note
2. The operating characteristics are for operation in the A direction ( ).
Precautions
★Please
refer to "Basic Switches Common Precautions" for correct use.
Cautions
●Soldering
• Terminal connection
When soldering, make sure that the temperature of the
soldering iron tip is not higher than 300°C, and complete the
soldering
within
3 seconds. Do not apply any external force for
1 minute after soldering. Soldering at an excessively high
temperature or soldering for more than 3 seconds may
deteriorate the characteristics of the Switch.
• Connecting to PCB terminal Boards
When
using
automatic soldering baths,
we
recommend
soldering at 260°C ±5°C
within
5 seconds. Make sure that the
liquid surface of the solder does not flow over the edge of the
board.
When soldering terminals manually, perform soldering
within
3
seconds at iron tip temperature not higher than 350°C. Do not
apply any external force for at least 1 minute after soldering.
When applying solder, keep the solder away from the case of
the Switch and do not allow solder or flux to flow into the case.
Correct Use
●Mounting
Use M2 mounting screws
with
plane
washers
or spring
washers
to securely mount the Switch. Tighten the screws to a torque of
0.08 to 0.1
N·m {0.8
to 1 kgf·cm}.
●Using
Micro Loads
Using a model for ordinary loads to open or close the contact of
a micro load circuit may result in faulty contact. Use models that
operate in the following range. However, even
when using
micro
load models
within
the following operating range, if inrush
current occurs
when
the contact is opened or closed, it may
increase the contact
wear
and so decrease durability. Therefore,
insert a contact protection circuit
where
necessary. The
minimum applicable load is the
N-level
reference
value.
This
value
indicates the malfunction reference level for the reliability
level of 60% (λ
60
).
(JIS C5003)
The equation,
λ
60
=0.5×10
-6
/operation, indicates that the
1
estimated malfunction rate is less than
operations
2,000,000
with
a reliability level of 60%.
Voltage (V)
0.16 mA
16.6 mA 100 mA
30
24
Operating
range for
general-load
models
D2F
Operating range
for micro load
models
D2F-01
12
5
0
0.1
1 mA
1
10
100
1,000
Current (mA)
5
京公网安备 11010802033920号
EEWORLD
