74F244MSA_NL: DescriptionBus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 5.30 MM, LEAD FREE, EIAJ TYPE2, SSOP-20; Categorylogic; File Size212KB，10 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74F244MSA_NL Overview

Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 5.30 MM, LEAD FREE, EIAJ TYPE2, SSOP-20

74F244MSA_NL Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SSOP
package instruction	5.30 MM, LEAD FREE, EIAJ TYPE2, SSOP-20
Contacts	20
Reach Compliance Code	unknown
Is Samacsys	N
series	F/FAST
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	7.2 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	2.05 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74F240, 74F244 Octal Buffers/Line Drivers with 3-STATE Outputs

May 2007

74F240, 74F244

Octal Buffers/Line Drivers with 3-STATE Outputs

Features

■

3-STATE outputs drive bus lines or buffer memory

General Description

The 74F240 and 74F244 are octal buffers and line driv-

ers designed to be employed as memory and address

drivers, clock drivers and bus-oriented transmitters/

receivers which provide improved PC and board density.

address registers

■

Outputs sink 64mA (48mA mil)

■

12mA source current

■

Input clamp diodes limit high-speed termination

effects

Ordering Information

Order Code

74F240SC

(1)

74F240SJ

(1)

74F240PC

74F244SC

(1)

74F244SJ

(1)

74F244MSA

(1)

74F244PC

Package

Number

M20B

M20D

N20A

M20B

M20D

MSA20

N20A

Package Description

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Shrink Small Outline Package (SSOP), JEDEC MO-150, 5.3mm Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

Note:

1. Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering number.

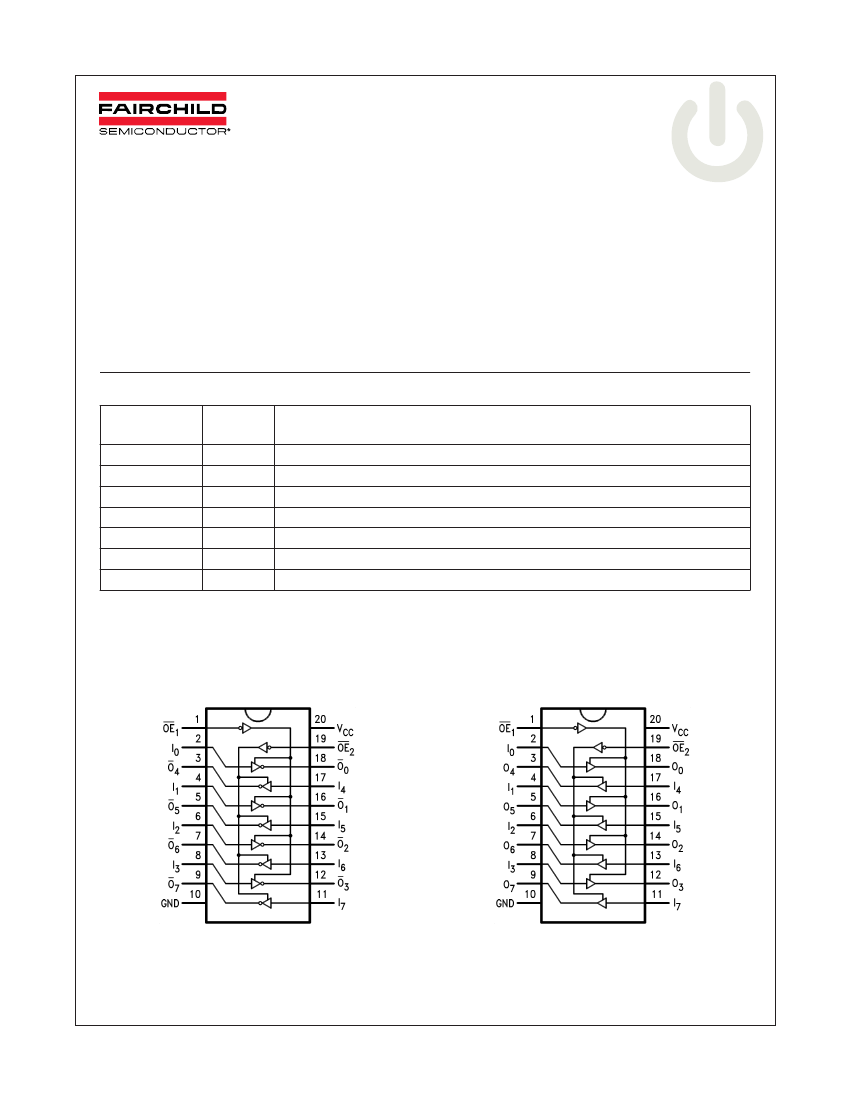

Connection Diagrams

74F240

74F244

74F240, 74F244 Rev. 1.4

www.fairchildsemi.com

74F244MSA_NL Related Products

	74F244MSA_NL	74F244SJ_NL	74F244MSAX_NL	74F244PC_NL	74F244SC_NL
Description	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 5.30 MM, LEAD FREE, EIAJ TYPE2, SSOP-20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 5.30 MM, EIAJ TYPE2, SSOP-20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDIP20, 0.300 INCH, PLASTIC, MS-001, DIP-20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDSO20, 0.300 INCH, LEAD FREE, MS-013, SOIC-20
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SSOP	SOIC	SSOP	DIP	SOIC
package instruction	5.30 MM, LEAD FREE, EIAJ TYPE2, SSOP-20	SOP,	5.30 MM, EIAJ TYPE2, SSOP-20	0.300 INCH, PLASTIC, MS-001, DIP-20	0.300 INCH, LEAD FREE, MS-013, SOIC-20
Contacts	20	20	20	20	20
Reach Compliance Code	unknown	unknown	compliant	compliant	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e3	e3	e3	e3	e3
length	7.2 mm	12.6 mm	7.2 mm	26.075 mm	12.8 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4
Number of functions	2	2	2	2	2
Number of ports	2	2	2	2	2
Number of terminals	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	SSOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.05 mm	2.1 mm	2.05 mm	5.08 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	MATTE TIN	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	5.3 mm	5.3 mm	7.62 mm	7.5 mm
Base Number Matches	1	1	1	1	1
Is Samacsys	N	-	N	N	N
