95009-2667

Description
Modular Connectors / Ethernet Connectors RA FLANGELESS 6/6 STANDARD PROFILE
CategoryThe connector    The connector
File Size33KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

95009-2667 Online Shopping

Suppliers Part Number Price MOQ In stock
95009-2667 - - View Buy Now

95009-2667 Overview

Modular Connectors / Ethernet Connectors RA FLANGELESS 6/6 STANDARD PROFILE

95009-2667 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD PROFILE,SNAP-FIT PEG
Board mount optionsSPLIT BOARD LOCK
body width0.63 inch
subject depth0.81 inch
body length0.52 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
DIN complianceNO
Dielectric withstand voltage1000VAC V
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
Number of ports1
Maximum operating temperature80 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Plating thickness50u inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPOLYESTER
Terminal length0.136 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts6
UL Flammability Code94V-0
Base Number Matches1

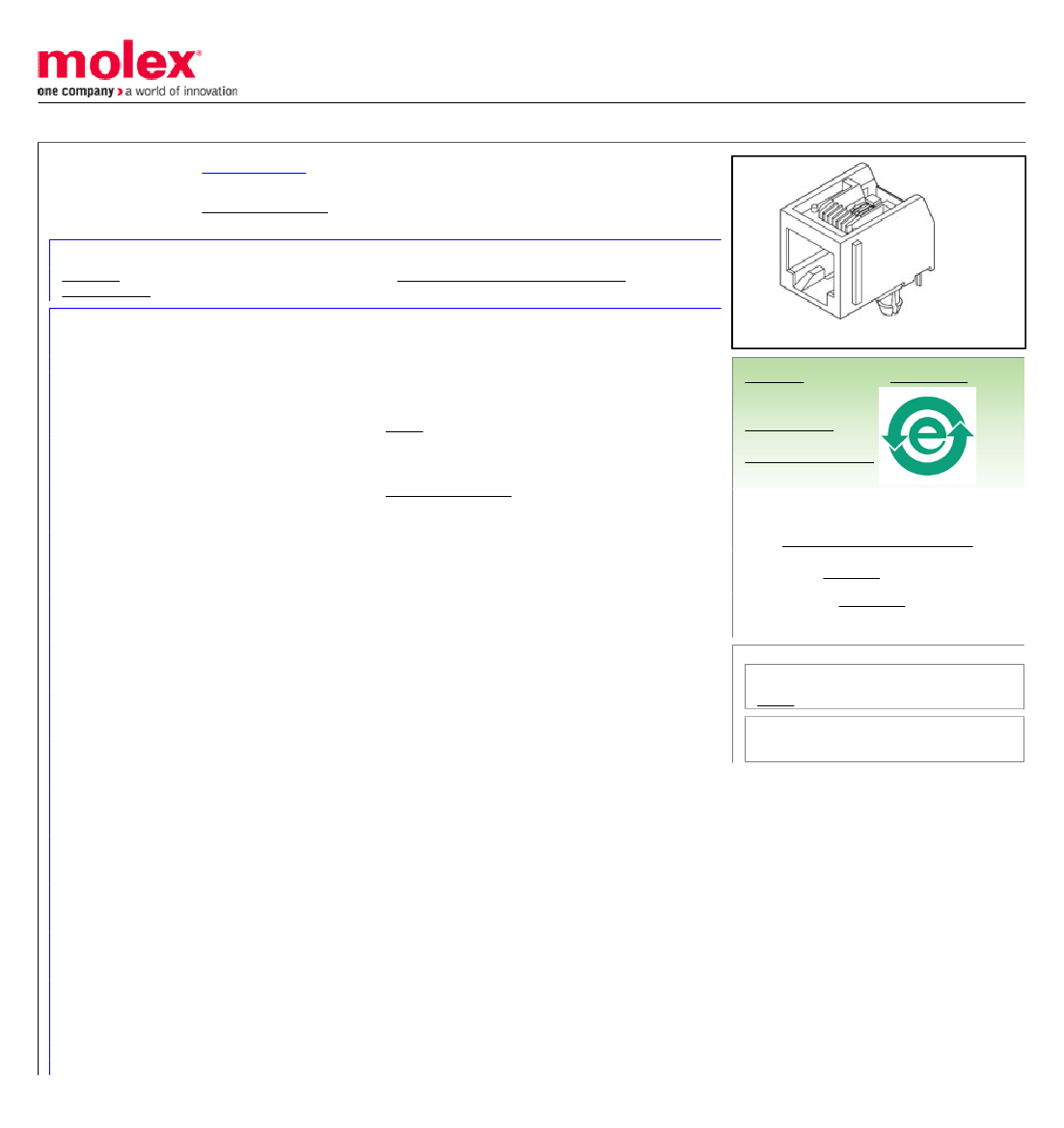

This document was generated on 11/21/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0950092667
Active
modular_plugs_jacks
Modular Jack, Right Angle, 6/6
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E107635
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Not Low-Halogen
China RoHS
General
Product Family
Series
Comments
Component Type
Magnetic
Overview
Performance Category
Power over Ethernet (PoE)
Product Name
Modular Jacks/Plugs
95009
Flangeless
PCB Jack
No
modular_plugs_jacks
3
N/A
RJ11
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Color - Resin
Durability (mating cycles max)
Flammability
Inverted / Top Latch
Lightpipes/LEDs
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Ports
Positions / Loaded Contacts
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire/Cable Type
Black
500
94V-0
No
None
Brass
Gold
Tin
High Temperature Thermoplastic
Right Angle (Side Entry)
Yes
Yes
1.57mm
Tray
With Flange
1.02mm
1.27mm
1.270µm
1.905µm
1
6/6
No
-40°C to +80°C
Through Hole
No
N/A
Search Parts in this Series
95009Series
Mates With
FCC 68 Plugs
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
1.5A
No
125V DC
