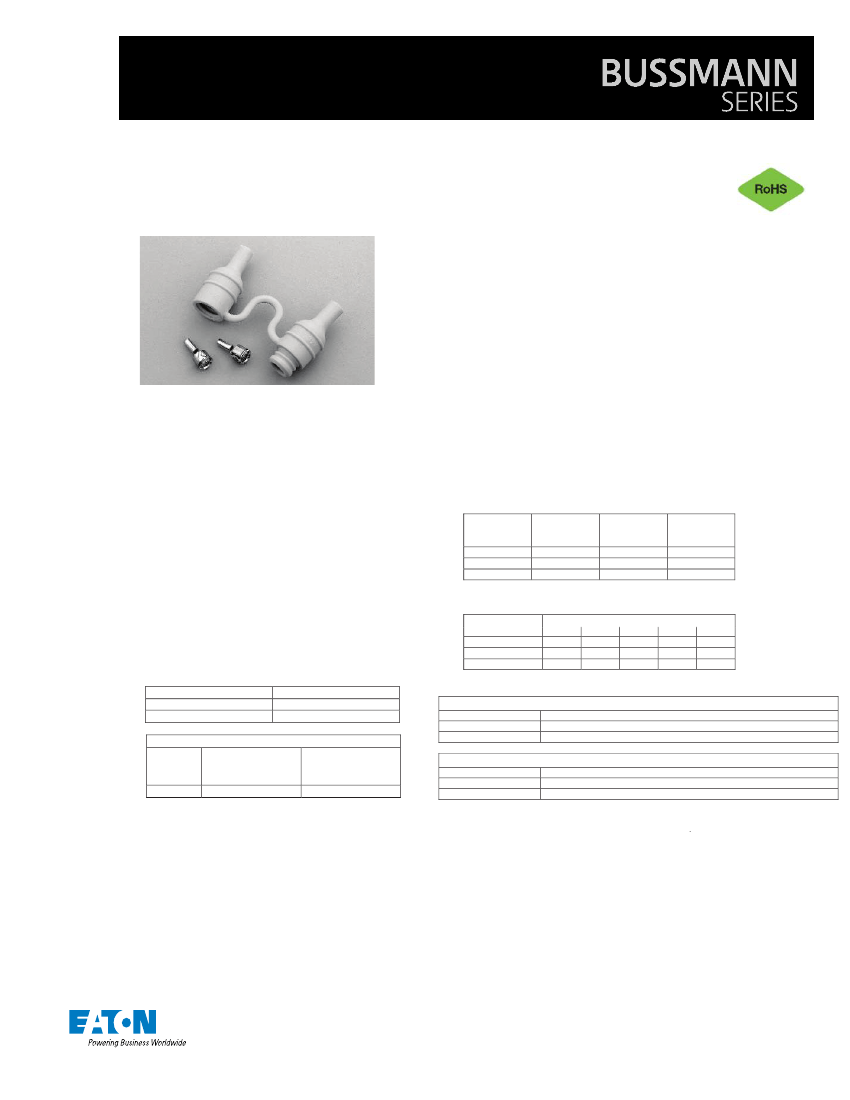

Technical Data
2102
Effective
March
2018
Supersedes
June
2017
HFB
1/4” x 1 1/4” in-line
water-resistant
fuse holder
Ordering
•
Specify packaging, product, and option code
Environmental data
•
•
•
•
•
•
•
•
•
•
•
Temperature Rating (RTI): 100 °C
IP67 rating for exposed locations
Vibration Resistance: Per MIL STD 810C
Humidity: 85°C/85% relative humidity for 96 hours
Brittle Point: Less than -60 °C
Abrasion: 54% NBS index
Fluid resistance: Type and Class AA, BA, BC, BE, CA, CE
per ASTM D-2000 Standard Classification System for
rubbers
Flame Resistance: Pass FMVSS302 and related slow
burning when tested in accordance with UL 94HB
Ozone Resistance: Passed 70 Hours in 50 ppm ozone per
ASTM D-5
Salt Spray: 15% for 166 hours = 0% volume swell
Xenon Arc Weatherometer
Time
(Hrs)
0
500
1000
Tensile
Strength
(psi)
1100
1130
1190
Elong.
(%)
375
350
350
100%
Mod.
(psi)
470
520
520
Product features
•
•
•
•
•
•
•
•
•
For 1/4" x 1-1/4" (6.35 mm x 31.8 mm) fuses
IP67 rating for exposed locations
Ideal for harsh environments
o
Water, Salt Spray
o
Ultraviolet Light, Ozone
o
-40 °C to 150 °C temperature range
o
Withstands many organic solvents and
rigorous shock and vibration
Standard HFB accepts #18 to #12 AWG Cu wire
HFB-10 accepts #10 AWG Cu wire
High visibility yellow color
Recommended crimp tools:
o
Thomas & Betts –
ERG4002
o
Channellock No. 909
o
Thomas & Betts WT-112M
Replacement contact clip:
o
Standard “-R”: BK/1A2294
o
HFB-10: BK/1A2294-01
UL flammability rating 94 HB
Component
Body
Crimp
Product
Code
HFB
Voltage
Rating
AC
32 V
Material
Thermoplastic Rubber
Copper Tin-Plated
Current
Rating
AC
30 A
•
Heat Aging (% Retention of Mechanical
Properties at 125°C)
Parameters
Tensile Strength
% Elongation
100% Mod.
1
100
90
105
7
105
90
110
Days
15
115
90
120
30
120
90
120
41.7
120
90
120
SPECIFICATIONS
Packaging Code
Blank
BK
Description
10 pieces of fuseholders packed into a carton
100 pieces of fuseholders packed into a poly bag
PACKAGING CODE
Option Code
-R
-10
Description
Standard version, RoHS compliant
#10 AWG Cu wire only, RoHS compliant
OPTION CODE
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
