Fuseholders
https://www.schurter.com /PG02
FPG1

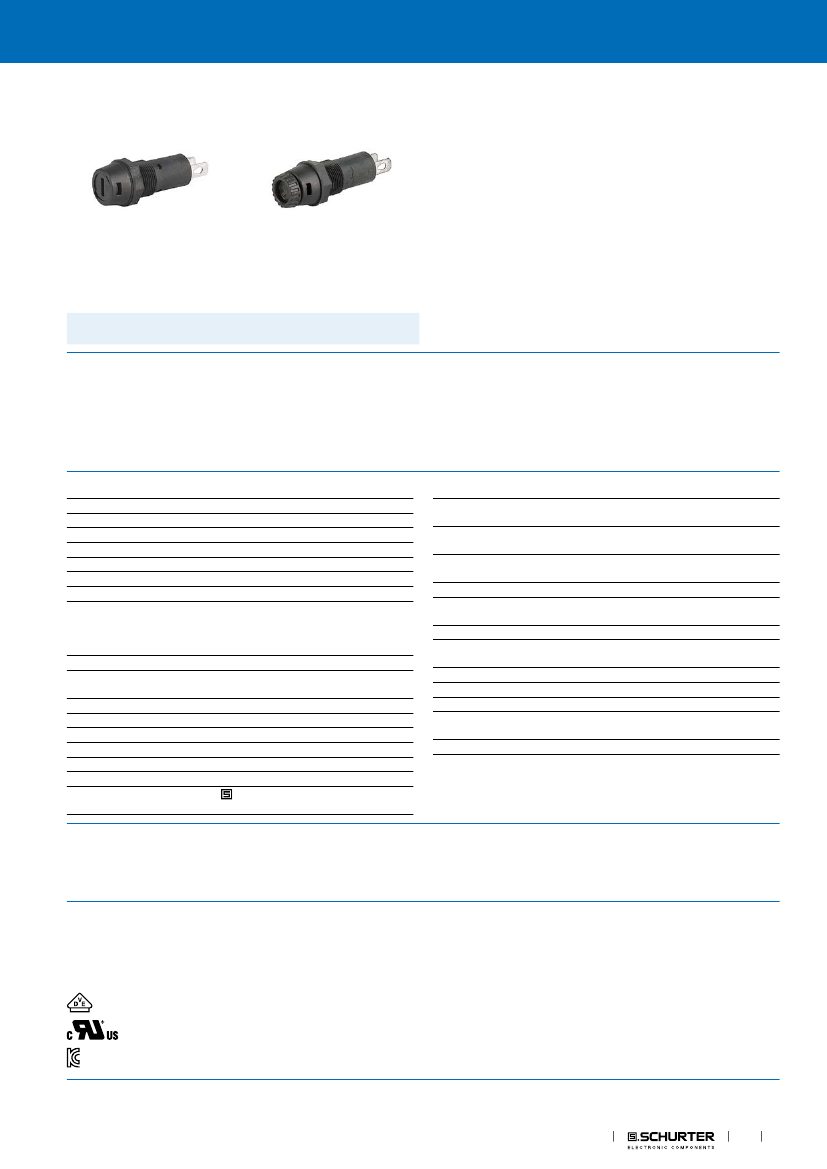

Shock-Safe Fuseholder, 5 x 20 mm, Slotted Cap/Fingergrip, IP 40 / IP 67, IEC 60335-1
Fingergrip
250 VAC · 2.5 W / 10 A (VDE) · 500 V · 16 A (UL/CSA)
Description
See below:
Approvals and Compliances
Applications
Weblinks
- Household appliances
- Medical equipment
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
- Meets the new requirements of IEC 60335-1 for appliances in unatten-
ded use (clause 30.2.3). This includes the enhanced requirements of
glow wire tests acc. to IEC 60695-2-12 and -13.
- Compact design
- Heading with fingergrip and slotted available
- Degree of protection IP 67 available
- White color available on request
Technical Data
Shock-Safe Category
Fuse-Link
Mounting
Attachment
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
PC2
5 x 20 mm
Panel Mount, Front Side
Fixing Nut
Solder or Quick-Connect 4.8 x 0.5 mm
250 VAC (VDE), 500 V (UL/CSA)
10 A (VDE), 16 A (UL/CSA)
2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection
IP 40 / IP 67
Protection Class
Suitable for appliances with protection
class I acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight
5.7 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Rated Voltage, Rated current,
Power Rating, Approvals
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Resistance to Vibration
Admissible Torque on Fixing
Nut
Panel Thickness
Iron
Soldering Profile
350 °C / 3 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
≤
10 mΩ at 20 mV acc. to IEC 60127-6
> 3 kV between life parts
(50 Hz; 1 min)
> 4 kV between life parts
≥
10 MΩ between life parts
(500 VDC; 1 min)
III acc. to IEC 60664-1
3 acc. to IEC 60664-1
acc. to IEC 60068-2-6, test Fc
max 1.2 Nm
max 6 mm
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FPG1
Approval Logo
Certificates
VDE Approvals
UL Approvals
KTL Approvals
Certification Body
VDE
UL
KTL
Description
VDE Certificate Number: 127216
UL File Number: E39328
Korea Testing Laboratory
Fuses
1
FPG1
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60127-6
UL 4248-1
CSA C22.2 no. 4248.1
Description
https://www.schurter.com /PG02
Fuseholders
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Fuseholder general requirements
Fuseholder general requirements
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Meets the glow wire test acc. IEC 60335-1 edition 4
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
White paperGlow wire test
SCHURTER AG

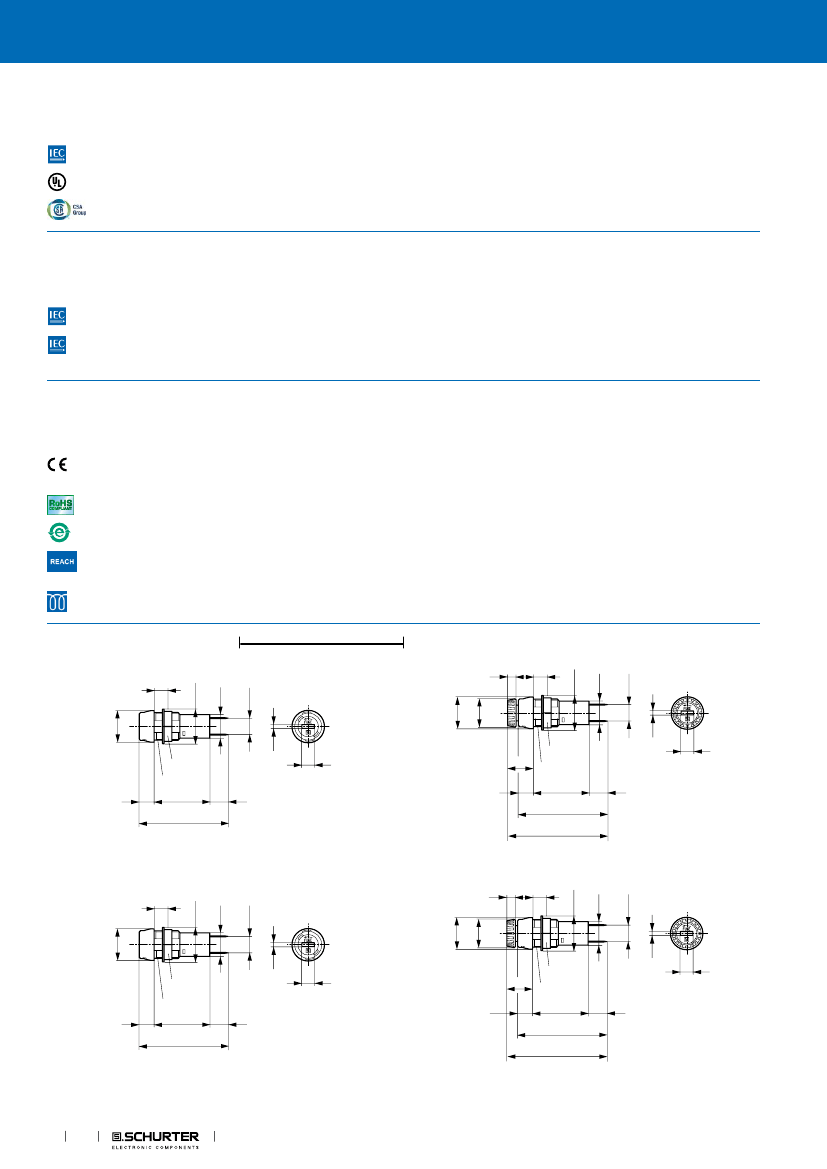

Dimension [mm]
6
41.5 mm
ø 16.1
ø 11.1
_
7.5
+ 0.2
4
ø 16.1
ø 11.1
_
7.5
+ 0.2
6
ø 12.5
ø 15
ø 15
1.8
1.8
SW14
SW14
M12.7x1.5
7
26.5
41.5
8
7
26.5
41.5
46.5
8
6
12
M12.7x1.5
6
IP 40 / Variants 3101.0010 and 3101.0210
IP 40 / Variants Fingergrip 3101.0015 and 3101.0215
ø 16.1
ø 11.1
4
6
ø 16.1
ø 11.1
_
7.5
+ 0.2
6
ø 12.5
ø 15
_
7.5
+ 0.2
ø 15
1.8
1.8
SW14
SW14
M12.7x1.5
7.6
25.9
41.5
8
41.5
46.5
6
12.6
7.6
M12.7x1.5
25.9
8
6
IP67 / Variants 3101.0110 and 3101.0310
IP67 / Variants Fingergrip 3101.0115 and 3101.0315
2
Fuses
Fuseholders
https://www.schurter.com /PG02
FPG1
12.7
-0.1
11.7
-0.15
0
12.7
-0.1
0
0
12
-0.1
0
13
-0.3
0
Mounting Holes
Derating Curves
Admissible power acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient air temperature T
a
°C
All Variants
Holder
l
l
l
l
l
l
l
l
Cap
slotted
slotted
Fingergrip
Fingergrip
slotted
slotted
Fingergrip
Fingergrip
Terminal
Solder
Quick-Connect 4.8 x 0.5 mm
Solder
Quick-Connect 4.8 x 0.5 mm
Solder
Quick-Connect 4.8 x 0.5 mm
Solder
Quick-Connect 4.8 x 0.5 mm
Degree of
Protection
IP 40
IP 40
IP 40
IP 40
IP 67
IP 67
IP 67
IP 67
Material
Thermoplastic
Thermoplastic
Thermoplastic
Thermoplastic
Thermoplastic
Thermoplastic
Thermoplastic
Thermoplastic
Remark
-
-
-
-
-
-
-
-
Order Number
3101.0010
3101.0210
3101.0015
3101.0215
3101.0110
3101.0310
3101.0115
3101.0315
█
█
█
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
Bulk 186 x 91 x 91 mm (100 pcs.)
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
26.02.2018
Industrial Control Electronics
