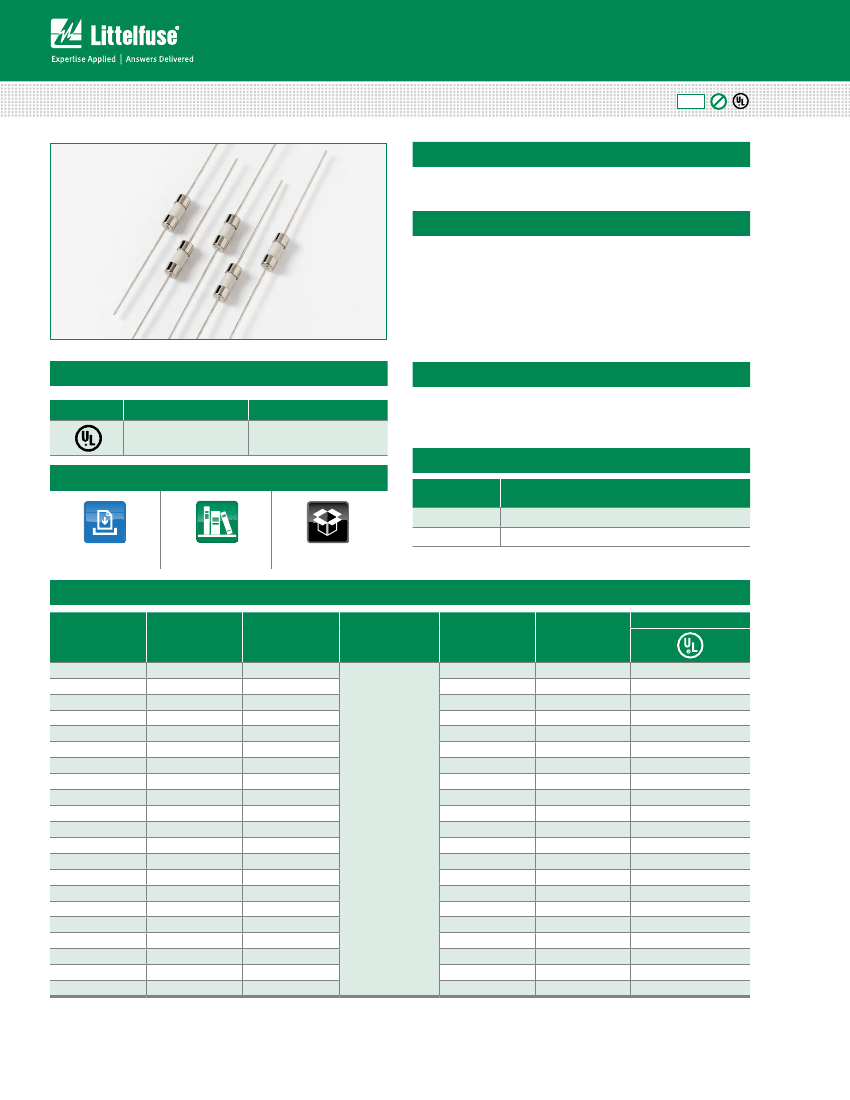

Axial Lead & Cartridge Fuses
3.6 X 10 mm > Slo-Blo
®
Fuse > 875 Series
875 Series Fuse, Lead-free 3.6×10 mm, Slo-Blo
®
Fuse
Description
RoHS
Pb
Single Pigtail Axial Lead 3.6×10mm, Slo-Blo
®
Fuse
Features
• Designed to UL/CSA 248
Standard
• Slo-Blo
®
Fuse, ceramic
body fuse in a compact
package
• Single Pigtail Axial Lead
format
• Pb-free and RoHS
Compliant
• Available in ratings of
0.10 to 10 Amperes
Agency Approvals
Agency
Agency File Number
Ampere Range
Applications
This space saving fuse is ideally suited for lighting, power
supply, and adapter applications.
Electrical Characteristics
E10480
0.100A - 10 A
Additional Information
% of Ampere
Rating
100%
200%
Opening Time
4 hours, Minimum
60 seconds, Maximum
Datasheet
Resources
Samples
Electrical Characteristics
Amp Code
.100
.125
.200
.250
.300
.400
.500
.600
.800
001.
01.5
01.6
002.
02.5
003.
004.
005.
006.
007
.
008.
010.
Ampere Rating
(A)
0.100
0.125
0.200
0.250
0.300
0.400
0.500
0.600
0.800
1.00
1.50
1.60
2.00
2.50
3.00
4.00
5.00
6.00
7
.00
8.00
10.00
Voltage Rating
(V)
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Interrupting
Rating
Nominal Cold
Resistance
(Ohms)
3.000
2.060
0.921
0.6575
0.435
0.321
0.256
0.151
0.116
0.095
0.0519
0.0476
0.02887
0.02246
0.0171
0.0135
0.00954
0.00891
0.008
0.0077
0.00675
Nominal Melting
I
2
t (A
2
sec)
0.0023
0.0072
0.0086
0.038
0.043
0.136
0.288
0.611
0.919
1.503
4.33
5.08
8.45
17
.85
42.85
42.45
60.90
72.30
106.80
134.59
208.00
Agency Approvals
50A @ 250 VAC
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Notes:
Cold resistance measured at less than 10% of rated current at 23ºC.
© 2015 Littelfuse, Inc.
Application testing is strongly recommended. Specifications are subject to change without notice.
Revised: 05/12/15
Axial Lead & Cartridge Fuses
3.6 X 10 mm > Slo-Blo
®
Fuse > 875 Series

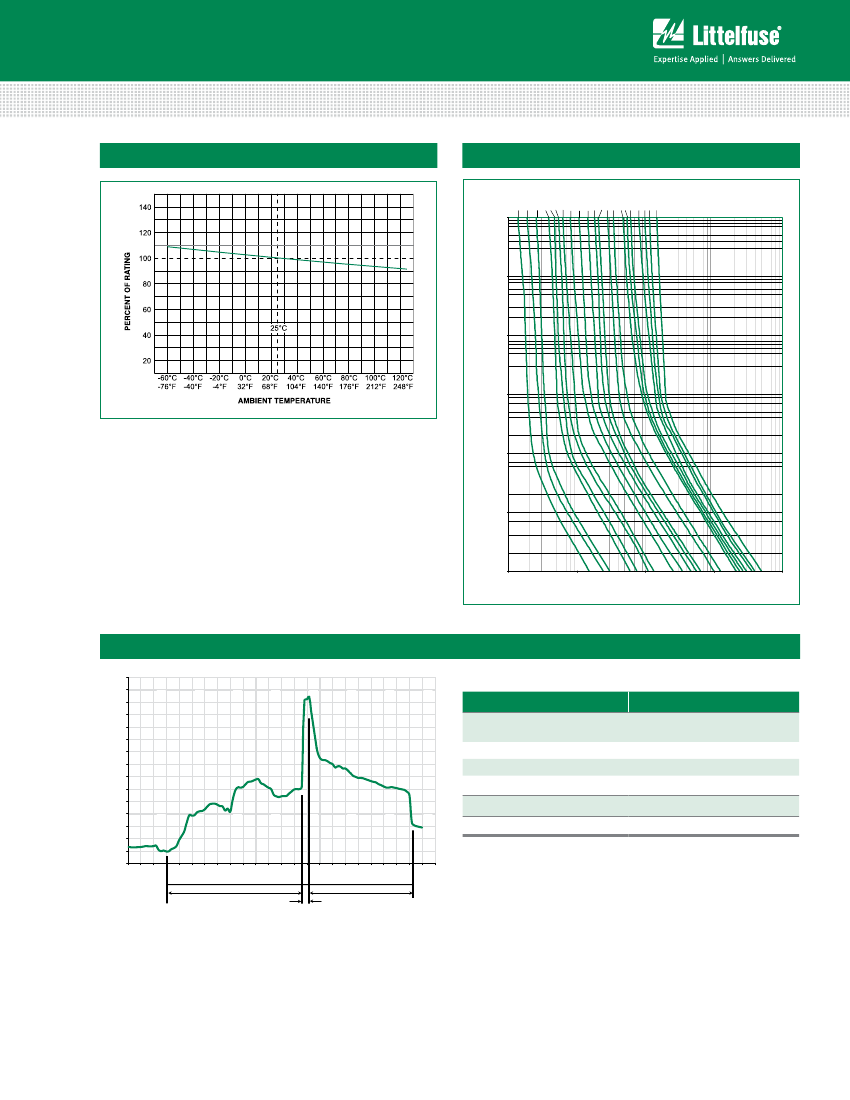

Temperature Re-rating Curve
Average Time Current Curves
.500A
.600A
.125A
.200A
.100A
.250A
.300A
.400A
.800A
1A
1.5A
1.6A
2A
2.5A
3A
4A
5A
1000
100
10
TIME IN SECONDS
1
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for contin-
uous operation.
0.1
0.01
0.001
0 .1
1
10
CURRENT IN AMPS
100
100 0
Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Preheat Time
Dwell Time
Cooling Time
Time (Seconds)
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/12/15
6A
7A
8A
10A
Lead-Free Recommendation
Axial Lead & Cartridge Fuses
3.6 X 10 mm > Slo-Blo
®
Fuse > 875 Series
Product Characteristics
Materials
Terminal Strength
Solderability
Product Marketing
Packaging
Body: Ceramic
Cap: Nickel Plated Brass
Tin Plated Copper
MIL-STD-202, Method 211,
Test Condition A
MIL-STD-202, Method 208
Body: Brand Logo, Current Rating
Characteristic “T” Agency approval marks
,
Bulk (1000 pcs/pkg)
Tape & Reel (1000 pcs/reel)
Operating Temperature
Thermal Shock
Vibration
Humidty
Salt Spray
-55ºC to 125ºC
MIL
-STD-202, Method 107
Test Condition B3 (5 cycles -65ºC to
+125ºC)
MIL
-STD-202, Method 201 (10-55 Hz)
MIL
-STD-202, Method 106,
High Humidity (90-98%RH), Heat
(65ºC)
MIL
-STD-202, Method 101, Test
Condition B
Dimensions
Part Numbering System
0875 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Quantity Code
M = 1000
Packaging Code
X = Filler
Option Code
E = Axial Leaded
Lead-free
All dimensions in mm
P
= Lead-Free
Others = Special Options
Please call Littelfuse for detail
Packaging
Packaging Option
875 Series
Bulk
Tape and Reel
Packaging Specification
Bulk
EIA 296
Quantity
1000
1000
Quantity &
Packaging Code
MXE
MRET1
Taping Width
N/A
T1 = 52mm (2.062”)
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/12/15
