FEATURES
• Support daisychaining through
a tiered star multidrop topology.
• Built-in power distribution for
low-power devices.
• Saves port and slot space.
• Type A and Type B plugs help
prevent accidental loops.
• Shielded twisted-pair construction.

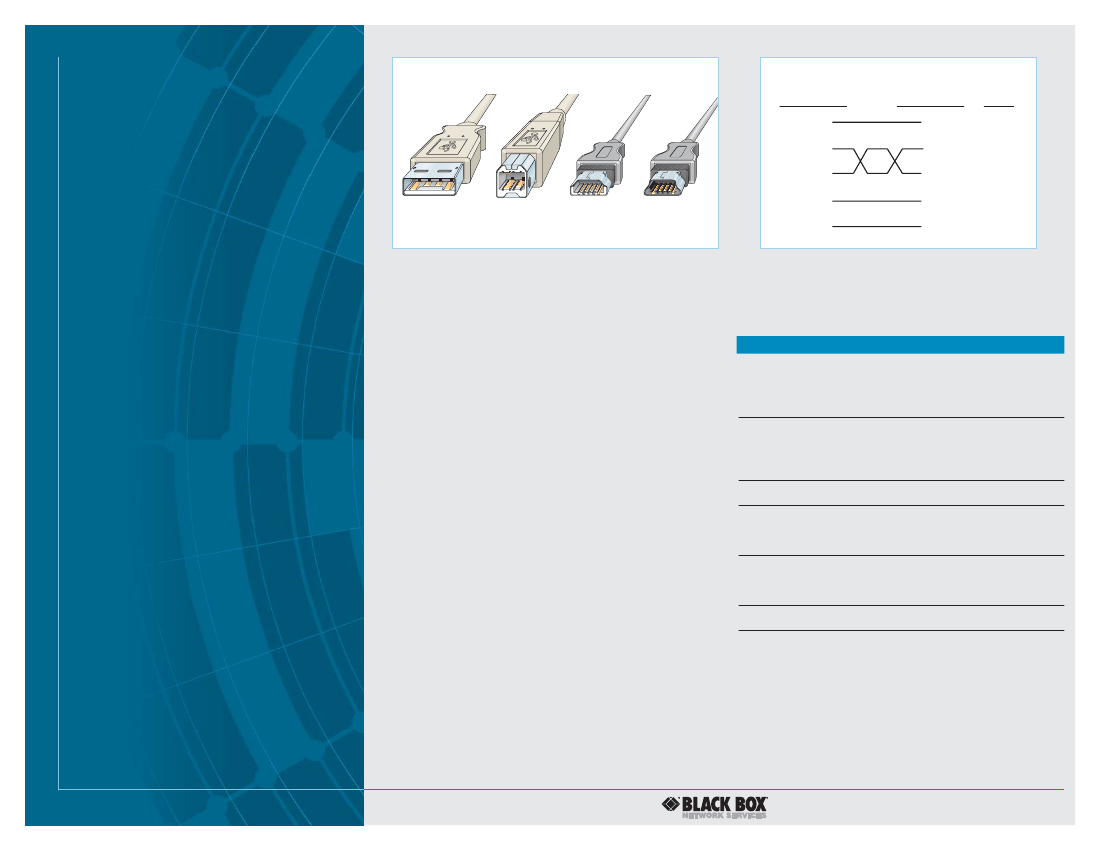

Type A
USB Connectors
1
2
3
4
Type B
Type Mini A
Type Mini B
USB Cable Pinout
Connector 1
Connector 2
Color
Black
White
Green
Red
Shield
1
2
3
4
Sld
Sld
OVERVIEW
USB Version 1.1 Cable
• Fully rated 12-Mbps speeds.
• Transfer async and isochronous data.
• Put 16.4 feet (5 m) between bus devices.
• Shielded, 28 AWG twisted-pair construction.
USB Version 2.0 Cable
• Support rates to 480 Mbps!
• Backward compatible with USB 1.1.
• Choose right-angle cable where space is tight.
USB Passive Extension Cable
• Extend your USB cable by 10 feet (3 m).
• Features one Type A male connector and one
Type A female connector.
USB Active Extension Cable
• Works as a 1-port hub.
• Connect up to four cables for a total maximum
distance of 64 feet (19.5 m).
• Buffer all data traffic to ensure signal quality
and reduce errors.
• Embedded ASIC boosts signals.
• Compatible with USB Version 1.1 specs.
Item
Code
TECH SPECS
Cable Construction —
(1) 28 AWG twisted pair;
(2) 20 AWG conductors (Power, Red, and Black)
Shield —
Foil and braid
USB Version 1.1 Cable, Type A–Type B
3-ft. (0.9-m)
USB01-0003
6-ft. (1.8-m)
USB01-0006
10-ft.
(3-m)
USB01-0010
15-ft. (4.6-m)
USB01-0015
USB Version 2.0 Cable, Type A–Type B
3-ft. (0.9-m)
USB05-0003
6-ft. (1.8-m)
USB05-0006
10-ft.
(3-m)
USB05-0010
13-ft.
(4-m)
USB05-0013
USB Version 2.0 Cable, Type A–Type Mini B
6-ft. (1.8-m)
USB06-0006
USB Version 2.0 Cable, Right-Angle Type A Male to Type A Female
4-ft. (1.2-m)
USBR08-0004
8-ft. (2.4-m)
USBR08-0008
13-ft. (3.9-m)
USBR08-0013
USB Version 2.0 Cable, Right-Angle Type B Male to Type A Male
4-ft. (1.2-m)
USBR09-0004
8-ft. (2.4-m)
USBR09-0008
13-ft. (3.9-m)
USBR09-0013
USB Passive Extension Cable, Type A–Type A
10-ft.
(3-m)
USB05E-0010
USB Active Extension Cable, Type A–Type A
8-ft. (2.4-m)
USBR01-0008-R2
16-ft. (4.9-m)
USBR01-0016-R2
NOTE: iMac
®
USB Cables (USBiMAC1, USBiMAC3–USBiMAC5)
are available. For details, call our FREE Tech Support.
