Pomona
®
Model 3268, 3271 & 3272
Miniature Rivet Type Banana Plugs
With Swaging Information
FEATURES:
•
Excellent for riveting to panels or boards.
•
Banana features gold plated Beryllium Copper for long insertion life and corrosion resistance.
Model Number:
Rec. Panel Thickness:
“X” Dimension:
3268
.062” (1,57mm)
.094” (2,39mm)
3271
.093” (2,36mm)
.125” (3,18mm)
3272
.125” (3,18mm)
.156” (3,96mm)
MATERIALS:
Body: Brass, Gold Plated
Spring: Beryllium Copper, Gold Plated
RATINGS:
Operating Voltage: 2500 VDC
Current: 5 Amperes Max.
ORDERING INFORMATION:
Models 3268, 3271, 3272
Sold in packages of 10

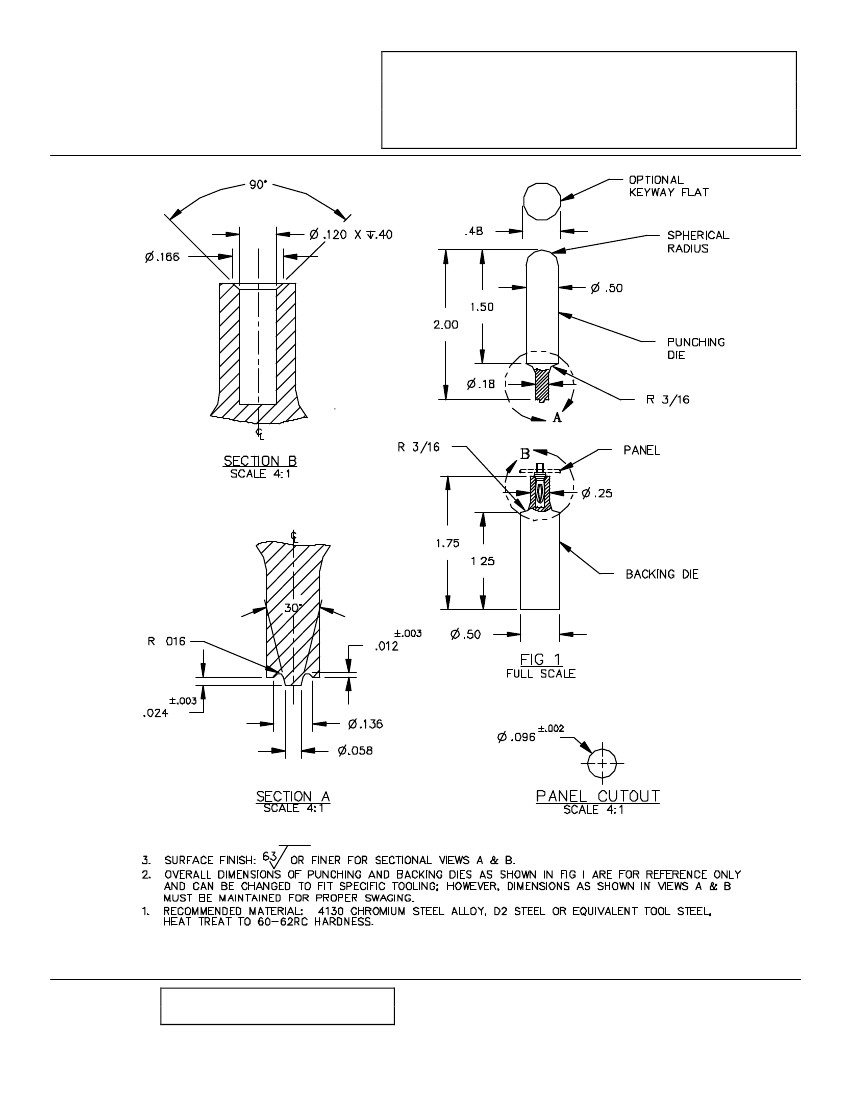

Note: Swage tool is not supplied by Pomona. The recommended swage tool dimensional drawing 3520 is attached for
reference.
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
