Datasheet
H-Bridge Drivers for DC Brush Motors
Dual H-Bridge Driver
High-Speed Switching Type
BD65492MUV
General Description
The BD65492MUV provides a dual H-bridge motor
driver which features wide range of motor power supply
voltage from 1.8V to 16.0V and low power consumption
to switch low ON-Resistance DMOS transistors at high
speed. This small surface mounting package is most
suitable for mobile system, home appliance and various
applications.
Key Specifications
Power Supply Voltage Range:
2.5V to 5.5V
Motor Power Supply Voltage Range: 1.8V to 16.0V
Circuit Current (Open Mode):
0.90mA(Typ)
Stand-By Current:
1μA (Max)
Control Input Voltage Range:
0V to V
CC
V
Logic Input Frequency:
500kHz(Max)
Minimum Logic Input Pulse Width:
0.5μs(Min)
Turn On Time:
200ns(Typ)
Turn Off Time:
80ns(Typ)
H-Bridge Output Current (DC):
-1.0A to +1.0A
Output ON-Resistance (Total):
0.90Ω(Typ)
Operating Temperature Range:
-30°C to +85°C
Features
Low ON-Resistance Power DMOS Output
Charge Pump-Less with PDMOS High-Side Driver
Drive Mode Switch Function
Control Input Voltage Range Fit 1.8V Controller
Under Voltage Locked Out Protection
& Thermal Shut Down Circuit
Package
VQFN024V4040
W(Typ) x D(Typ) x H(Max)
4.00mm x 4.00mm x 1.00mm
Applications
Mobile system
Home appliance
Amusement system, etc

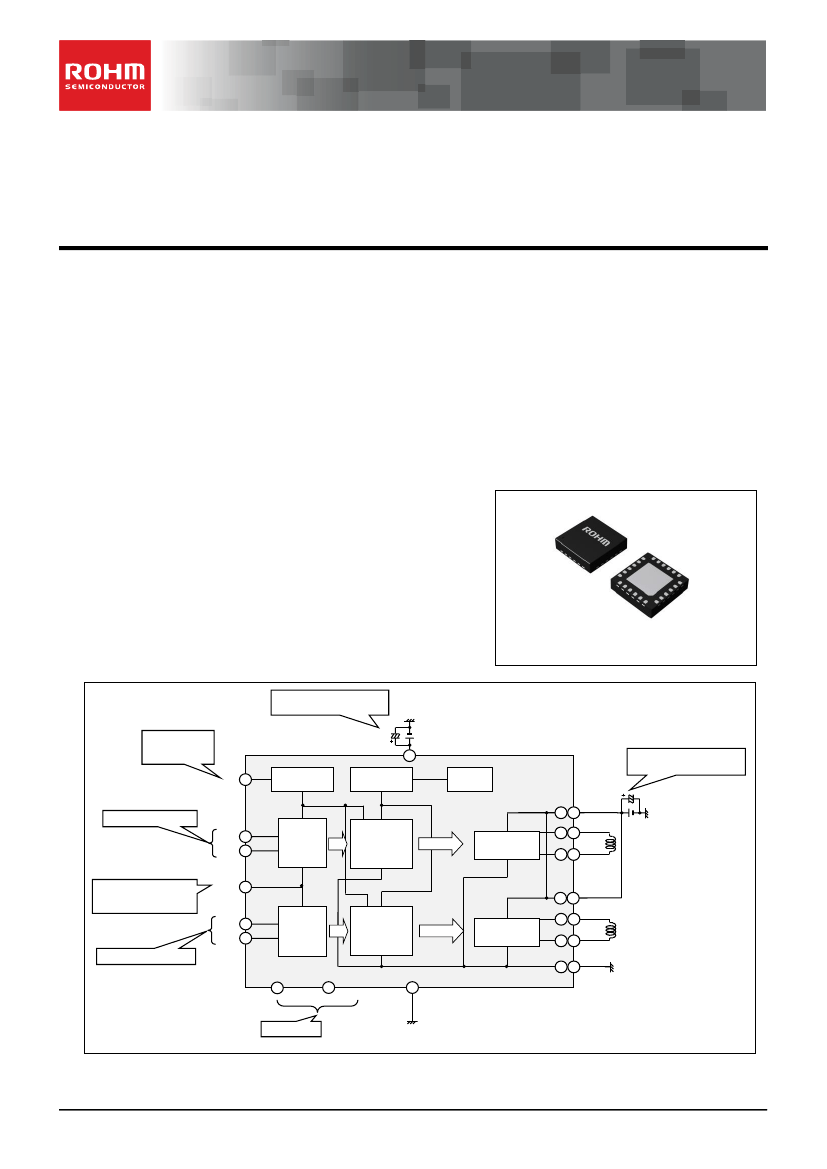

VQFN024V4040
Typical Application Circuit
Bypass Filter Capacitor for
Power Supply
Power-Saving
H: Active
L: Stand-by
PS
11
Power Save
1µF to 100µF
VCC
15
Bypass Filter Capacitor for
Power Supply
BandGap
1µF to 100µF
VM
OUT1A
TSD & UVLO
Motor Control Input
IN1A
17
IN1B
18
Logic
Level Shift
&
Pre Driver
H-Bridge
Full ON
21 22
23 24
2
3
OUT1B
Selectable Drive Mode
H: EN/IN
L: IN/IN
PWM
19
9 10
VM
OUT2A
IN2A
14
IN2B
12
Motor Control Input
Logic
Level Shift
&
Pre Driver
H-Bridge
Full ON
7
4
8
5
OUT2B
PGND
1
13
20
16
6
Always keep N.C. pins open.
N.C.
N.C.
GND
Keep Open
It's better for VM pin groups of 9,10 and 21,22 to short-circuit on the
PCB pattern. If cannot, check into transitional characteristics of total
application circuit including two motors. Through low impedance
materials, the possibility of causing some unexpected malfunctions
is incontrovertible.
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product has no designed protection against radioactive rays
1/14
TSZ02201-0H3H0B300440-1-2
09.Dec.2015 Rev.002
BD65492MUV
Pin Configuration
(TOP VIEW)
OUT1A
OUT1A
PWM
19
18 IN1B
17 IN1A
16 GND
15 VCC
14 IN2A
13 N.C.
7
8
9
10
11
12
24
PGND
OUT1B
OUT1B
OUT2B
OUT2B
PGND
1
2
3
4
5
6
23
22
21
20
N.C.
VM
VM
The pins of the same name, such as
VM, PGND, OUT1A, OUT1B, OUT2A
and OUT2B, must be shorted on
printed circuit boards.
OUT2A
OUT2A
VM
VM
PS
Pin Description
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
Pin Name
PGND
OUT1B
OUT1B
OUT2B
OUT2B
PGND
OUT2A
OUT2A
VM
VM
PS
IN2B
Function
Motor ground
H-bridge output 1B
H-bridge output 1B
H-bridge output 2B
H-bridge output 2B
Motor ground
H-bridge output 2A
H-bridge output 2A
Motor power supply
Motor power supply
Power-saving function
Control logic input 2B
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Pin Name
N.C.
IN2A
VCC
GND
IN1A
IN1B
PWM
N.C.
VM
VM
OUT1A
OUT1A
-
Control logic input 2A
Power supply
Ground
Control logic input 1A
Control logic input 1B
Drive mode logic input
-
Motor power supply
Motor power supply
H-bridge output 1A
H-bridge output 1A
Function
Block Diagram
VCC
15
PS
11
Power Save
TSD & UVLO
BandGap
IN2B
21 22
VM
IN1A
17
IN1B
18
Logic
Level Shift
&
Pre Driver
H-Bridge
Full ON
23 24
OUT1A
2
3
OUT1B
PWM
19
9 10
VM
IN2A
14
IN2B
12
Logic
Level Shift
&
Pre Driver
H-Bridge
Full ON
7
4
8
OUT2A
5
OUT2B
1
13
20
16
6
PGND
N.C.
N.C.
GND
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/14
TSZ02201-0H3H0B300440-1-2
09.Dec.2015 Rev.002
BD65492MUV
Description of Blocks
1.
Power-Saving Function
A power-saving function is included, which allows the system to save power when not driving the motor. The voltage
level on this pin should be set high so as to keep the operation mode. (See the Electrical Characteristics; p.4/14)
Motor Control Input
(a) IN1A, IN1B, IN2A and IN2B Pins
Logic level controls the output logic of H-Bridge.
(See the Electrical Characteristics; p.4/14, and I/O Truth Table; p.7/14)
(b) PWM Pin
Logic level sets the IN/IN or EN/IN drive mode.
(See the Electrical Characteristics; p.4/14 and I/O Truth Table; p.7/14)
3.
VM Terminal
Each H-bridge can be controlled independently. Take into consideration that each VM terminal (9, 10, 21 and 22pin) is
short-circuited internally.
(See the Block Diagram; p.2/14)
2.
Absolute Maximum Ratings (Ta=25°C)
Parameter
Power Supply Voltage
Motor Power Supply Voltage
Control Input Voltage
Symbol
V
CC
V
M
V
IN
Limit
-0.3 to +7.0
-0.3 to +20.0
-0.3 to +V
CC
+0.3
0.70
(Note 1)
Power Dissipation
Pd
2.20
(Note 2)
3.56
(Note 3)
H-bridge Output Current (DC)
Storage Temperature Range
Junction Temperature
I
OUT
Tstg
Tjmax
-1.0 to +1.0
(Note 4)
-55 to +150
+150
A
°C
°C
W
Unit
V
V
V
(Note 1) Reduced by 5.6mW/°C over 25°C, when mounted on a glass epoxy 1-layer board (74.2mm x 74.2mm x 1.6mm)
In surface layer copper foil area: 10.29mm
2
(Note 2) Reduced by 17.6mW/°C over 25°C, when mounted on a glass epoxy 4-layer board (74.2mm x 74.2mm x 1.6mm)
In surface & back layers copper foil area: 10.29mm
2
, 2&3 layers copper foil area: 5505mm
2
(Note 3) Reduced by 28.4mW/°C over 25°C, when mounted on a glass epoxy 4-layer board (74.2mm x 74.2mm x 1.6mm)
In all 4-layers copper foil area: 5505mm
2
(Note 4) Must not exceed Pd, ASO, or Tjmax of 150°C
Caution:
Operating the IC over the absolute maximum ratings may damage the IC. The damage can either be a short circuit between pins or an open circuit
between pins and the internal circuitry. Therefore, it is important to consider circuit protection measures, such as adding a fuse, in case the IC is operated over
the absolute maximum ratings.
Recommended Operating Ratings
Parameter
Power Supply Voltage
Motor Power Supply Voltage
Control Input Voltage
Logic Input Frequency
Minimum Logic Input Pulse Width
Operating Temperature Range
Symbol
V
CC
V
M
V
IN
F
IN
T
IN
Topr
Min
2.5
1.8
0
0
0.5
-30
Typ
-
-
-
-
-
-
Max
5.5
16.0
V
CC
500
-
+85
Unit
V
V
V
kHz
μs
°C
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/14
TSZ02201-0H3H0B300440-1-2
09.Dec.2015 Rev.002
BD65492MUV
Electrical Characteristics (Unless otherwise specified V
CC
=3.0V, V
M
=5.0V, Ta=25°C)
Parameter
All Circuits
Stand-by Current
Circuit Current 1
Circuit Current 2
Circuit Current 3
PS Input (PS)
High-Level Input Voltage
Low-Level Input Voltage
High-Level Input Current
Low-Level Input Current
High-Level Input Voltage
Low-Level Input Voltage
High-Level Input Current
Low-Level Input Current
UVLO Voltage
Full ON Type H-Bridge Driver
Output ON-Resistance
Turn On Time
Turn Off Time
R
ON
T
ON
T
OFF
-
-
-
0.9
200
80
1.2
400
400
Ω
ns
ns
I
OUT
=±500mA, High & Low-side total
20Ω Loading
20Ω Loading
V
PSH
V
PSL
I
PSH
I
PSL
V
INH
V
INL
I
INH
I
INL
V
UVLO
1.45
0
15
-1
1.45
0
15
-1
2.0
-
-
30
0
-
-
30
0
-
V
CC
0.5
60
+1
V
CC
0.5
60
+1
2.4
V
V
μA
μA
V
V
μA
μA
V
V
IN
=3V
V
IN
=0V
V
PS
=3V
V
PS
=0V
I
CCST
I
CC1
I
CC2
I
CC3
-
0.50
0.50
0.50
0
0.90
0.95
0.95
1
1.25
1.30
1.30
μA
mA
mA
mA
V
PS
=0V
V
PS
=3V, Open Mode
V
PS
=3V, CW & CCW Mode
V
PS
=3V, Short Brake Mode
Symbol
Min
Typ
Max
Unit
Conditions
Control Input (IN=IN1A, IN1B, IN2A, IN2B, PWM)
Under Voltage Locked Out (UVLO)
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
4/14
TSZ02201-0H3H0B300440-1-2
09.Dec.2015 Rev.002
BD65492MUV

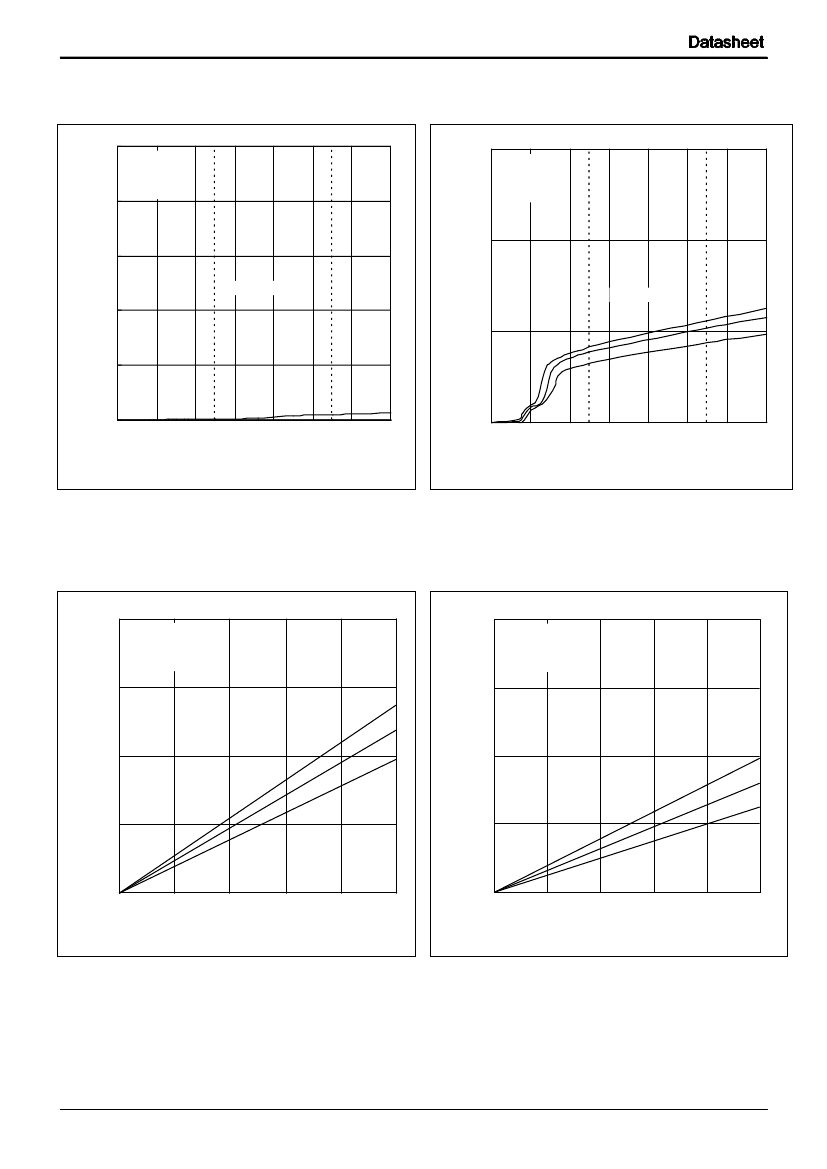

Typical Performance Curves (Reference data)
5.0
Top 85°C
Mid 25°C
Low -30°C
4.0
3.0
Top 85°C
Mid 25°C
Low -30°C
Circuit current : I
CC
[mA]
Circuit current : I
CC
[µA]
2.0
3.0
Operating range
(2.5V to 5.5V)
2.0
Operating range
(2.5V to 5.5V)
1.0
1.0
0.0
0
1
2
3
4
5
6
7
0.0
0
1
2
3
4
5
6
7
Power Supply Voltage : V
CC
[V]
Power Supply Voltage : V
CC
[V]
Figure 1.
Circuit Current vs Power Supply Voltage
(Stand-by Mode)
Figure 2.
Circuit Current vs Power Supply Voltage
(Open Mode)
800
Top 85°C
Mid 25°C
Low -30°C
Output VD S :
DSH
[mV]
V
800
Top 85°C
Mid 25°C
Low -30°C
Output VDS : V
DSL
[mV]
600
600
400
400
200
200
0
0
200
400
600
800
1000
0
0
200
400
600
800
1000
Output Current : I
OUT
[mA]
Output Current : I
OUT
[mA]
Figure 3.
Output VDS vs Power Output Current
(Output On-Resistance on high-side, V
M
=5V, V
CC
=3V)
Figure 4.
Output VDS vs Power Output Current
(Output On-Resistance on low-side V
M
=5V, V
CC
=3V)
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/14
TSZ02201-0H3H0B300440-1-2
09.Dec.2015 Rev.002
