CMZ5334B THRU CMZ5388B
SURFACE MOUNT SILICON
HIGH POWER ZENER DIODES
5.0 WATT, 3.6 THRU 200 VOLT
±5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMZ5334B series
silicon Zener diodes are voltage regulators, manufactured
in an epoxy molded surface mount package, and
designed for use in industrial, commercial, entertainment
and computer applications.
MARKING: SEE MARKING CODE ON
ELECTRICAL CHARACTERISTICS TABLE
SMC CASE
MAXIMUM RATINGS:
SYMBOL
Power Dissipation (TL=50°C)
PD
10
Power Dissipation (TL=100°C)
PD
5.0
Power Dissipation (TA=25°C) (Note 1)
PD
2.0
Operating Junction Temperature
TJ
-65 to +150
Storage Temperature
Tstg
-65 to +200
Thermal Resistance
Θ
JL
10
Thermal Resistance (Note 1)
Θ
JA
62.5
ELECTRICAL CHARACTERISTICS:
(TA=25°C) VF=1.2V MAX @ IF=1.0A (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
CMZ5334B
CMZ5335B
CMZ5336B
CMZ5337B
CMZ5338B
CMZ5339B
CMZ5340B
CMZ5342B
CMZ5343B
CMZ5344B
CMZ5345B
CMZ5346B
CMZ5347B
CMZ5348B
CMZ5349B
CMZ5350B
CMZ5351B
CMZ5352B
CMZ5353B
CMZ5354B
CMZ5355B
CMZ5356B
CMZ5357B
CMZ5358B
3.420
3.705
4.085
4.465
4.845
5.320
5.700
6.460
7.125
7.790
8.265
8.645
9.500
10.45
11.40
12.35
13.30
14.25
15.20
16.15
17.10
18.05
19.00
20.90
VZ @ IZT
NOM
V
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
MAX
V
3.780
4.095
4.515
4.935
5.355
5.880
6.300
7.140
7.875
8.610
9.135
9.555
10.50
11.55
12.60
13.65
14.70
15.75
16.80
17.85
18.90
19.95
21.00
23.10
IZT
mA
350
320
290
264
240
220
200
175
175
150
150
150
125
125
100
100
100
75
75
70
65
65
65
50
ZZT @ IZT
Ω
3.0
2.0
2.0
2.0
2.0
1.0
1.0
1.0
1.5
1.5
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.0
3.5
ZZK @ IZK
mA
Ω
500
500
500
450
400
400
300
200
200
200
200
150
125
125
125
100
75
75
75
75
75
75
75
75
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
IR @ V R
μA
V
150
50
10
10
10
10
10
100
100
100
100
7.5
5.0
5.0
2.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.0
1.0
2.0
3.0
5.2
5.7
6.2
6.6
6.9
7.6
8.4
9.1
9.9
10.6
11.5
12.2
12.9
13.7
14.4
15.2
16.7
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
MAXIMUM
REVERSE
CURRENT
MAXIMUM
SURGE
CURRENT
(Note 2)
ir
A
18.7
17.6
16.4
15.3
14.4
13.4
12.7
11.5
10.7
10.0
7.5
9.2
8.6
8.0
7.5
7.0
6.7
6.3
6.0
5.8
5.5
5.3
5.1
4.7
UNITS
W
W
W
°C
°C
°C/W
°C/W
MAXIMUM
REGULATOR
CURRENT
(TL=75°C)
IZM
mA
1320
1220
1100
1010
930
865
790
700
630
580
545
520
475
430
395
365
340
315
295
280
264
250
237
216
C5334B
C5335B
C5336B
C5337B
C5338B
C5339B
C5340B
C5342B
C5343B
C5344B
C5345B
C5346B
C5347B
C5348B
C5349B
C5350B
C5351B
C5352B
C5353B
C5354B
C5355B
C5356B
C5357B
C5358B
MARKING
CODE
R16 (15-March 2017)
CMZ5334B THRU CMZ5388B
SURFACE MOUNT SILICON
HIGH POWER ZENER DIODES
5.0 WATT, 3.6 THRU 200 VOLT
±5% TOLERANCE
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C) VF=1.2V MAX @ IF=1.0A (for all types)
ZENER
VOLTAGE
TYPE
MIN
CMZ5359B
CMZ5360B
CMZ5361B
CMZ5362B
CMZ5363B
CMZ5364B
CMZ5365B
CMZ5366B
CMZ5367B
CMZ5368B
CMZ5369B
CMZ5370B
CMZ5371B
CMZ5372B
CMZ5373B
CMZ5374B
CMZ5375B
CMZ5376B
CMZ5377B
CMZ5378B
CMZ5379B
CMZ5380B
CMZ5381B
CMZ5382B
CMZ5383B
CMZ5384B
CMZ5385B
CMZ5386B
CMZ5387B
CMZ5388B
V
22.80
23.75
25.65
26.60
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
57.00
58.90
64.60
71.25
77.90
82.65
86.45
95.00
104.5
114.0
123.5
133.0
142.5
152.0
161.5
171.0
180.5
190.0
VZ @ IZT
NOM
V
24
25
27
28
30
33
36
39
43
47
51
56
60
62
68
75
82
87
91
100
110
120
130
140
150
160
170
180
190
200
MAX
V
25.20
26.25
28.35
29.40
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
63.00
65.10
71.40
78.75
86.10
91.35
95.55
105.0
115.5
126.0
136.5
147.0
157.5
168.0
178.5
189.0
199.5
210.0
IZT
mA
50
50
50
50
40
40
30
30
30
25
25
20
20
20
20
20
15
15
15
12
12
10
10
8.0
8.0
8.0
8.0
5.0
5.0
5.0
ZZT @ IZT
Ω
3.5
4.0
5.0
6.0
8.0
10
11
14
20
25
27
35
40
42
44
45
65
75
75
90
125
170
190
230
330
350
380
430
450
480
ZZK @ IZK
mA
Ω
100 1.0
110
120
130
140
150
160
170
190
210
230
280
350
400
500
620
720
760
760
800
1000
1150
1250
1500
1500
1650
1750
1750
1850
1850
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
IR @ VR
μA
V
0.5
18.2
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
19.0
20.6
21.2
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
45.5
47.1
51.7
56.0
62.2
66.0
69.2
76.0
83.6
91.2
98.8
106
114
122
129
137
144
152
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
MAXIMUM
REVERSE
CURRENT
MAXIMUM
SURGE
CURRENT
(Note 2)
ir
A
4.4
4.3
4.1
3.9
3.7
3.5
3.3
3.1
2.8
2.7
2.5
2.3
2.2
2.1
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.2
1.1
1.1
1.0
1.0
0.9
0.9
MAXIMUM
REGULATOR
CURRENT
(TL=75°C)
IZM
mA
198
190
176
170
158
144
132
122
110
100
93.0
86.0
79.0
76.0
70.0
63.0
58.0
54.5
52.5
47.5
43.0
39.5
36.6
34.0
31.6
29.4
28.0
26.4
25.0
23.6
C5359B
C5360B
C5361B
C5362B
C5363B
C5364B
C5365B
C5366B
C5367B
C5368B
C5369B
C5370B
C5371B
C5372B
C5373B
C5374B
C5375B
C5376B
C5377B
C5378B
C5379B
C5380B
C5381B
C5382B
C5383B
C5384B
C5385B
C5386B
C5387B
C5388B
MARKING
CODE
Notes: (1) Mounted on 2 inch square FR-4 PCB with minimum recommended SMC copper pad area.
(2) Surge Current (ir) - Maximum allowable peak, non-recurrent square wave current (tp=8.3ms).

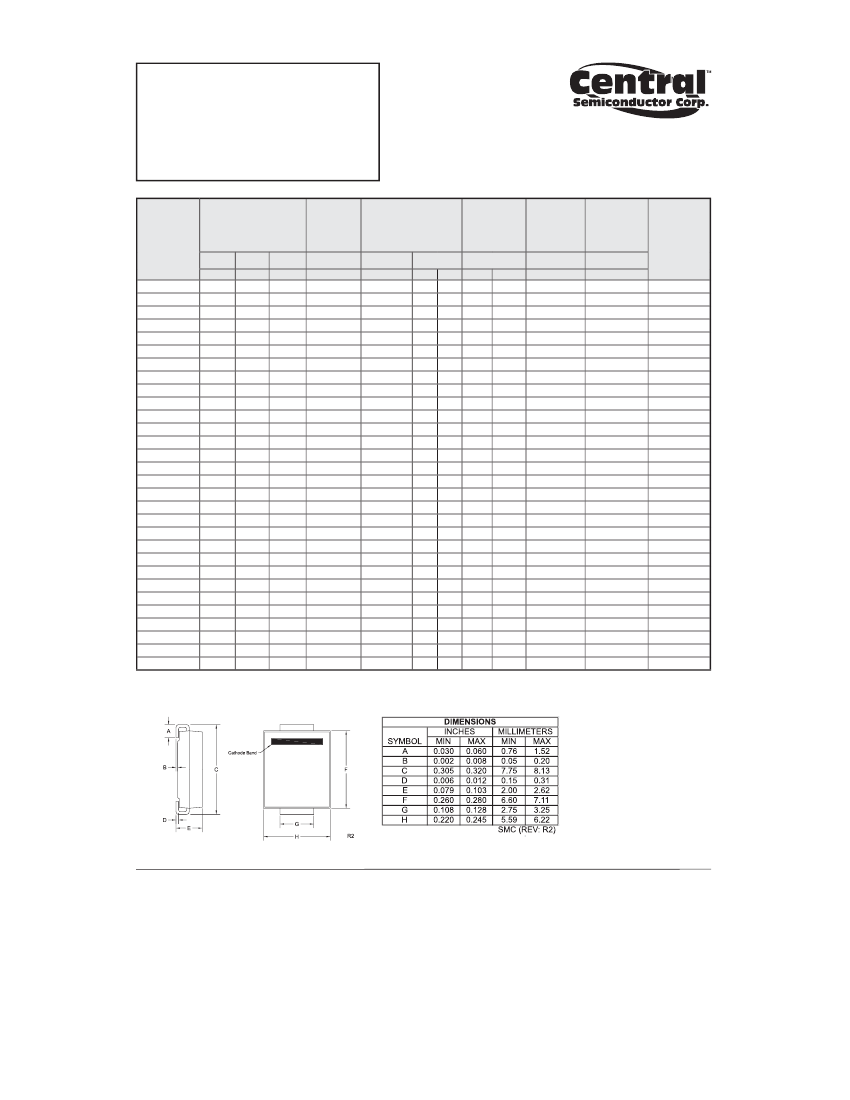

SMC CASE - MECHANICAL OUTLINE
R16 (15-March 2017)
w w w. c e n t r a l s e m i . c o m
CMZ5334B THRU CMZ5388B
SURFACE MOUNT SILICON
HIGH POWER ZENER DIODES
5.0 WATT, 3.6 THRU 200 VOLT
±5% TOLERANCE

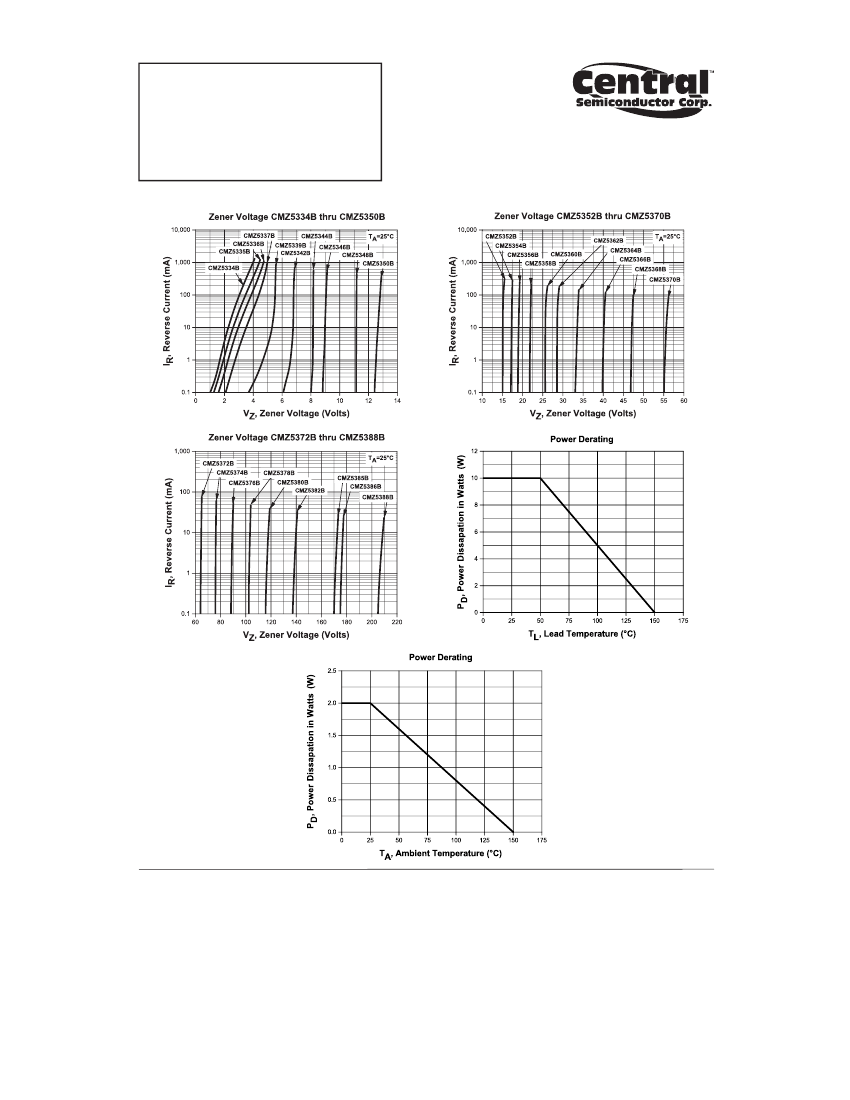

TYPICAL ELECTRICAL CHARACTERISTICS
Note: Mounted on 2 inch square FR-4
PCB with minimum recommended SMC
copper pad area.
R16 (15-March 2017)
w w w. c e n t r a l s e m i . c o m
OUTSTANDING SUPPORT AND SUPERIOR SERVICES
PRODUCT SUPPORT
Central’s operations team provides the highest level of support to insure product is delivered on-time.
• Supply management (Customer portals)
• Custom bar coding for shipments
• Inventory bonding
• Custom product packing
• Consolidated shipping options
DESIGNER SUPPORT/SERVICES
Central’s applications engineering team is ready to discuss your design challenges. Just ask.
• Free quick ship samples (2
nd
day air)
• Special wafer diffusions
• Online technical data and parametric search
• PbSn plating options
• SPICE models
• Package details
• Custom electrical curves
• Application notes
• Environmental regulation compliance
• Application and design sample kits
• Customer specific screening
• Custom product and package development
• Up-screening capabilities
REQUESTING PRODUCT PLATING
1.
2.
If requesting Tin/Lead plated devices, add the suffix “ TIN/LEAD” to the part number when
ordering (example: 2N2222A TIN/LEAD).
If requesting Lead (Pb) Free plated devices, add the suffix “ PBFREE” to the part number
when ordering (example: 2N2222A PBFREE).
CONTACT US
Corporate Headquarters & Customer Support Team
Central Semiconductor Corp.
145 Adams Avenue
Hauppauge, NY 11788 USA
Main Tel: (631) 435-1110
Main Fax: (631) 435-1824
Support Team Fax: (631) 435-3388
www.centralsemi.com
Worldwide Field Representatives:
www.centralsemi.com/wwreps
Worldwide Distributors:
www.centralsemi.com/wwdistributors
For the latest version of Central Semiconductor’s
LIMITATIONS AND DAMAGES DISCLAIMER,
which is part of Central’s Standard Terms and Conditions of sale, visit: www.centralsemi.com/terms
w w w. c e n t r a l s e m i . c o m
(001)
http://www.centralsemi.com
PDN01081
4/30/18
10/30/18
4/30/19
Summary:All low voltage Zener diodes, less than 5.6V, in the SMA, SMB and SMC case types are discontinued and now classified as End
of Life (EOL).
Although Central Semiconductor Corp. makes every effort to continue to produce devices that have been proclaimed EOL (End of Life) by
other manufacturers, it is an accepted industry practice to discontinue certain devices when customer demand falls below a minimum level of
sustainability. Accordingly, the following product(s) have been transitioned to End of Life status as part of Central's ongoing Product
Management Process. Any replacement products are noted below. The effective date for placing last purchase orders will be six (6) months
from the date of this notice and twelve (12) months from the notice date for final shipments, and minimum order quantities may apply.
The last purchase and shipment dates may be extended if inventory is available.
Central Part Number
CMZ5334B BK
CMZ5334B TR13
CMZ5335B BK
CMZ5335B TR13
CMZ5336B BK
CMZ5336B TR13
CMZ5337B BK
CMZ5337B TR13
CMZ5338B BK
CMZ5338B TR13
CMZ5913B BK
CMZ5913B TR13
CMZ5914B BK
CMZ5914B TR13
CMZ5914BP BK
CMZ5914BP TR13
CMZ5915B BK
CMZ5915B TR13
CMZ5915BP TR13
CMZ5916B BK
CMZ5916B TR13
CMZ5916BP TR13
CMZ5917B BK
CMZ5917B TR13
CMZ5917BP BK
CMZ5917BP TR13
CMZ5918B BK
CMZ5918B TR13
CMZ5918BP BK
CMZ5918BP TR13
Replacement
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Central would be happy to assist you by providing additional information or technical data to help locate an alternate source if we
have no replacement available. Please email your requests to engineering@centralsemi.com.
Domestic Chip Exchange
京公网安备 11010802033920号
EEWORLD
