MJTP1162TR Overview

Tactile Switches Tact Switch, SMD .102"

MJTP1162TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator material	NYLON
Actuator type	PLUNGER TYPE
body width	6.2 mm
body height	2.6 mm
Body length or diameter	6.2 mm
Center contact plating	SILVER
Circuit configuration	1X1
Maximum contact bounce time	10 ms
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	100000 Cycle(s)
End contact plating	SILVER
Shell material	NYLON
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	MJTP
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	1.86 N
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

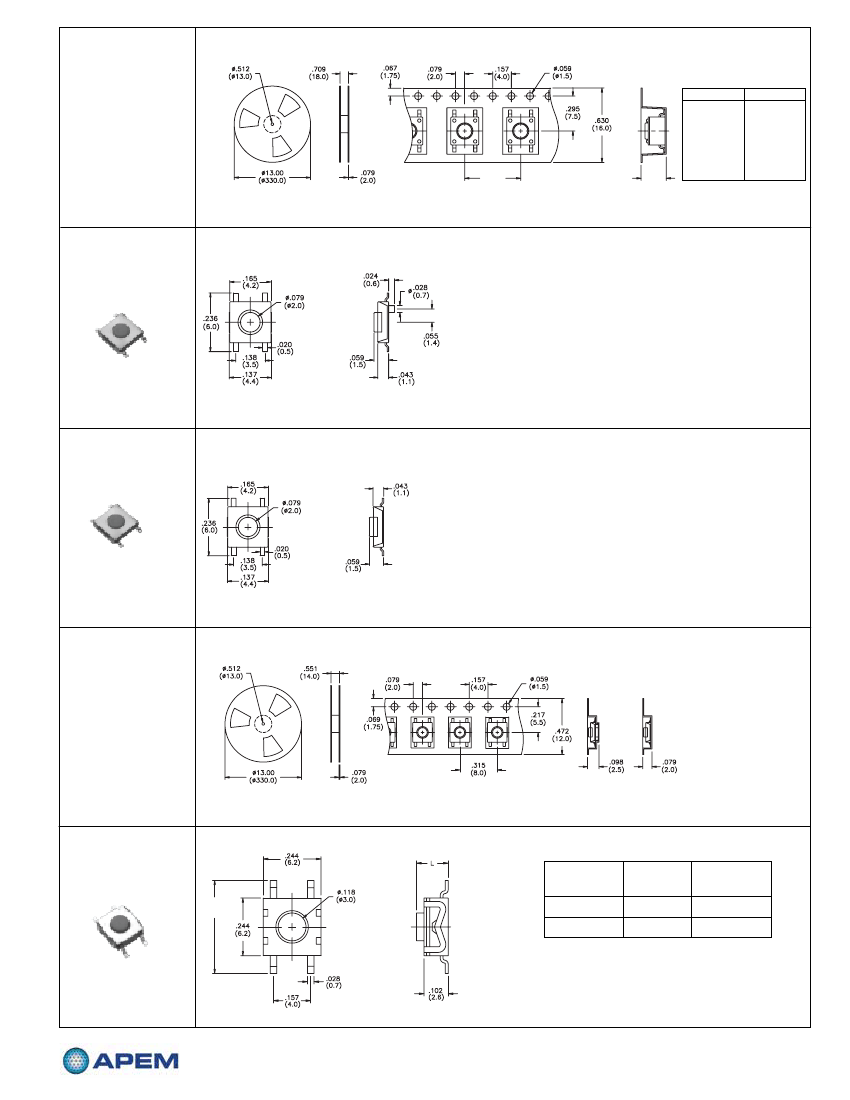

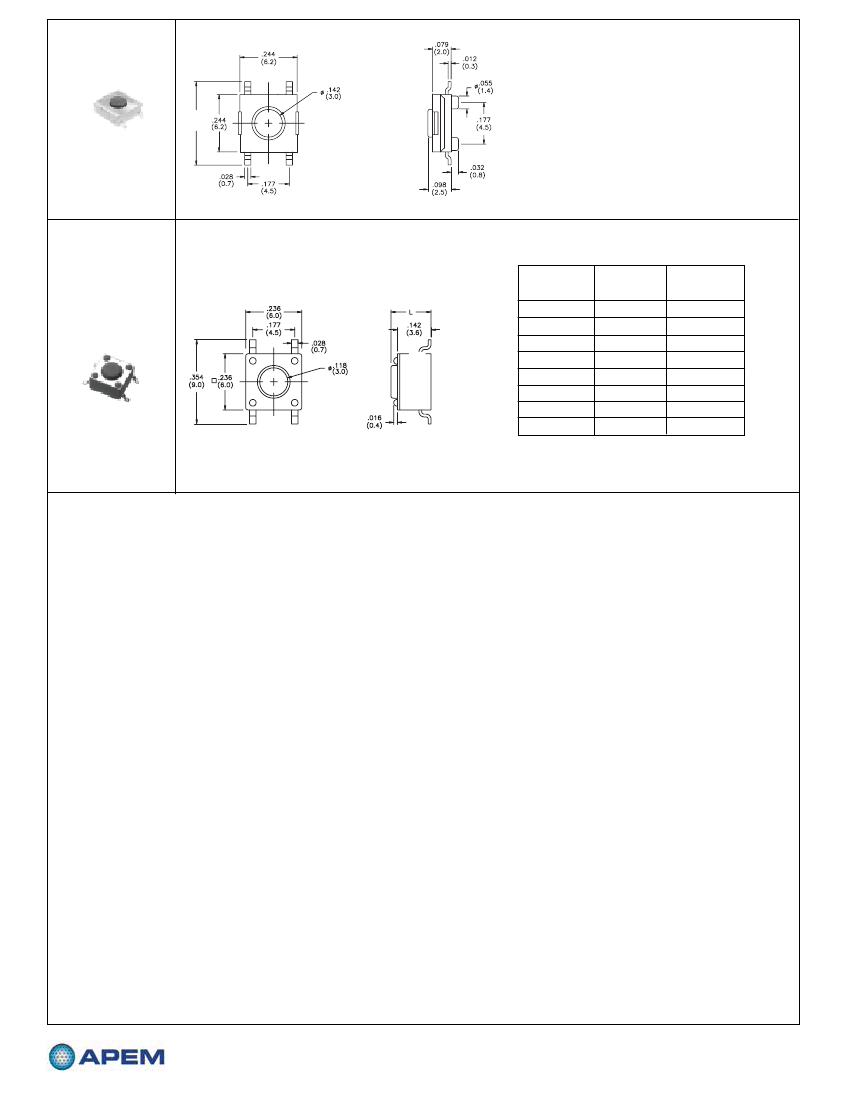

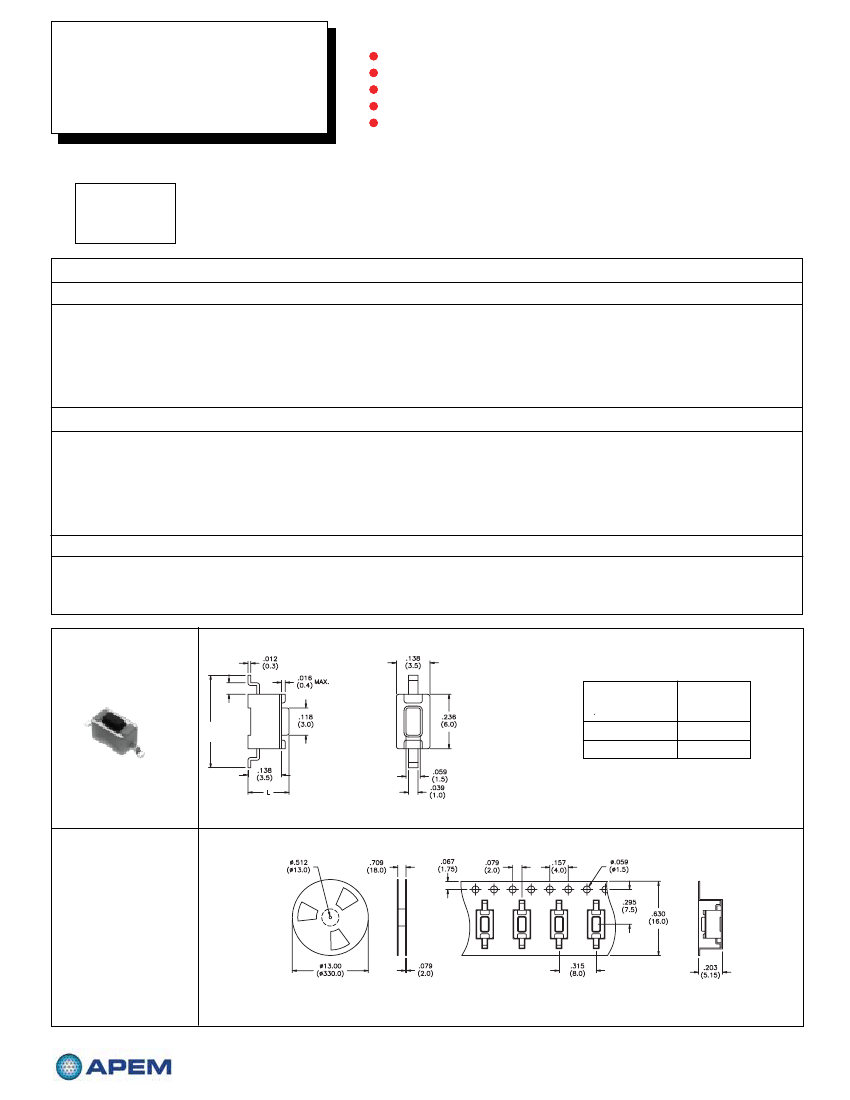

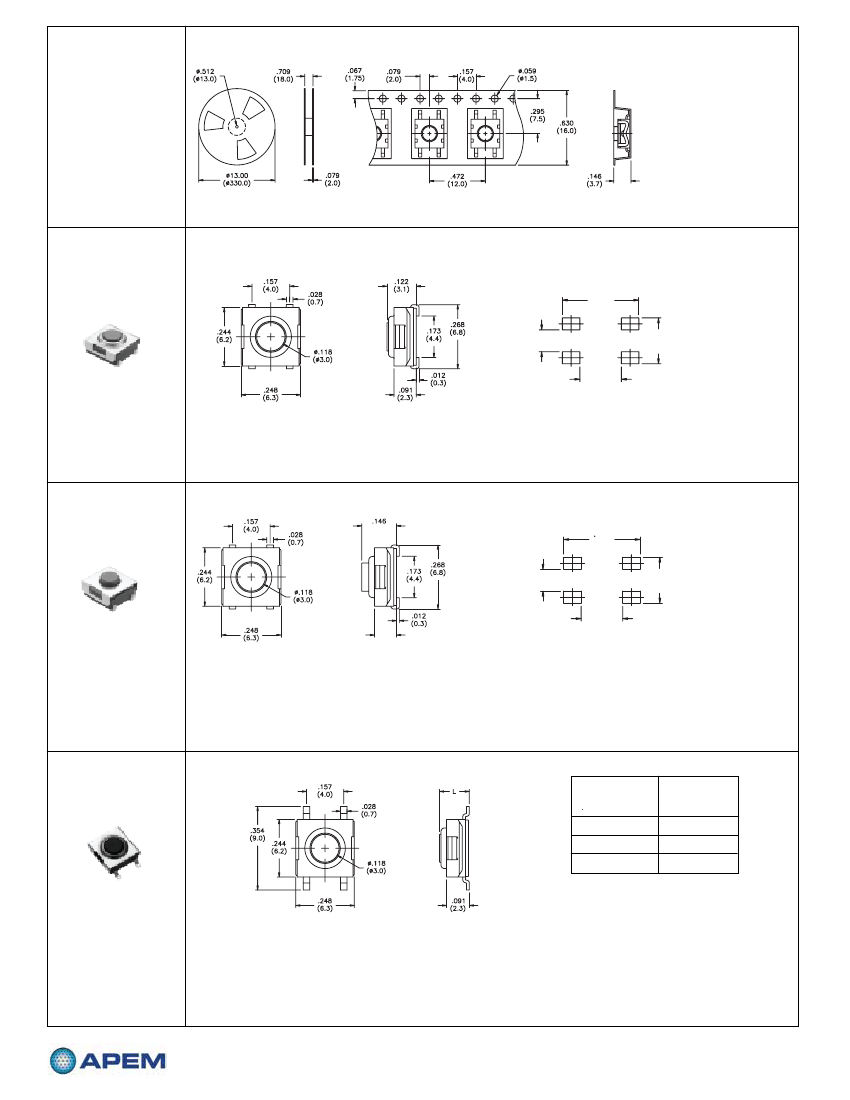

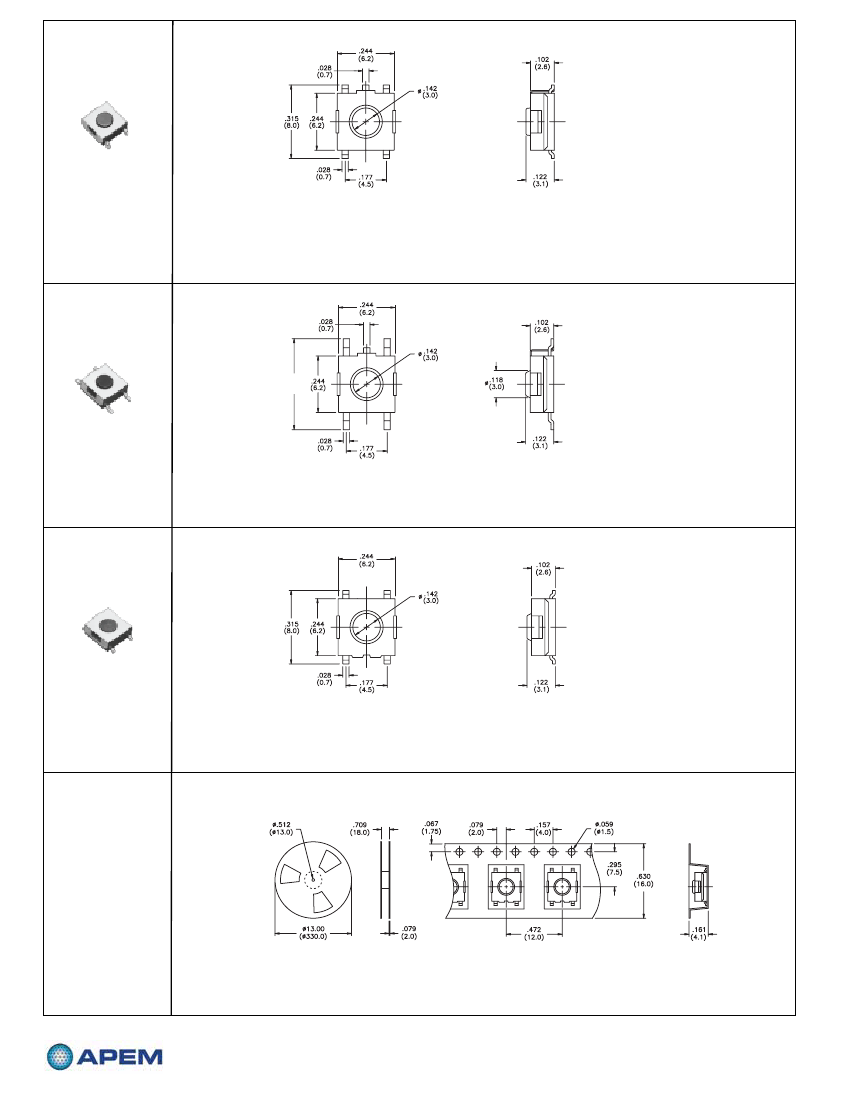

MJTP SERIES

6MM & 4MM SMD

TACT SWITCHES

MATERIALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

Numerous single pole-single throw momentary configurations.

Excellent tactile feed-back (Snap dome).

Ultra-compact size.

Long operating life for high reliability.

Molded-in terminals minimize wicking of flux or solder.

Gold plating avail-

able on contacts &

terminals

- consult factory.

Case:

High temperature 4/6 nylon.

Actuator:

High temperature 4/6 nylon.

Cover/Bracket: PET film, tin plated brass or stainless steel.

Terminals:

Silver plated brass.

Shorting Contact: Phosphor bronze or stainless steel with silver plating.

L.E.D. rating:

Forward voltage- 2.1 V (3.0 V Max.). Cont. fwd. current 20mA max.@ 25°C.

GENERAL SPECIFICATIONS

ELECTRICALS

Contact rating:

Insulation resistance:

Dielectric withstanding voltage:

Contact resistance:

Electrical life:

Contact bounce:

Plunger travel:

Actuation force:

Operating temperature range:

Storage temperature range:

Shock resistance:

Vibration resistance:

50 mA @ 12 VDC

100 megohms min. (100 VDC)

250 VAC for 1 minute

100 milliohms max. @ 5 VDC, 10 mA

100,000 cycles min. (1,000,000 cycles available - consult factory)

less than 10 msec.

.010"+ .008", - .004" (0,25 +0,2, -0,1 mm)

160 grams ±30 grams

-20°C to +70°C

-30°C to +80°C for 96 hours

30G per method 213, MIL-STD-202

passes method 201, MIL-STD-202

MECHANICALS, THERMALS, ENVIRONMENTALS

SOLDERING

(note - non-washable except for models indicated as 'process compatible').

IR reflow soldering:

240°C max. for 20 seconds max.

Wave soldering:

255°C max. for 5 seconds max.

Hand soldering:

320°C max. for 3.5 seconds max. (40 watt iron max.)

US # MJTP1106S

US Model

.354

(9.0)

.039

(1.0)

Dim.

(in./mm)

.169 (4,3)

.197 (5,0)

No.

MJTP1106S

MJTP1106SA

Bulk packaged.

US # MJTP1106SATR

Same as above,

except supplied

on tape and reel

as shown.

Tape & reel packaging - quantity 1800 per reel.
